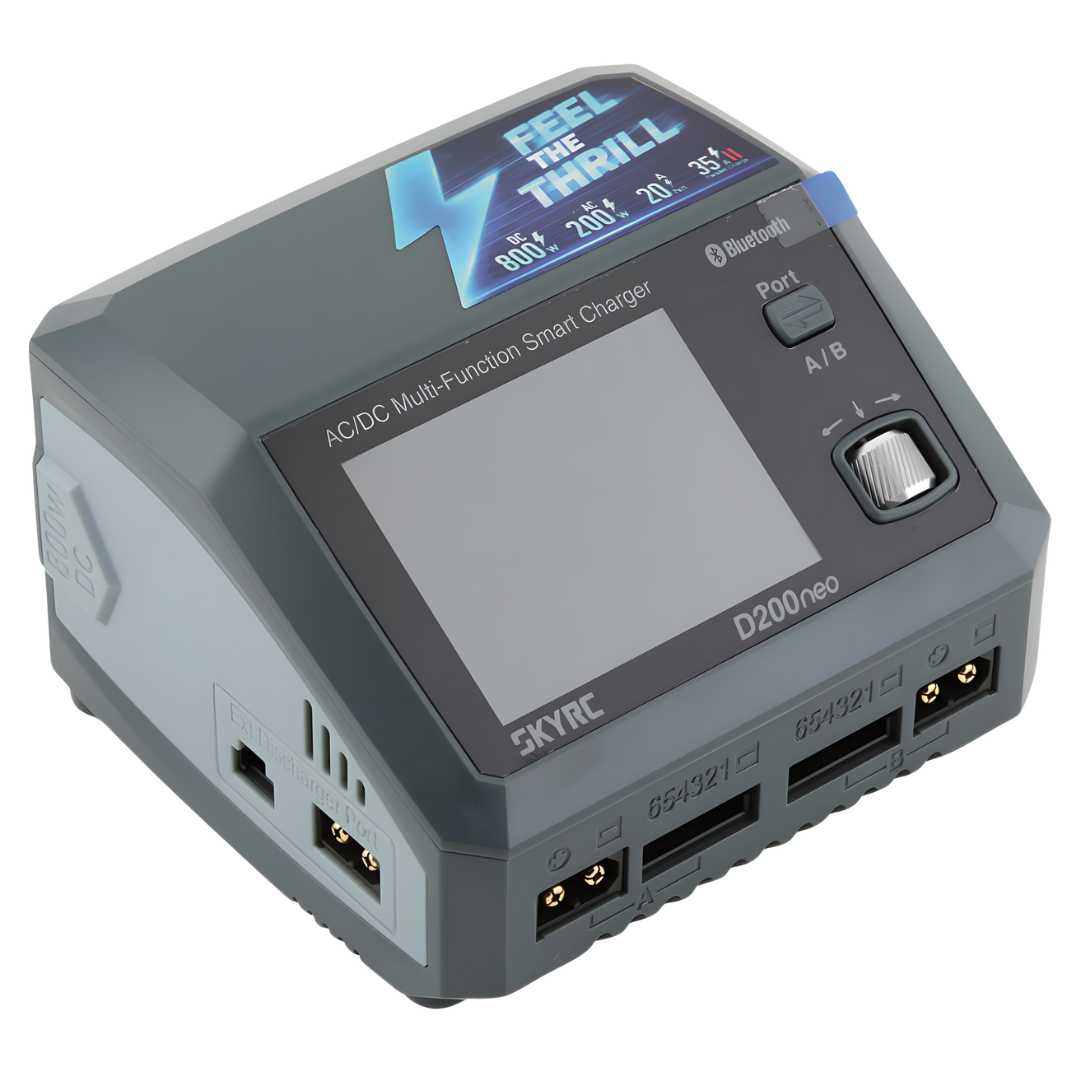

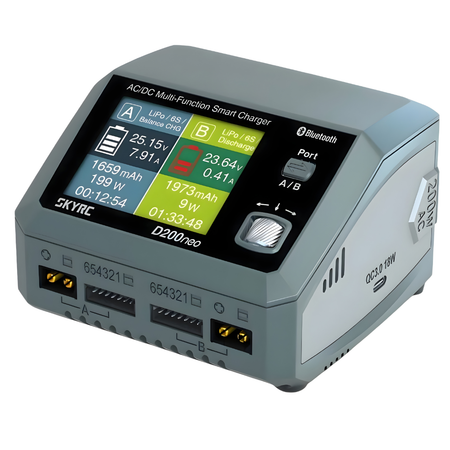

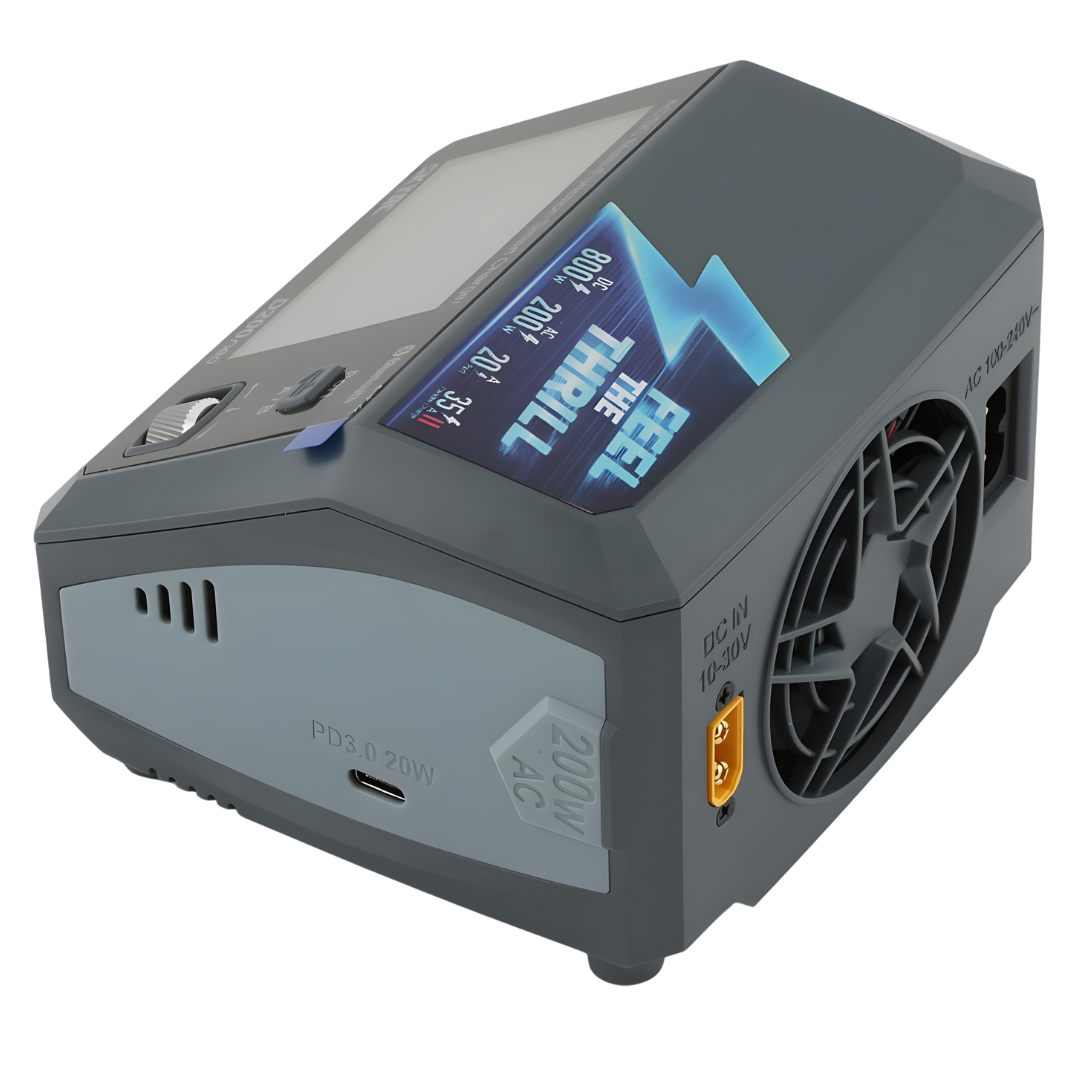

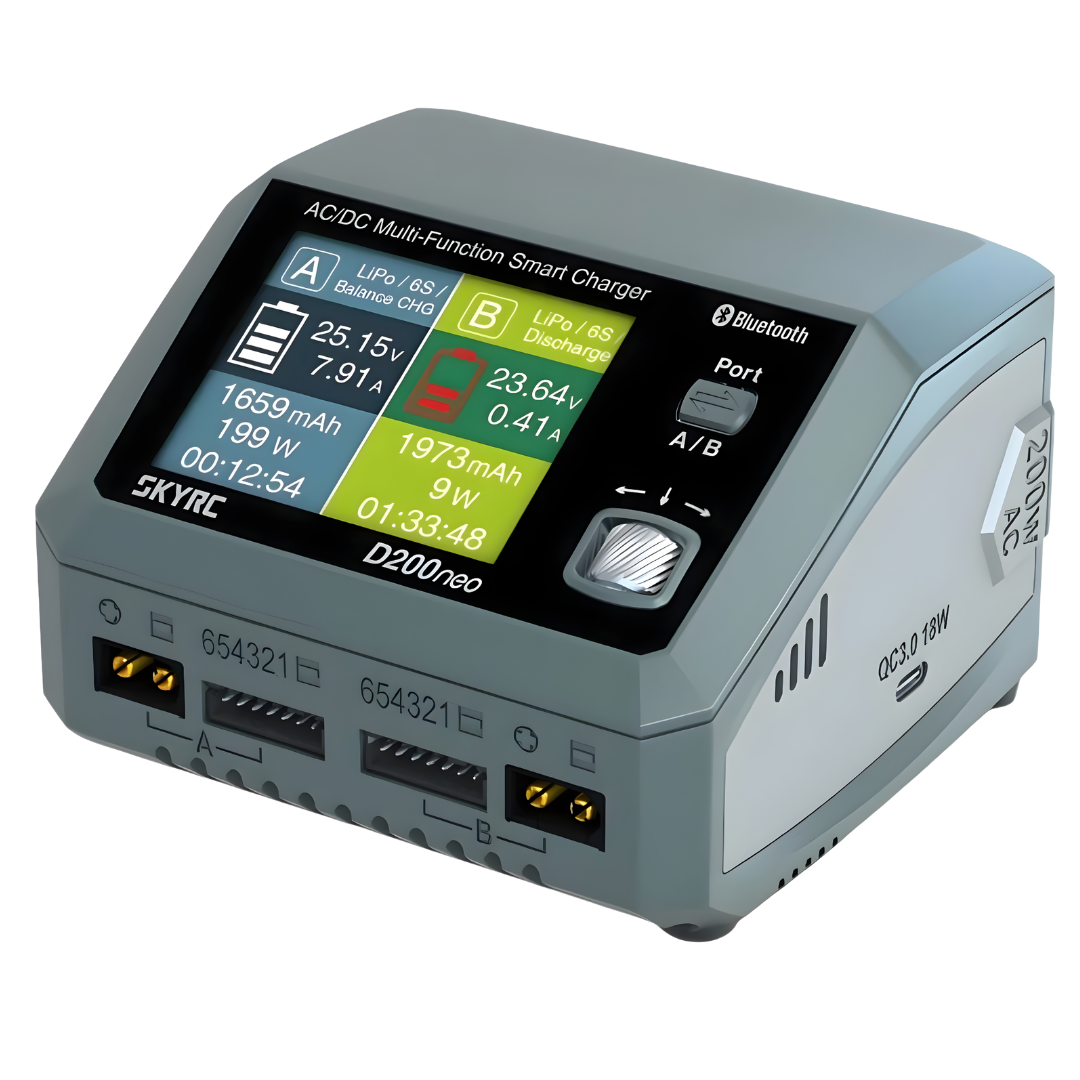

SkyRC D200 Neo Duo Smart Charger 200W AC 800W DC Balance Charger SK-100196

The SkyRC D200 Neo Duo Smart Charger is a dual-channel balance charger designed for RC enthusiasts who need fast, accurate and safe charging for a wide range of battery chemistries. Intelligent power distribution, dual independent outputs and high DC charging power make it suitable for charging multiple battery packs efficiently.

Features

• Dual Channel Charging: Charges two batteries independently at the same time
• High Output Power: Delivers up to 200W on AC input and 800W on DC input
• Intelligent Power Distribution: Automatically allocates available charging power between both channels
• Parallel Charging Support: Provides up to 35A charging current when operating in parallel mode
• ARM Cortex M4 Processor: Delivers precise charging control and efficient battery management
• 2.8 Inch Colour Display: Clear interface with intuitive scroll control for easy operation
• USB-C Connectivity: Supports firmware updates and compatible device charging
• Comprehensive Safety Protection: Includes short circuit, overload and reverse polarity protection

Specifications

• Brand: SkyRC
• Model: D200 Neo Duo Smart Charger
• Part Number: SK-100196
• Product Type: Dual-channel balance battery charger
• AC Input Voltage: 100–240V
• DC Input Voltage: 10–30V
• Charge Power: 200W AC / 800W DC
• Charge Current: 0.1A–20A per channel, up to 35A in parallel mode
• Discharge Current: 0.1A–2A, up to 40A with an external discharger
• Balance Current: Up to 1.5A per cell
• Supported Battery Types: LiPo, LiHV, LiFe, LiIon (1–6S), NiMH, NiCd (4–15 cells) and Pb batteries
• Display: 2.8 inch colour LCD, 240 × 320 resolution
• Dimensions: 116 × 110 × 79mm
• Weight: 602g

Includes

• 1 x SkyRC D200 Neo Duo Smart Charger

FAQ

Can the SkyRC D200 Neo charge two batteries at the same time? Yes. The D200 Neo features two independent charging channels, allowing two compatible battery packs to be charged simultaneously.

What battery types does the SkyRC D200 Neo support? The charger supports LiPo, LiHV, LiFe, LiIon (1–6S), NiMH, NiCd (4–15 cells) and lead-acid (Pb) batteries.

Can the charger operate from both AC and DC power? Yes. It operates from 100–240V AC mains power or a 10–30V DC power source, with higher charging output available when using DC input.

Important Notes

• Always select the correct battery chemistry and cell count before charging.
• Maximum 800W charging output is available only when powered by a suitable DC power source.
• External discharger required to achieve up to 40A discharge capability.
