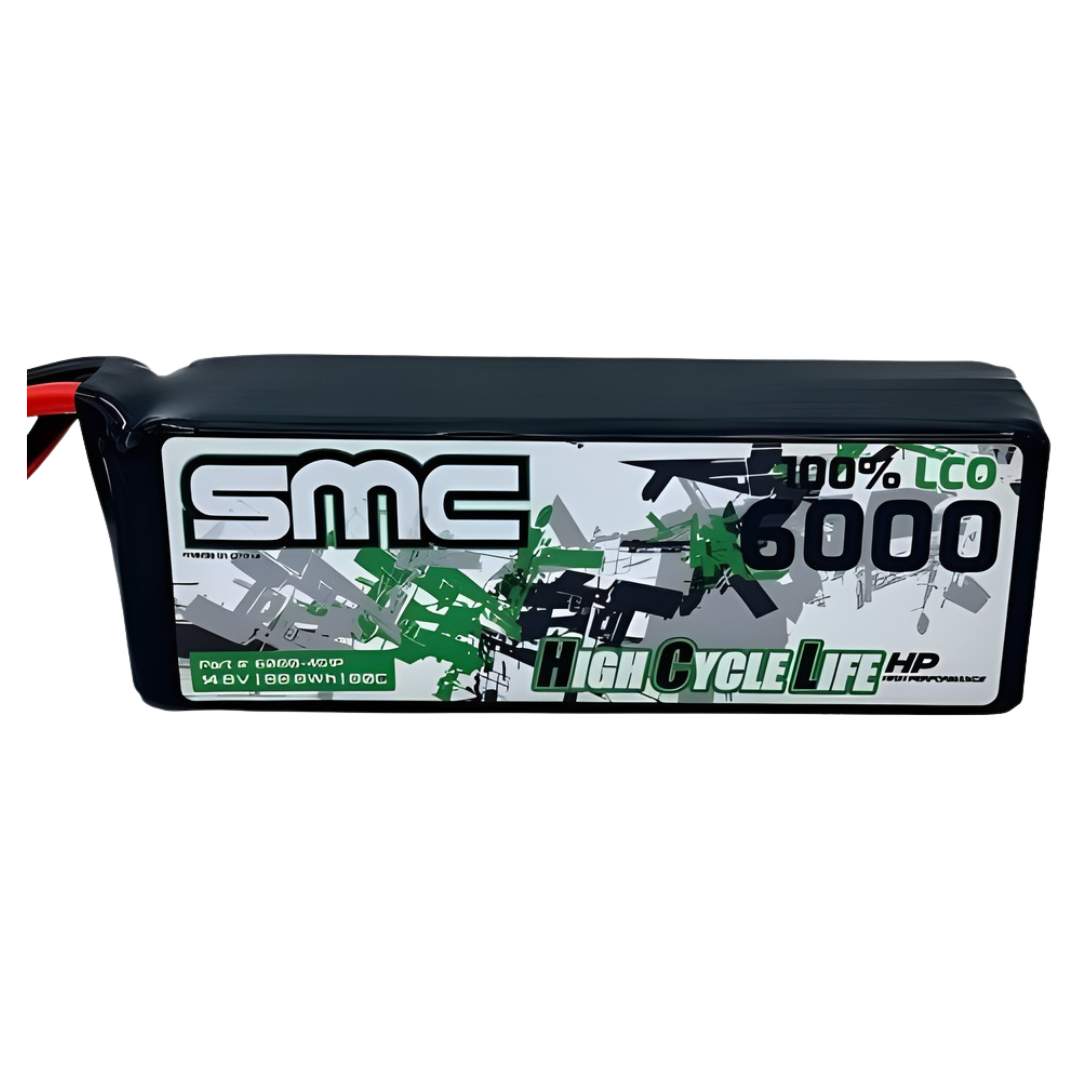

SMC HCL-HP 4S 6000mAh 80C Flight LiPo XT90 SMC-6080-4S1P-XT90
Couldn't load pickup availability
The SMC HCL-HP 4S 6000mAh 80C flight LiPo battery is designed for compatible RC aircraft and high-performance RC applications needing 14.8V power, useful capacity and an XT90 connector.
This HCL-HP flight pack uses 100% LCO cathodes, 10AWG wiring and G10 top and bottom protection plates to support consistent current delivery in suitable 4S LiPo setups.
Features
- 6000mAh capacity provides useful runtime for compatible 4S RC applications
- 14.8V 4S LiPo configuration suits models designed to safely run 4S power
- 80C factory discharge rating supports strong current delivery under load
- 100% LCO cathodes are used for performance and cycle life
- G10 top and bottom plates add protection to the flight pack construction
- 10AWG wire supports high-current RC power setups
- XT90 connector provides a secure high-current battery connection
- Standard LiPo cell voltage must be charged to 4.20V per cell, not LiHV voltage
Specifications
- Brand: SMC
- Model: HCL-HP
- SKU / Part Number: SMC-6080-4S1P-XT90
- Manufacturer Product Code: 6080-4S1P
- Product Type: Flight LiPo battery
- Battery Type: LiPo
- Voltage: 14.8V
- Cell Count: 4S
- Configuration: 4S1P
- Capacity: 6000mAh ±5%
- Factory C Rate: 80C
- Power Factor: 397
- Charge Rate: 1C to 5C
- Connector Type: XT90
- Wire Gauge: 10AWG
- Construction: G10 bottom and top plates
- Dimensions: 36 x 51 x 150mm
- Weight: 574g
Includes
- 1 x SMC HCL-HP 14.8V 6000mAh 80C 4S flight LiPo battery with XT90 connector
FAQ
Is this a hardcase battery? No. SMC lists the SMC-6080-4S1P-XT90 as a flight pack with G10 bottom and top plates, not as a moulded hardcase battery.
Is this a LiHV battery? No. This SMC pack uses standard LiPo cells and must be charged to 4.20V per cell.
What charger is required? A suitable LiPo balance charger capable of charging 4S LiPo batteries is required.
Will this fit my RC vehicle or aircraft? This battery should only be used in models designed for 14.8V 4S LiPo power with enough space for a 36 x 51 x 150mm pack and a compatible XT90 connector setup.
Important Notes
- Confirm your RC model supports 14.8V 4S LiPo power before installation.
- Check the battery compartment dimensions before purchase to ensure the 36 x 51 x 150mm pack will fit.
- Use only with a suitable 4S LiPo balance charger.
- Do not charge this standard LiPo pack above 4.20V per cell.
- Charging above 1C may reduce the amount of mAh accepted by the pack and may reduce cycle life.
- Always follow safe LiPo charging, storage and handling practices.
