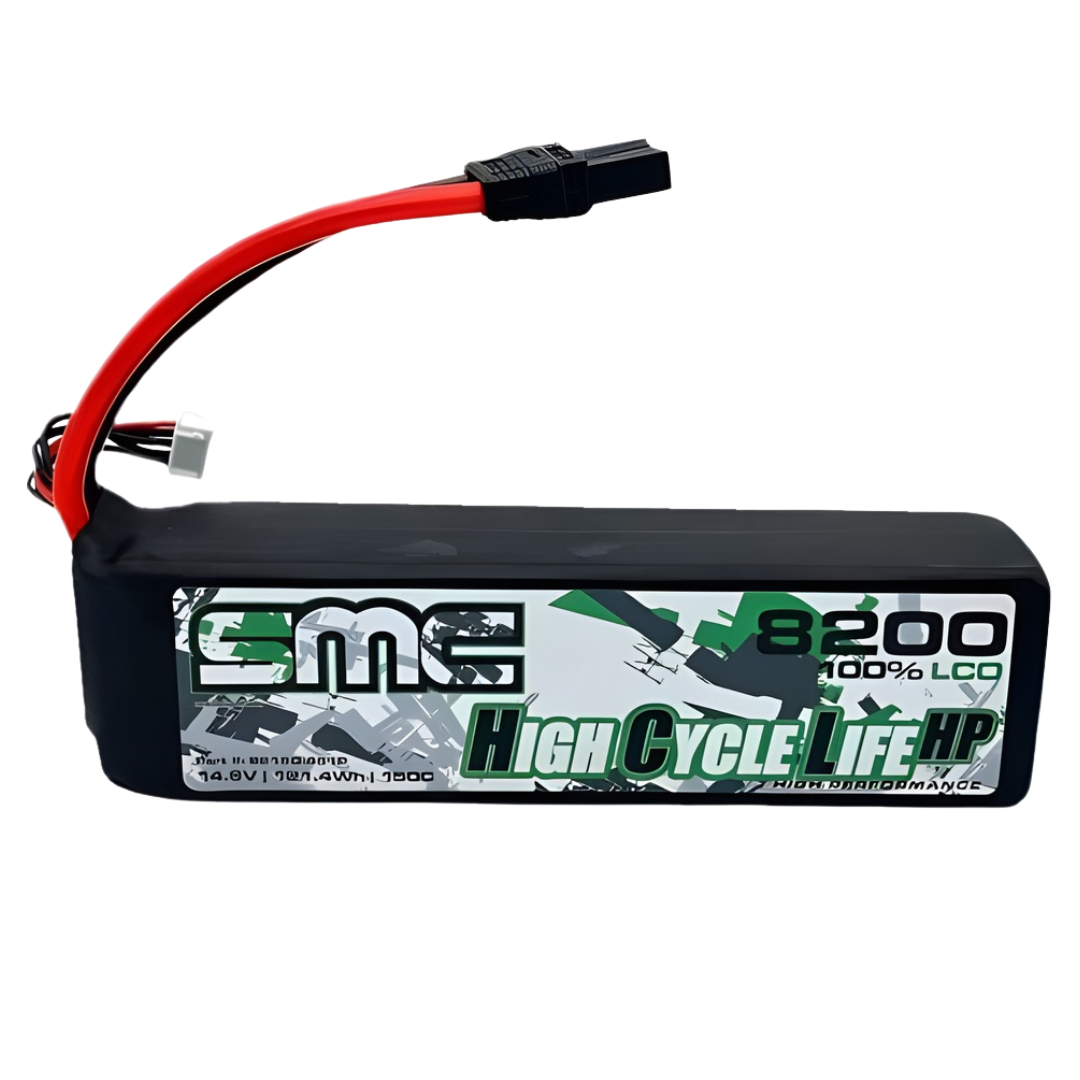

SMC HCL-HP 4S 8200mAh 150C LiPo Battery XT90

The SMC HCL-HP 4S 8200mAh 150C LiPo battery is designed for compatible high-performance RC cars, trucks and boats needing 14.8V power, extended runtime and an XT90 connector.

This HCL-HP series pack uses 100% LCO cathodes, low internal resistance cells, five G10 protection plates and rubber-style shrink wrapping to support reliable current delivery in demanding RC applications.

Features

• 8200mAh capacity provides extended runtime for compatible RC cars, trucks and boats
• 14.8V 4S LiPo configuration suits RC models designed to safely run 4S power
• 150C discharge rating supports strong current delivery for high-load RC use
• Five G10 protection plates add structural support around the battery pack
• Rubber-style shrink wrapping helps protect the pack during normal RC use
• 100% LCO cathodes are used for consistent performance and cycle life
• Low internal resistance helps support efficient power delivery and reduced heat build-up
• 10AWG wiring suits high-current RC battery applications
• XT90 connector provides a secure high-current battery connection
• Listed fitment includes Traxxas Maxx V2 and Traxxas X-Maxx when the battery tray and connector setup are suitable

Specifications

• Brand: SMC
• Model: HCL-HP
• SKU / Part Number: SMC-82150-4S1P-XT90
• Manufacturer Product Code: 82150-4S1P
• Product Type: 4S LiPo battery
• Battery Type: LiPo
• Voltage: 14.8V
• Cell Count: 4S
• Configuration: 4S1P
• Capacity: 8200mAh ±5%
• Discharge Rating: 150C
• Charge Rate: 1C to 5C
• Connector Type: XT90
• Wire Gauge: 10AWG
• Construction: Five G10 protection plates with rubber-style shrink wrap
• Dimensions: 42 x 48 x 180mm
• Weight: 778g
• Known Compatibility: Traxxas Maxx V2 and Traxxas X-Maxx

Includes

• 1 x SMC HCL-HP 14.8V 8200mAh 150C 4S LiPo battery with XT90 connector

FAQ

Does this battery fit the Traxxas X-Maxx? Yes. This SMC 4S 8200mAh LiPo battery is listed as fitting the Traxxas X-Maxx, but OZRC recommends checking connector setup and battery tray clearance before installation.

Does this battery fit the Traxxas Maxx V2? Yes. This battery is listed as fitting the Traxxas Maxx V2 when the vehicle is set up for a 4S LiPo pack with an XT90 connector or matching connector setup.

What charger is required? A suitable LiPo balance charger capable of charging 4S LiPo batteries is required.

Can this battery be charged above 1C? The stated charge rate is 1C to 5C, but higher charge rates may reduce the amount of mAh accepted by the pack and may reduce cycle life.

Important Notes

• Confirm your RC model supports 14.8V 4S LiPo power before installation.
• Check your battery tray dimensions before purchase to ensure the 42 x 48 x 180mm pack will fit.
• Use only with a suitable 4S LiPo balance charger.
• Always follow safe LiPo charging, storage and handling practices.
• Monitor battery temperature during use and charging, and do not overcharge or over-discharge the pack.
