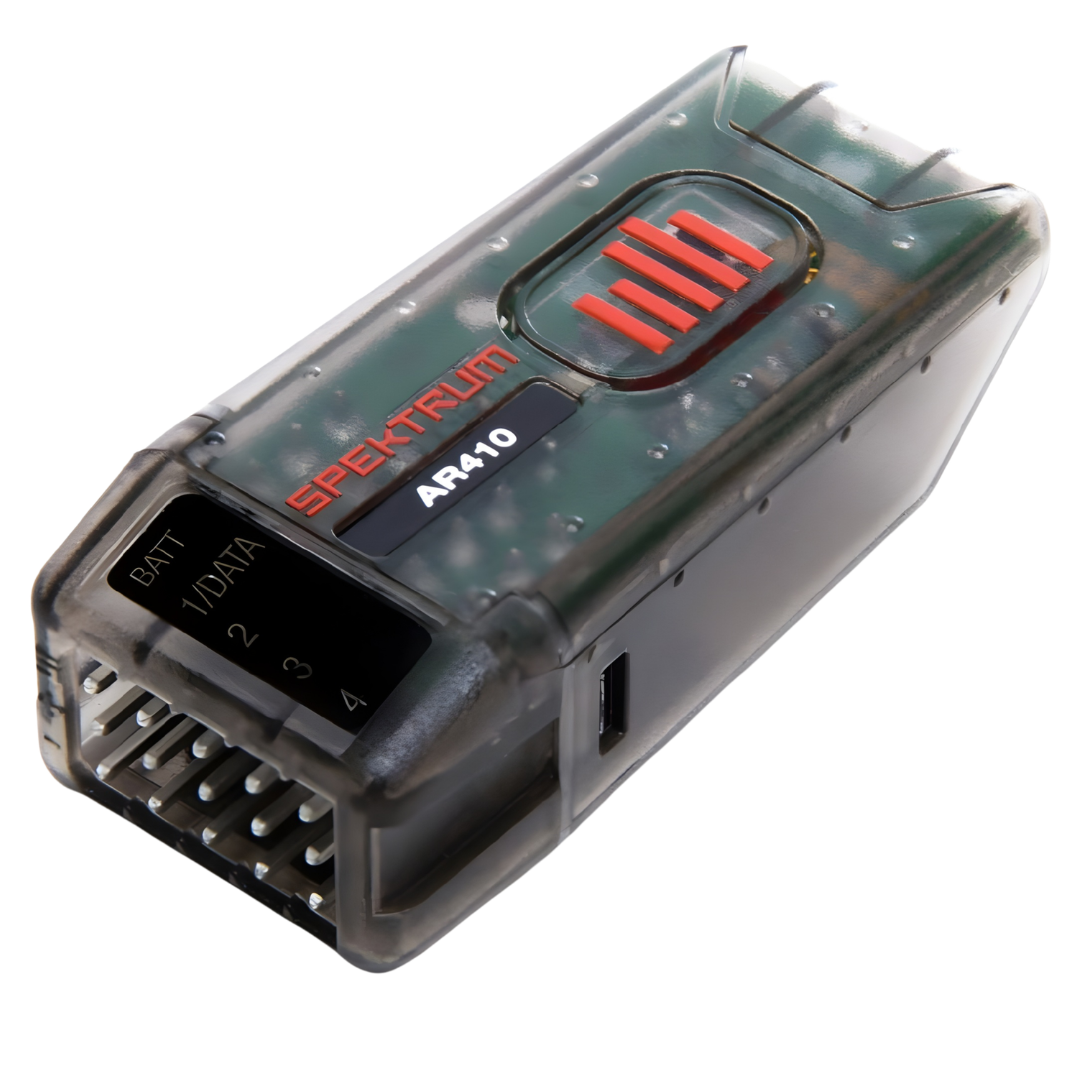

Spektrum AR410 DSMX 4-Channel Sport Aircraft Receiver SPMAR410

The Spektrum SPMAR410 AR410 is a compact full-range 4-channel sport aircraft receiver designed for electric and engine-powered RC aircraft needing reliable DSMX/DSM2 control, simple installation, and built-in fly-by telemetry.

Features

• 4-Channel Sport Receiver: Compact receiver designed for sport, park flyer, indoor, and general aircraft use
• Full-Range Performance: Suitable for a wide range of compatible electric and engine-powered RC aircraft
• DSMX And DSM2 Compatible: Works with compatible Spektrum DSMX and DSM2 transmitters, excluding unsupported systems
• Internal Antenna Design: Antenna-less layout simplifies installation and reduces the risk of exposed antenna wire damage
• Integrated Fly-By Telemetry: Provides receiver voltage and flight log telemetry data with compatible Spektrum telemetry-capable transmitters
• Automatic Telemetry Access: Telemetry data is available without extra setup when used with compatible Spektrum transmitters
• Bind Button: Large bind button eliminates the need for a traditional bind plug
• Lightweight Hard Case: Streamlined end-pin case supports clean installation in compact aircraft fuselages
• Failsafe Support: Includes failsafe functionality for compatible Spektrum radio setups

Specifications

• Brand: Spektrum
• Model: AR410 DSMX 4-Channel Sport Receiver
• Part Number: SPMAR410
• Product Type: Aircraft receiver
• Application: Air
• Channels: 4
• Band: 2.4GHz
• Modulation: DSMX / DSM2
• Antenna Type: Internal
• Bind Method: Bind button
• Telemetry: Integrated fly-by range telemetry
• Telemetry Data: Receiver voltage and flight log data
• Failsafe: Yes
• Input Voltage: 3.5V to 9V
• Resolution: 2048
• Range: Full range
• Data Port: No
• Remote Receiver Ports: 0
• Forward Programming: No
• Integrated Variometer: No
• Dimensions: 1.78 x 0.79 x 0.55 inch, 45.2 x 20.0 x 13.9mm
• Weight: 0.25oz, 7g

Includes

• 1 x Spektrum AR410 4-channel sport receiver

FAQ

Does the Spektrum AR410 need a bind plug? No. The Spektrum AR410 has a built-in bind button, so a separate bind plug is not required.

Does the AR410 have telemetry? Yes. The AR410 includes integrated fly-by telemetry for receiver voltage and flight log data when used with compatible Spektrum telemetry-capable transmitters.

Is the Spektrum AR410 full range? Yes. Spektrum lists the AR410 as a full-range 4-channel sport receiver for RC aircraft.

Does the AR410 use an external antenna? No. The AR410 uses an internal antenna design for easier installation and improved durability.

Is the AR410 compatible with TM1000 or TM1100 telemetry modules? No. The AR410 is not compatible with Spektrum TM1000 or TM1100 external telemetry modules.

Important Notes

• Compatible with Spektrum DSM2 and DSMX transmitters, excluding JR DSX9.
• Not compatible with Spektrum TM1000 or TM1100 external telemetry modules.
• Telemetry functions require a compatible Spektrum telemetry-capable transmitter.
• Check aircraft channel requirements, receiver mounting location, power system, servo count, and transmitter compatibility before installation.
• This listing is for the receiver only. Transmitter, servos, ESC, battery, switch harness, and aircraft are not included.
