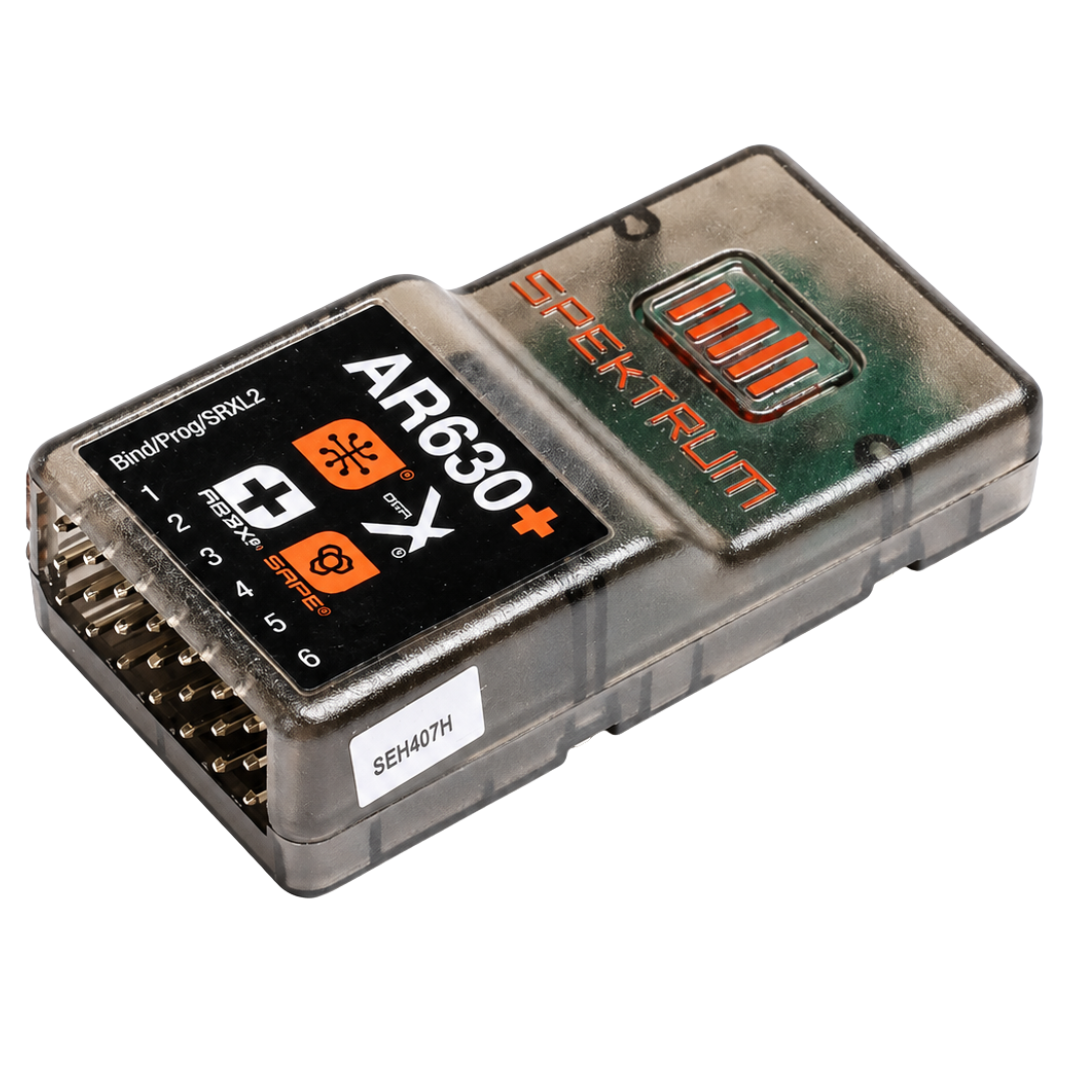

Spektrum AR630+ DSMX 6-Channel AS3X+ SAFE Receiver SPM-1030

The Spektrum SPM-1030 AR630+ is a compact full-range 6-channel aircraft receiver with DSMX/DSM2 compatibility, built-in AS3X+ stabilisation, SAFE flight envelope protection, and Smart telemetry support for suitable Spektrum-equipped aircraft.

Features

• 6-Channel Aircraft Receiver: Full-range receiver designed for a wide range of RC aircraft applications
• AS3X+ Stabilisation: Next-generation stabilisation algorithm helps improve flight feel, sensor accuracy, and in-flight tuning response
• SAFE Flight Envelope Protection: SAFE technology can help limit pitch and bank angles when correctly configured for supported aircraft setups
• DSMX And DSM2 Compatible: Works with compatible Spektrum DSMX transmitters and offers DSM2 backward compatibility where supported
• Antenna-Less Design: Internal antenna layout simplifies installation and removes exposed receiver antenna wires
• Forward Programming: AS3X+, SAFE, failsafe, and receiver setup can be configured directly through compatible Spektrum transmitters
• Smart Telemetry Support: Works with compatible Spektrum Smart ESCs to provide one-wire telemetry data through the throttle port
• SmartSafe And Failsafe Options: Supports SmartSafe, Hold Last, and preset failsafe types through Forward Programming
• Bind Button: Built-in bind button allows binding without needing a separate bind plug
• SRXL2 Serial Output: Provides SRXL2 serial output for compatible aircraft and system setups
• Smart Transmitter Model Files: Allows supported BNF model setup information to be stored on the receiver for easier transmitter setup at bind

Specifications

• Brand: Spektrum
• Model: AR630+ DSMX 6-Channel AS3X+ and SAFE Receiver
• Part Number: SPM-1030
• Product Type: Aircraft receiver
• Application: Air
• Channels: 6
• Band: 2.4GHz
• Modulation: DSMX / DSM2
• Technology: AS3X+ and SAFE
• Telemetry: Yes, fly-by range telemetry
• Smart Telemetry: Supported with compatible Spektrum Smart ESC and telemetry-capable transmitter
• Bind Method: Bind button
• Forward Programming: Yes
• Failsafe: Yes
• Input Voltage: 3.5V to 9V
• Resolution: 2048
• Serial Out: SRXL2
• Remote Receiver Ports: 0
• Integrated Variometer: No
• Range: Full range
• Dimensions: 1.85 x 0.98 x 0.51 inch, 47 x 25 x 13mm
• Weight: 0.34oz, 9.5g

Includes

• 1 x Spektrum AR630+ AS3X+ / SAFE receiver
• 1 x Product manual

Needed To Complete

• Compatible Spektrum telemetry-capable transmitter
• Compatible aircraft power system, servos, and wiring as required for your model
• Compatible Spektrum Smart ESC if Smart telemetry features are required

FAQ

Does the Spektrum AR630+ include AS3X+ and SAFE? Yes. The Spektrum AR630+ includes built-in AS3X+ stabilisation and SAFE flight envelope protection for compatible aircraft setups.

Does the AR630+ work with Smart ESC telemetry? Yes. The Spektrum AR630+ supports Smart telemetry when used with a compatible Spektrum Smart ESC and telemetry-capable Spektrum DSMX transmitter.

Does the Spektrum AR630+ need a bind plug? No. The AR630+ includes a bind button for easy binding without a separate bind plug.

Can the AR630+ be programmed from the transmitter? Yes. The AR630+ supports Forward Programming through compatible Spektrum transmitters for receiver setup and adjustment.

Is the AR630+ recommended for turbine aircraft? No. Spektrum notes that using this receiver in turbine-powered aircraft models is not recommended.

Important Notes

• Using this receiver in turbine-powered aircraft models is not recommended.
• Forward Programming is not supported by some older or non-computer Spektrum transmitters, including DX6i, DX6G2 EU version, DX7, DX7S, DX7SE, DX7G2 EU version, DX8, and non-computer transmitters.
• Smart telemetry features require a compatible Spektrum Smart ESC and a telemetry-capable Spektrum DSMX transmitter. A transmitter firmware update may be required.
• The AR630+ is not compatible with Spektrum telemetry sensors.
• Check aircraft size, channel requirements, servo layout, power system, and transmitter compatibility before installation.
