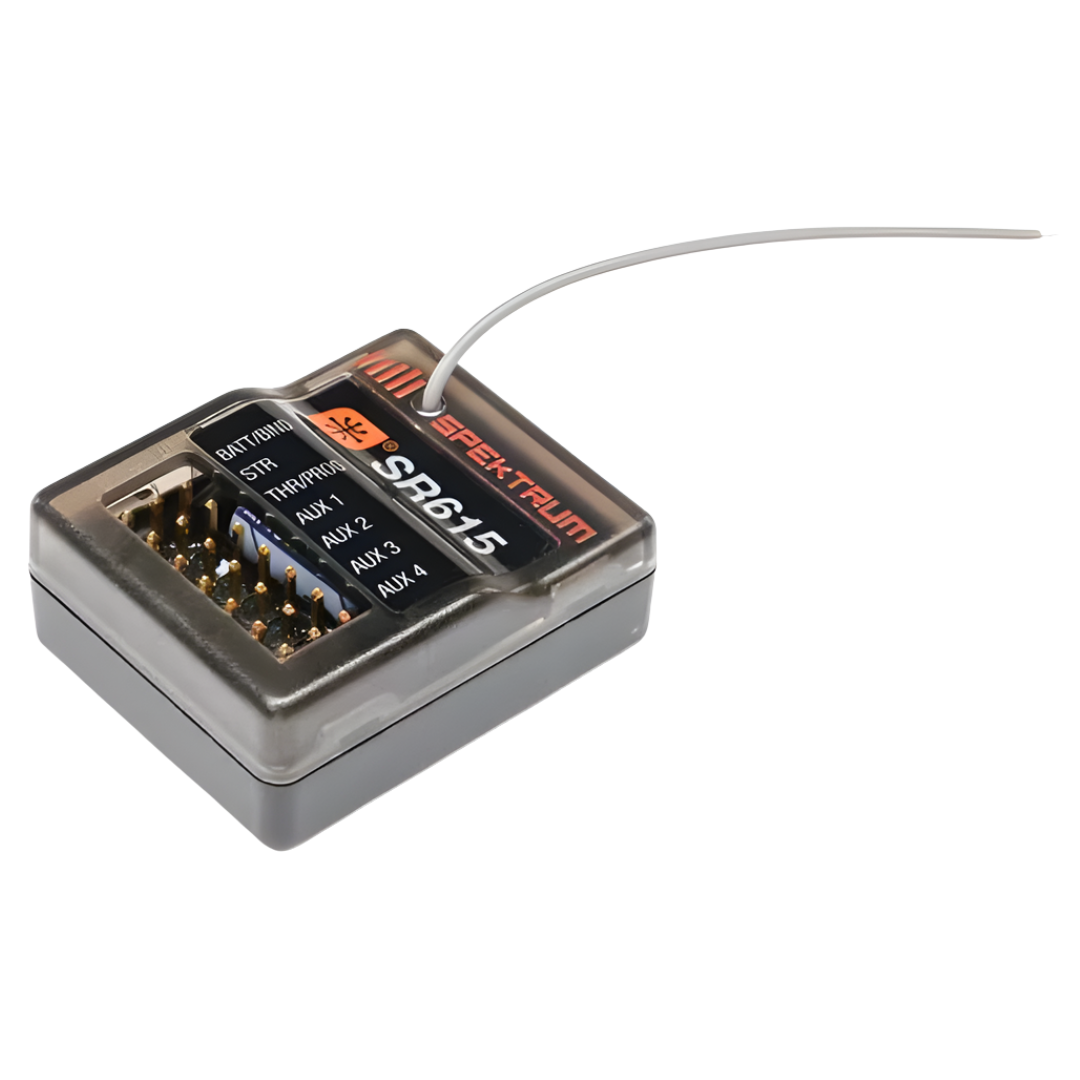

Spektrum SR615 DSMR 6-Channel Water-Resistant Surface Receiver SPMSR615

Only 2 left
SKU: SPMSR615
(0)
$159.95
Checking status...

CALL US EMAIL US
Ask the experts Staff

More from Spektrum

Spektrum SR315 3 Channel Sport Surface Receiver SPMSR315
Spektrum SR315 3 Channel Sport Surface Receiver SPMSR315 $90.95
Spektrum SR515 DSMR/SLT 5-Channel Surface Receiver SPMSR515
Spektrum SR515 DSMR/SLT 5-Channel Surface Receiver SPMSR515 $116.95
Spektrum DXC+ 12-Channel Surface Transmitter Only DSMR SLT Ready SPMR6130
Spektrum DXC+ 12-Channel Surface Transmitter Only DSMR SLT Ready SPMR6130 $229.95
View All Spektrum

The Spektrum SR615 is a compact 6-channel DSMR surface receiver for RC cars trucks crawlers and boats, combining full-range 2.4GHz performance, Smart telemetry capability, selectable failsafe modes and an epoxy-potted water-resistant design for demanding surface installations

Features

  • 6-channel surface receiver
  • DSMR and DSM2 compatible
  • 5.5ms capable DSMR response for low-latency applications
  • Epoxy-potted circuit board helps protect against water and vibration
  • Compact lightweight hard-case design
  • SmartSafe failsafe and preset Gas Mode failsafe options
  • Full-range surface operation
  • Smart telemetry capable with compatible Spektrum Smart electronics and transmitter
  • Integrated antenna support and antenna tube slot
  • Wide 3.5V to 9.6V input voltage range

Specifications

  • Brand: Spektrum
  • Model: SR615
  • Product Type: Surface Receiver
  • Channels: 6
  • Band: 2.4GHz
  • Modulation: DSMR
  • DSM2 Compatibility: Yes
  • Frame Rate: 5.5ms Capable
  • Bind Method: Bind Plug
  • Failsafe: SmartSafe and Preset Gas Mode
  • Input Voltage: 3.5V to 9.6V
  • Range: Full
  • Telemetry: Yes
  • Programmable: No
  • Water Resistant: Yes
  • Antenna Length: 120mm
  • Length: 33mm
  • Width: 21mm
  • Height: 13mm
  • Weight: 6.0g
  • Manufacturer Part Number: SPMSR615

Compatibility

  • Compatible Spektrum DSMR surface transmitters
  • Compatible Spektrum DSM2 surface transmitters
  • Suitable for compatible RC cars trucks crawlers buggies and boats requiring up to six channels
  • Compatible with Spektrum Smart telemetry systems when used with supported Smart electronics and transmitter equipment

Includes

  • 1 x Spektrum SR615 DSMR 6-Channel Water-Resistant Receiver
  • 1 x Product Manual

FAQ

Is the Spektrum SR615 waterproof? Spektrum officially describes the SR615 as water-resistant rather than fully waterproof, with the receiver board potted in epoxy to help protect it from water and vibration

Does the SR615 support telemetry? Yes, Spektrum currently lists Telemetry as Yes and describes the SR615 as Smart telemetry capable when used with compatible Spektrum Smart batteries ESCs and transmitter equipment

Does the SR615 use a bind button? No, the SR615 uses a traditional bind plug inserted into the BAT/BIND port during the binding procedure

Can all six channels operate at the 5.5ms frame rate? No, Spektrum states that 5.5ms DSMR mode is limited to two active channels even though the receiver provides six channels at supported standard frame rates

What failsafe modes are available? The SR615 supports SmartSafe as well as preset Gas Mode failsafe, allowing suitable failsafe positions to be established during binding

Important Notes

  • Water-resistant does not mean suitable for continuous immersion or unrestricted underwater use
  • 5.5ms operation requires compatible DSMR equipment and limits output to two active channels
  • A bind plug is required for the binding procedure
  • Smart telemetry functionality depends on compatible Smart electronics and transmitter equipment
