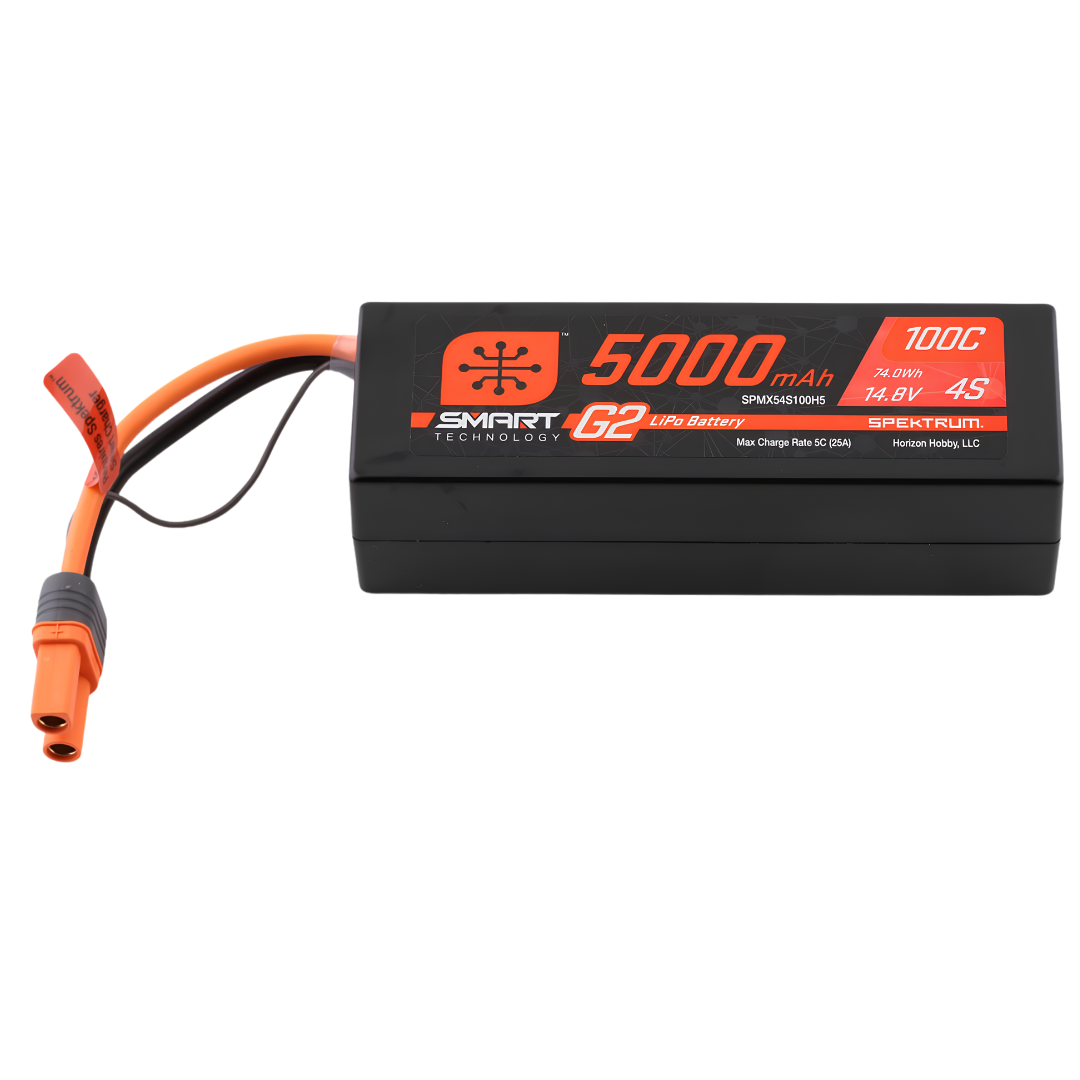

Spektrum Smart G2 4S 5000mAh 100C LiPo Battery IC5 SPMX54S100H5

The Spektrum SPMX54S100H5 is a 14.8V 4S 5000mAh Smart G2 hardcase LiPo battery for compatible surface RC vehicles, combining a 100C discharge rating with IC5 connectivity and single-connection Smart balance charging.

Features

• Smart G2 Technology: Integrated memory stores battery parameters, operating data and charge history for use with compatible Spektrum Smart equipment
• Single-Connection Charging: Balance information travels through the IC5 connector data wire, eliminating the separate balance lead found on conventional LiPo packs
• 100C Discharge Rating: Designed for high-current surface RC applications requiring strong power delivery
• Automatic Storage Discharge: Factory programmed to discharge toward 3.90V per cell after 72 hours of inactivity, with settings adjustable through compatible Smart equipment
• Faster Auto Storage: Smart G2 technology supports automatic storage discharge at up to 1.5A
• Hardcase Construction: Protective outer case suits demanding RC car, truck and boat applications
• Internal Metal Side Plates: Thicker internal plates provide additional cell protection and assist heat dissipation
• IC5 Connector: High-current Spektrum connector with Smart data functionality and physical compatibility with EC5-style connections
• 10AWG Wiring: Heavy-gauge power leads support the pack's high-current surface application

Specifications

• Brand: Spektrum
• Series: Smart G2
• Product Type: Hardcase LiPo Battery
• Application: Surface RC
• Cell Count: 4S
• Nominal Voltage: 14.8V
• Capacity: 5000mAh
• Discharge Rating: 100C
• Connector: IC5
• Balance Connection: Smart G2 through IC5 Data Wire
• Case Type: Hardcase
• Cell Configuration: Flat
• Standard Charge Rate: 1C
• Manufacturer-Published Maximum Charge Current: 5A
• Wire Gauge: 10AWG
• Length: 138mm
• Width: 46mm
• Height: 35mm
• Weight: Approximately 520g
• Nominal Energy: Approximately 74Wh calculated from 14.8V x 5Ah
• ROAR Approved: No
• Manufacturer Part Number: SPMX54S100H5

Compatibility

• Surface RC vehicles designed for 4S LiPo power and suitable battery dimensions
• Power systems using an IC5 connection
• EC5-equipped vehicle connections where physical connector compatibility is suitable
• Spektrum Smart G2 chargers or compatible earlier Spektrum Smart chargers updated for G2 support

Includes

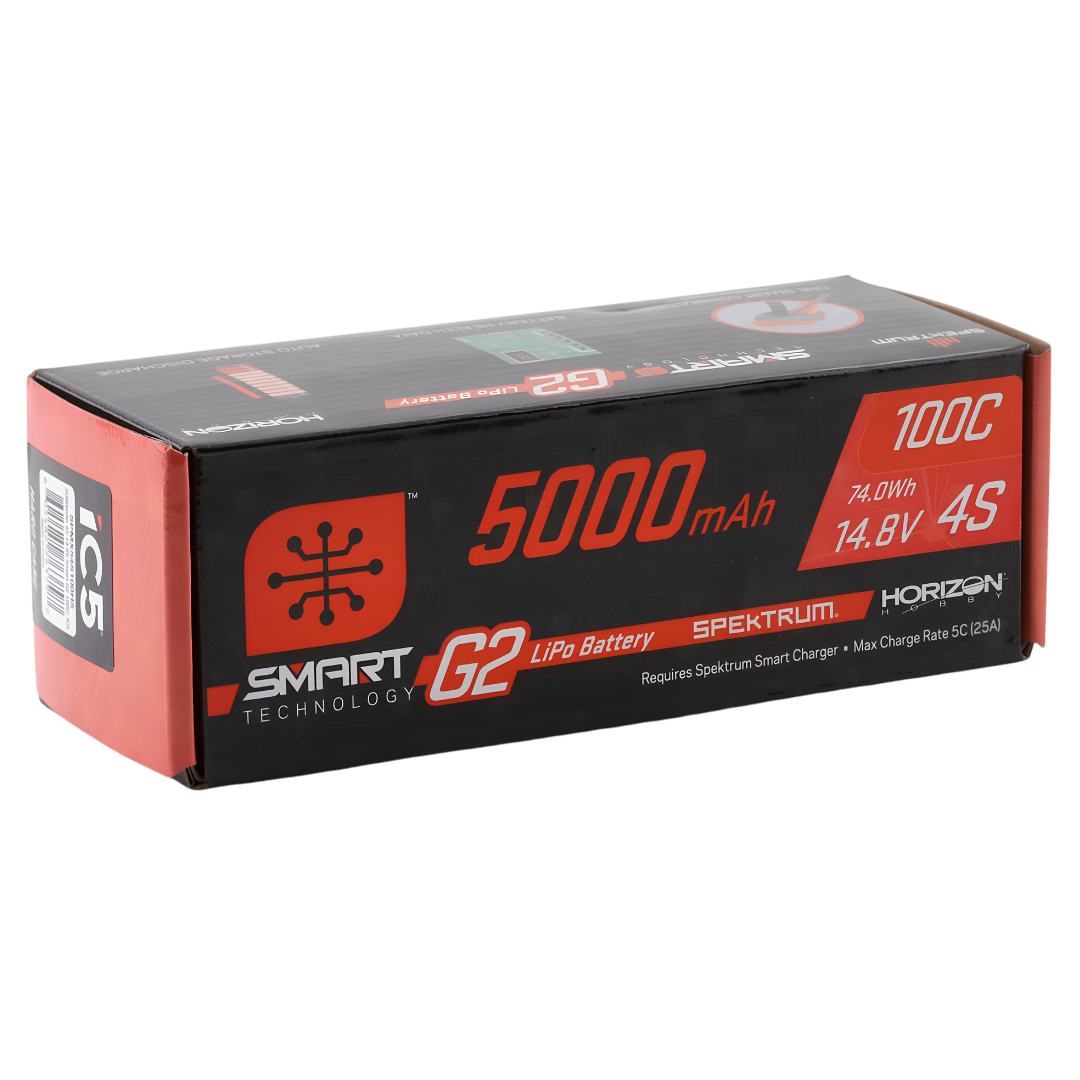

• 1 x Spektrum Smart G2 4S 5000mAh 100C Hardcase LiPo Battery with IC5 Connector

FAQ

Is SPMX54S100H5 a 3S or 4S battery? SPMX54S100H5 is a 4S LiPo battery with a nominal voltage of 14.8V. Some older retailer specification tables incorrectly list three cells, but Spektrum's current product data confirms four cells.

Can this Smart G2 battery be charged with a normal LiPo charger? No. Smart G2 batteries do not have a conventional separate balance lead and require a compatible Spektrum Smart charger with G2 support for correct charging and cell balancing.

Will the IC5 connector work with an EC5-equipped RC vehicle? Yes. Spektrum states that IC5 connectors are physically compatible with EC5-style connectors. Smart telemetry or data functions require compatible Smart equipment and the IC data connection.

What is the maximum charging rate? Spektrum's current product data lists both a 5A maximum charge current and a 5C maximum charge rate, which are mathematically inconsistent for a 5000mAh pack. OZRC recommends following the conservative 5A manufacturer-listed current limit and the instructions provided by the compatible Smart charger unless Spektrum publishes revised guidance.

Important Notes

• Use only a compatible Spektrum Smart charger with Smart G2 support
• Confirm the vehicle supports 4S LiPo power before installation
• Check the 138 x 46 x 35mm battery dimensions against the vehicle battery tray
• Never charge a damaged, swollen or excessively hot LiPo battery
• Charge LiPo batteries in a suitable fire-resistant charging area and follow Spektrum's battery safety instructions
• Spektrum's current product page lists 55.5Wh, but 14.8V x 5Ah calculates to approximately 74Wh; verify the physical battery label where watt-hour information is required for transport or compliance purposes
