Spektrum Smart S2200 G2 Dual 2x200W AC Charger 240V SPMXC2010AU

The Spektrum Smart S2200 G2 AC Charger is a powerful dual-channel RC battery charger designed to make charging faster, simpler and safer. Delivering up to 200W per channel or up to 380W when using a single channel, the S2200 G2 is ideal for demanding RC car, aircraft, boat and helicopter battery setups. When connected to compatible Spektrum Smart batteries, the charger automatically recognises battery parameters and provides streamlined charging, while Smart G2 batteries can charge and balance through a single IC3 or IC5 connection without a separate balance lead.

Features

• Genuine Spektrum Smart G2 dual-channel AC battery charger
• Up to 200W charging power per channel
• Up to 380W available when charging through a single channel
• Dual-channel design allows two compatible batteries to be charged simultaneously
• Smart Auto Charge automatically detects compatible Smart battery parameters
• Smart G2 batteries charge and balance through a single IC3 or IC5 connection
• Integrated internal balancing system

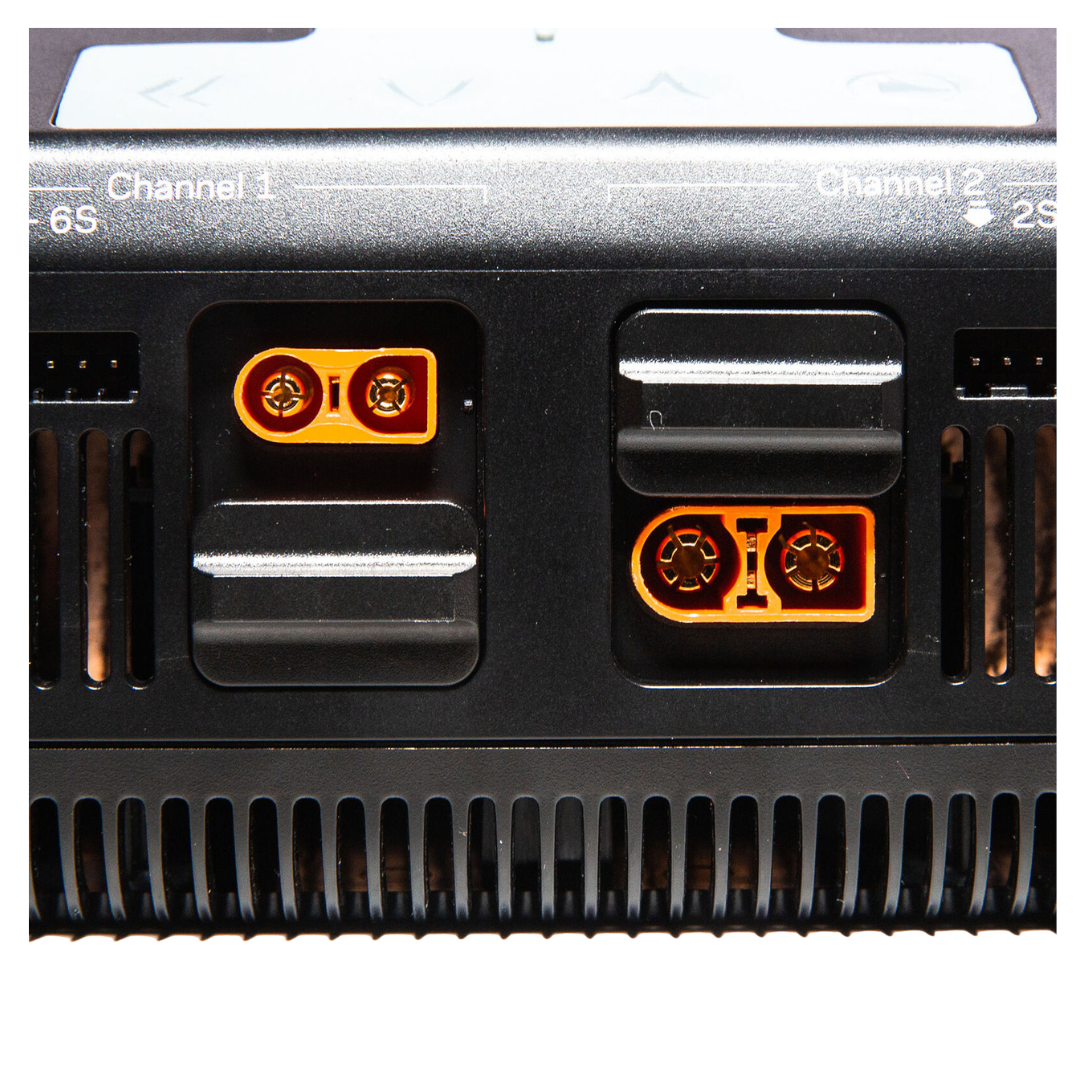

• Dedicated IC3 and IC5 output ports minimise the need for adapters
• IC3 and IC5 connectors are backwards compatible with EC3 and EC5 connectors
• Supports LiPo, Li-ion, LiFe, NiMH, NiCd and Pb battery chemistries

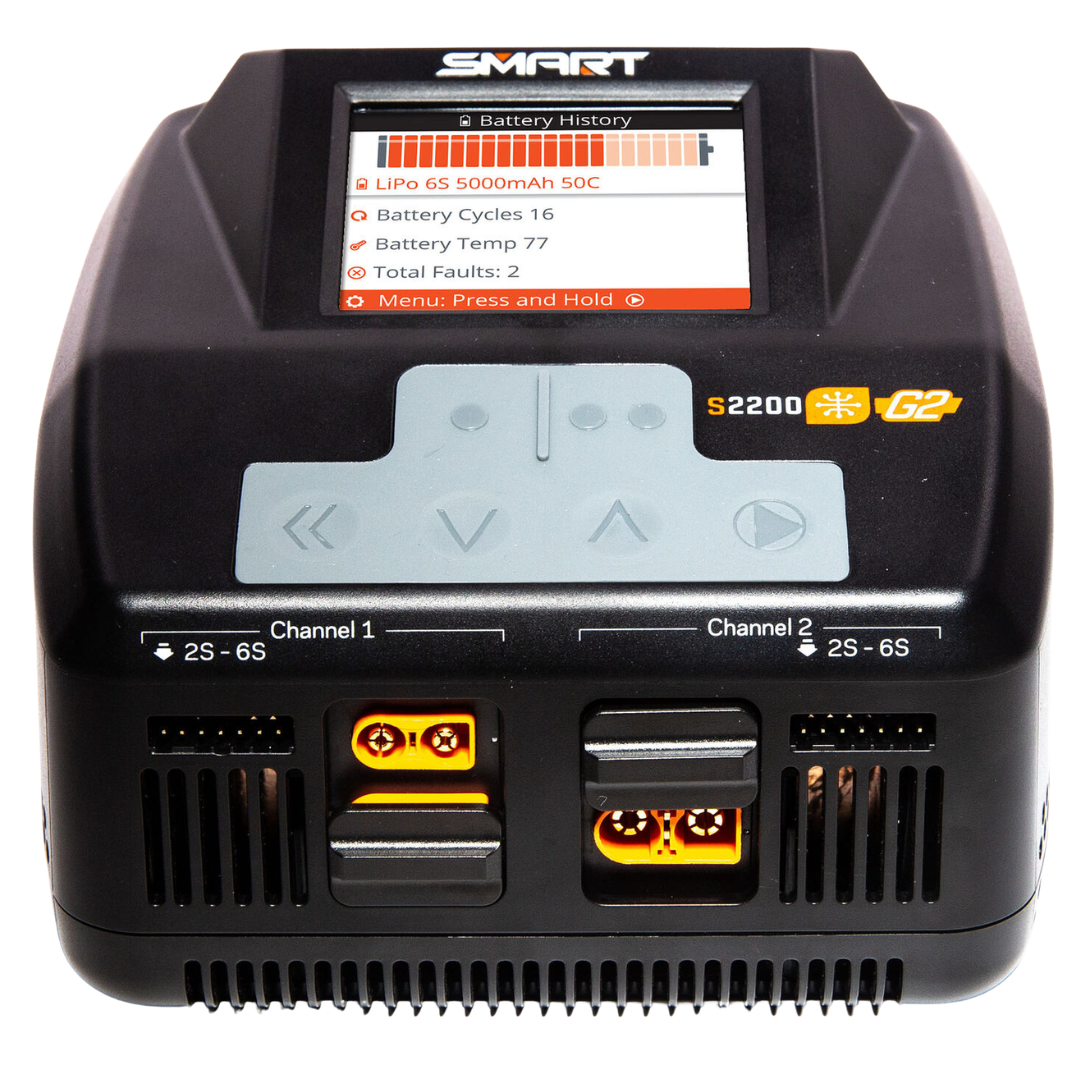

• Large 2.8-inch LCD display with intuitive menus and navigation
• Countdown display shows estimated time remaining until charging is complete

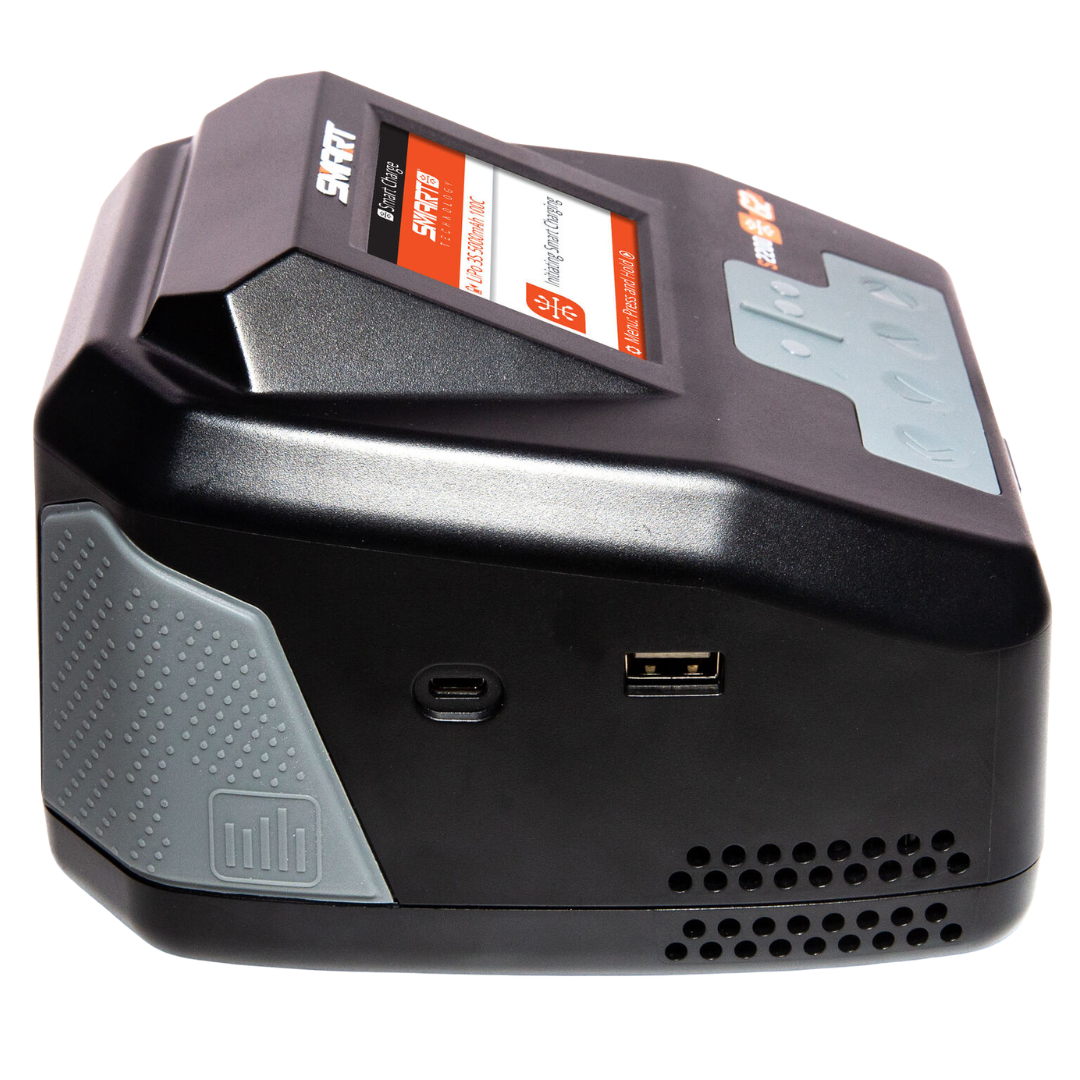

• USB connectivity for firmware updates and powering compatible secondary devices
• Built-in ON/OFF switch for convenient operation
• Detachable AC power cord for easy transport and storage

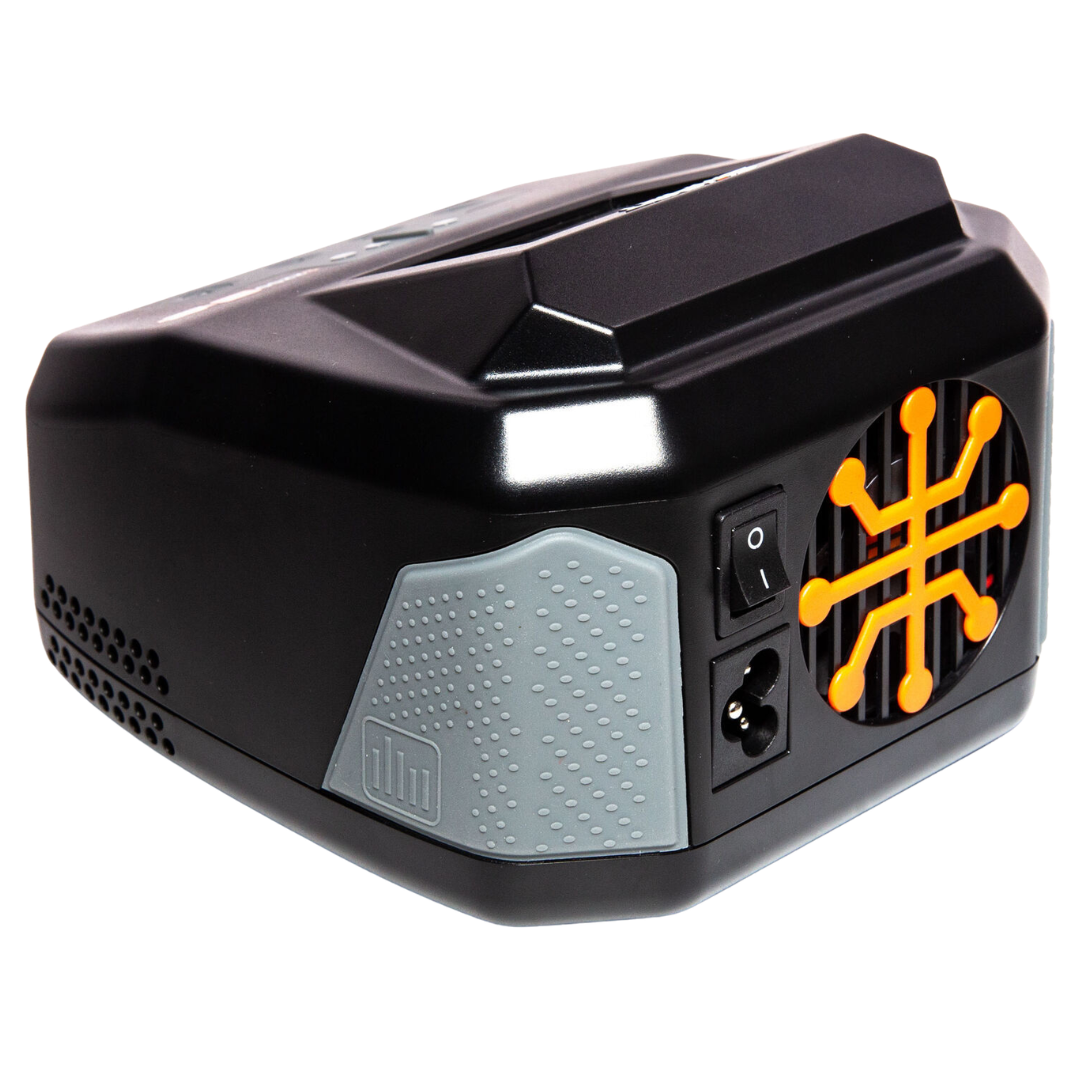

• Low-noise cooling fan helps maintain efficient operating temperatures
• Multiple built-in protection systems for safer charging

Specifications

• Brand: Spektrum
• Model: Smart S2200 G2
• Manufacturer Part Number: SPMXC2010AU
• Product Type: Dual-Channel Smart AC Battery Charger
• Input Voltage: 100–240V AC
• Power Source: AC
• Number of Channels: 2
• Maximum Output: 2 × 200W or up to 380W on one channel
• Selectable Charge Current: 0.1–20.0A
• Discharge Current: 0.1–1.5A
• LiPo / Li-ion / LiFe Support: 1–6S
• NiMH / NiCd Support: 1–16 Cells
• Pb Battery Support: 1–12 Cells
• Output Connectors: IC3 and IC5
• Balance Connector: JST-XH
• Integrated Balancer: Yes
• Display: 2.8-inch LCD
• Cooling: Integrated Fan
• PC Connectivity: Yes
• USB Power Output: Yes
• Safety Timer: Yes
• Over-Current Protection: Yes
• Thermal Protection: Yes
• Low Input Voltage Protection: Yes
• Reverse-Polarity Protection: Yes
• Charge Protection Circuitry: Yes
• Peak Detection: Yes
• Dimensions: 145 × 144 × 105mm
• Weight: 1070g

Includes

• 1 × Spektrum Smart S2200 G2 AC Charger
• 1 × Power Cord
• 1 × User Manual

FAQ

Can the S2200 G2 charge two batteries at the same time? Yes. It is a dual-channel charger capable of delivering up to 200W per channel, allowing two compatible batteries to be charged simultaneously.

What is the maximum charging power? The charger can deliver up to 200W on each channel when operating both channels or up to 380W through a single channel.

Do Spektrum Smart G2 batteries require a separate balance lead? No. Compatible Smart G2 batteries can transfer both charging and balancing information through their IC3 or IC5 connection, eliminating the need for a separate balance lead.

Can I charge standard non-Smart batteries? Yes. The S2200 G2 supports a wide range of conventional RC batteries, including LiPo, Li-ion, LiFe, NiMH, NiCd and lead-acid batteries. Conventional lithium batteries use the appropriate main connector and balance connection as required.

Can I charge batteries with EC3 or EC5 connectors? Yes. Spektrum IC3 and IC5 connectors are backwards compatible with corresponding EC3 and EC5 connectors, although Smart data functions require compatible Smart equipment.

What battery sizes can it charge? The charger supports 1–6S LiPo, Li-ion and LiFe batteries, 1–16 cell NiMH/NiCd packs and 1–12 cell Pb batteries.

Does the charger automatically select settings for Smart batteries? Yes. Compatible Spektrum Smart batteries communicate stored battery information to the charger, allowing appropriate charging parameters to be automatically recognised and greatly simplifying setup.

Important Notes

• This listing is for the SPMXC2010AU version supplied for compatible Australian mains power applications.
• Always select the correct battery chemistry, cell count and charging parameters when charging non-Smart batteries.
• Never leave batteries unattended while charging.
• Charge lithium batteries in a suitable fire-resistant location and follow all manufacturer battery safety instructions.
• Inspect batteries, connectors and charging leads for damage before every charging session.
• Do not charge damaged, swollen or excessively discharged lithium batteries.
• Smart G2 single-connection balancing requires compatible Spektrum Smart G2 batteries.
• Keep cooling vents unobstructed during operation.
• Follow the Spektrum charger and battery instructions before use.
