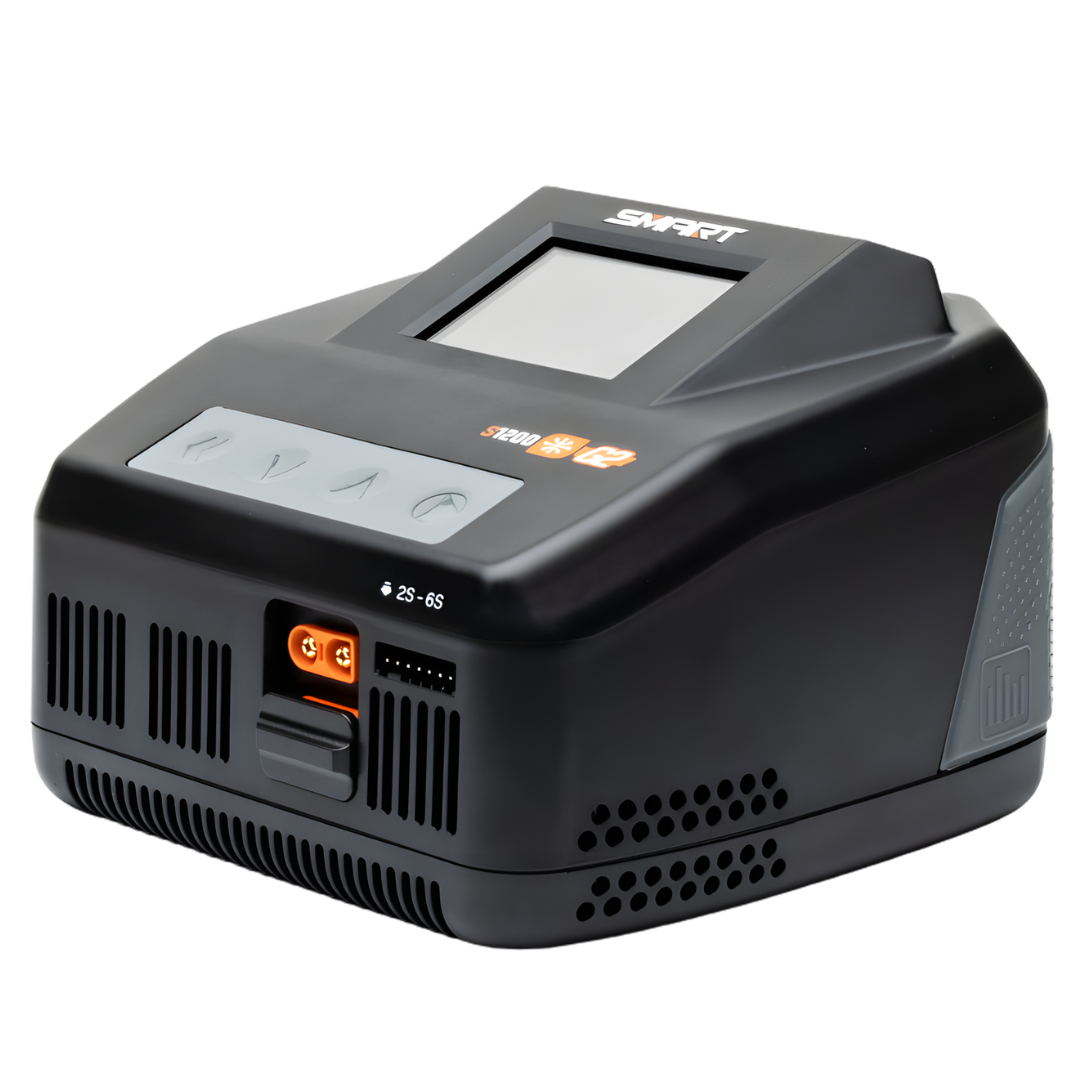

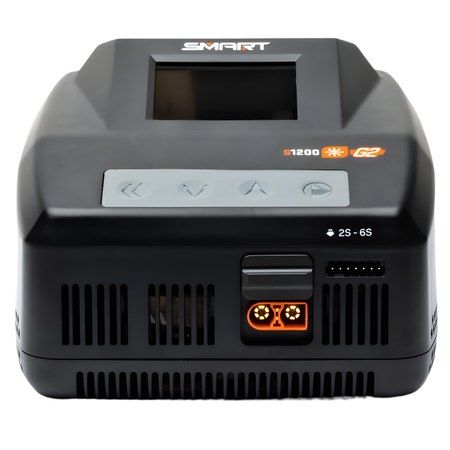

Spektrum S1200 Smart G2 1x200W 240V Charger SPMXC2020AU

Enjoy powerful, convenient RC battery charging with the Spektrum Smart S1200 G2 1x200W AC Charger, SPMXC2020AU. Combining up to 200W of charging power with Spektrum Smart G2 technology, this compact single-channel charger makes it easy to charge compatible batteries for RC cars, trucks, crawlers, aircraft, boats and other hobby applications.

With Spektrum Smart Auto Charge, the S1200 G2 can recognise important battery information from compatible Spektrum Smart batteries and automatically apply their charging parameters. Smart G2 batteries can be charged and balanced through a single IC3 or IC5 connection, eliminating the need for a separate balance lead.

The S1200 G2 also supports compatible conventional lithium, NiMH, NiCd and lead-acid batteries using the appropriate charging modes and connections. A bright 2.4-inch IPS colour display presents battery information, charging progress and an estimated remaining charge time for compatible Smart batteries.

Featuring an integrated AC power supply, detachable mains cord, selectable IC3 and IC5 outputs, USB connectivity and a cooling fan, the Spektrum S1200 G2 is an excellent choice for an organised RC charging workbench.

Features

• Up to 200W Charging Power: High-output single-channel charging for compatible RC batteries
• Spektrum Smart G2 Technology: Simplifies battery setup and charging with compatible Smart batteries
• Smart Auto Charge: Automatically recognises supported Smart battery chemistry, capacity and charging parameters
• Single-Connection Smart G2 Balancing: Charges and balances compatible Smart G2 batteries through one IC3 or IC5 connection
• Selectable IC3 and IC5 Outputs: Integrated connector options without requiring an IC3-to-IC5 adapter
• EC3 and EC5 Compatibility: Accepts corresponding legacy EC3 and EC5 power connectors
• Conventional Battery Support: Manual charging controls for compatible non-Smart batteries
• 1–6S Lithium Battery Charging: Supports compatible LiPo, LiHV, Li-ion and LiFe batteries
• NiMH and NiCd Charging: Supports compatible rechargeable packs containing 1–16 cells
• Lead-Acid Battery Support: Charging modes for compatible 1–12-cell Pb batteries
• Adjustable Charge Current: Selectable from 0.1A to 15A, subject to battery and power limits
• Integrated Cell Balancing: Supports 2–6S external balance leads and Smart G2 single-connection balancing

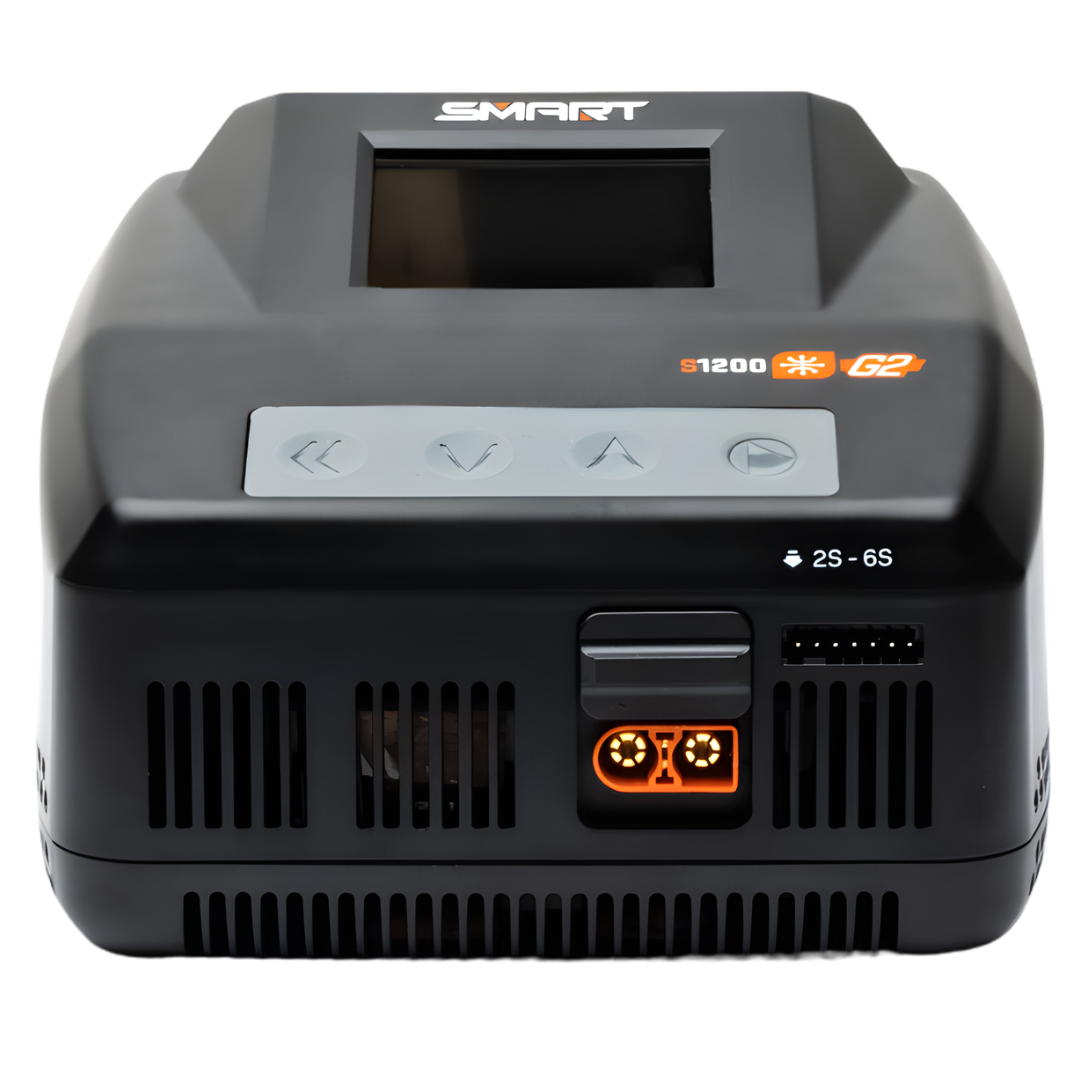

• 2.4-Inch IPS Colour Display: Clear 320 x 240 screen with charging status and menus
• Smart Charge Countdown: Displays estimated remaining charging time for compatible Smart batteries
• Charge, Discharge and Storage Modes: Helps maintain compatible rechargeable batteries

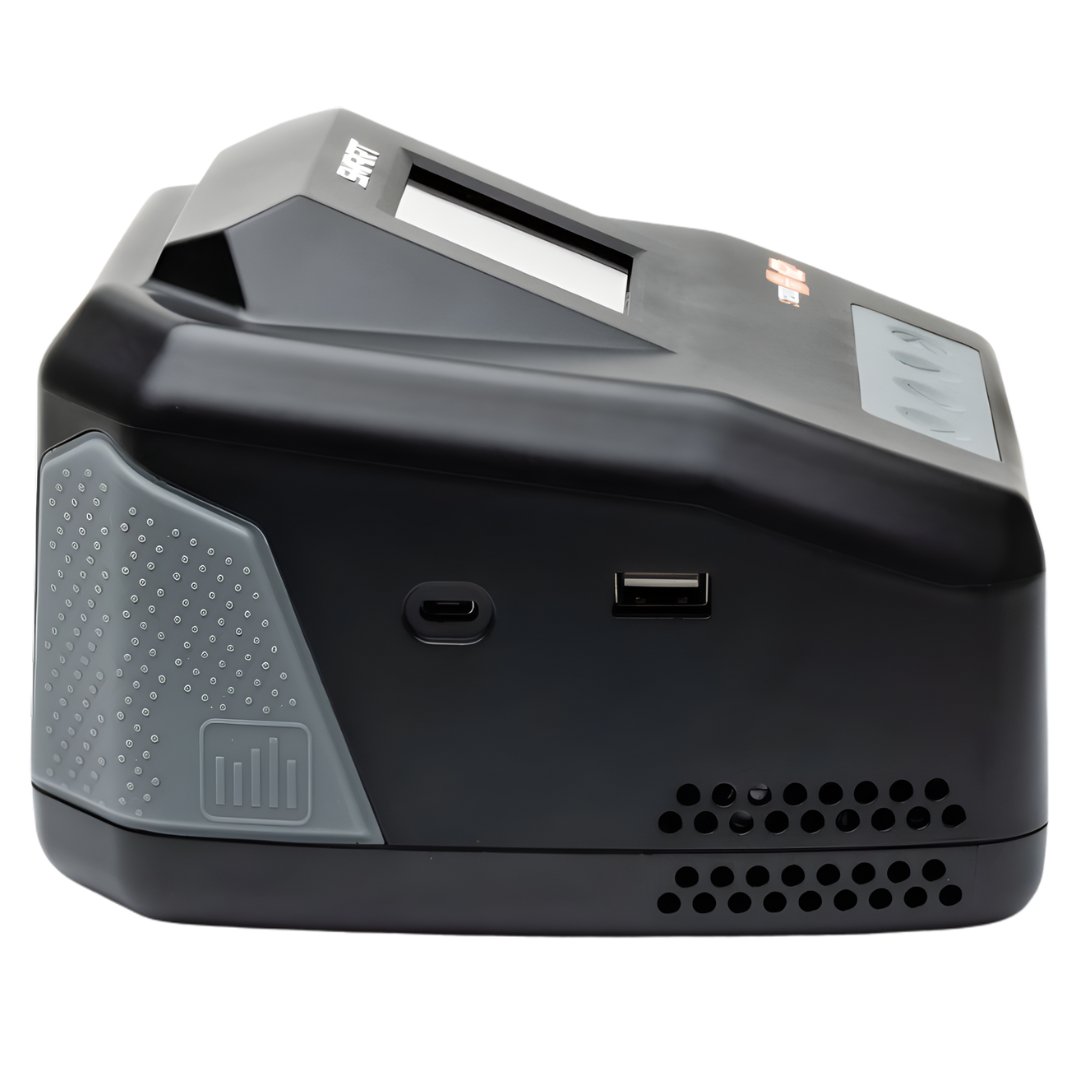

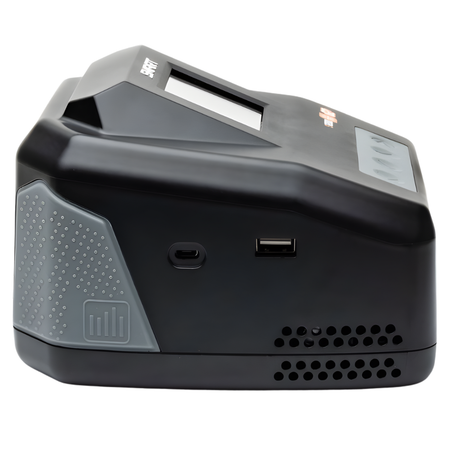

• USB Firmware Updates: Supports manufacturer software updates through its USB input
• USB Power Output: Provides power for compatible secondary USB devices

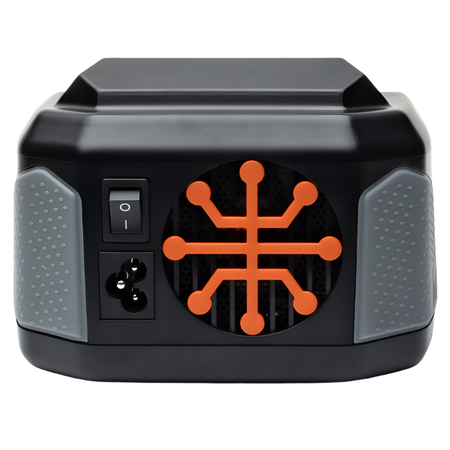

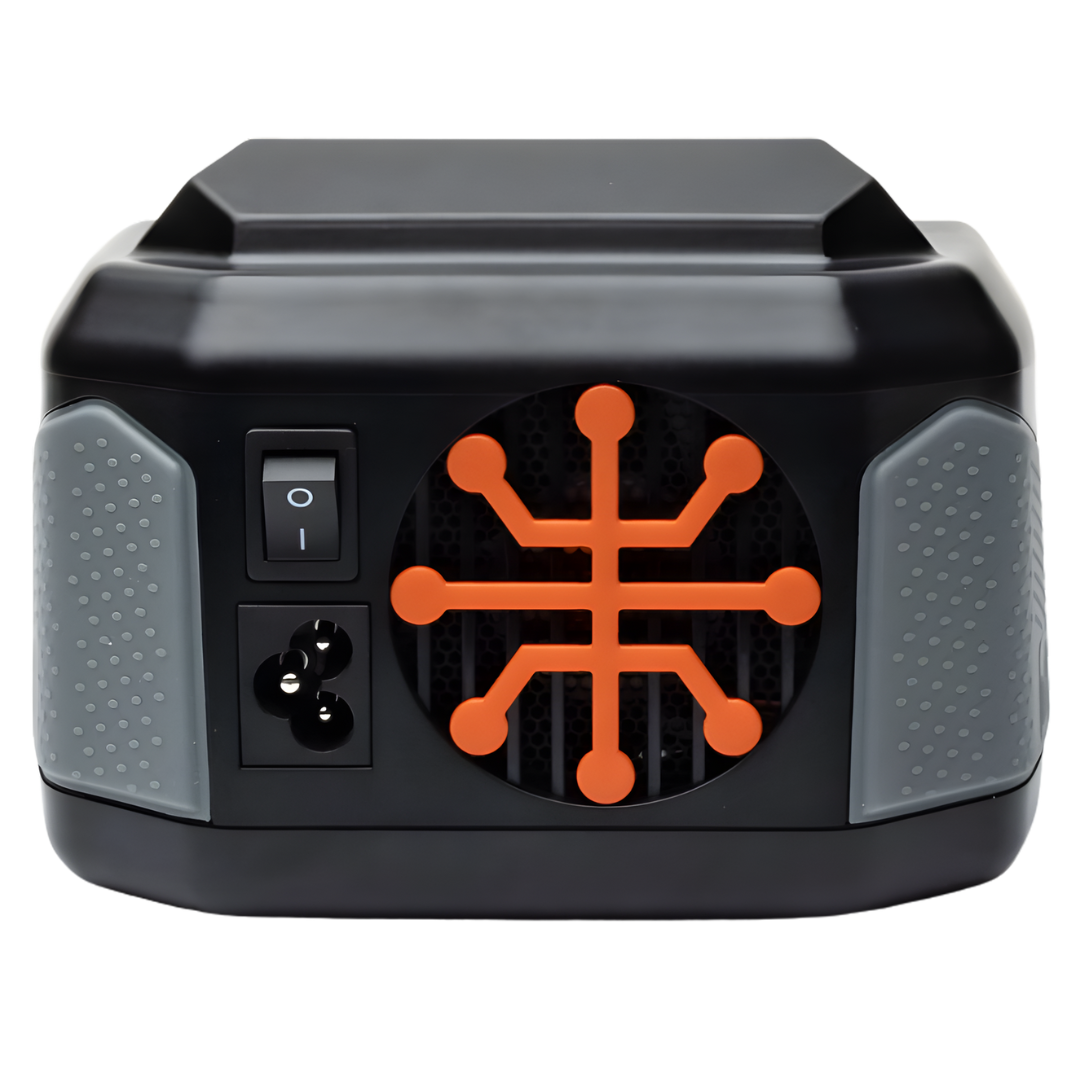

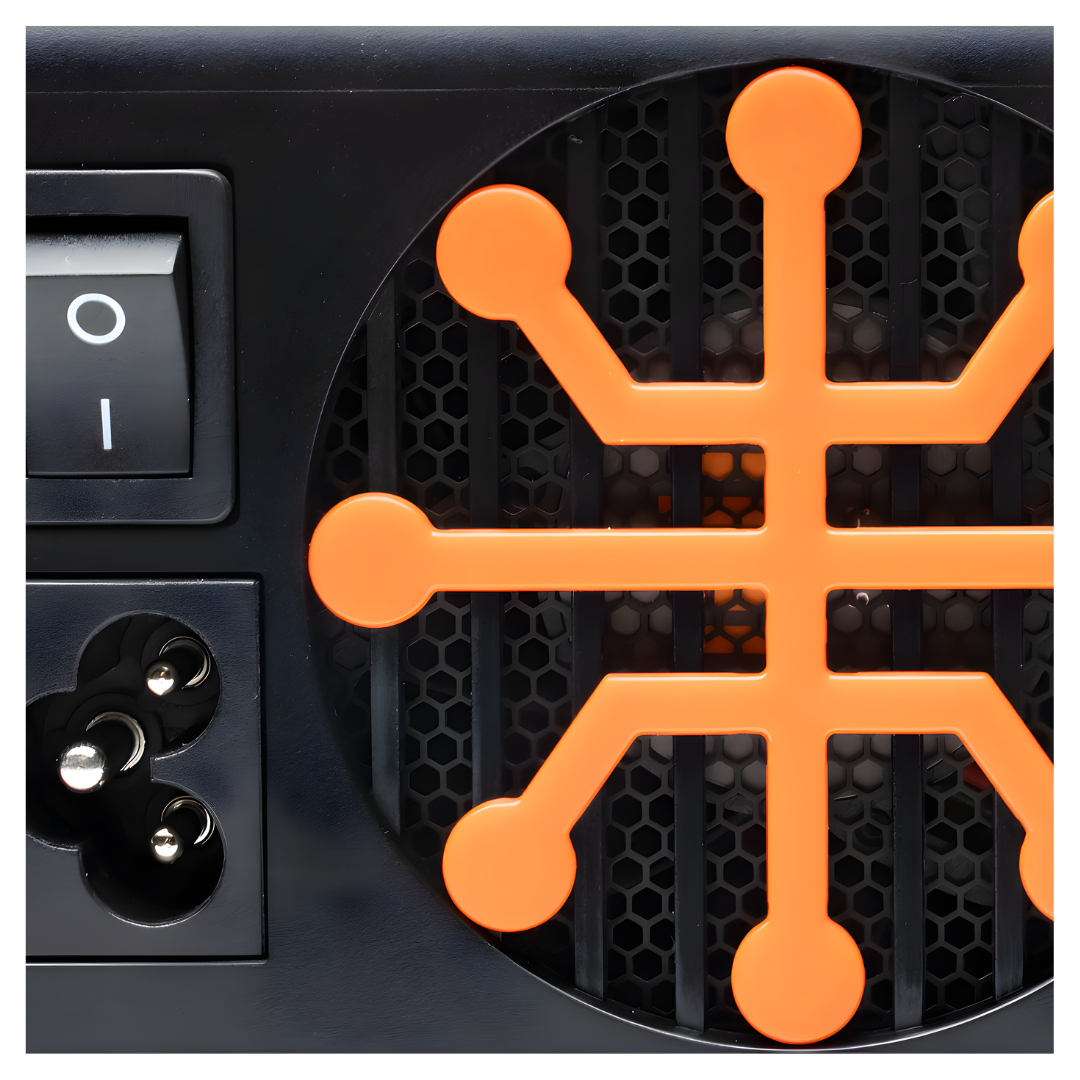

• Integrated AC Power Supply: No separate external DC power supply required
• Built-In ON/OFF Switch: Convenient power control

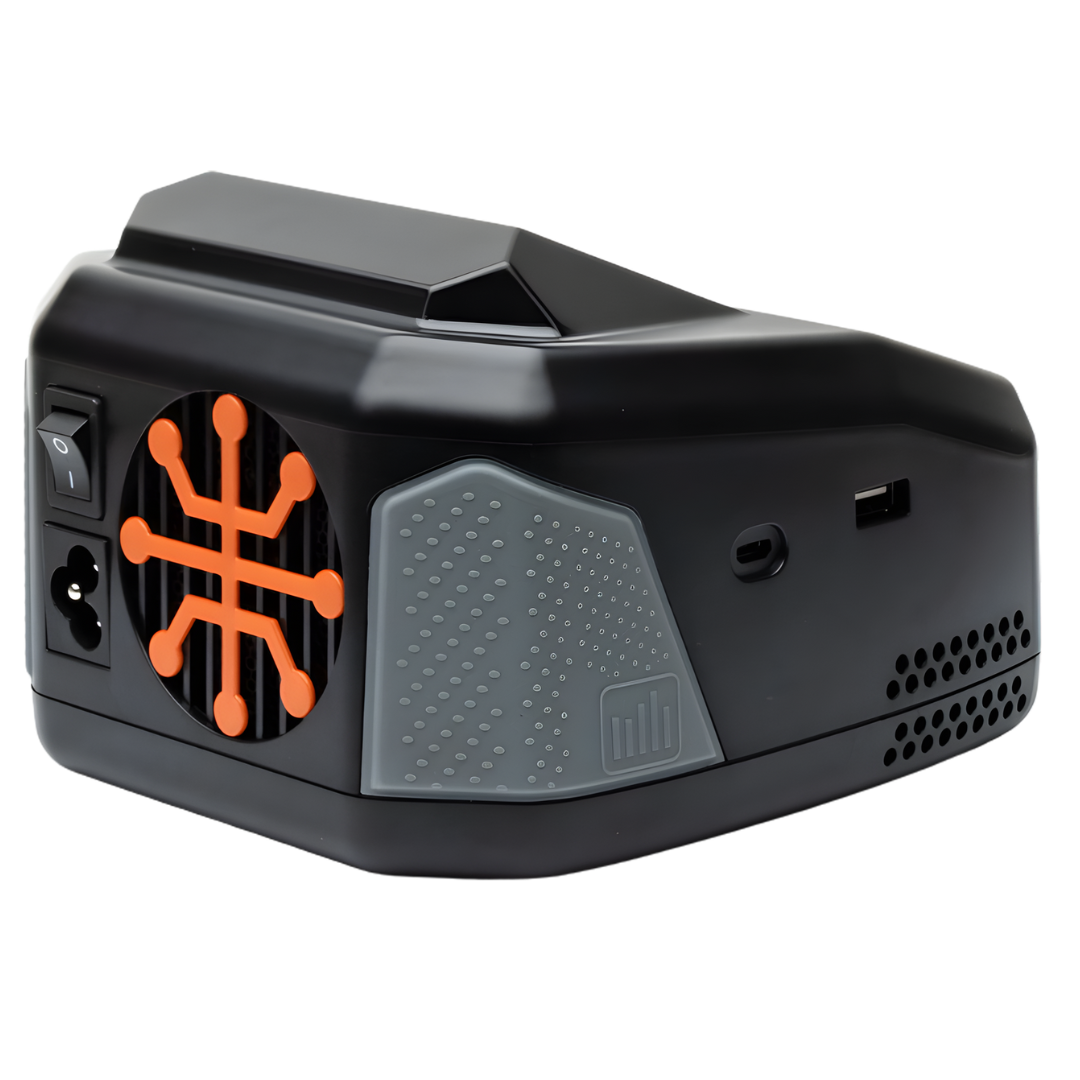

• Cooling Fan: Assists with thermal management during charging

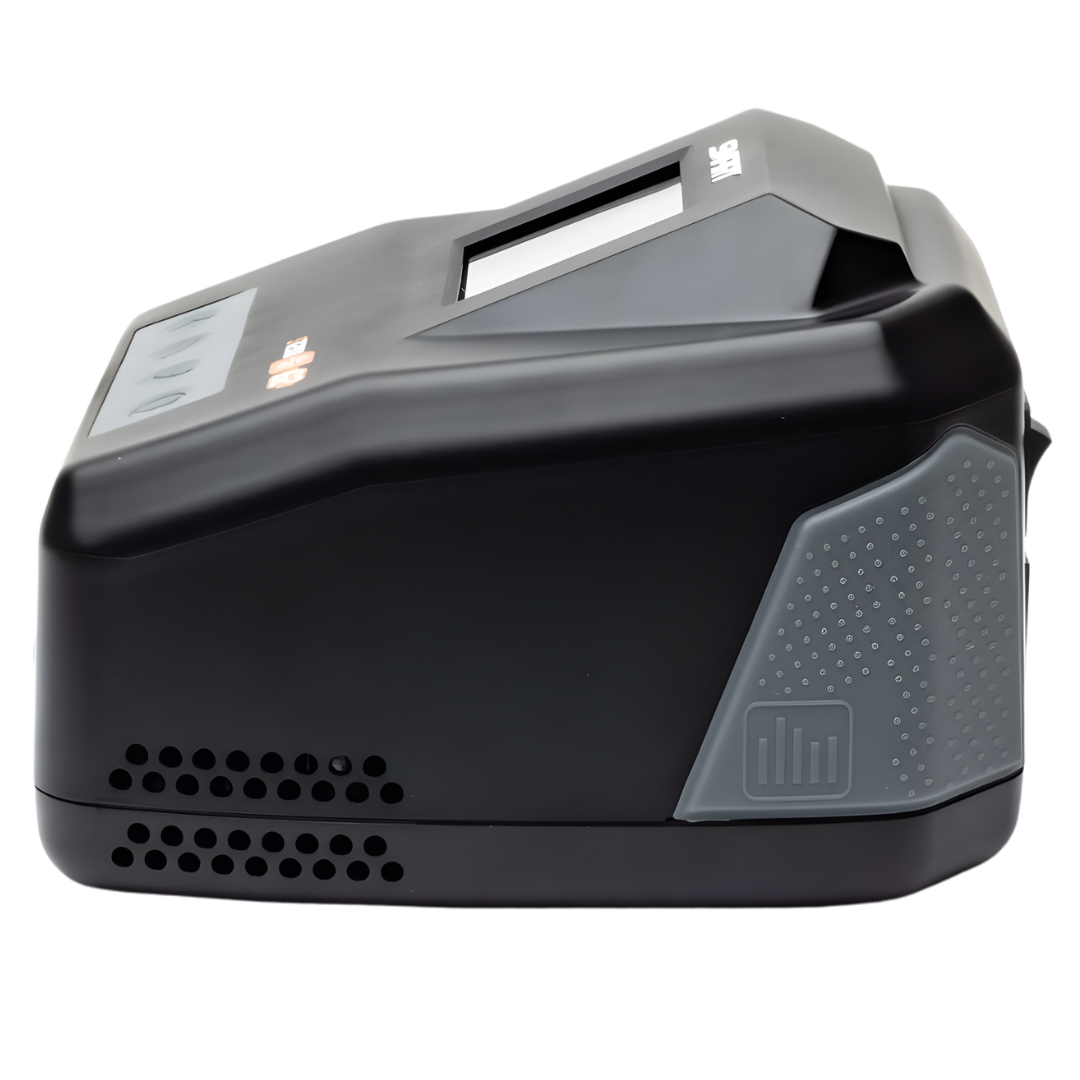

• Compact Durable Housing: Rubber grips and intuitive push-button controls
• Charging Protection: Includes overcurrent, reverse-polarity, short-circuit and thermal protection

Specifications

• Brand: Spektrum
• Manufacturer Part Number: SPMXC2020AU
• Model: S1200 G2 Smart AC Charger
• Product Type: Single-Channel RC Battery Charger
• Charging Channels: 1
• Maximum Charging Power: 200W
• AC Input Voltage: 100–240V
• AC Input Frequency: 50/60Hz
• Adjustable Charge Current: 0.1–15.0A
• Charge Current Adjustment: 0.1A Increments
• Discharge Current: 0.1–1.5A
• Maximum Discharge Power: 10W
• Balance Current: 1.5A Per Cell
• External Balance Cell Count: 2–6S
• Supported Lithium Chemistries: LiPo, LiHV, Li-ion and LiFe
• Lithium Battery Cell Count: 1–6S
• NiMH / NiCd Cell Count: 1–16 Cells
• Lead-Acid Battery Cell Count: 1–12 Cells
• Charging Output Connectors: Selectable IC3 and IC5
• Compatible Legacy Power Connectors: EC3 and EC5
• External Balance Connection: JST-XH
• Display: 2.4-Inch IPS Colour LCD
• Display Resolution: 320 x 240 Pixels
• USB Input: Firmware Updates
• USB Output: Secondary Device Power
• Smart Battery Recognition: Yes
• Smart Auto Charge: Yes
• Storage Charging Function: Yes
• Cooling: Integrated Fan
• Power Switch: Yes
• Case: Hard Housing with Rubber Grips
• Length: 145mm
• Width: 145mm
• Height: 104mm
• Weight: Approximately 1015g
• Operating Temperature: 0–40 Degrees Celsius
• Australian Market SKU: SPMXC2020AU

Battery Compatibility

The Spektrum S1200 G2 supports a wide selection of compatible rechargeable RC batteries:

• Spektrum Smart G2 Lithium Batteries
• Compatible Spektrum Smart G1 Batteries
• Conventional 1–6S LiPo Batteries
• Compatible 1–6S LiHV, Li-ion and LiFe Batteries
• Compatible 1–16-Cell NiMH and NiCd Packs
• Compatible 1–12-Cell Lead-Acid Batteries
• IC3 and IC5 Battery Power Connectors
• Corresponding EC3 and EC5 Power Connectors
• Other Suitable Battery Connectors with Correctly Rated Adapters

Important: Smart G2 single-connection balancing requires compatible Smart G2 batteries. Conventional lithium batteries and Smart G1 batteries with separate balance leads must use the appropriate balance connection.

Includes

• 1 x Spektrum S1200 G2 1x200W AC Smart Charger - SPMXC2020AU
• 1 x Detachable AC Power Cord
• 1 x Product Instruction Manual

Required To Complete

• Compatible Rechargeable RC Battery
• Suitable Charging Adapter If the Battery Does Not Have a Compatible IC3, IC5, EC3 or EC5 Connection
• Appropriate Fire-Resistant Charging Equipment for Lithium Batteries

FAQ

How much charging power does the Spektrum S1200 G2 provide? It delivers up to 200W of charging power, subject to the battery voltage, selected charging current and operating limits.

Can it charge two batteries simultaneously? No. The S1200 G2 is a single-channel charger. Its IC3 and IC5 connectors are alternative outputs, not independent charging channels.

Does it require a separate DC power supply? No. The charger has an integrated AC power supply and connects directly to a compatible mains outlet using the included detachable power cord.

Can I use it with Australian 240V mains power? Yes. The charger supports 100–240V AC input, and SPMXC2020AU is the Australian-market variant.

Can it charge Spektrum Smart G2 batteries? Yes. It supports automatic Smart battery recognition and charging, including single-connection balancing for compatible Smart G2 batteries.

Do Smart G2 batteries require a separate balance lead? No. Compatible Smart G2 batteries can be charged and balanced through their IC3 or IC5 connection.

Can it charge Spektrum Smart G1 batteries? Yes. Smart G1 batteries are compatible with Smart G2 chargers, but their separate balance leads should be connected where required.

Can it charge ordinary LiPo batteries? Yes. Compatible non-Smart lithium batteries can be charged using the correct battery settings, power connector and balance lead.

Can it charge a 6S LiPo battery? Yes. It supports compatible lithium batteries up to 6S, subject to the charger's maximum charging power and current.

What is the maximum charging current? The S1200 G2 supports an adjustable charging current up to 15A, subject to the 200W maximum power limit and battery specifications.

Does it support NiMH batteries? Yes. It supports compatible rechargeable NiMH and NiCd packs containing 1–16 cells.

Can it charge lead-acid batteries? Yes. The charger includes support for compatible 1–12-cell lead-acid batteries.

Does it support EC3 and EC5 battery connectors? Yes. Its IC3 and IC5 outputs are compatible with corresponding EC3 and EC5 power connectors. This does not add Smart functionality to standard batteries.

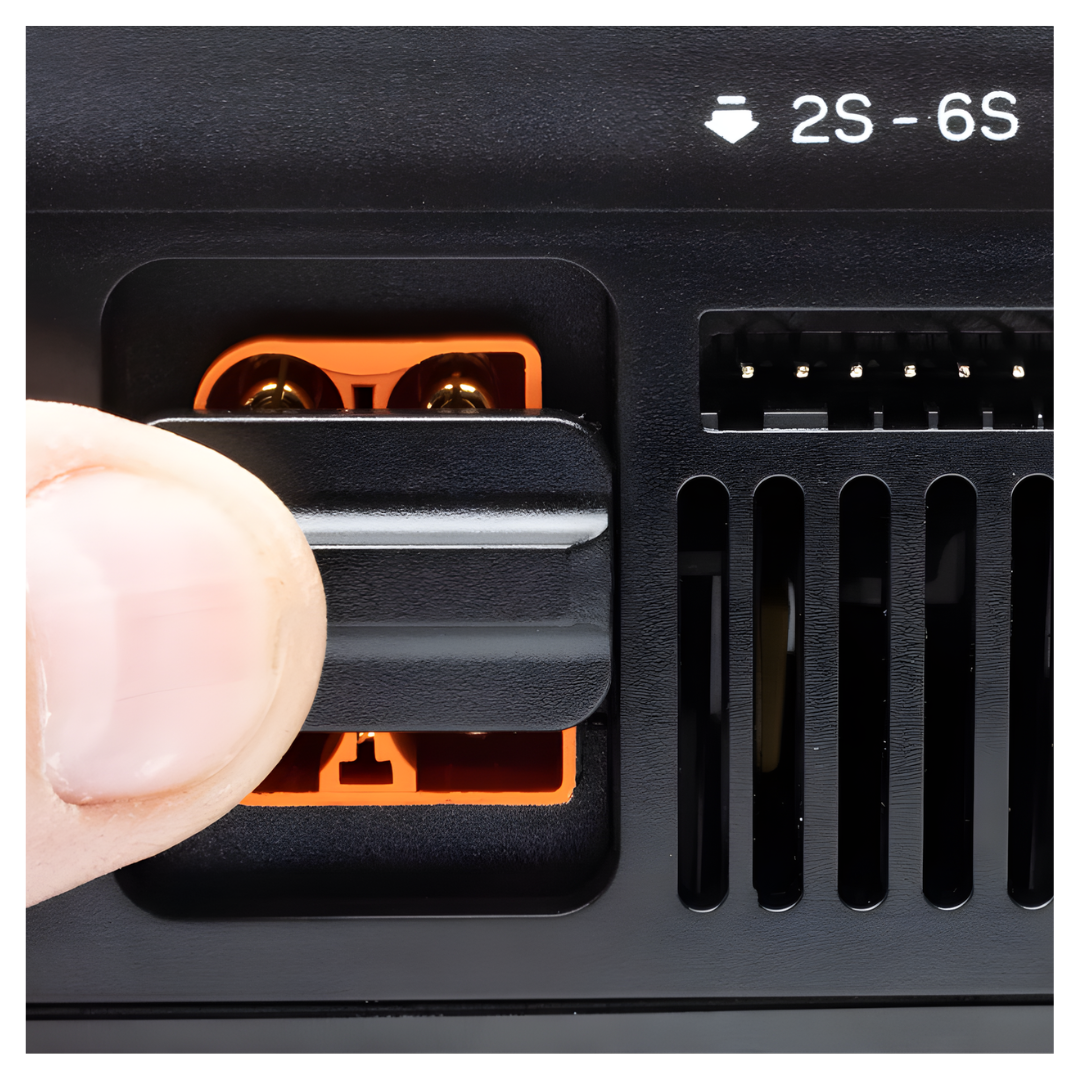

Can I use the IC3 and IC5 outputs at the same time? No. Use the sliding output-port selector to choose the required connector for one battery at a time.

Can I storage-charge my LiPo batteries? Yes. The charger provides a storage mode for compatible batteries.

Does the charger display remaining charging time? Yes. It can show an estimated remaining charge time when charging compatible Spektrum Smart batteries.

Can I update the firmware? Yes. The S1200 G2 supports firmware updates through its USB update connection using Spektrum's official procedure.

Does it have a USB charging port for accessories? Yes. It provides a USB power output for compatible secondary devices.

Is a mains power cord included? Yes. The package includes the charger, a detachable AC power cord and the product manual.

Important Notes

• Australian-market SKU: SPMXC2020AU
• Single-channel charger with up to 200W output
• IC3 and IC5 outputs are selectable, not independent charging channels
• Maximum charging current is 15A, subject to the 200W power limit
• Compatible with 100–240V AC mains input
• Includes detachable AC power cord
• Smart G2 single-connection balancing requires compatible Smart G2 batteries
• Conventional lithium batteries require appropriate balance connections and manual settings
• Additional adapters may be needed for other battery connector types
• Always confirm the correct battery chemistry and cell count before charging
• Never exceed the battery manufacturer's recommended charging current
• Do not charge non-rechargeable batteries
• Never leave charging batteries unattended
• Do not charge swollen, damaged or excessively hot batteries
• Use suitable fire-resistant charging equipment for LiPo batteries
• Operate in a dry, well-ventilated area
• Follow the supplied instruction manual for safe charging, discharging and storage
