Team Associated RC10 FT CVA 12mm Rear Hex Conversion Kit 6907

The Team Associated Factory Team ASS6907 kit converts compatible vintage and reissue RC10 rear CVA assemblies to a modern 12mm wheel hex system, allowing the use of compatible 12mm hex rear wheels while retaining the RC10 platform’s CVA drivetrain layout

Features

• Factory Team rear CVA 12mm hex conversion for compatible RC10 models
• Replaces the original rear axle interface with a 12mm wheel hex arrangement
• Uses Factory Team 12mm CVA axles and matching wheel hexes
• Designed around the RC10 rear CVA drivetrain
• Provides compatibility with suitable modern 12mm hex rear wheels
• Includes the dedicated axle retention and spacing hardware used by the conversion
• Suitable for restoration race preparation and modern wheel conversions on supported RC10 editions

Specifications

• Brand: Team Associated
• Series: Factory Team
• Product Type: Rear CVA 12mm Hex Conversion Kit
• Application: Team Associated RC10
• Position: Rear
• Wheel Hex Size: 12mm
• UPC: 784695069077
• Manufacturer Part Number: ASS6907

Compatibility

• Team Associated RC10 Classic 40th Anniversary
• Team Associated RC10 Jay Halsey Edition
• Team Associated RC10 40th Anniversary Green Edition
• Team Associated RC10 Team Car Gold Edition
• Team Associated RC10 Graphite Kit
• Team Associated RC10 Metallic Edition
• Team Associated RC10 Brian Kinwald Edition
• Team Associated RC10 '89 Stealth Car Masami Edition
• Team Associated RC10 Vegas Car

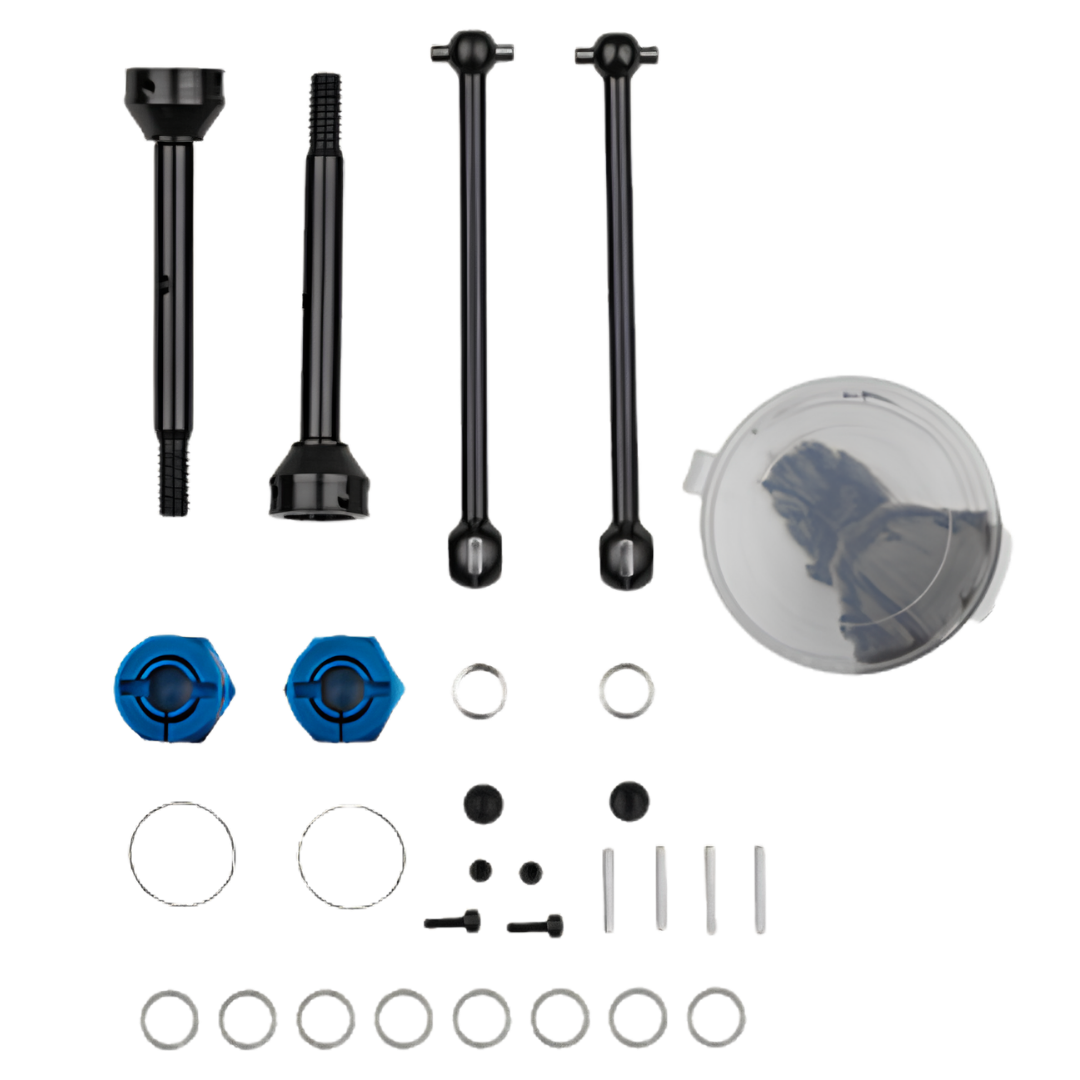

Includes

• Factory Team 12mm CVA Axles
• Factory Team 12mm Wheel Hexes
• CVA Retainer Clips
• Axle Shims
• Roll Pins
• Associated Conversion Hardware

FAQ

What does ASS6907 convert? It converts the rear CVA axle and wheel interface on compatible RC10 models to a 12mm hex system

Does this kit convert the front wheels as well? No, ASS6907 is the rear CVA conversion kit and does not include the separate front steering blocks or front axles required for a complete front 12mm hex conversion

Can I use modern 12mm hex rear wheels after fitting this kit? Yes, the purpose of the conversion is to provide a 12mm rear wheel hex interface, although wheel offset width and tyre clearance still need to suit the RC10

Are complete CVA drive bones included? Team Associated's current RC10 Factory Team manual shows the ASS6907 components used with separate 56mm CVA bones and CVA barrel and pin components, so complete drive bones should not be assumed to be included

Important Notes

• This kit converts the rear axle and wheel hex system only
• Compatible 12mm hex rear wheels are required separately
• Existing or separately purchased CVA bones barrels pins bearings and related drivetrain parts may be required depending on the vehicle configuration
• Confirm your exact RC10 edition against Team Associated's fitment list before installation
