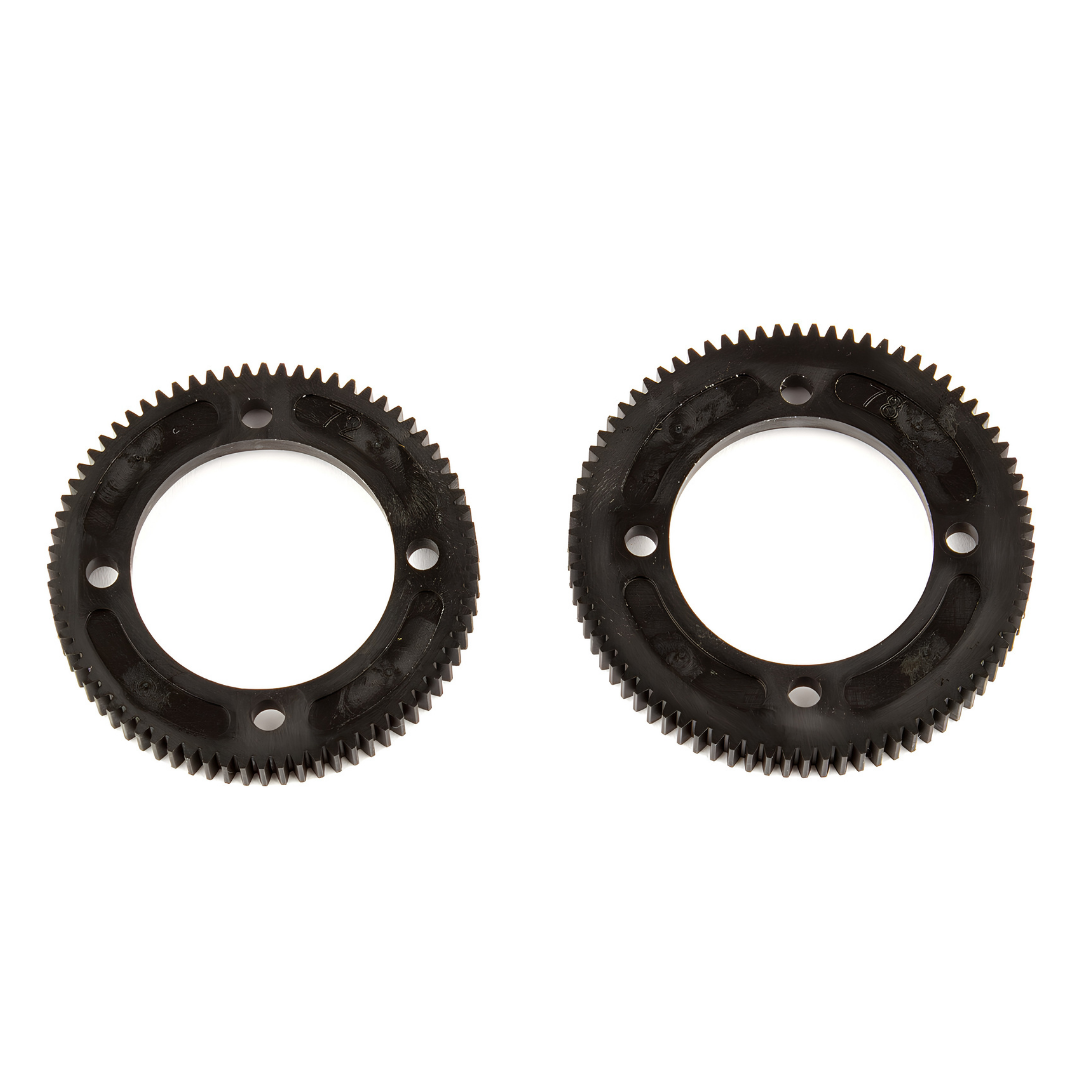

Team Associated RC10B74 Center Diff Spur Gears 72T 78T 48P 92149

The Team Associated ASS92149 Center Differential Spur Gear Set contains 72-tooth and 78-tooth 48-pitch spur gears for compatible Team Associated RC vehicles, providing two gearing options for maintenance and drivetrain setup changes.

Features

• Genuine Team Associated Part: Designed for compatible Team Associated centre differential and drivetrain assemblies
• Two Spur Gear Sizes: Includes both 72-tooth and 78-tooth gears for drivetrain setup flexibility
• 48-Pitch Gearing: Both supplied spur gears use standard 48-pitch tooth geometry
• RC10B74 Centre Differential Application: Originally designed for the RC10B74 centre differential system
• Gearing Adjustment: Allows racers to alter the overall gearing to suit motor choice, track layout and driving conditions
• Replacement and Setup Use: Suitable for replacing worn gears or keeping alternative gearing available in the pit box

Specifications

• Brand: Team Associated
• Product Type: Centre Differential Spur Gear Set
• Gear Pitch: 48P
• Spur Gear 1: 72T / 48P
• Spur Gear 2: 78T / 48P
• Primary Platform: Team Associated RC10B74 Series
• Manufacturer Part Number: 92149
• SKU: ASS92149
• Barcode / UPC: 784695921498

Compatibility

• Team Associated RC10B74
• Team Associated RC10B74.1
• Team Associated RC10B74.1D
• Team Associated RC10B74.2
• Team Associated RC10B74.2D
• Team Associated Apex2 Sport
• Team Associated Apex2 Sport A550
• Team Associated Apex2 Sport ST550
• Team Associated Apex2 Sport Nissan Z
• Additional current Team Associated models where part 92149 is specified by the manufacturer

Includes

• 1 x 72T / 48P Centre Differential Spur Gear
• 1 x 78T / 48P Centre Differential Spur Gear

FAQ

What is included with Team Associated ASS92149? The set contains one 72-tooth 48-pitch centre differential spur gear and one 78-tooth 48-pitch centre differential spur gear.

What is the difference between the 72T and 78T spur gears? With the same motor pinion, the 72T spur produces taller gearing while the 78T spur produces shorter gearing. The 78T option generally provides more mechanical reduction, while the 72T option reduces the overall gear ratio. Motor temperature and track conditions should be monitored whenever gearing is changed.

Does ASS92149 fit the RC10B74.2 and RC10B74.2D? Yes. Team Associated officially lists both the RC10B74.2 and RC10B74.2D among the compatible vehicles for part 92149.

Does this set include a centre differential? No. This package contains the two spur gears only. The complete RC10B74 centre differential assembly is a separate part.

Important Notes

• Both supplied gears are 48 pitch and require a compatible 48-pitch motor pinion
• Check the exact vehicle and drivetrain configuration for part 92149 compatibility before installation
• Centre differential, motor pinion and other drivetrain components are not included
• Recheck gear mesh and monitor motor and ESC temperatures after changing spur gear size
