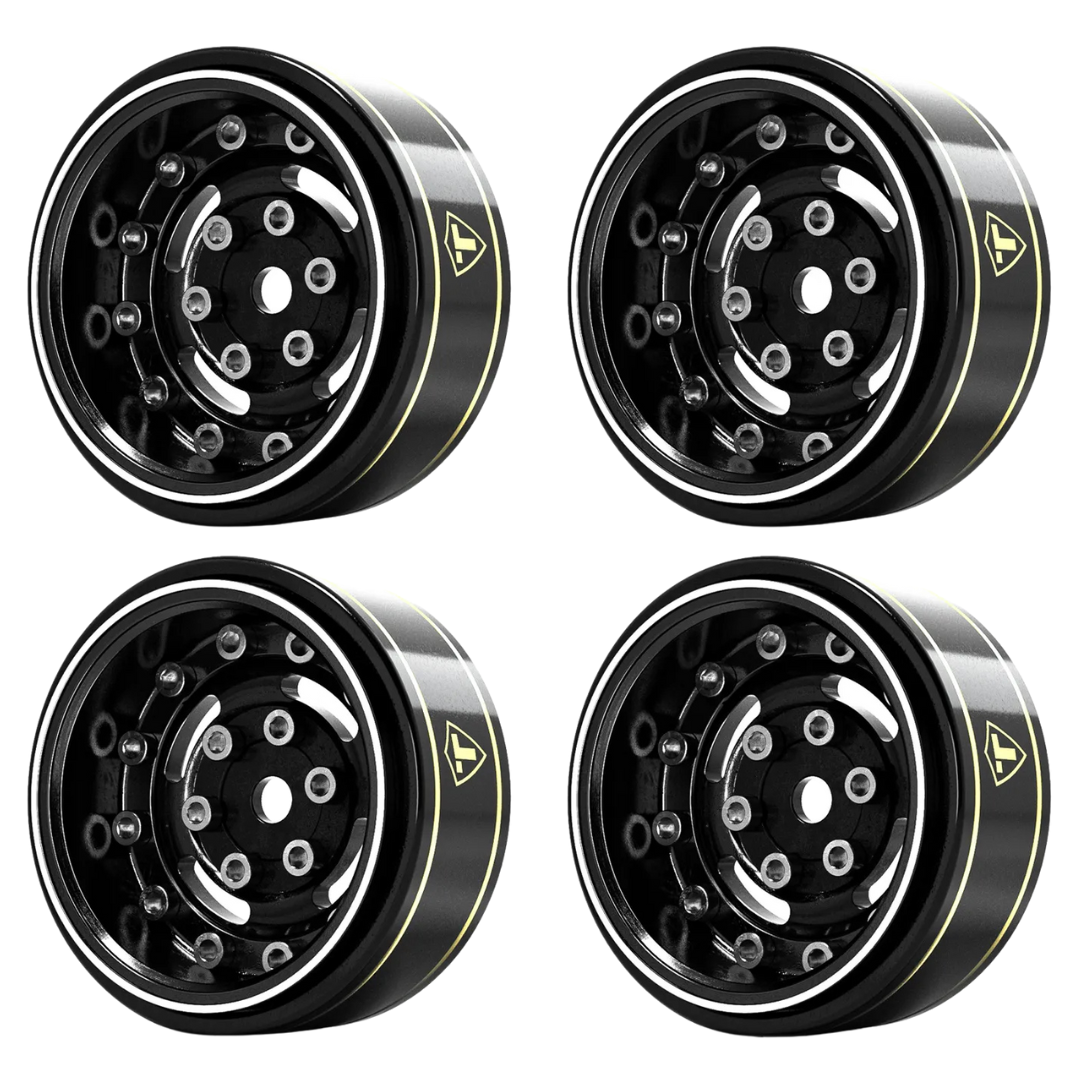

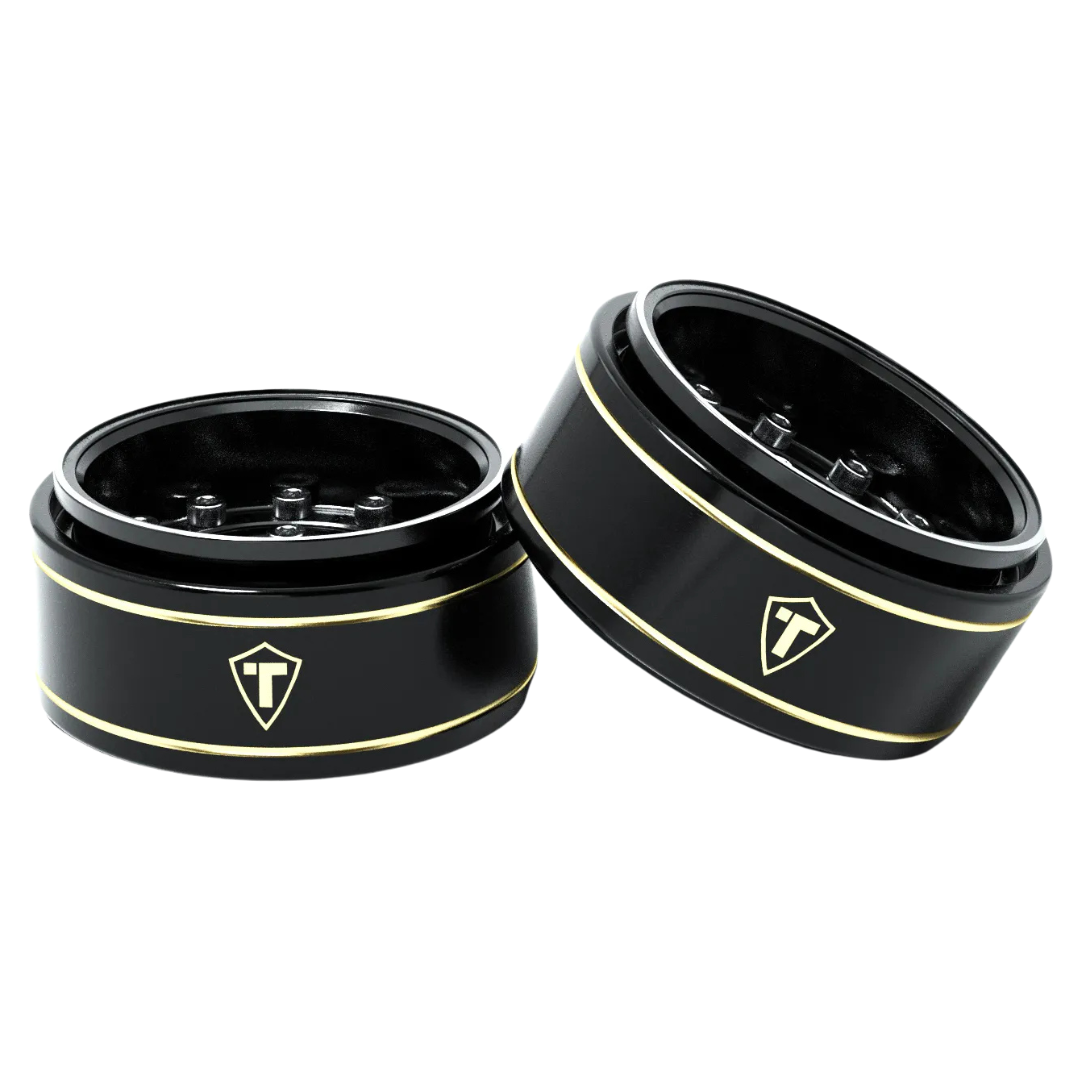

Treal 1.0" Beadlock Deep Dish Rims Black for SCX24 AX24 TRX4M FCX24 Type F

The Treal Type F 1.0 Deep Dish Beadlock Wheels are a black 4-piece wheel set for compatible 1/24 and 1/18 RC crawlers including SCX24, AX24, FCX24 and TRX4M models, suited to adding beadlock tyre mounting, scale style and low-mounted wheel weight.

These deep dish crawler wheels use aluminium wheel construction with black-coated brass centre rings to add useful unsprung weight at the axles. The removable hub design and included extended hubs support flexible installation and offset tuning on compatible micro crawler builds.

Features

• Type F Deep Dish Design: Adds an aggressive scale stance to compatible 1/24 and 1/18 crawler builds
• 1.0 Inch Beadlock Wheel Size: Designed for compatible 1.0 inch RC crawler tyres
• Beadlock Construction: Mechanically clamps compatible tyres without tyre glue
• Aluminium Wheel Construction: Strong machined wheel design suits rough crawling and trail use
• Black-Coated Brass Centre Rings: Adds low-mounted wheel weight to help improve traction and crawler stability
• Removable 7mm Hex Hubs: Allows hub changes and offset tuning when compatible hub options are used
• Extended Hubs Included: Supplied with extended wheel hubs for flexible custom installation
• Popular Micro Crawler Fitment: Suits compatible SCX24, AX24, FCX24 and TRX4M crawler platforms
• 4-Wheel Set: Includes four wheels for a complete crawler wheel upgrade

Specifications

• Brand: Treal
• Model: Type F Deep Dish
• Product Type: RC crawler beadlock wheel set
• Scale Suitability: 1/24 and 1/18
• Wheel Size: 1.0 inch
• Colour: Black
• Wheel Type: Beadlock
• Wheel Construction: Aluminium
• Centre Rings: Black-coated brass
• Outer Diameter: 31 mm
• Width: 15 mm
• Hex Hub: 7 mm
• Axle Through Hole Diameter: 3 mm
• Weight: Approximately 27 g per wheel, fully assembled
• Screw Size: M1.4 x 4
• Compatible Platforms: Axial SCX24, Axial AX24, FMS FCX24 and Traxxas TRX4M
• Quantity: 4 wheels

Includes

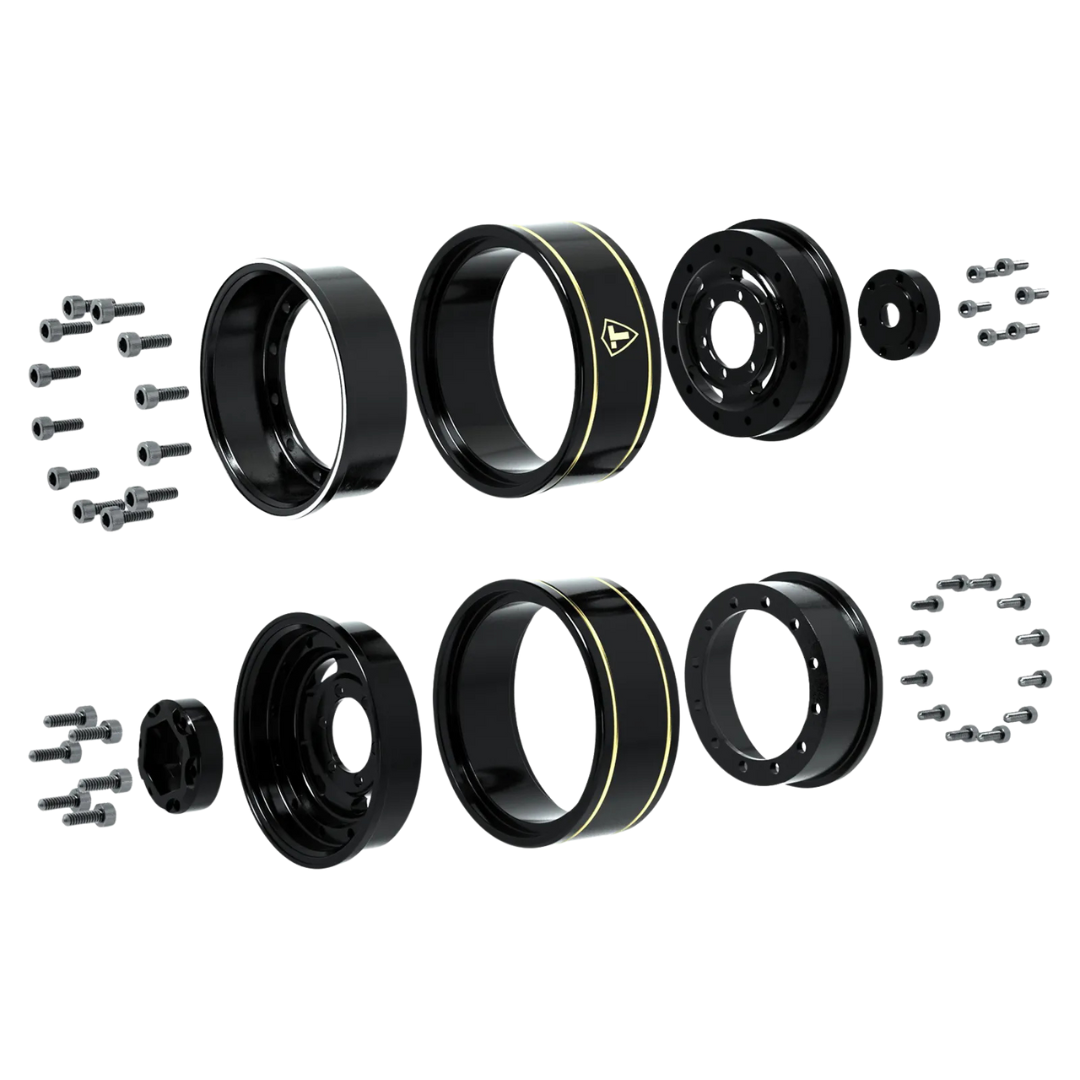

• 4 x Treal Type F 1.0 black deep dish beadlock wheels with removable hubs
• 4 x Extended wheel hubs
• 1 x Hardware set

FAQ

Do these wheels fit SCX24, AX24, FCX24 and TRX4M crawlers? Yes. The Treal Type F 1.0 deep dish wheels are listed to suit compatible SCX24, AX24, FCX24 and TRX4M crawler models.

Are tyres included? No. This listing includes the wheels, removable hubs, extended hubs and hardware only. Tyres and foams are required separately.

Do these wheels fit Pro-Line 1.0 Hyrax tyres? No. Treal lists these wheels as not compatible with Pro-Line 1.0 Hyrax tyres.

Can these wheels be used with TRX4M stock tyres? TRX4M stock tyres require the special Treal beadlock rings P/N X004BR0VUD when used with these wheels.

Important Notes

• Not compatible with Pro-Line 1.0 Hyrax tyres.
• For TRX4M stock tyres, use Treal beadlock rings P/N X004BR0VUD.
• Check tyre bead compatibility, hex size, axle clearance and body clearance before ordering.
• Beadlock wheels require careful assembly so the tyre bead seats evenly.
• Added wheel weight may increase load on steering servos, axles and drivetrain parts.
• Use threadlock where appropriate for metal-to-metal screws, avoiding contact with plastic parts.
• RC crawler, tyres, foams, tools and other accessories are not included unless shown separately.
