Treal 1.0" Beadlock Wheels Rims 5-Star 7mm Hex for 1/18 1/24 Crawlers Type B Bronze

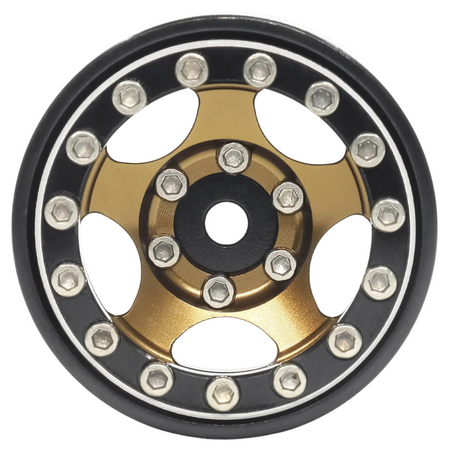

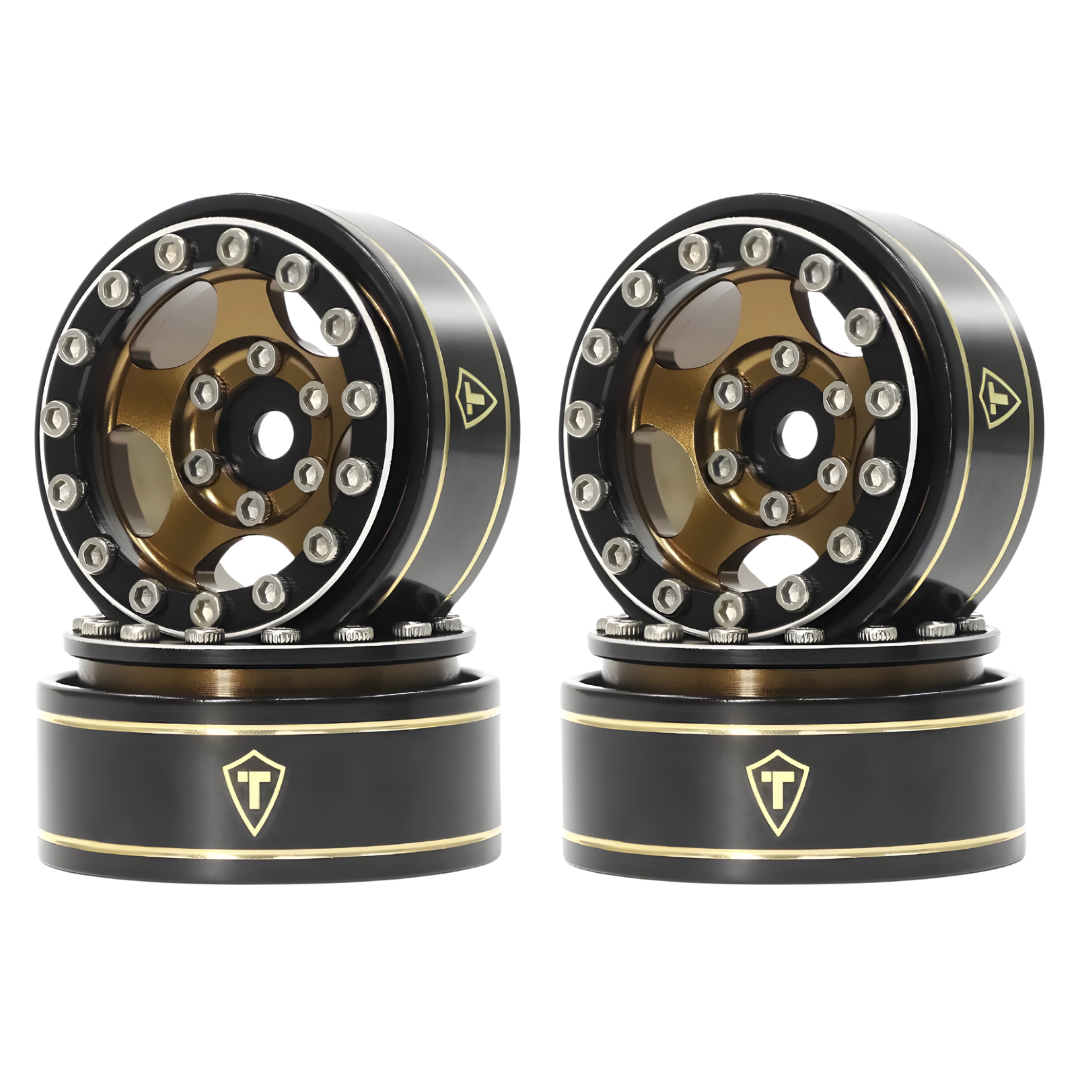

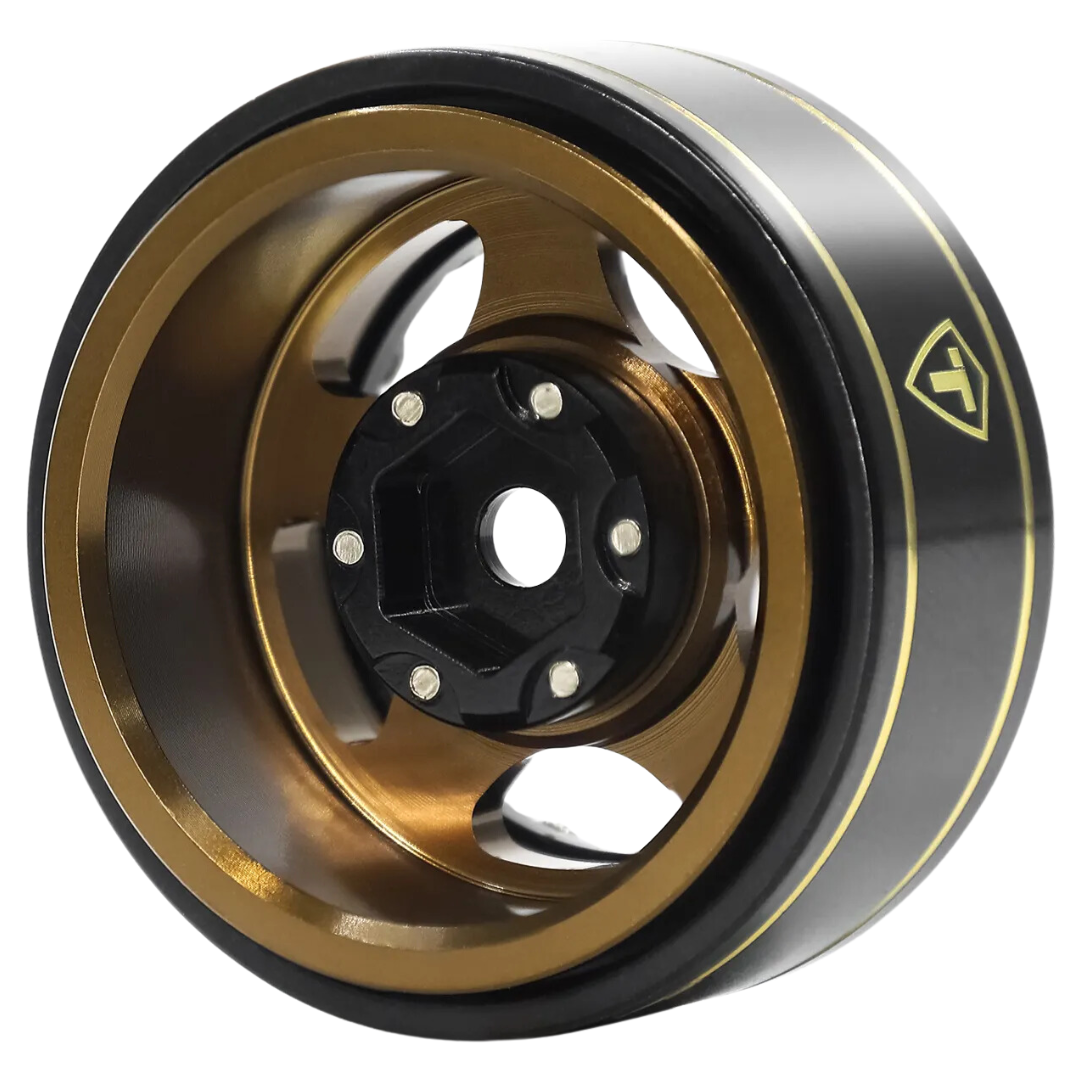

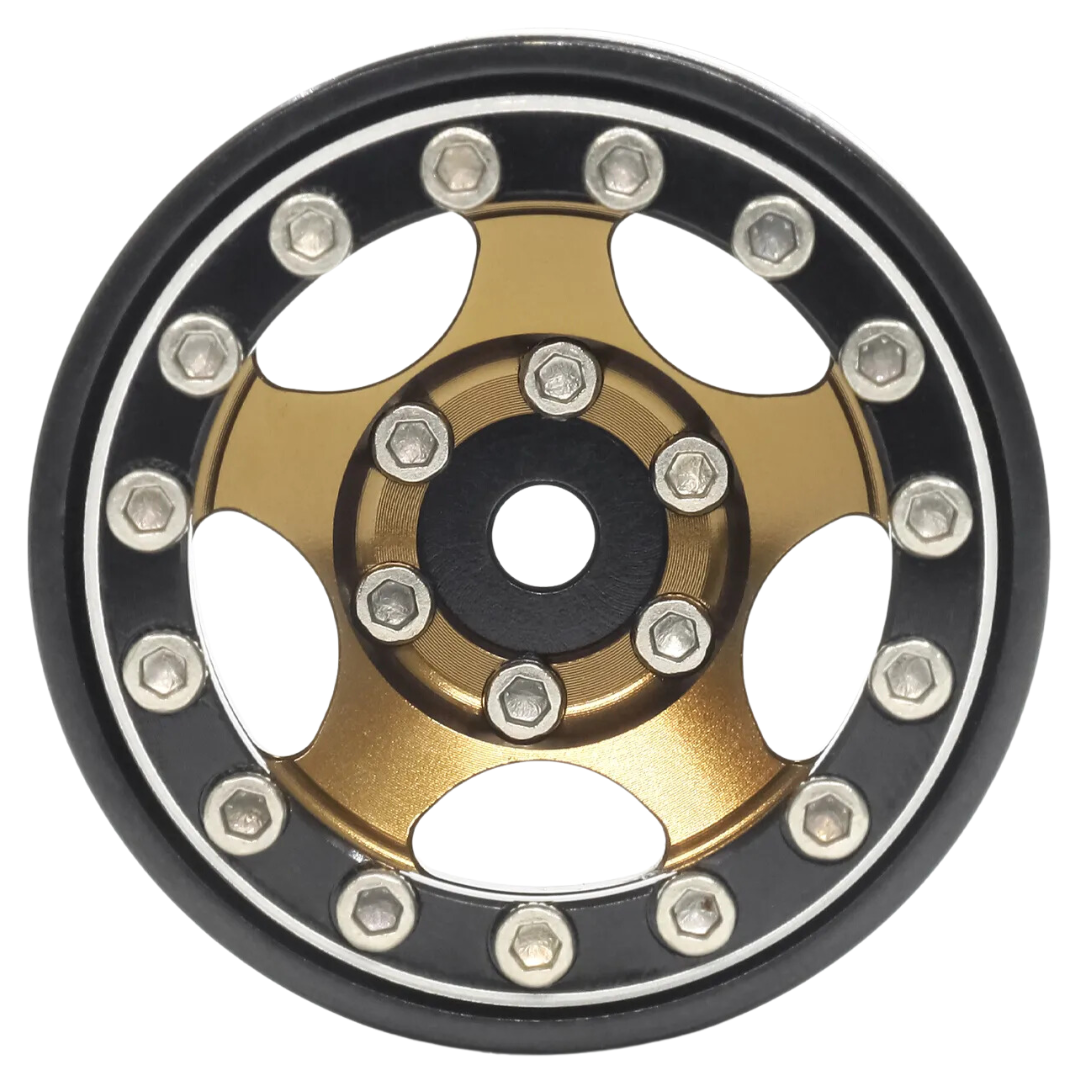

The Treal Type B 1.0 5-Star Beadlock Wheels are a bronze 4-piece wheel set for compatible 1/18 TRX4M and 1/24 AX24, SCX24 and FCX24 crawlers using 7mm hex fitment, suited to adding beadlock tyre mounting, scale styling and low-mounted brass wheel weight.

These Type B crawler wheels use CNC-machined 6061 aluminium rims with black-coated brass rings to add useful weight at the axles. The beadlock design holds compatible 1.0 crawler tyres without glue, making them a practical upgrade for micro crawler trail and rock crawling builds.

Features

• Type B 5-Star Design: Bronze 5-star wheel styling gives compatible micro crawlers a clean scale appearance
• 1.0 Inch Beadlock Size: Designed for compatible 1.0 inch RC crawler tyres
• Beadlock Construction: Uses 15 screws on the top ring and 6 screws on the hex mount to clamp compatible tyres securely
• CNC-Machined 6061 Aluminium Rims: Strong machined wheel construction for 1/18 and 1/24 crawler use
• Black-Coated Brass Rings: Adds low-mounted wheel weight to help improve tyre contact and crawler stability
• 7mm Hex Fitment: Suits compatible crawler axles using 7mm hex hubs
• Micro Crawler Compatibility: Listed for 1/18 TRX4M and 1/24 AX24, SCX24 and FCX24 crawler platforms
• 4-Wheel Set: Includes four wheels for a complete crawler wheel upgrade

Specifications

• Brand: Treal
• Model: Type B 5-Star
• SKU: X002XB2X1T
• Product Type: RC crawler beadlock wheel set
• Scale Suitability: 1/18 and 1/24
• Wheel Size: 1.0 inch
• Colour: Bronze
• Wheel Type: Beadlock
• Wheel Construction: CNC-machined 6061 aluminium
• Ring Material: Black-coated brass
• Outer Diameter: 31 mm
• Width: 15 mm
• Hex Hub: 7 mm
• Axle Through Hole Diameter: 3 mm
• Weight: Approximately 27.3 g per wheel, fully assembled
• Screw Size: M1.4 x 4 mm
• Top Ring Screw Count: 15 screws
• Hex Mount Screw Count: 6 screws
• Compatible Platforms: Traxxas TRX4M, Axial AX24, Axial SCX24 and FMS FCX24
• Quantity: 4 wheels

Includes

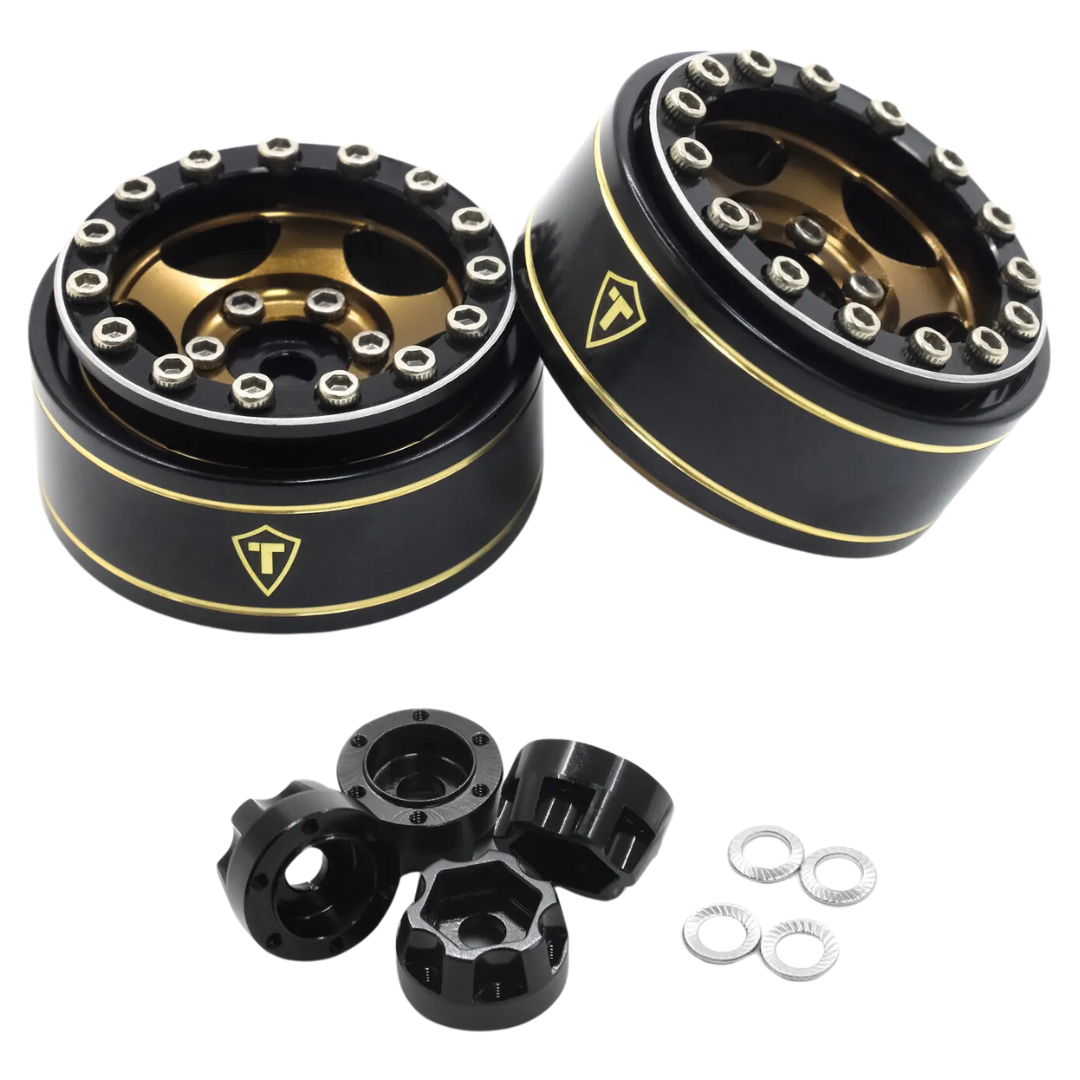

• 4 x Treal Type B 1.0 bronze aluminium beadlock wheel rims
• 4 x Black-coated brass rings
• 1 x Assembly hardware set

FAQ

Do these wheels fit SCX24, AX24, FCX24 and TRX4M crawlers? Yes. The Treal Type B 1.0 beadlock wheels are listed to suit compatible 1/24 AX24, SCX24 and FCX24 models, plus 1/18 TRX4M crawlers.

Are tyres included? No. This listing includes the wheels, brass rings and assembly hardware only. Tyres and foams are required separately.

Do these wheels fit Pro-Line 1.0 Hyrax tyres? No. Treal lists these wheels as not compatible with Pro-Line 1.0 Hyrax tyres.

Can these wheels be used with stock TRX4M tyres? Stock TRX4M tyres require the special Treal beadlock rings P/N X004BR0VUD when used with these wheels.

Important Notes

• Not compatible with Pro-Line 1.0 Hyrax tyres.
• For stock TRX4M tyres, replace the beadlock rings with Treal TRX4M-specific rings P/N X004BR0VUD.
• Check tyre bead compatibility, 7mm hex fitment, axle clearance and body clearance before ordering.
• Beadlock wheels require careful assembly so the tyre bead seats evenly.
• Added wheel weight may increase load on steering servos, axles and drivetrain parts.
• Use threadlock where appropriate for metal-to-metal screws, avoiding contact with plastic parts.
• RC crawler, tyres, foams, tools and other accessories are not included unless shown separately.
