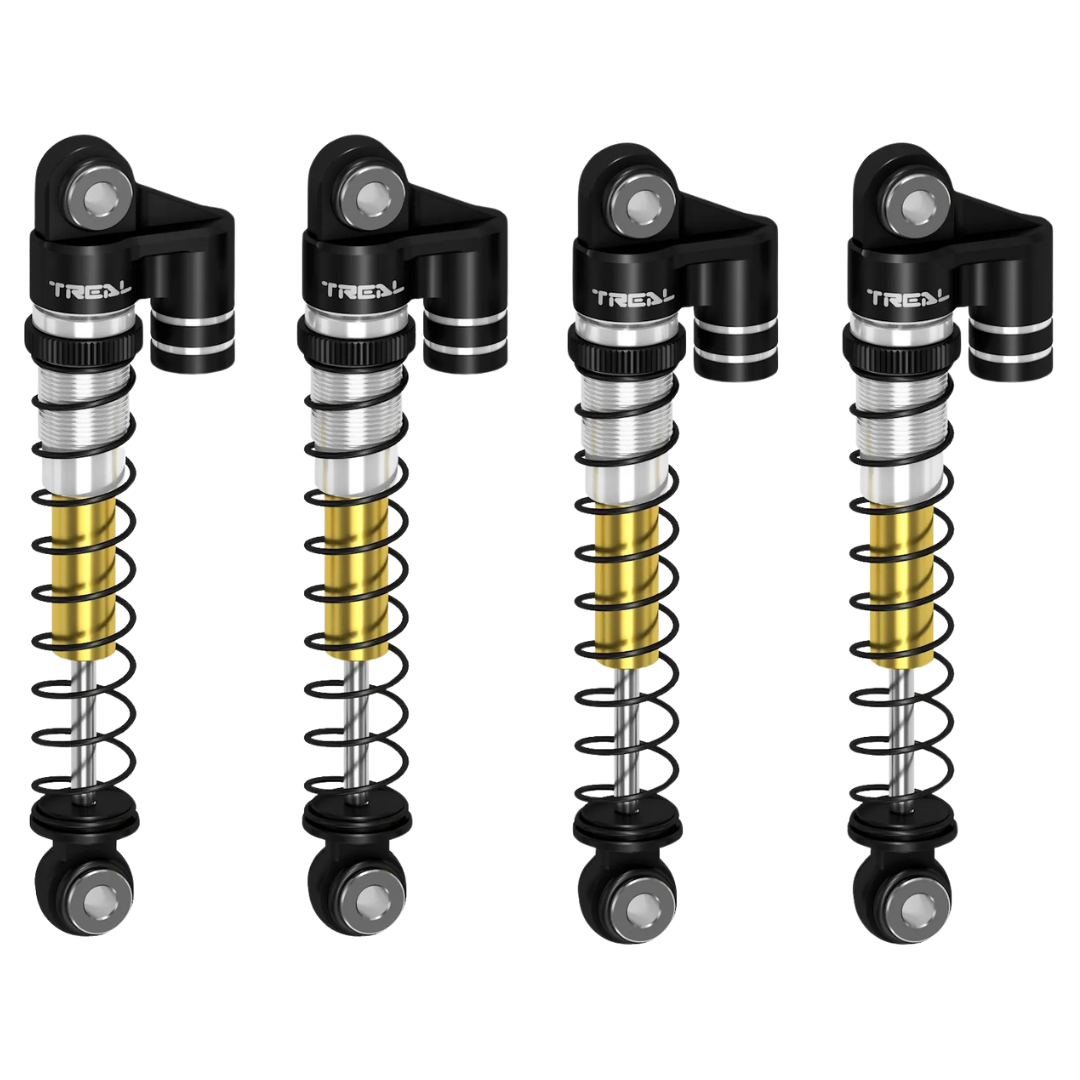

Treal FCX24 43mm Double Barrel Shocks 1/24 Power Wagon Black X004FCX243B

The Treal FCX24 43mm Double Barrel Shock Set is a black 4-piece suspension upgrade for the FMS 1/24 FCX24 Power Wagon, suited to improving shock durability, suspension travel and crawler flex.

These threaded double barrel shocks replace the original plastic shocks with upgraded aluminium units and supplied spring options. The 43 mm eye-to-eye length helps add suspension travel for crawling, while the included soft, medium and firm spring rates allow tuning for body weight and driving style.

Features

• FCX24 Power Wagon Fitment: Designed specifically for the FMS 1/24 FCX24 Power Wagon
• 43 mm Eye-To-Eye Length: Lengthened shock design provides greater travel distance and more crawler flex
• Double Barrel Shock Design: Supports increased stroke for technical crawling and uneven terrain
• Threaded Shock Bodies: Allows spring preload adjustment for suspension tuning
• Aluminium Construction: CNC-machined aluminium shock bodies replace the stock plastic shocks
• Upgraded Rod Balls: Designed to improve shock stability and durability over the original setup
• Three Spring Options: Includes black, gold and silver spring rates for tuning to your truck’s body weight
• Smooth Shock Action: Precision workmanship supports consistent suspension movement during crawling
• Complete Shock Set: Includes four shocks plus additional springs and mounting hardware

Specifications

• Brand: Treal
• SKU: X004FCX243B
• Alternative Retailer Part Number: TLHTFCX24-39
• Product Type: RC crawler shock absorber set
• Scale: 1/24
• Compatible Platform: FMS FCX24 Power Wagon
• Shock Type: Threaded double barrel shock absorber
• Material: CNC-machined aluminium, retailer listed
• Colour: Black

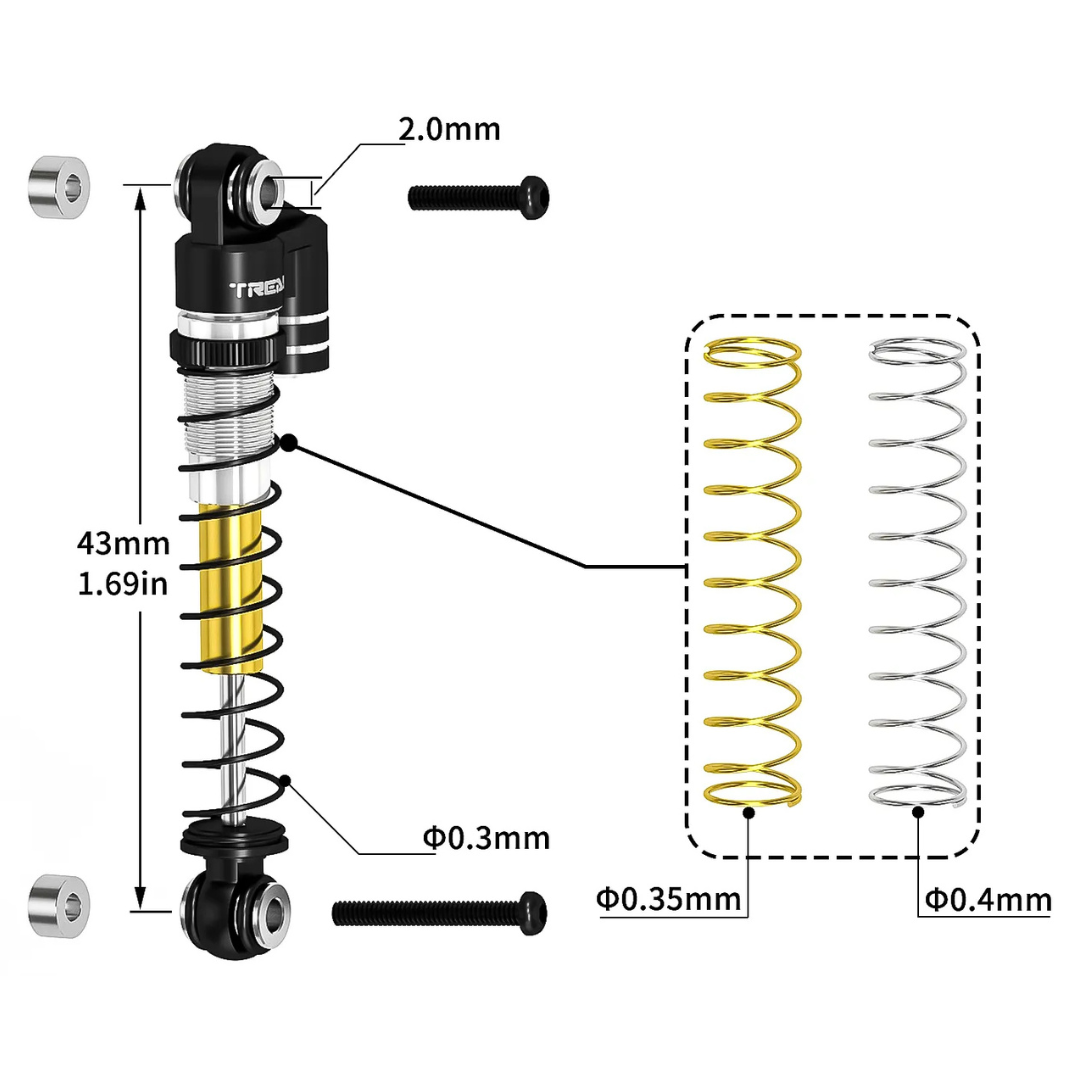

• Total Length Fully Extended: 47 mm
• Length Eye-To-Eye: 43 mm
• Compressed Length: 24 mm
• Spring Length: 32 mm
• Pre-Installed Spring: Black soft spring, 0.3 mm diameter
• Additional Spring: Gold spring, 0.35 mm diameter
• Additional Spring: Silver spring, 0.4 mm diameter
• Rod Ball Hole: M2
• Quantity: 4 shocks

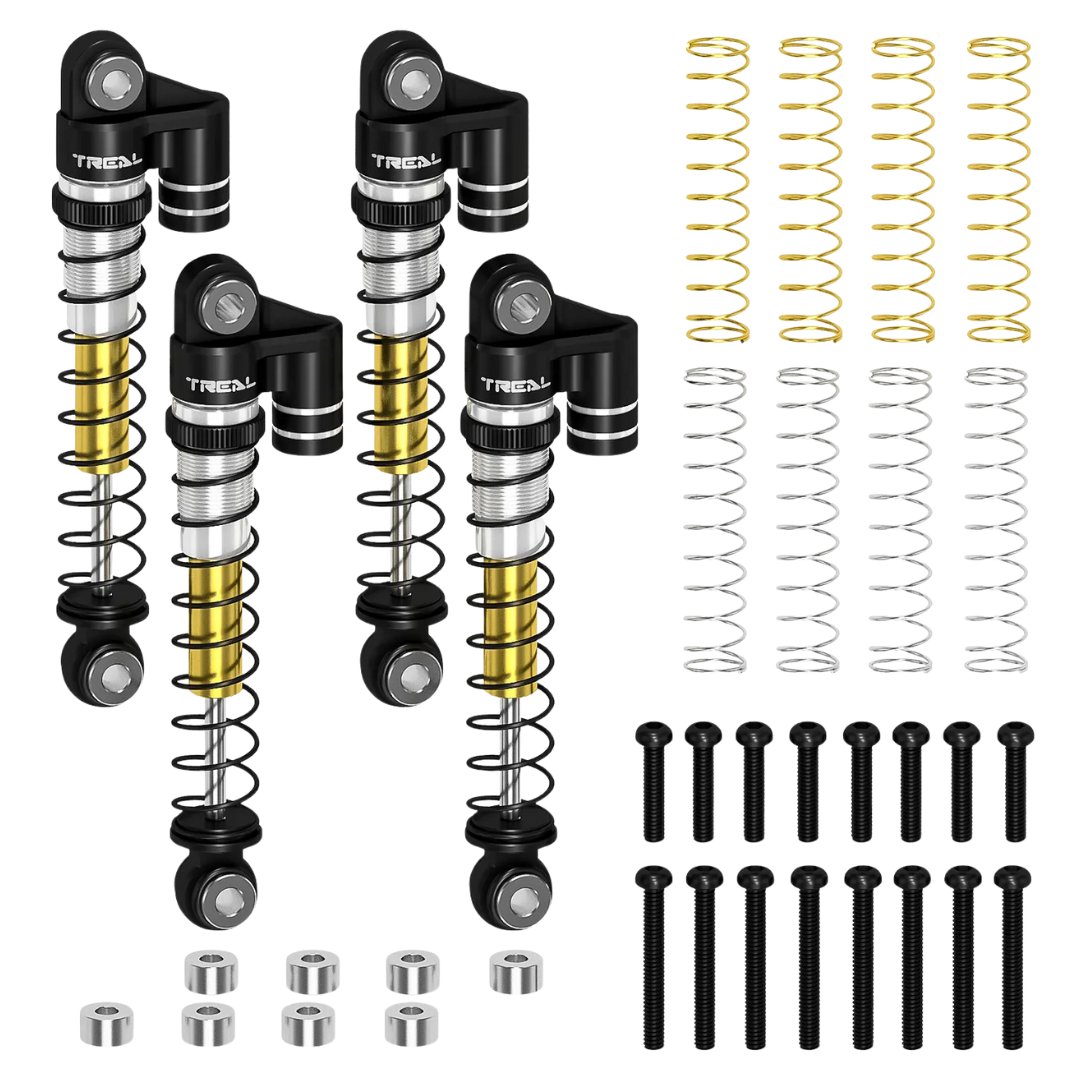

Includes

• 4 x Treal FCX24 43mm black double barrel shock absorbers
• 4 x Gold springs
• 4 x Silver springs
• 1 x Mounting hardware set

FAQ

Does this shock set fit the FMS FCX24 Power Wagon? Yes. The Treal X004FCX243B shock set is designed for the FMS 1/24 FCX24 Power Wagon.

Will these shocks fit the Axial SCX24? No. Treal lists the M2 rod ball hole as not compatible with SCX24 fitment.

How many shocks are included? The Treal X004FCX243B set includes four shock absorbers, additional gold and silver springs, and mounting hardware.

Why use longer 43mm shocks on an FCX24? Longer 43mm shocks can increase suspension travel and flex, helping the crawler stay more settled over rocks, ruts and uneven trail surfaces.

Important Notes

• Designed for the FMS 1/24 FCX24 Power Wagon.
• Not compatible with Axial SCX24 due to the M2 rod ball fitment.
• Check body, tyre, chassis and driveshaft clearance after installation.
• Longer shocks may alter ride height, centre of gravity and suspension geometry.
• Use the spring rate that best suits your vehicle weight and crawling setup.
• Installation requires basic RC tools and correct shock orientation.
• RC crawler, wheels, tyres, tools and other accessories are not included unless shown separately.
