Treal Type A 1.0 12-Hole Brass Beadlock Wheels 1/24 SCX24 Black X0039345J3
Couldn't load pickup availability

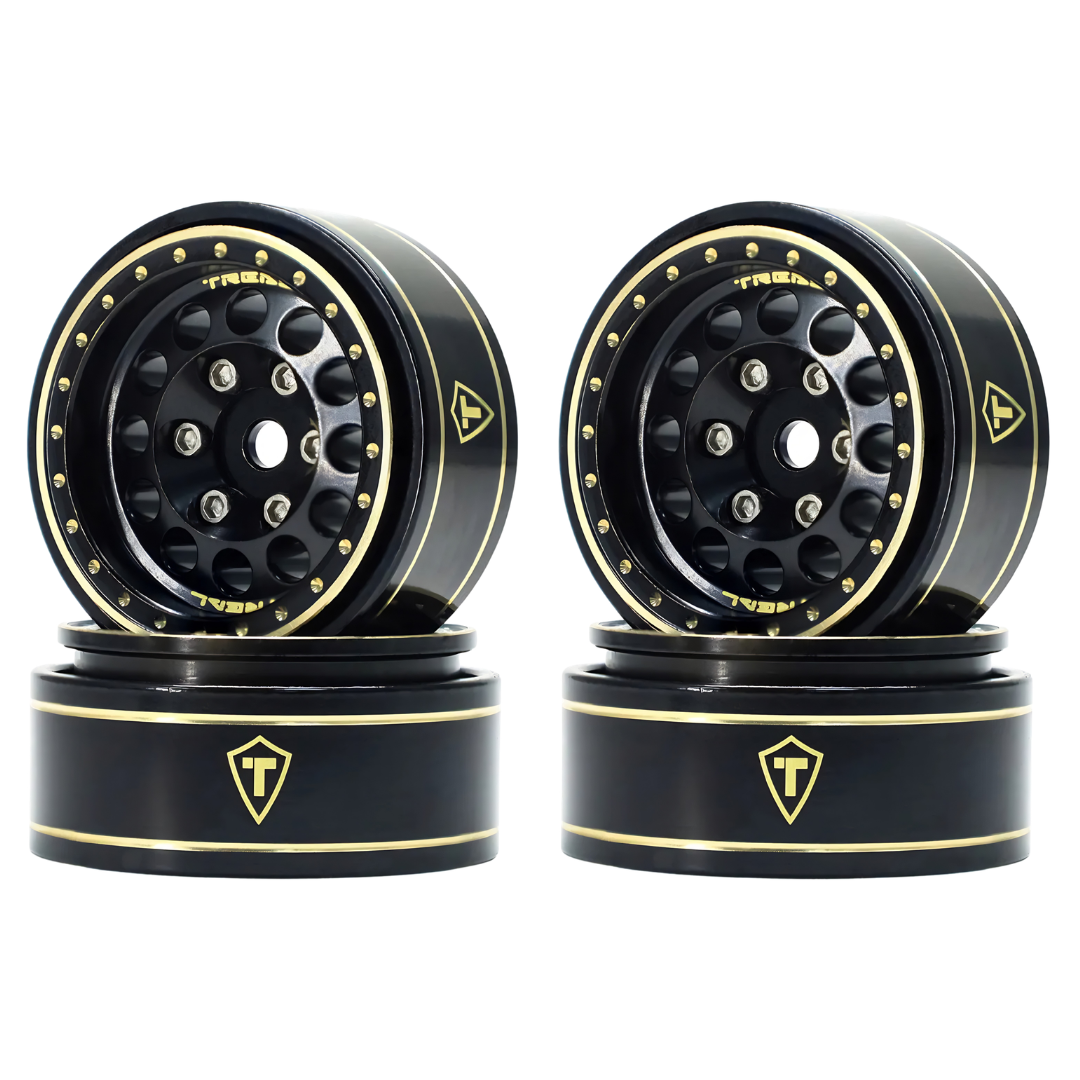

The TREAL Type A 1.0 brass beadlock wheel set is designed for Axial SCX24 1/24 crawlers, adding low-mounted weight for improved stability while providing a durable 12-hole scale wheel upgrade.
Each fully assembled wheel weighs approximately 47g, helping lower the crawler’s centre of gravity and keep the tyres planted on uneven terrain. The removable 7 mm hex adaptors allow the wheel offset to be adjusted, while the included +3 mm extended hubs provide an additional fitment option.
The beadlock construction mechanically secures compatible 1.0-inch crawler tyres without tyre glue. CNC-machined brass construction provides additional unsprung weight and a solid mounting platform for trail crawling and technical obstacle work.
Features
- Weighted Brass Construction: Adds low-mounted weight to help improve crawler stability
- 1.0-Inch Beadlock Design: Mechanically secures compatible crawler tyre beads without glue
- Type A 12-Hole Design: Black scale-style wheel face for Axial SCX24 builds
- Removable Hex Adaptors: Allows the hub arrangement and wheel offset to be changed
- Extended Hub Option: Includes +3 mm wheel hubs for additional track width
- CNC Machined: Precision-machined construction for consistent fit and durability
- SCX24 Compatibility: Designed for the Axial SCX24 Bronco, Gladiator, C10 and Deadbolt
- Four-Wheel Set: Provides a complete wheel upgrade for one crawler
Specifications
- Brand: TREAL
- Model: Type A
- SKU: X0039345J3
- Barcode: 769923281209
- Product Type: Weighted beadlock crawler wheels
- Scale: 1/24
- Wheel Size: 1.0 inch
- Wheel Design: 12-hole
- Material: Brass
- Colour: Black
- Outer Diameter: 31 mm
- Width: 15 mm
- Weight: Approximately 47 g per wheel fully assembled
- Standard Hex Hub: 7 mm removable adaptor
- Extended Hub Offset: +3 mm
- Axle Through-Hole Diameter: 3 mm
- Screw Size: M1.4 x 4 mm
- Quantity: Four wheels
- Compatible Vehicles: Axial SCX24 Bronco, Gladiator, C10 and Deadbolt

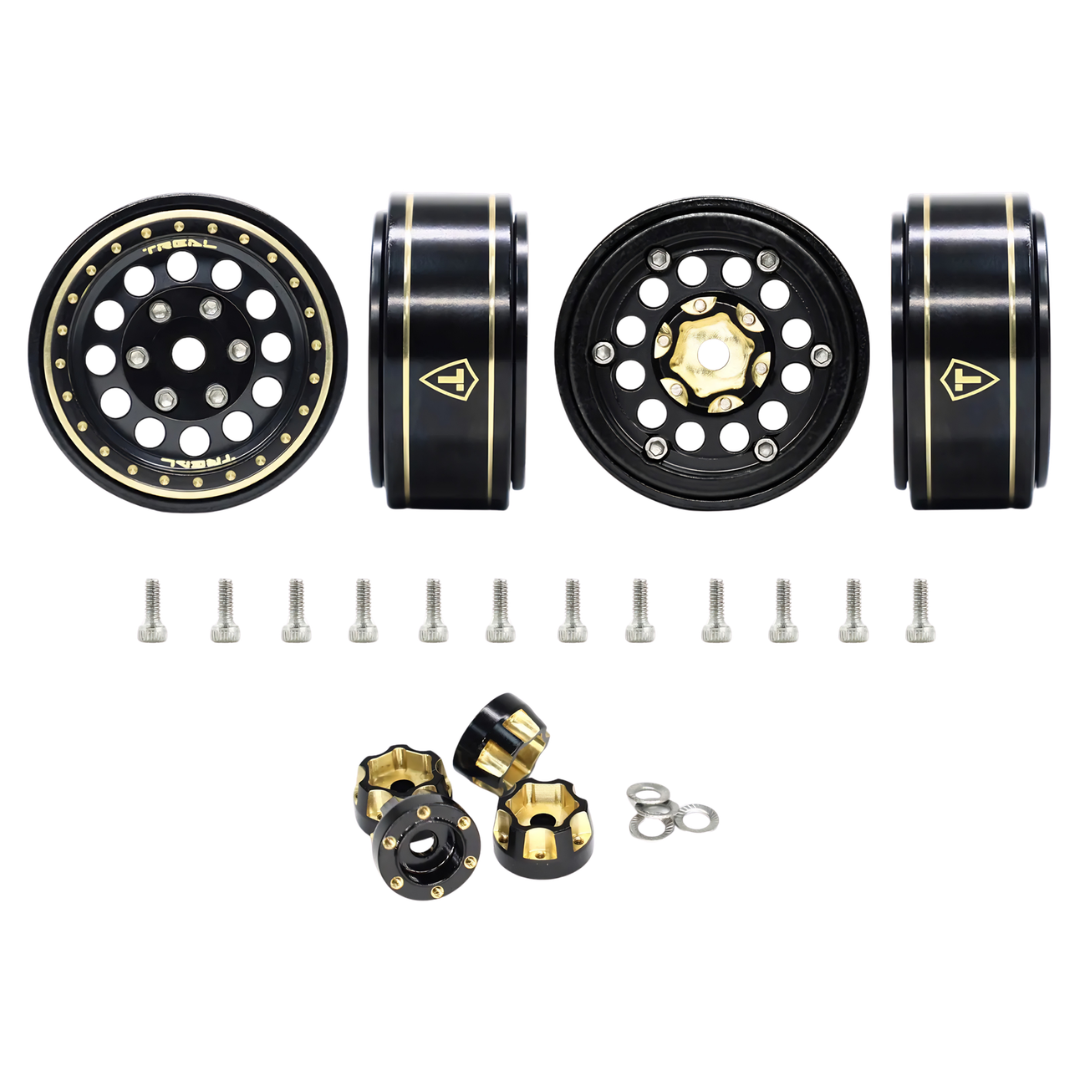

Includes
- 4 x TREAL Type A 1.0 brass beadlock wheels
- 4 x +3 mm extended wheel hubs
- Beadlock mounting hardware
FAQ
Which Axial SCX24 models do these wheels fit? The TREAL Type A wheels are designed for the Axial SCX24 Bronco, Gladiator, C10 and Deadbolt using the standard 7 mm wheel hex.
Are crawler tyres included? No. The package contains four beadlock wheels, extended hubs and mounting hardware. Compatible 1.0-inch crawler tyres are required separately.
Will these wheels fit Pro-Line 1.0 Hyrax tyres? No. TREAL specifies that these wheels are not compatible with Pro-Line 1.0 Hyrax tyres.
Can these wheels be used with standard Traxxas TRX4M tyres? Standard TRX4M tyres require the separate TREAL TRX4M beadlock ring set with part number X004BR0VUD.
Important Notes
- Not compatible with Pro-Line 1.0 Hyrax tyres
- Standard Traxxas TRX4M tyres require TREAL beadlock rings X004BR0VUD, sold separately
- Tyres are not included
- Confirm tyre bead compatibility before assembly, as bead dimensions can vary between manufacturers
- Start the beadlock screws loosely and tighten them gradually in a cross pattern to help seat the tyre bead evenly
