Vanquish VS4-10 Origin Classic 4WD 1/10 RC Rock Crawler Kit VPS09026A

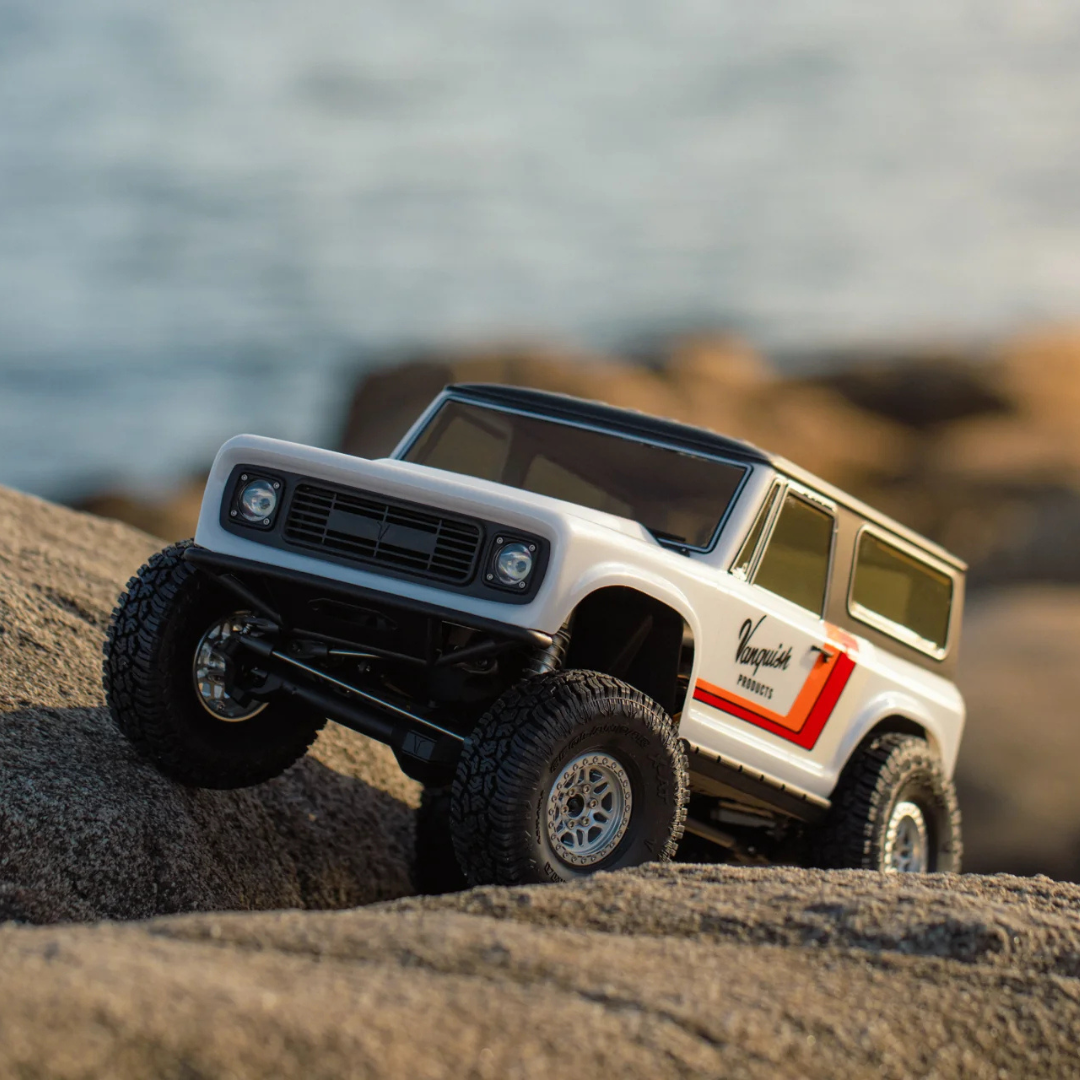

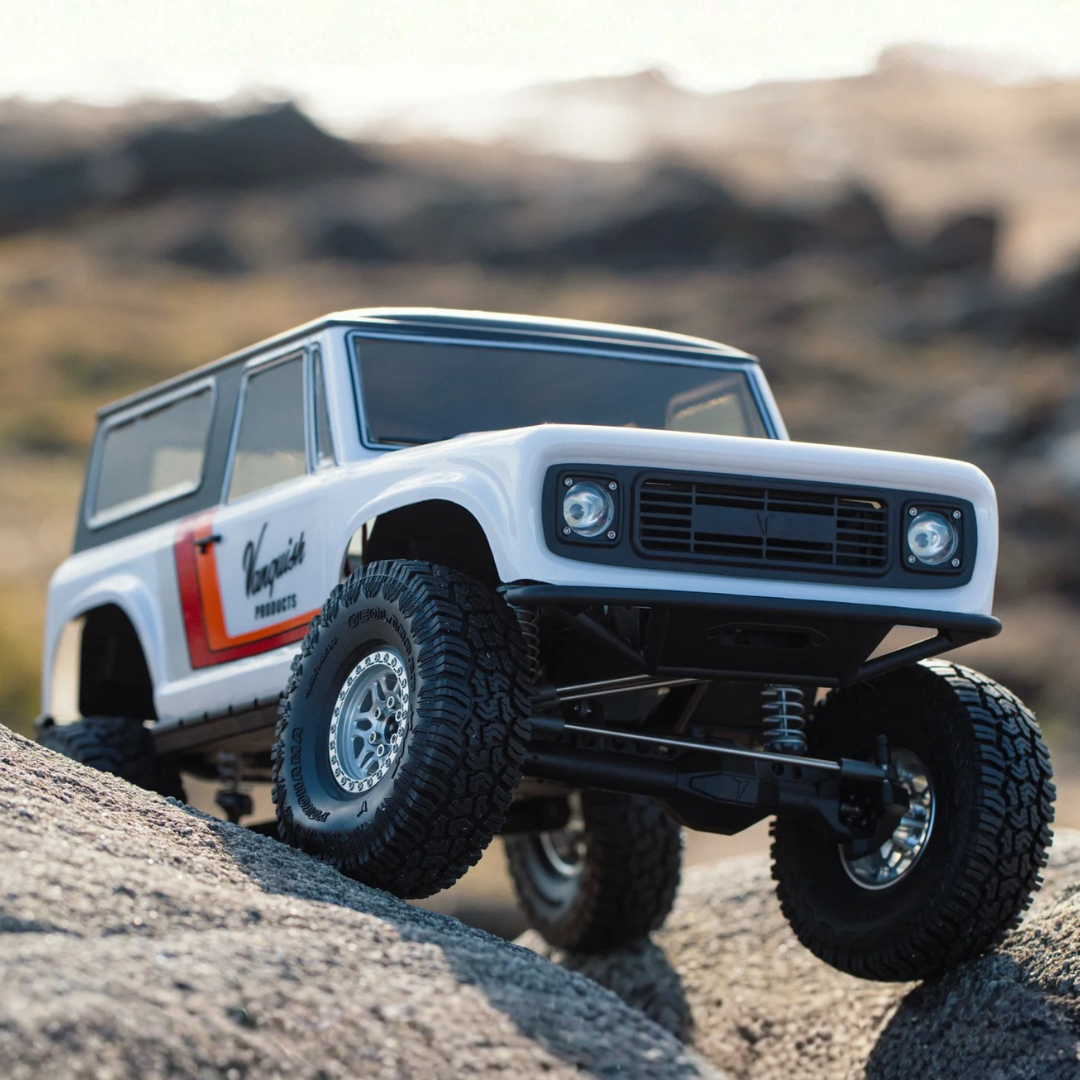

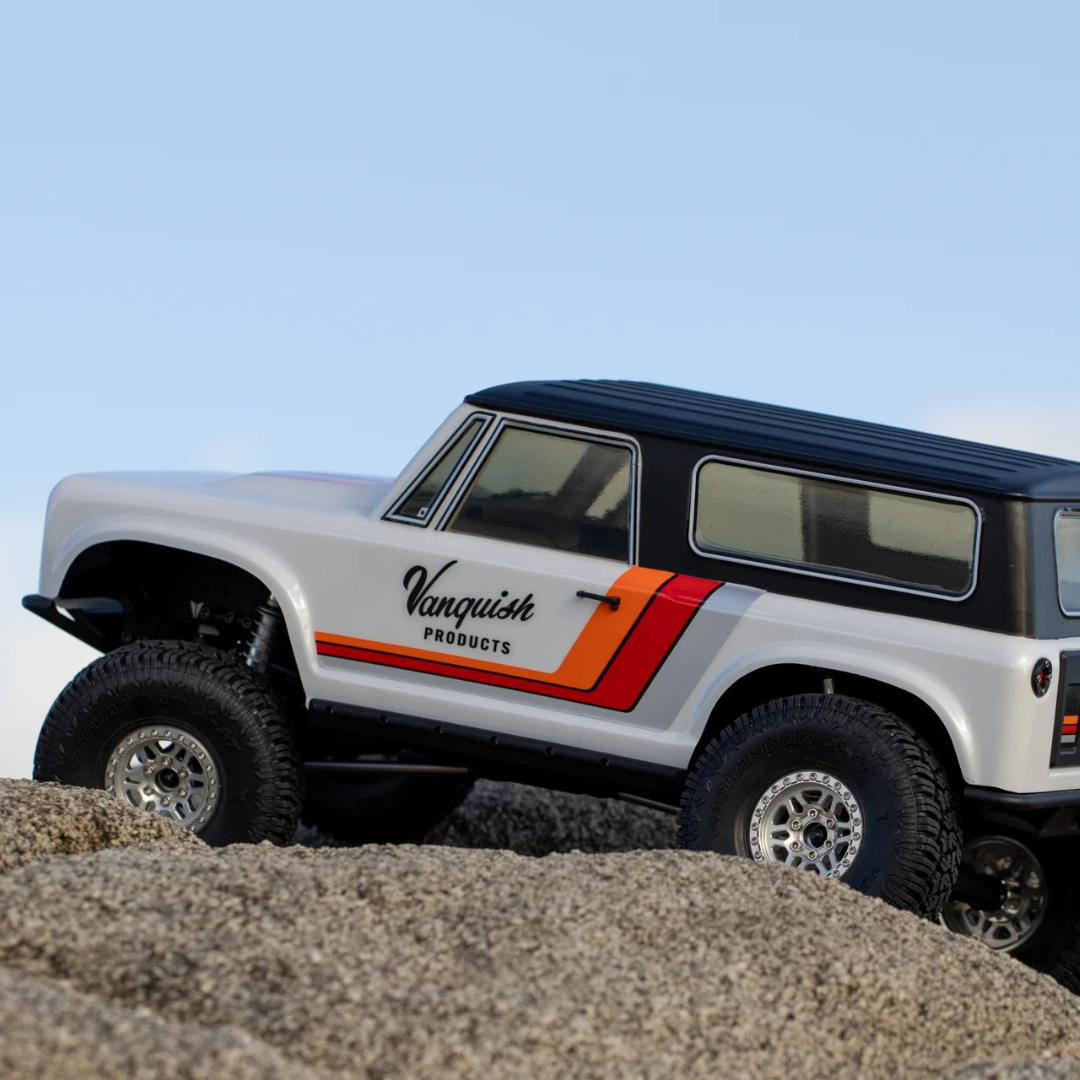

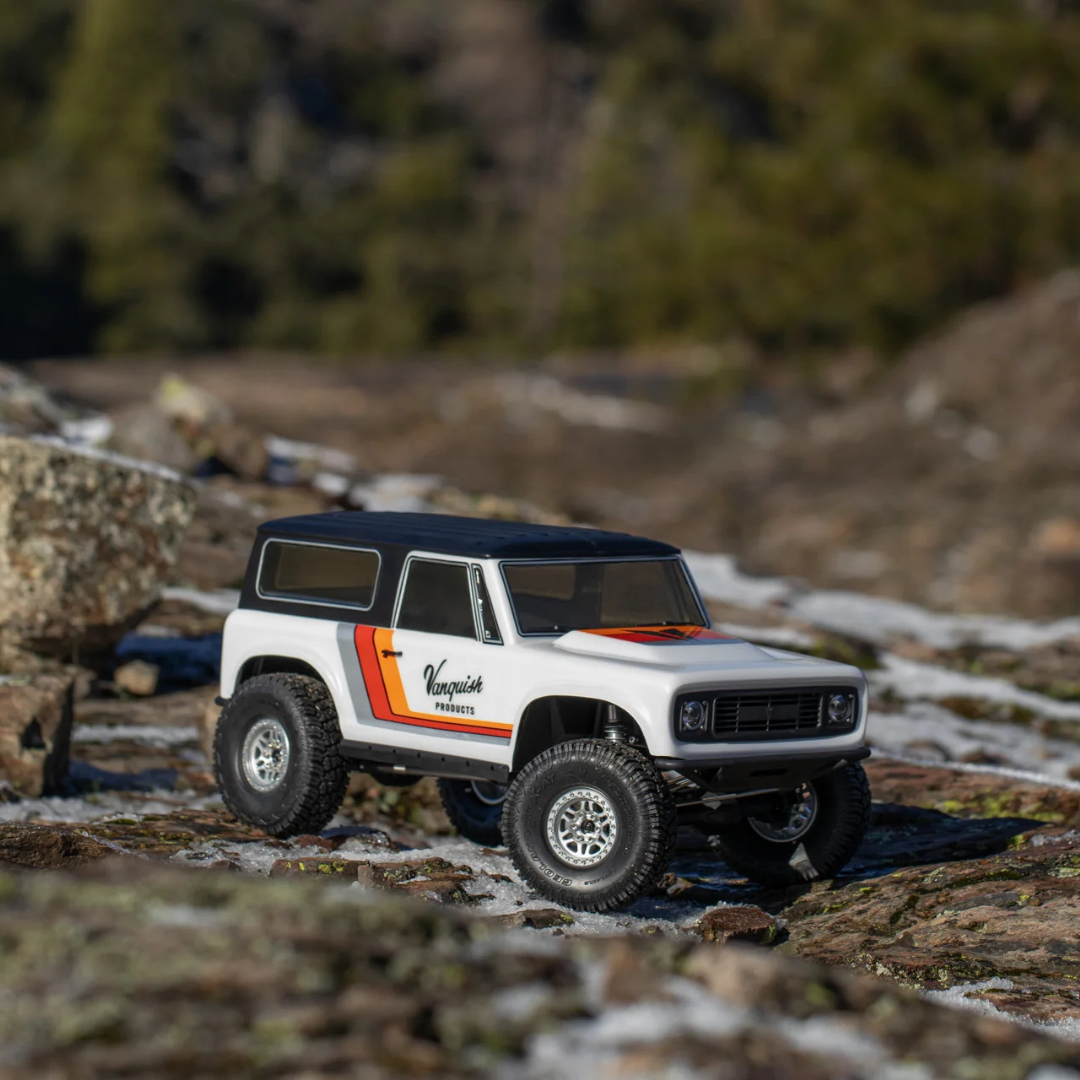

The Vanquish Products VS4-10 Origin Classic returns to the roots of scale crawling with the original Origin body design combined with modern engineering upgrades. Built on the proven VS4-10 platform, this kit delivers excellent durability, refined suspension geometry, and a clean clip-less body mounting system for realistic scale appearance and capable trail performance.

Features

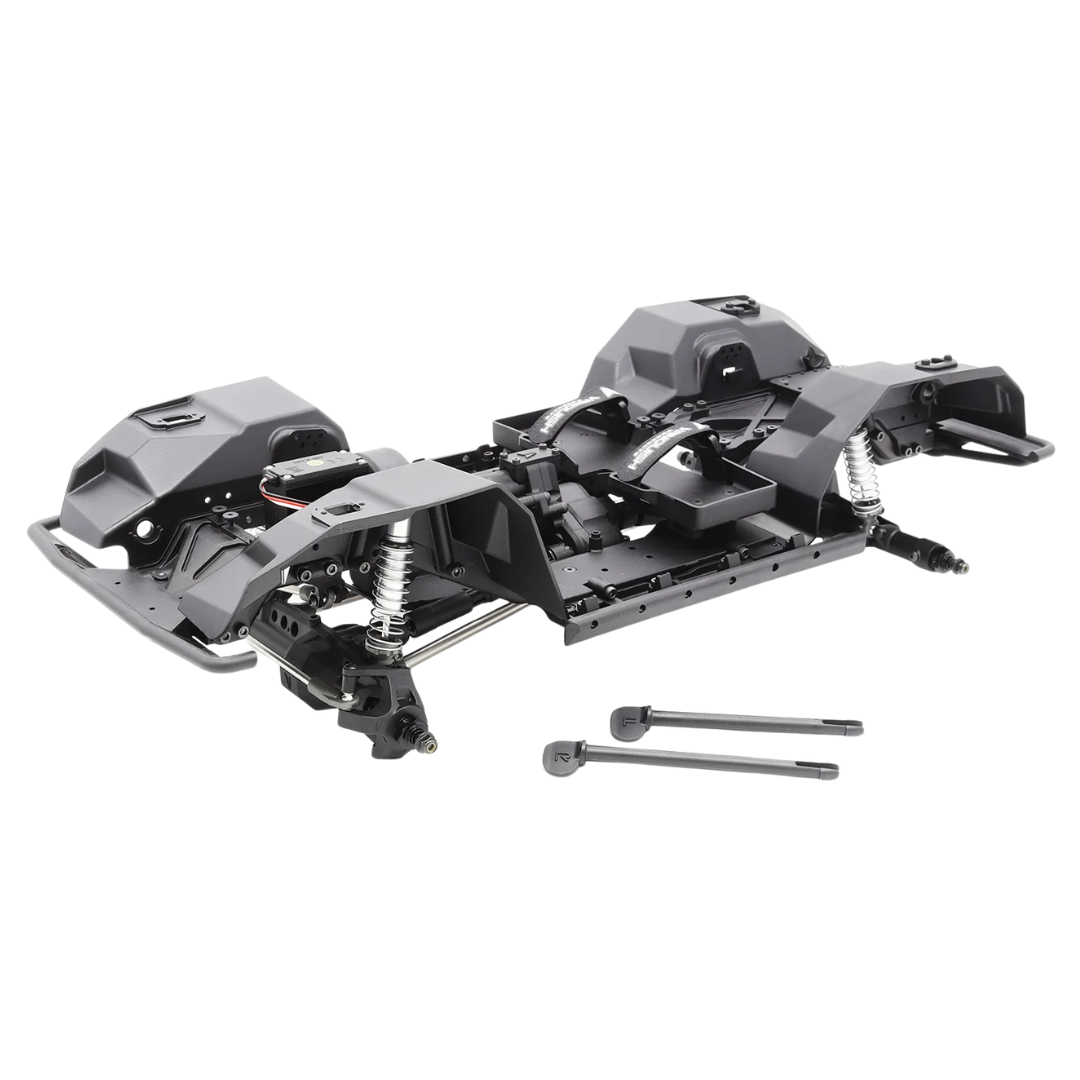

• VS4-10 steel C-channel chassis with molded cross members

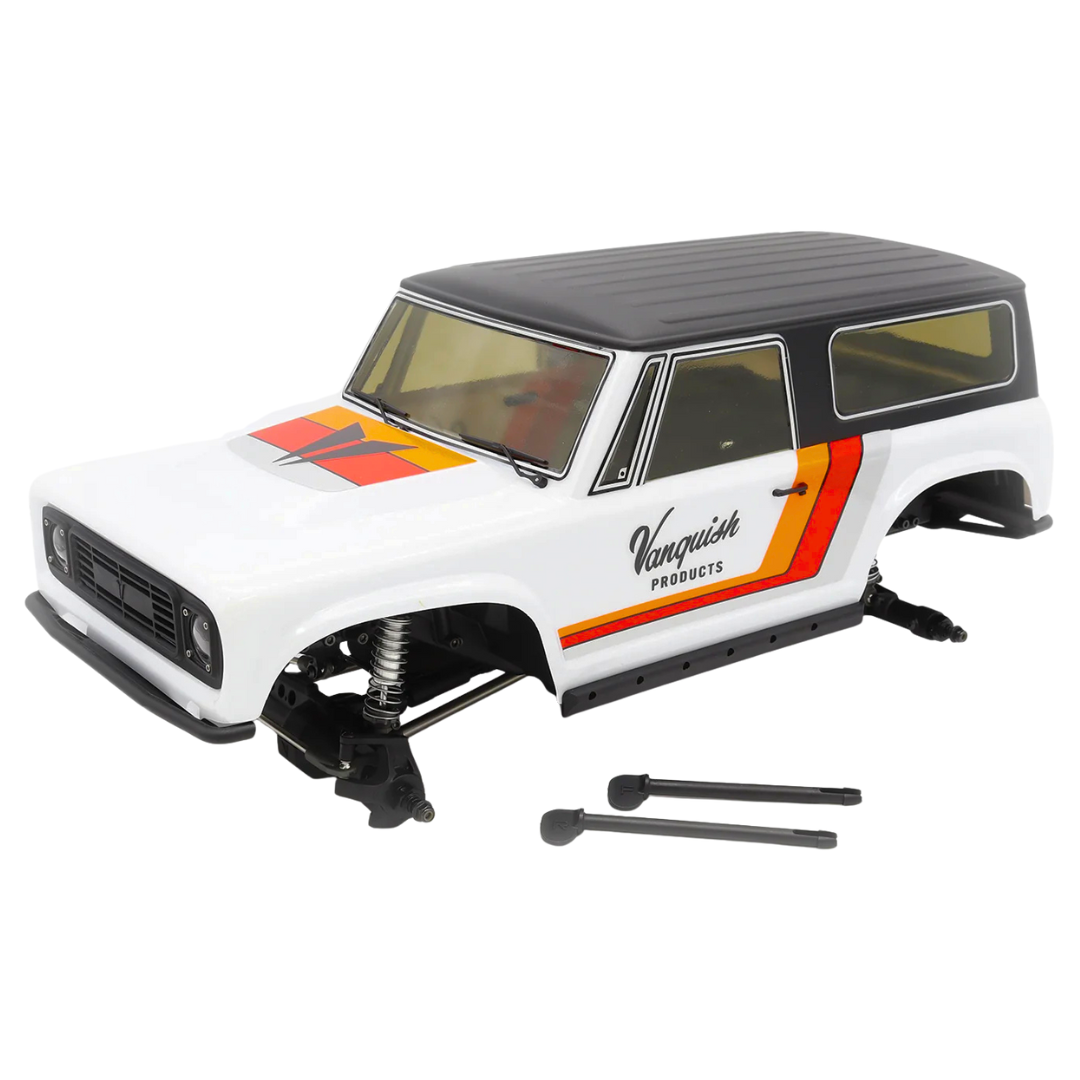

• Clip-less body mounting system with dual engagement retention pins

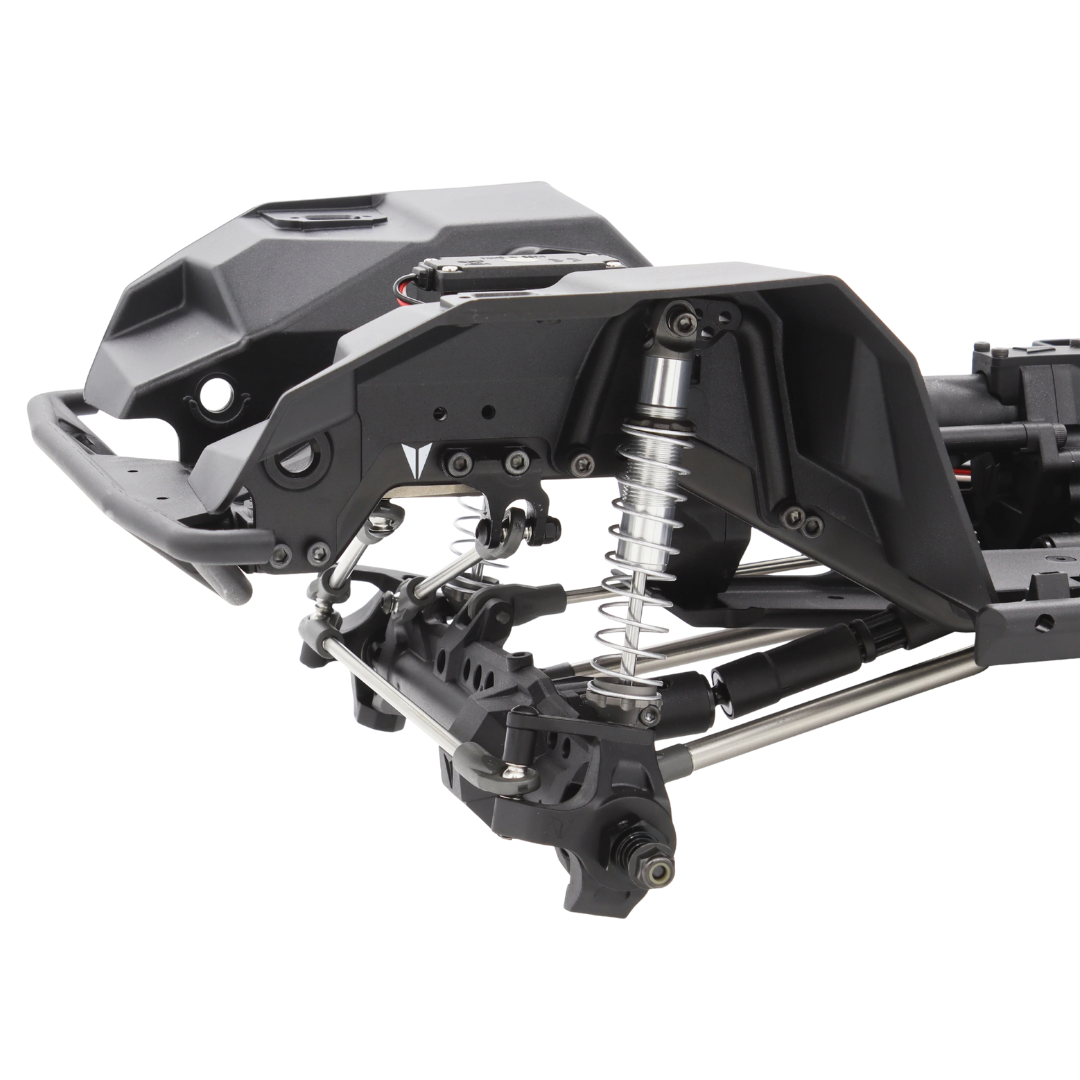

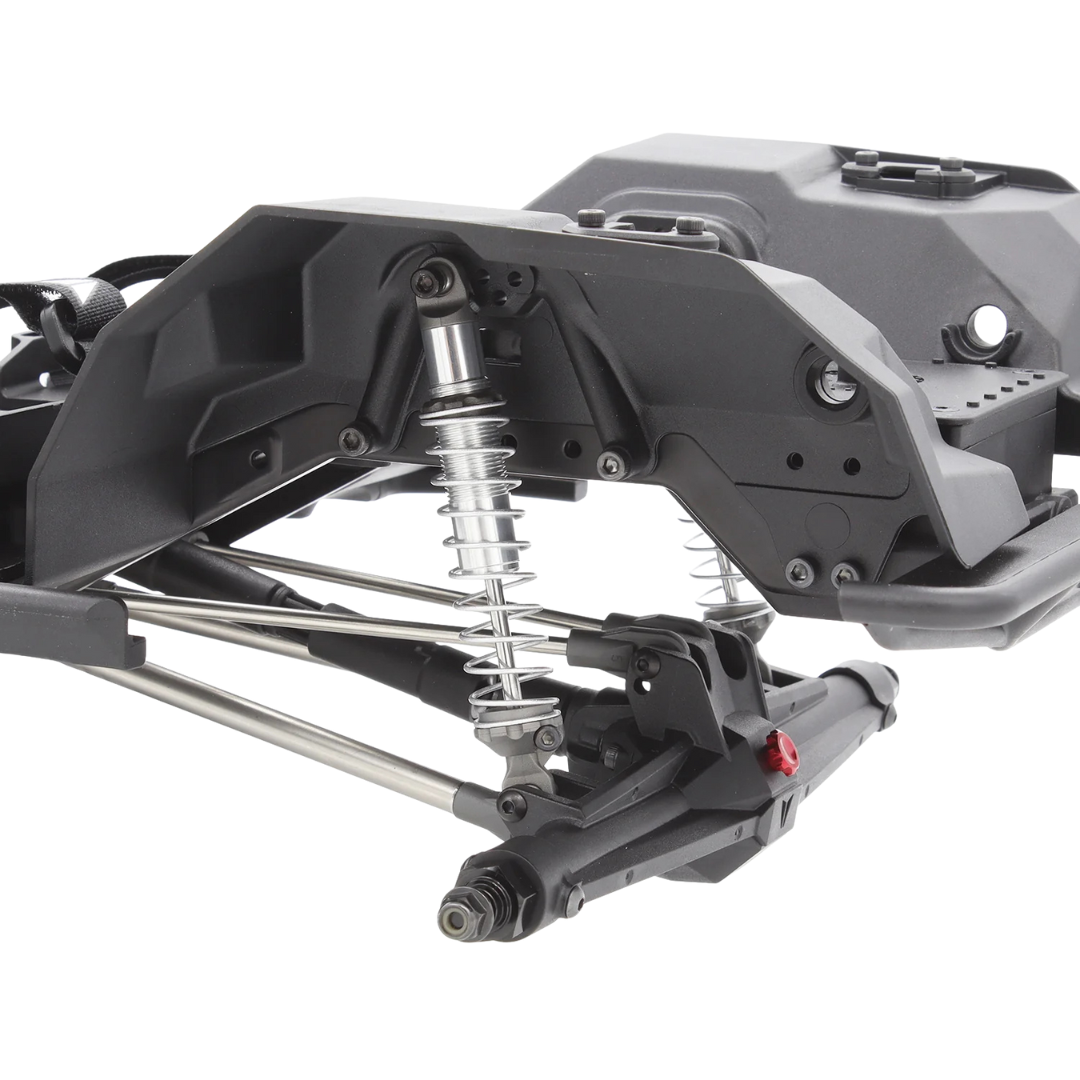

• Molded inner fenders with integrated adjustable shock towers
• VFD transmission with low forward-mounted motor position
• 6.5 percent factory overdrive for improved turning and climbing
• F10 molded straight axles with integrated truss design
• Machined hypoid axle gears with chromoly spools

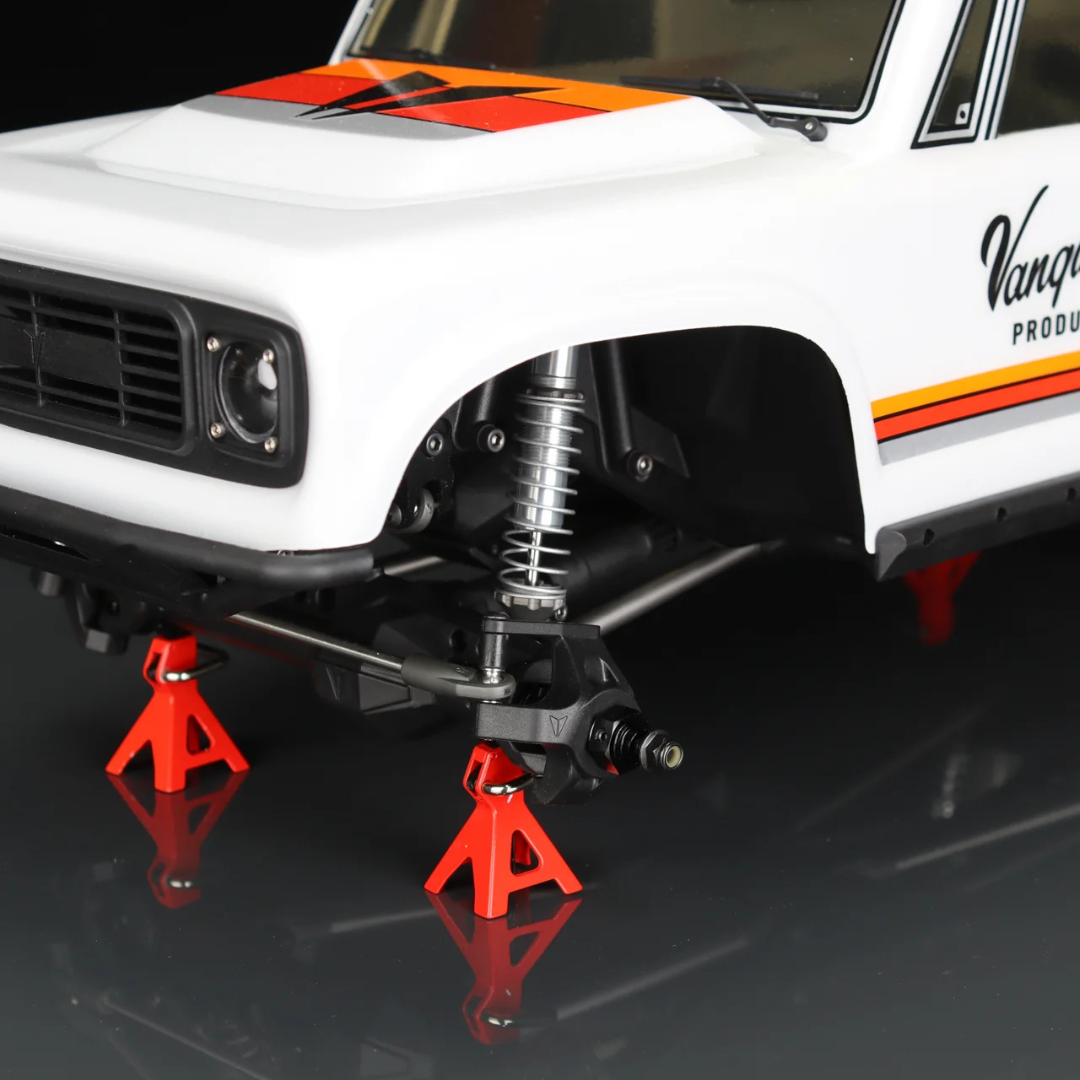

• 49 degrees of steering angle with reinforced high caster C-hubs
• Scale removable third members front and rear

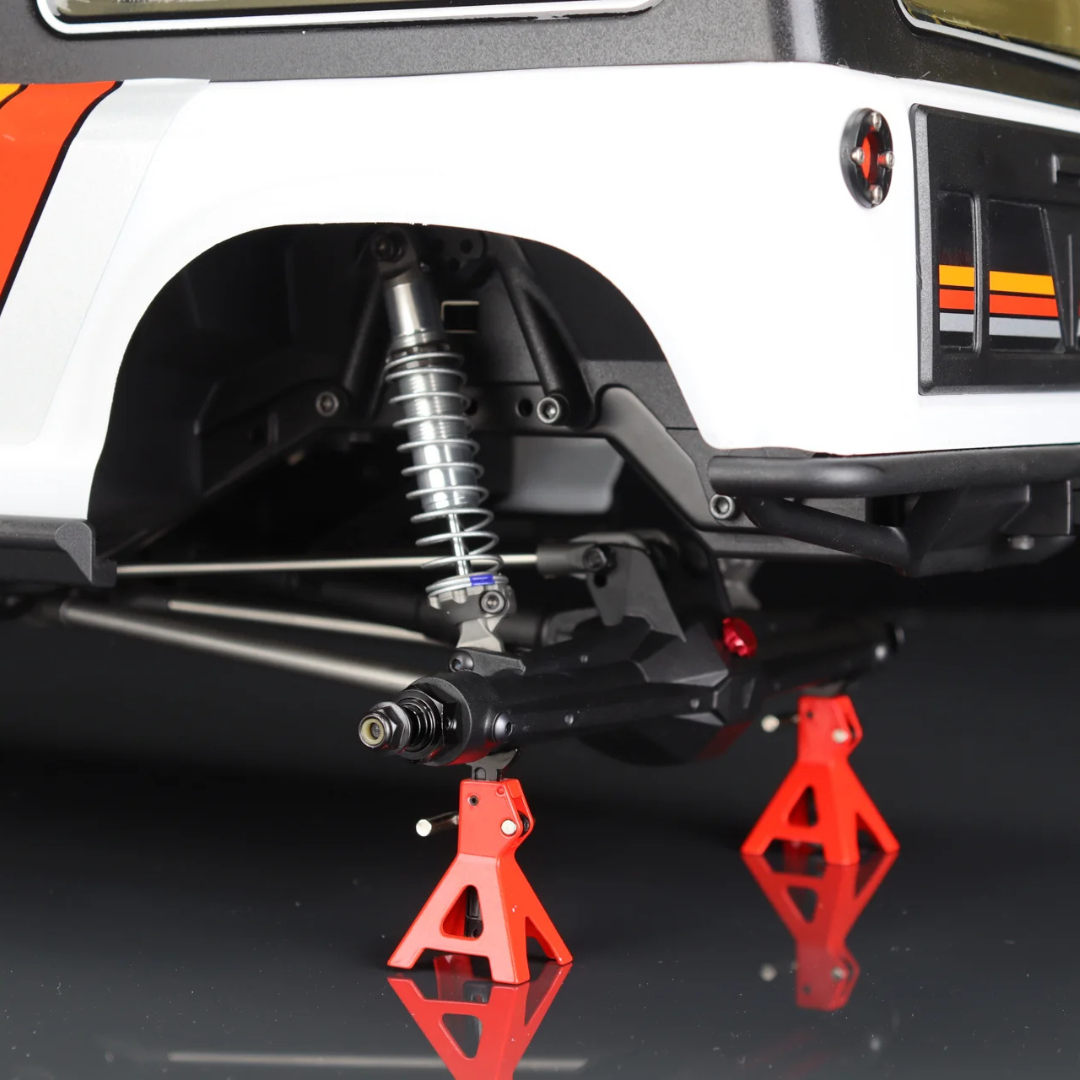

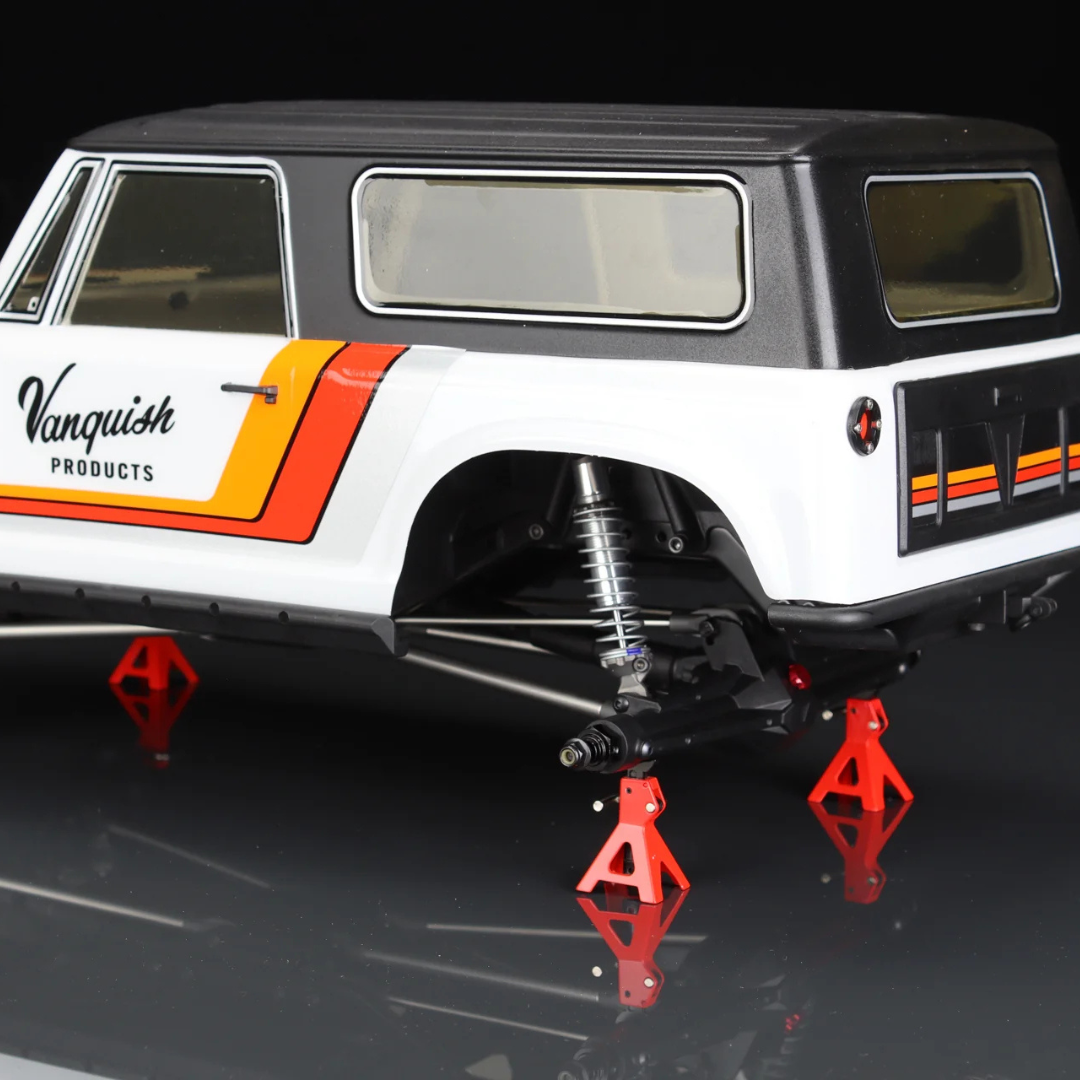

• Incision S8E 90mm shocks with bleeder caps
• 3-link front suspension with panhard for scale realism
• Stainless steel suspension links and pivot hardware

Specifications

• Scale: 1/10
• Wheelbase: 313mm
• Overall Width Hex to Hex: 182mm
• Axle Ratio: 3.75:1
• Overall Front Ratio: 38.3:1
• Overall Rear Ratio: 40.9:1
• Final Overdrive: 6.5 percent
• Shock Length: 90mm
• Pinion Gear: 15T 32P steel
• Spur Gear: 52T 32P

Includes

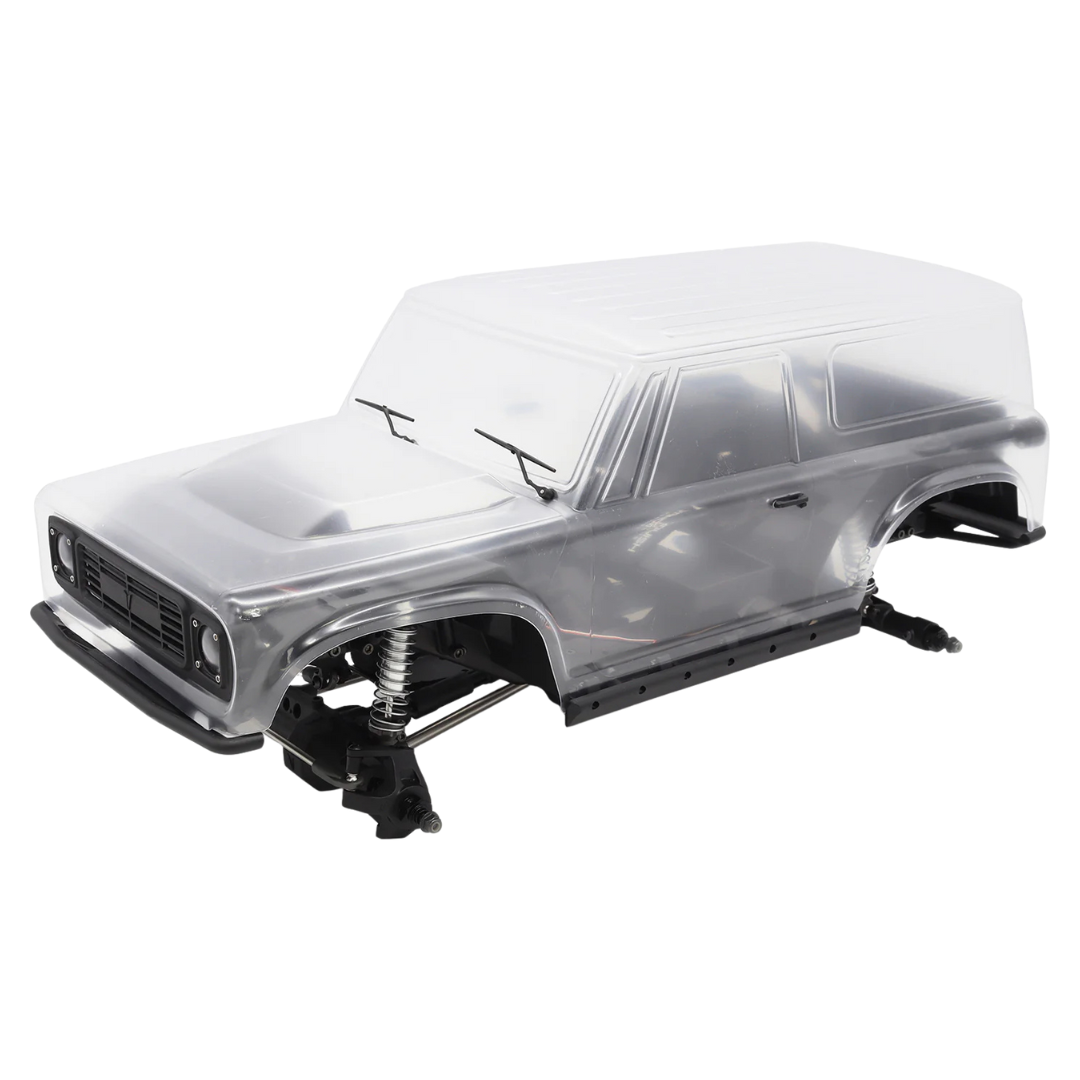

• VS4-10 Origin Classic chassis kit
• VFD transmission assembly
• F10 straight axles front and rear
• Incision S8E 90mm shocks
• Molded inner fenders and rock sliders
• Threadlock
• Grease
• 30wt shock oil
• 25T servo horn

Important Notes

• This is an unassembled kit requiring full assembly
• Electronics, wheels, tyres, paint, and tools are not included
• Requires 1.9 wheels compatible with Vanquish Products or SLW hubs
• Requires 1.9x4.65 inch tyres
• Compatible with standard length 540 brushed or brushless motors
• Battery, ESC, steering servo, and radio system sold separately
