Vanquish VRD Mullet 1/10th Scale F10 RC Rock Crawler Comp Kit VPS09014

The Vanquish VRD Mullet is a high-performance 1/10 scale kit that pairs a straight front axle with a portal rear axle for optimised clearance and control. With a 34% overall overdrive and a forward weight bias, it's designed for builders who demand capability and style in one package.

Features

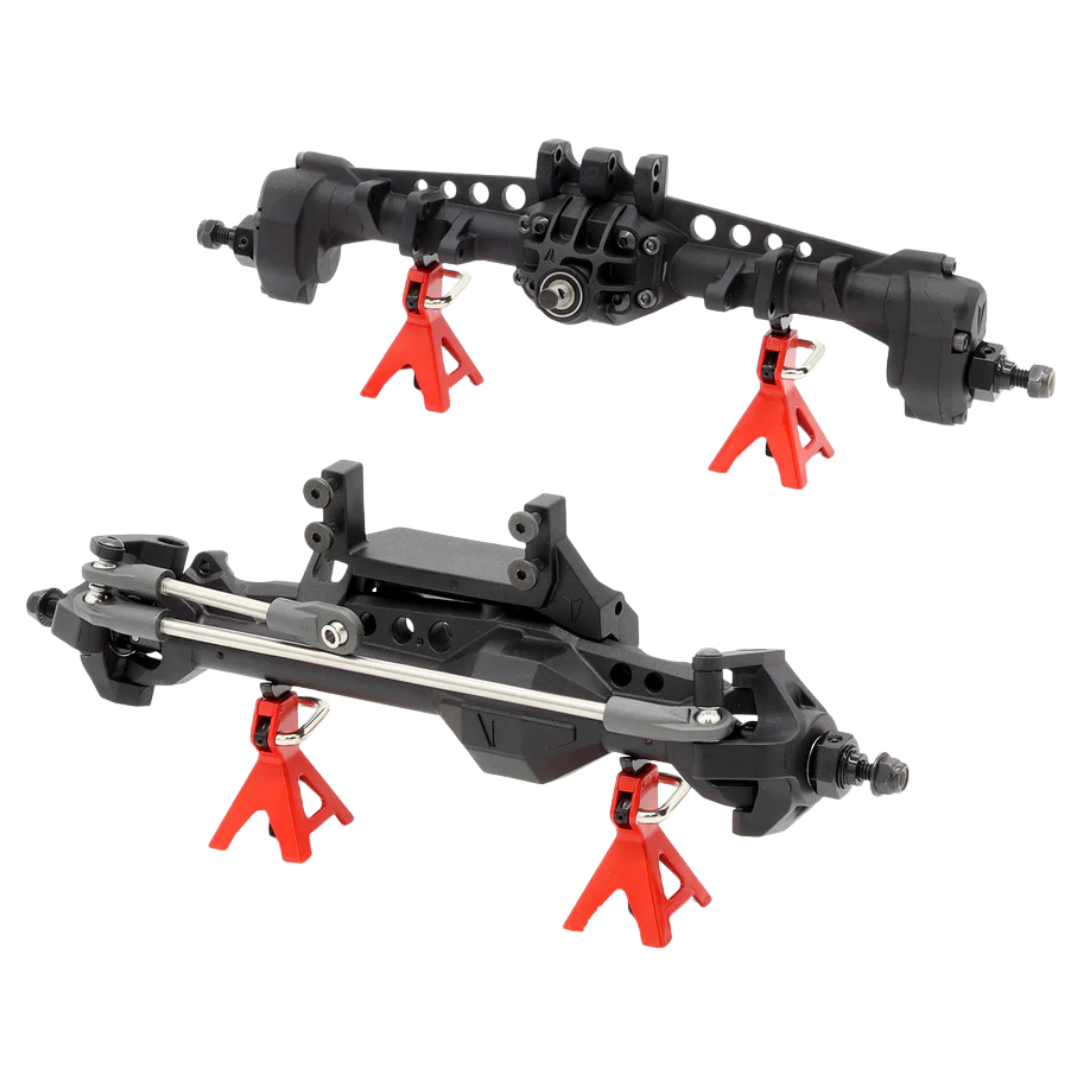

• Unique Mullet Configuration: F10 Straight front axle with F10 Portal rear axle

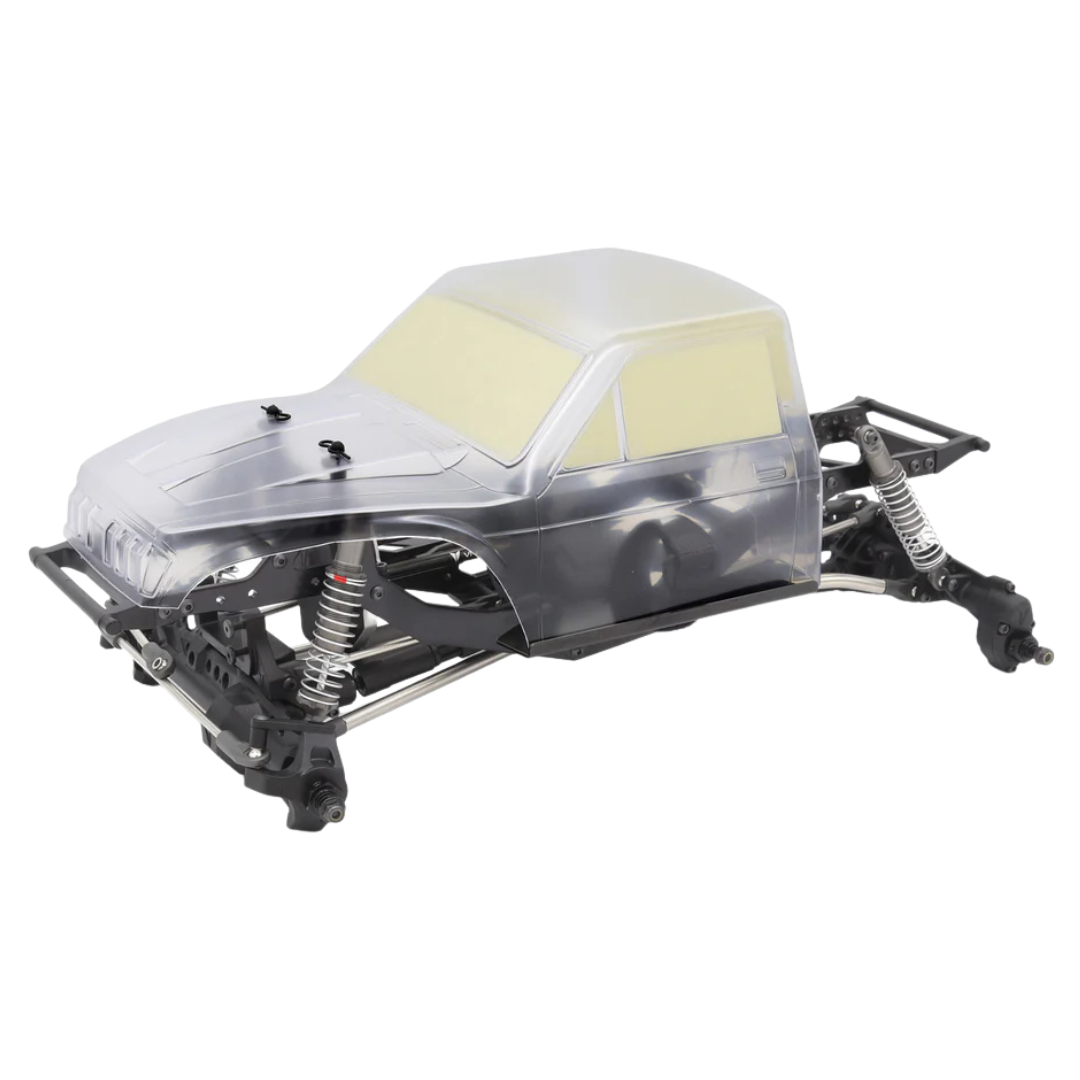

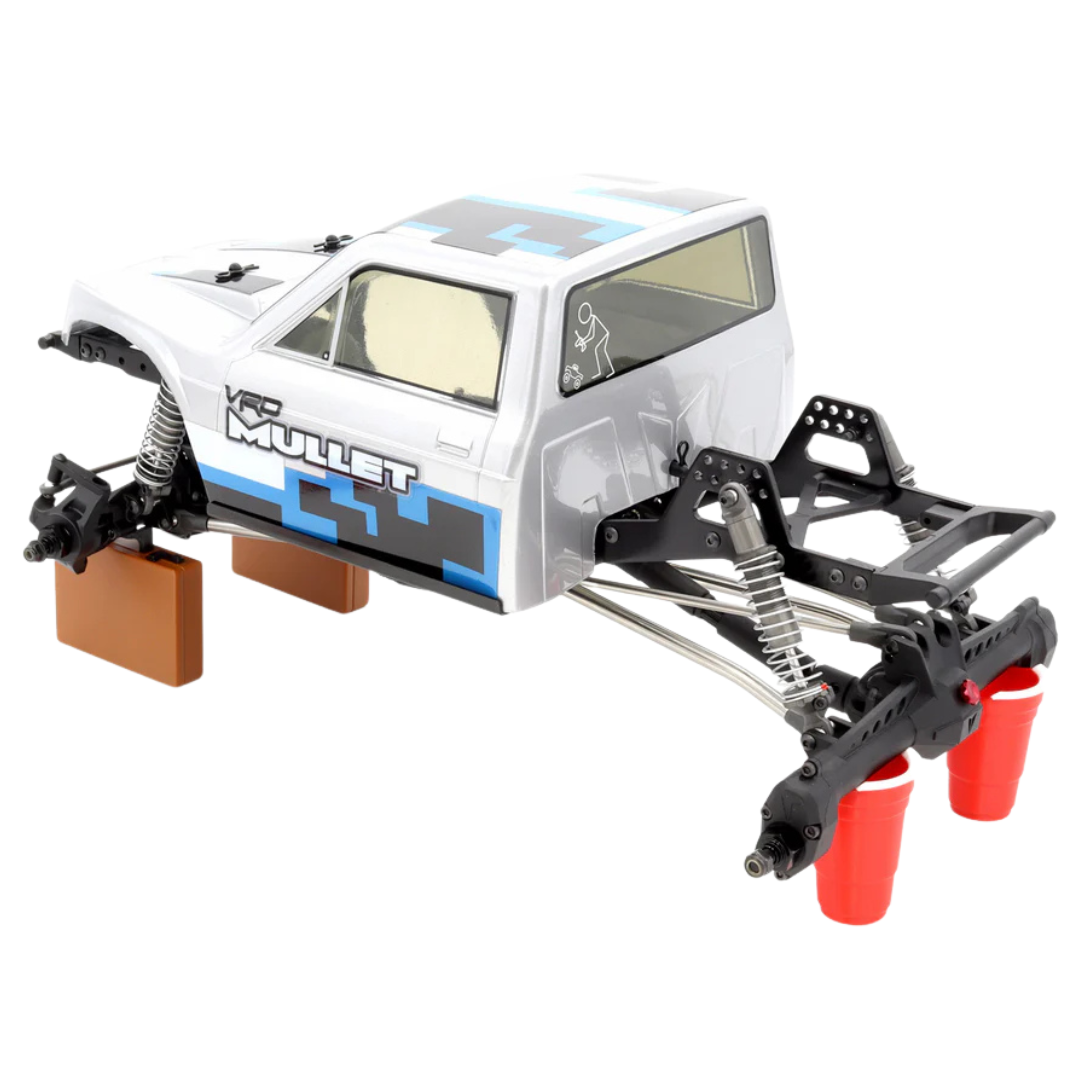

• Stance Half Cab Body: Clear polycarbonate with window masks and decals

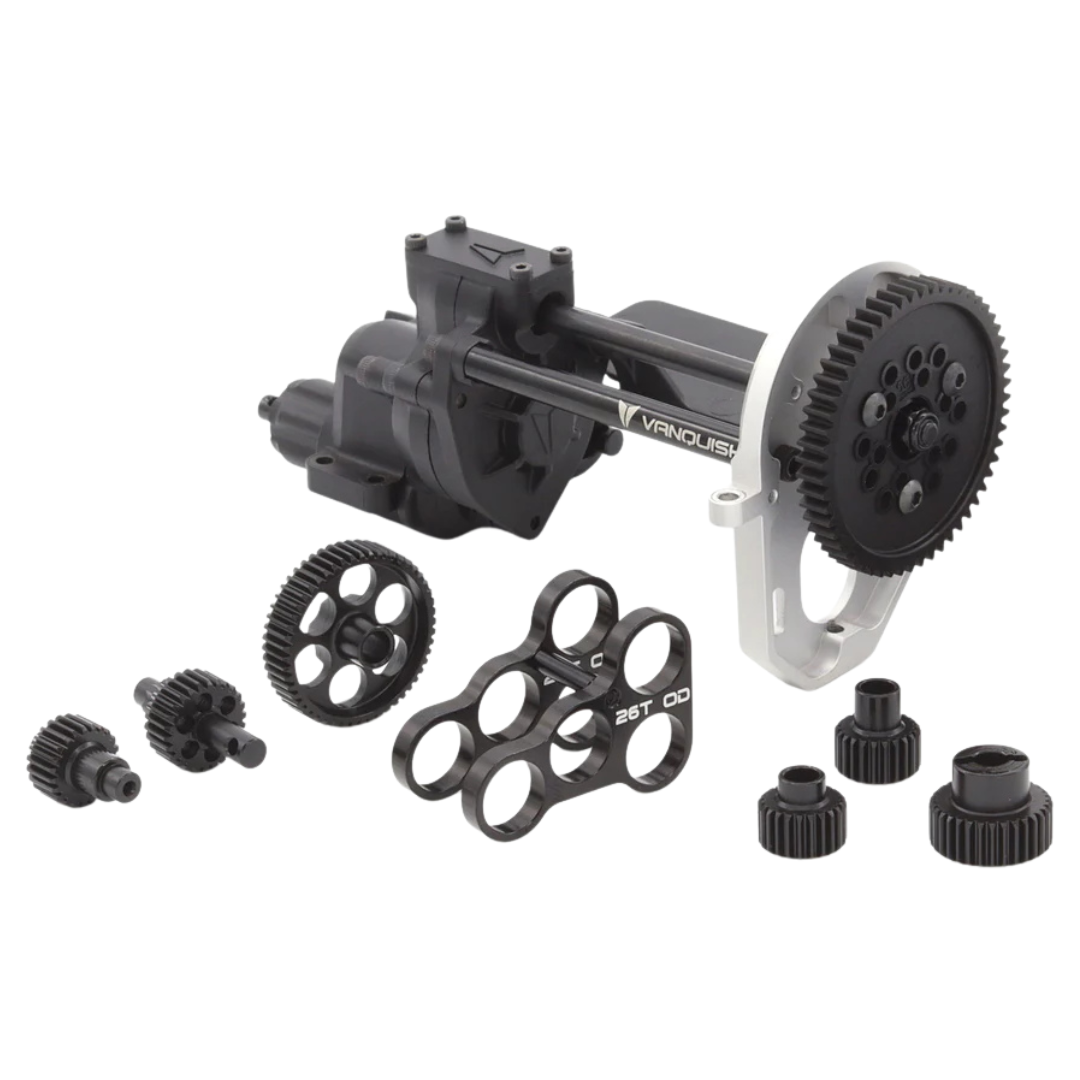

• VFD Carbon Spec Transmission: Forward motor mount, lightweight machined gears, 21% overdrive

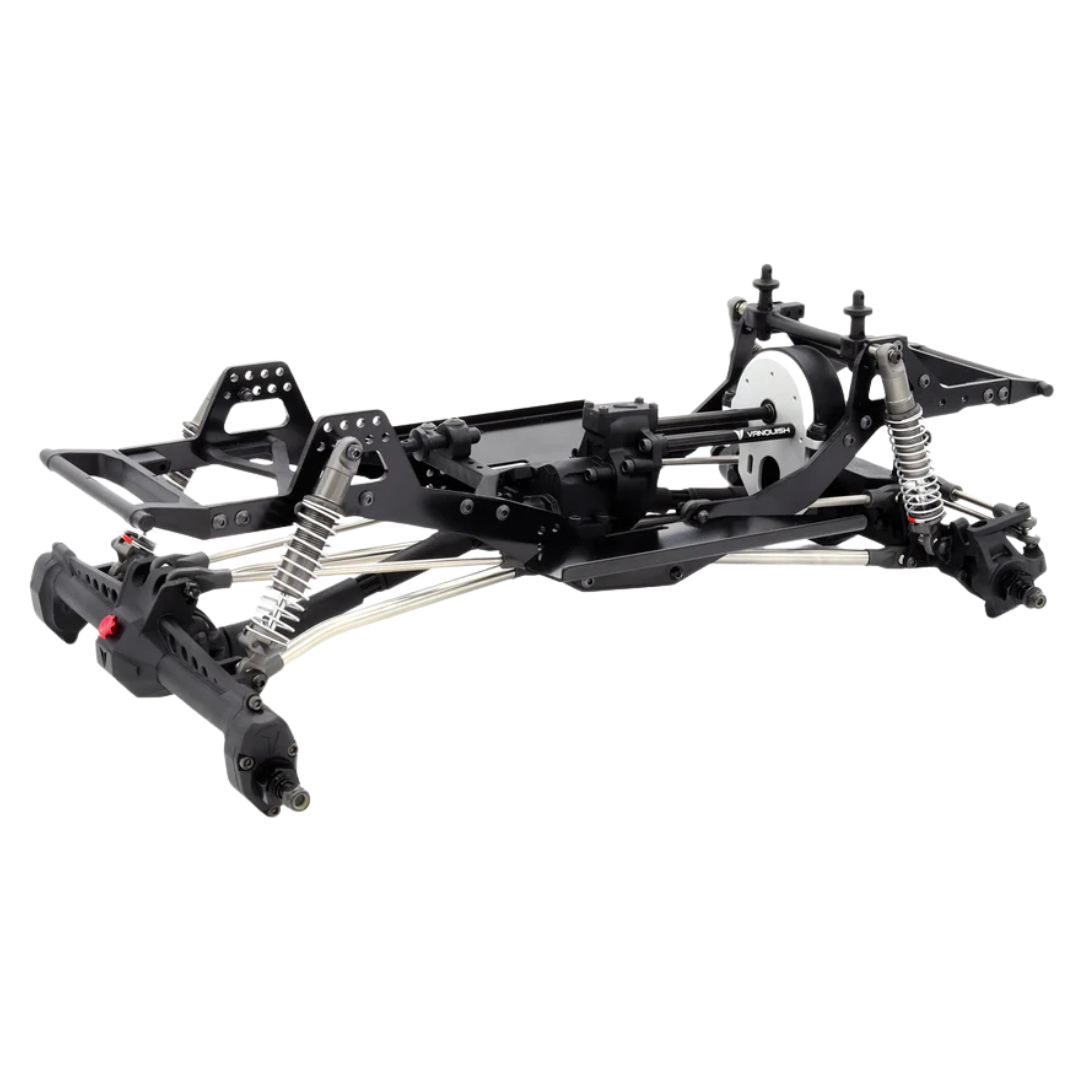

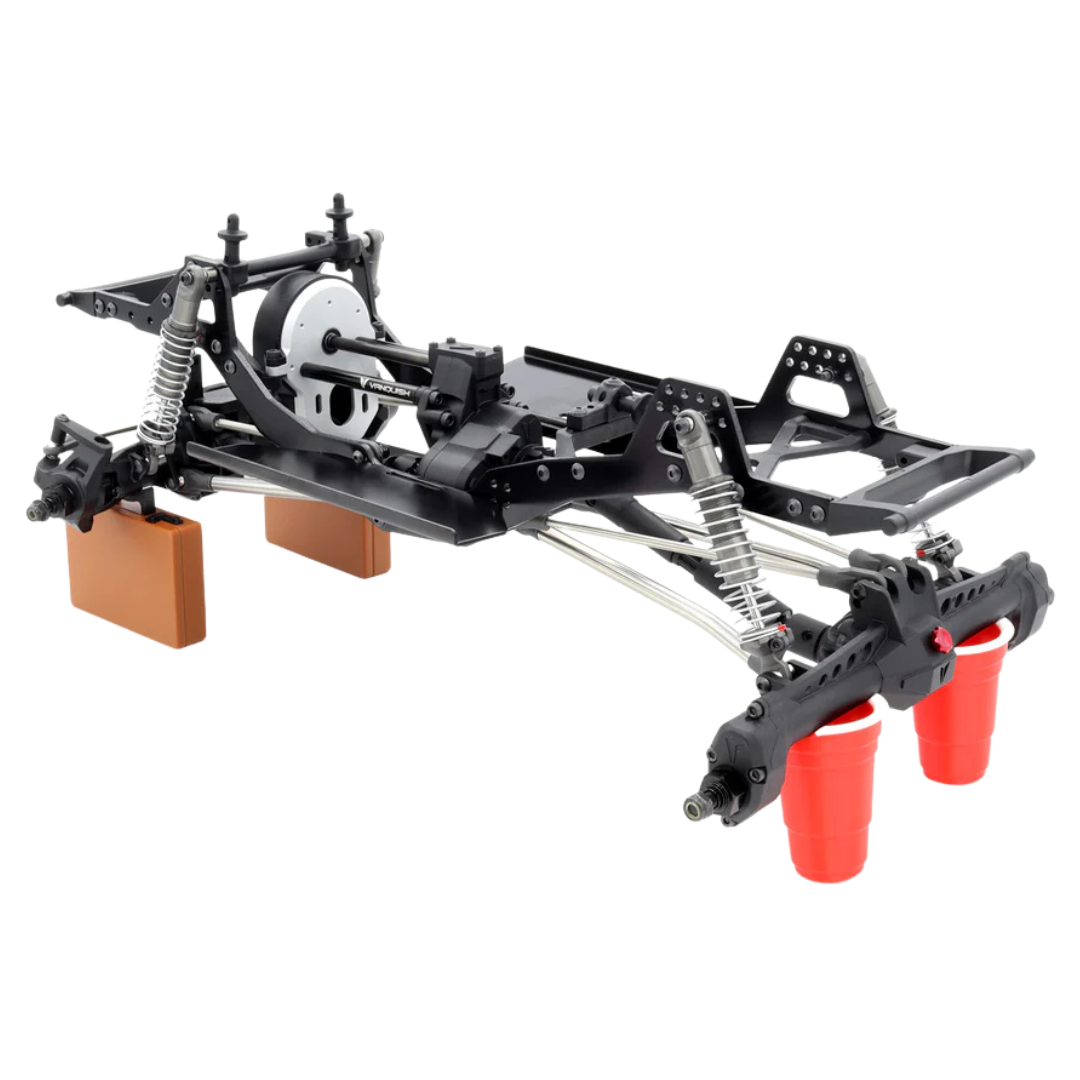

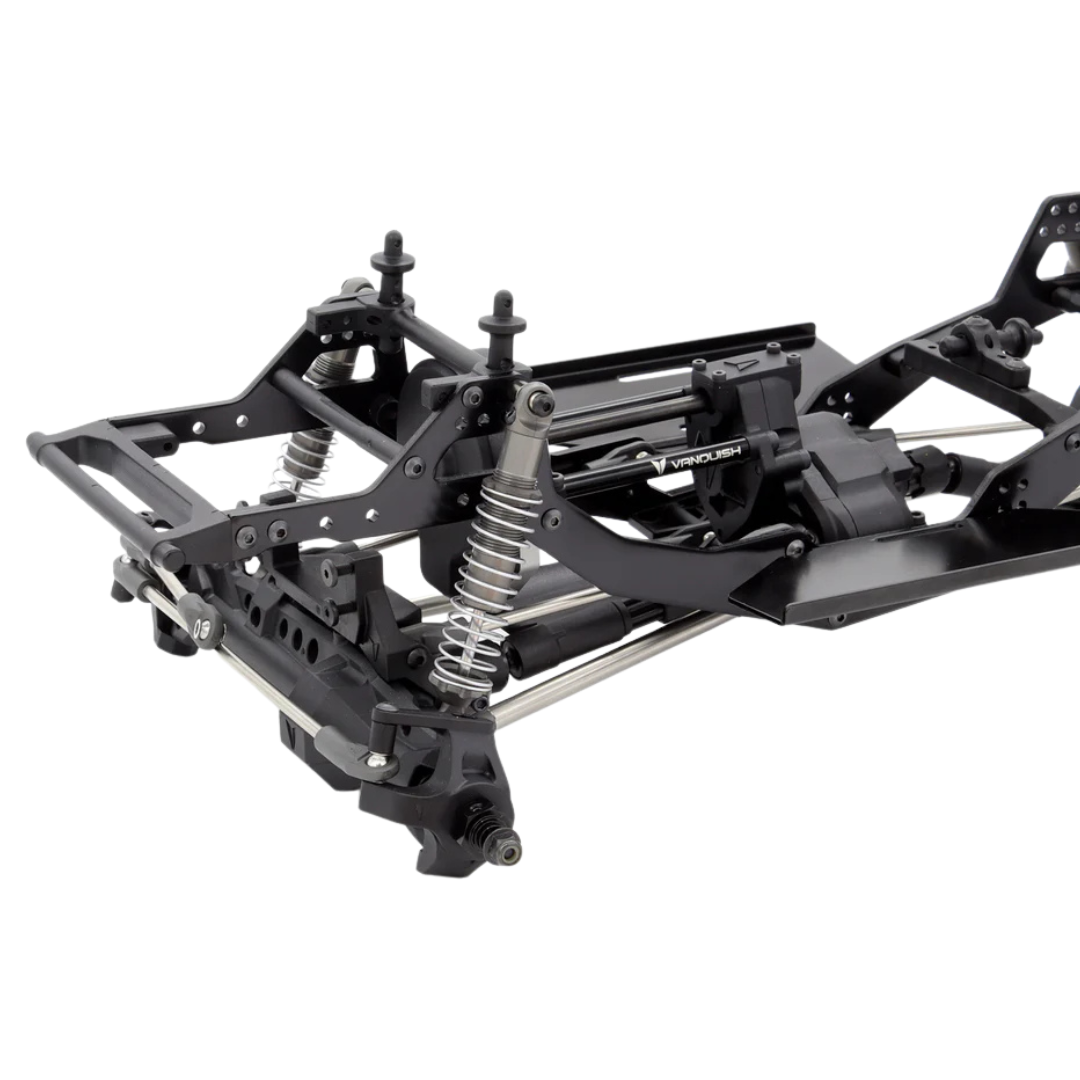

• Aluminium Flat Rail Chassis: Angled skid plate and shortened rear for improved departure angle
• Low Centre of Gravity: Battery and electronics mounted low with forward motor placement
• Incision S8E 90mm Shocks: Aluminium threaded bodies with dual O-ring seals
• Servo-on-Axle Steering: Prioritises precision with stainless steel 4-link front suspension
• Customisation Ready: Tunable drivetrain, body, and suspension for tailored performance

Specifications

• Scale: 1/10
• Wheelbase: 320mm (12.6")
• Front Axle Ratio: 4.125:1
• Rear Axle Ratio: 4.725:1
• Front Axle Width (hex to hex): 191.5mm (7.54")
• Rear Axle Width (hex to hex): 196mm (7.70")
• Pinion: 13T 32P
• Spur Gear: 52T 32P
• Overall Front Ratio: 46.5:1
• Overall Rear Ratio: 68:1
• Final Overdrive: 34%

Includes

• Vanquish VRD Mullet Kit
• F10 Straight Front Axle with VPS08331 Underdrive Gear Set (8/33)
• F10 Portal Rear Axle with VPS08332 Overdrive Gear Set (8/32) and Overdrive Portal Gears
• VFD Carbon Spec Transmission with Lightweight 21% Overdrive Gearset
• Stance Half Cab Clear Body with Window Masks and Decal Sheet
• Incision S8E 90mm Aluminium Shocks
• Servo Horn (25 spline 20mm)

Important Notes

• Recommended SLW Hubs: 475 front and 350 rear to accommodate axle width differences
• Compatible with 540 brushed and brushless motors
• Components such as motor, ESC, battery, transmitter, and wheels/tyres are not included
