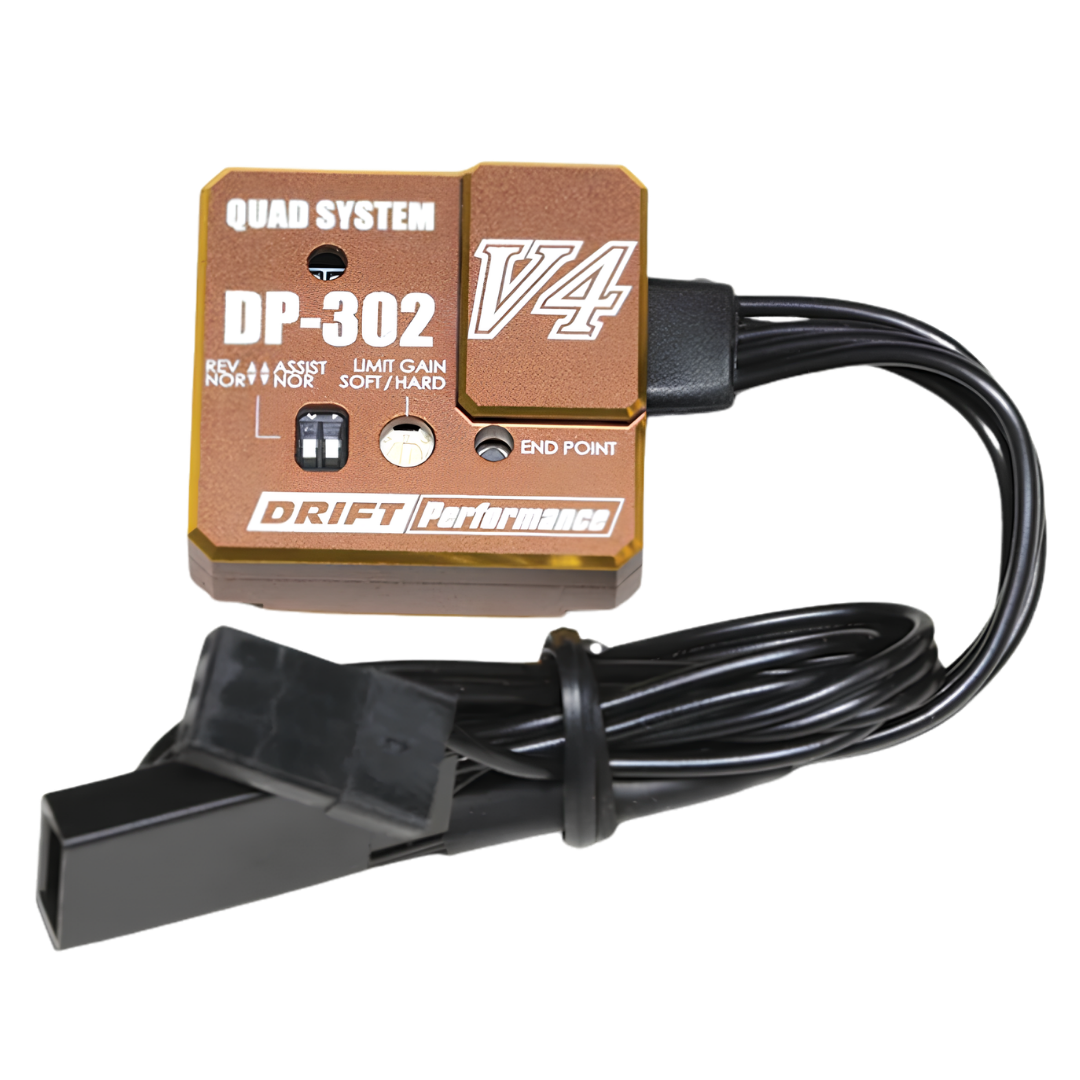

Yokomo DP-302V4 Drift Steering Gyro Endpoint Adjust Bronze DPP-302V4BZ

The Yokomo DPP-302V4BZ DP-302V4 is a high-performance steering gyro for RWD RC drift cars, combining four selectable control modes, adjustable gain and servo endpoint adjustment in a slim Bronze aluminium case for drivers ranging from beginners through to competition-level setups

Features

• High-performance steering gyro developed specifically for RC drifting
• Four selectable control combinations through Yokomo's Quad System
• ASSIST mode provides stronger gyro correction for easier RWD drift control
• NOR mode prioritises driver steering input for a more direct competitive feel
• SOFT gain response suppresses initial gyro reaction to help maintain front grip
• HARD gain response increases initial gyro reaction for stronger assistance
• SOFT and HARD gain settings can be independently adjusted
• Endpoint adjustment allows steering servo travel to be set through the gyro
• Endpoint control helps reduce unnecessary steering bind and servo load
• High-performance chipset helps suppress gyro hunting and unwanted steering shake
• Thin aluminium case with improved access to adjustment controls
• Gold-anodised bevel detailing
• Compatible with 2-channel and 3-channel radio systems
• Bronze colour coordinates with Yokomo Bronze chassis components and SD3.0 Competition styling

Specifications

• Brand: Yokomo
• Model: DP-302V4
• Product Type: RC Drift Steering Gyro
• Application: RWD RC Drift Cars
• Radio Support: 2-Channel / 3-Channel
• Control Modes: ASSIST and NOR
• Gain Response Modes: SOFT and HARD
• Endpoint Adjustment: Yes
• Servo Compatibility: Digital Servo Only
• Case Material: Aluminium
• Colour: Bronze
• Quantity: 1
• Manufacturer Part Number: DPP-302V4BZ

Compatibility

• 2-Channel RC Radio Systems
• 3-Channel RC Radio Systems
• Digital Steering Servos
• Compatible RWD RC Drift Chassis

Includes

• 1 x Yokomo DP-302V4 Drift Steering Gyro Bronze

FAQ

What is the difference between ASSIST and NOR mode? ASSIST mode applies stronger gyro correction against steering input to make RWD drifting easier to control, while NOR mode gives greater priority to the driver's steering input for a more direct competitive feel

What do the SOFT and HARD settings change? SOFT reduces the initial gyro response for smoother correction, while HARD increases the initial response for stronger gyro assistance

Does DPP-302V4BZ have endpoint adjustment? Yes, the DP-302V4 includes endpoint adjustment so steering servo travel can be limited through the gyro to help prevent excessive steering movement and servo load

Can the Bronze DP-302V4 be used with a 2-channel radio? Yes, Yokomo supports 2-channel operation by leaving the third-channel signal lead disconnected from the receiver

Can this gyro be used with an analogue servo? No, Yokomo specifies the DP-302V4 for use with digital steering servos

Is the Bronze version electronically different from the other DP-302V4 colours? No performance difference is published by Yokomo, with the Bronze version retaining the same V4 endpoint adjustment dual gain modes and control system while providing a different case colour

Important Notes

• Use with a compatible digital steering servo
• For 2-channel operation do not connect the 3-channel signal lead to the receiver
• Correct gyro direction gain and endpoint setup are required before driving
• Actual handling response depends on chassis geometry servo setup tyres track surface and driver preference
