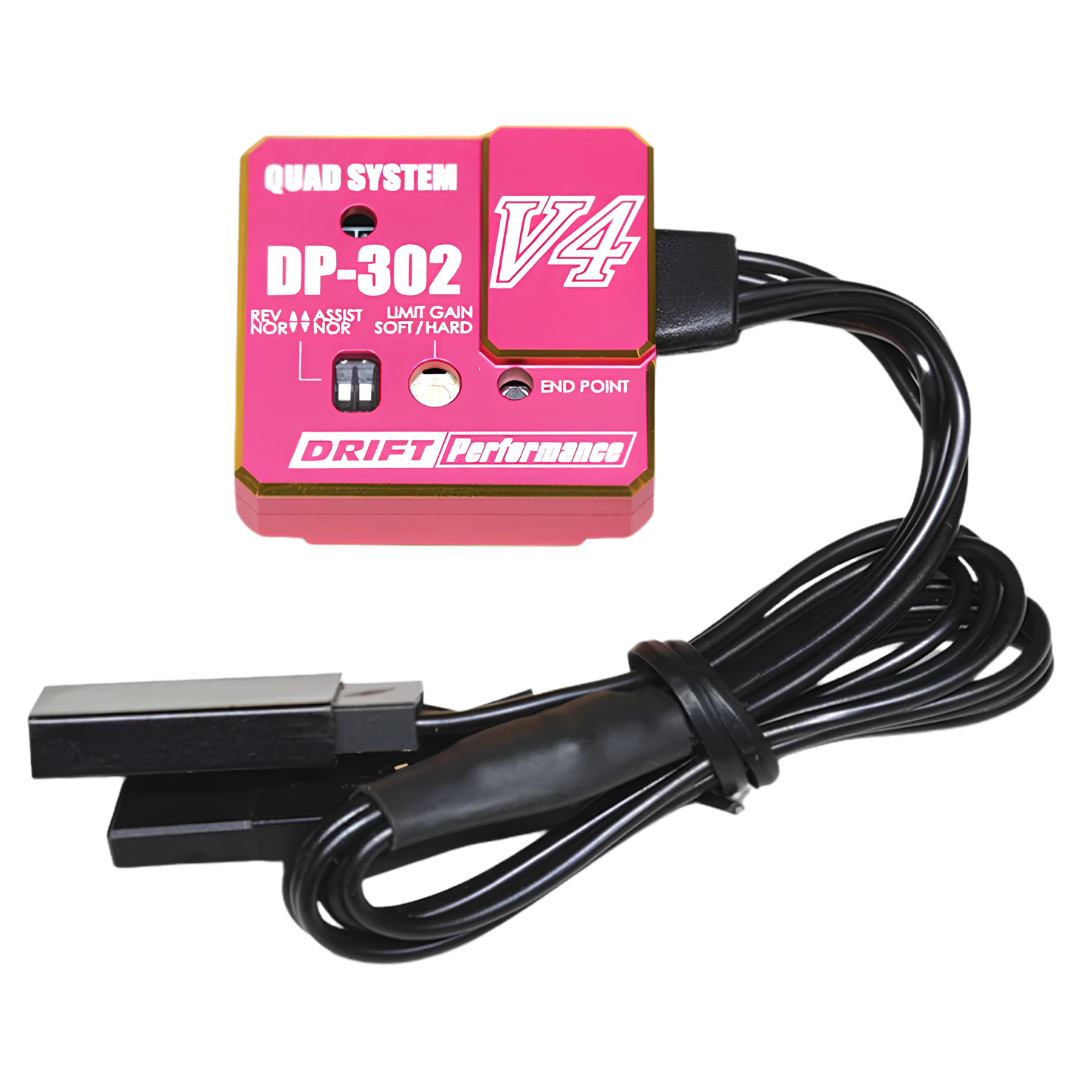

Yokomo DP-302V4 Drift Steering Gyro Endpoint Adjust Pink DPP-302V4PI

The Yokomo DPP-302V4PI DP-302V4 is a high-performance steering gyro for RWD RC drift cars, combining four selectable control modes, adjustable gain and servo endpoint adjustment in a slim pink aluminium case to suit drivers from beginners through to competition-level setups

Features

• High-performance steering gyro developed specifically for RC drifting
• Four selectable control combinations through Yokomo's Quad System
• ASSIST mode provides stronger gyro correction for easier RWD drift control
• NOR mode prioritises driver steering input for a more direct competitive feel
• SOFT gain response suppresses initial gyro reaction to help maintain front grip
• HARD gain response increases initial gyro reaction for stronger assistance
• SOFT and HARD gain can each be adjusted from 0 to 100
• Endpoint adjustment allows steering servo travel to be set through the gyro
• Endpoint control helps reduce unnecessary steering bind and servo load
• High-performance chipset helps suppress gyro hunting and unwanted steering shake
• Slim aluminium case improves access to switches and adjustment controls
• Gold-anodised bevel detailing
• Compatible with 2-channel and 3-channel radio systems

Specifications

• Brand: Yokomo
• Model: DP-302V4
• Product Type: RC Drift Steering Gyro
• Application: RWD RC Drift Cars
• Radio Support: 2-Channel / 3-Channel
• Control Modes: ASSIST and NOR
• Gain Response Modes: SOFT and HARD
• Gain Adjustment Range: 0 to 100
• Endpoint Adjustment: Yes
• Servo Compatibility: Digital Servo Only
• Case Material: Aluminium
• Colour: Pink
• JAN / GTIN: 0639342232215
• Manufacturer Part Number: DPP-302V4PI

Compatibility

• 2-Channel RC Radio Systems
• 3-Channel RC Radio Systems
• Digital Steering Servos
• Compatible RWD RC Drift Chassis

Includes

• 1 x Yokomo DP-302V4 Drift Steering Gyro Pink

FAQ

What is the difference between ASSIST and NOR mode? ASSIST mode applies stronger gyro correction against steering input to make RWD drifting easier to control, while NOR mode gives greater priority to the driver's steering input for a more direct and competitive feel

What do SOFT and HARD settings change? SOFT reduces the initial gyro response and is intended to help maintain front grip on surfaces such as tile and carpet, while HARD increases the initial response for stronger correction

Can the gyro gain be adjusted? Yes, Yokomo allows the SOFT and HARD gain settings to be adjusted independently from 0 to 100

Does the DP-302V4 have endpoint adjustment? Yes, an endpoint adjustment function allows steering servo travel to be set through the gyro to help prevent excessive steering movement and servo load

Can DPP-302V4PI be used with a 2-channel radio? Yes, Yokomo supports 2-channel operation by leaving the 3-channel signal wire disconnected from the receiver

Can this gyro be used with an analogue servo? Yokomo specifies the DP-302V4 for digital servos and warns that analogue servos may not operate correctly

Important Notes

• Use with a compatible digital steering servo
• For 2-channel operation do not connect the 3-channel signal wire to the receiver
• Correct gyro direction gain and endpoint setup are required before driving
• Actual handling response depends on chassis geometry servo setup tyres surface and driver preference
