Yokomo Lightweight Aluminium Spur Gear Hub Black RD-630BK
Couldn't load pickup availability

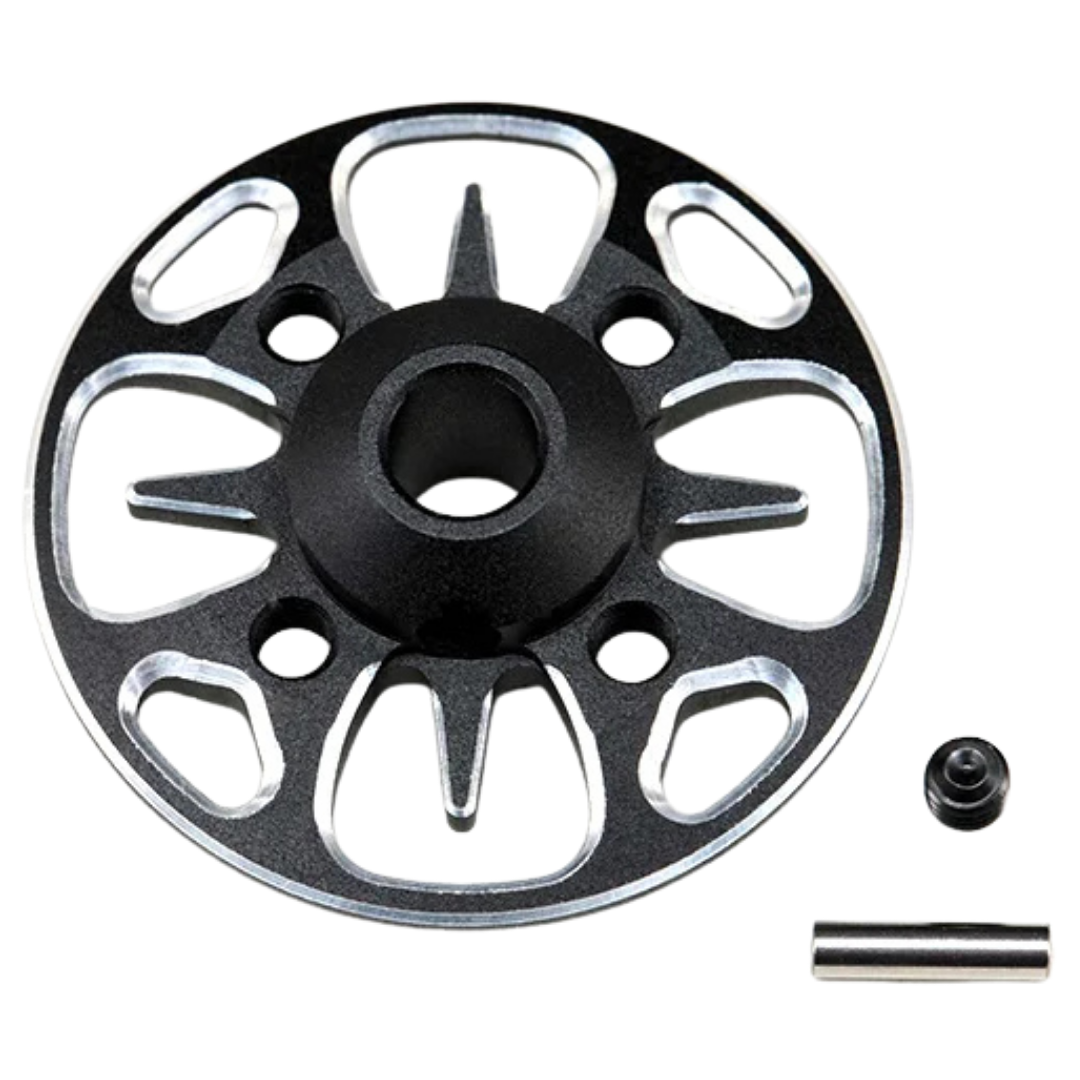

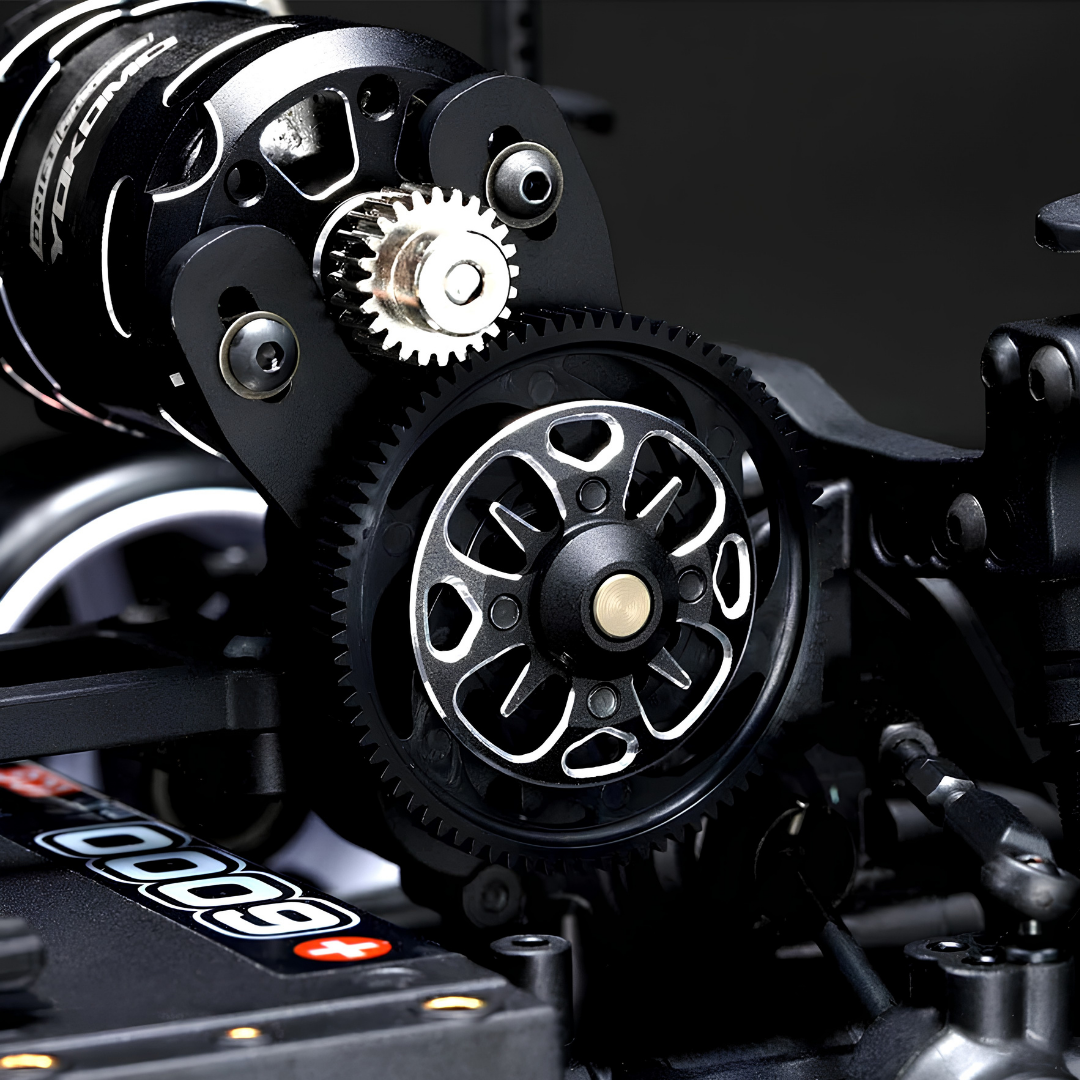

The Yokomo RD-630BK is a lightweight aluminium spur gear hub for compatible RD SD and MD drift chassis, designed to reduce rotating mass while positioning the spur gear closer to the gearbox for smoother rotation and a more direct drivetrain response
Features
- Lightweight aluminium spur gear hub
- Designed for compatible Yokomo RD SD and MD drift chassis
- Larger-diameter hub provides increased support for the spur gear
- Helps reduce spur gear wobble and improve rotational stability
- Positions the spur gear closer to the gear case than earlier standard hub designs
- Revised spur position helps reduce load on the top shaft during hard acceleration
- Designed to provide a more direct drivetrain feel
- Machined black finish
Specifications
- Brand: Yokomo
- Product Type: Lightweight Spur Gear Hub
- Application: RC Drift Drivetrain
- Material: Aluminium
- Colour: Black
- Quantity: 1
- GTIN: 639342231072
- Manufacturer Part Number: RD-630BK
Compatibility
- Yokomo RD Series
- Yokomo SD Series
- Yokomo MD Series
- Other supported Yokomo drift chassis specifically listing RD-630BK
Includes
- 1 x Yokomo Lightweight Aluminium Spur Gear Hub Black
FAQ
Does RD-630BK fit Yokomo RD SD and MD chassis? Yes, Yokomo officially lists RD-630BK as a lightweight aluminium spur gear hub for the RD SD and MD series
Do I need a different top shaft when upgrading from an older Yokomo spur gear hub? Yes, when replacing standard hubs such as Y4-630A Y2-630PA or Y2-630RA, Yokomo states that the set-screw location is different and the dedicated RD-631 top shaft must be used on compatible RD and SD setups
Can RD-630BK be used on MD-series cars? Yes, but MD3.0 applications require the appropriate MD-series top shaft such as MD-631 or MD-631-35 depending on the transmission setup
Does this upgrade change the gear ratio? No, the hub itself changes the spur gear support and position rather than the spur or pinion tooth count
Important Notes
- When replacing Y4-630A Y2-630PA or Y2-630RA on compatible RD or SD chassis use Yokomo RD-631 top shaft
- MD-series installations require the appropriate compatible MD top shaft
- Yokomo states that this hub cannot be used with the Y2-018AR2A aluminium rear shock tower
- Compatible RD and SD installations require the RD-018AB rear shock tower where specified by Yokomo
- Spur gear top shaft and surrounding drivetrain components are not included unless specifically stated
