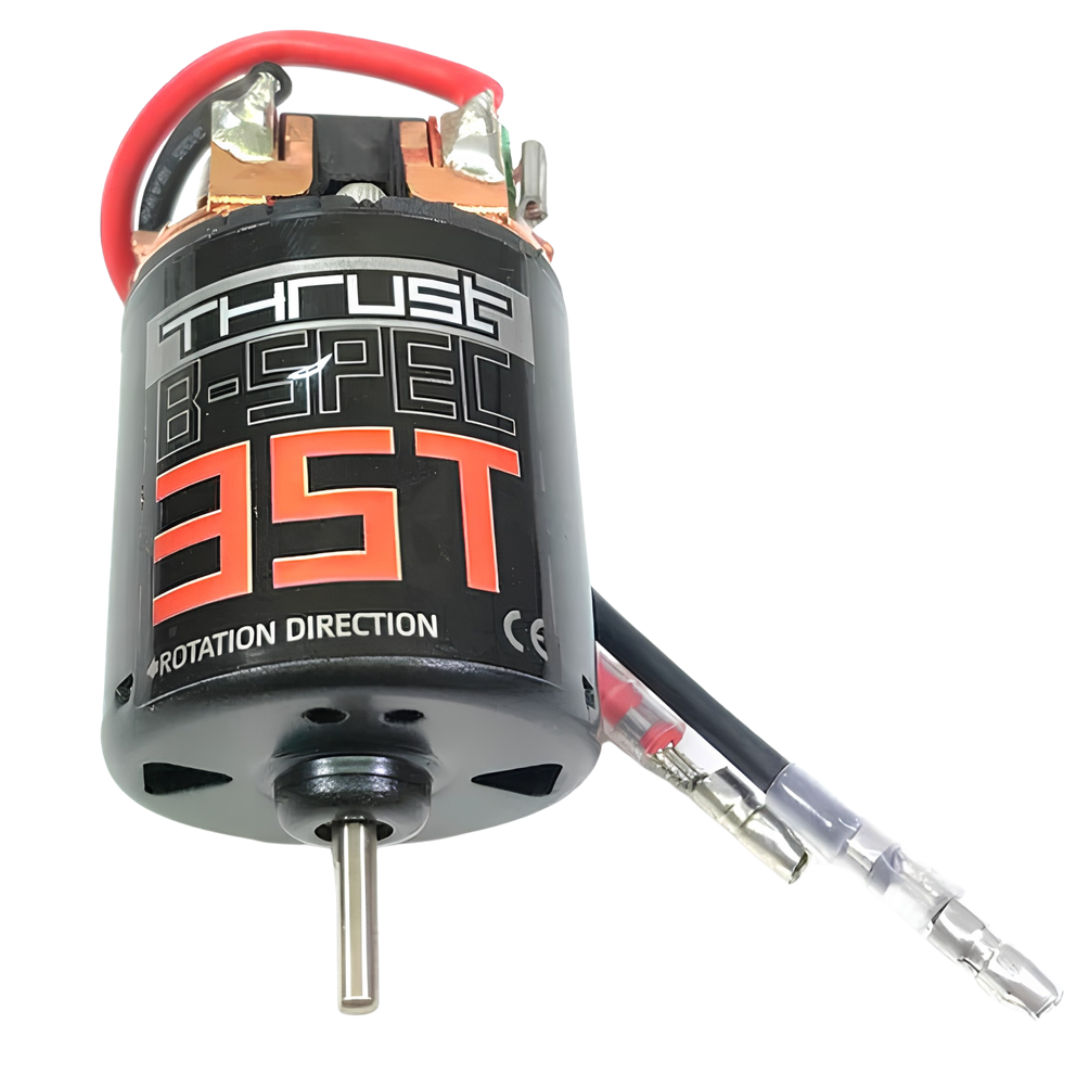

Absima Thrust Crawler 35T 540 Brushed Motor 12800rpm 7.4V 2310082

The Absima Thrust Crawler 35T 540 Brushed Motor is a 7.4V RC crawler motor designed for compatible 1/10 scale vehicles needing smooth low-speed control and strong torque delivery.

Features

• 35 turn brushed motor designed for crawler applications and controlled throttle response
• 12800rpm output provides smooth low-speed performance for technical driving
• 540 size motor format commonly used in 1/10 scale RC crawlers
• Dual ball bearing construction improves efficiency and durability
• Designed for stable operation with compatible 7.2V to 7.4V power systems
• Suitable for scale crawling where precision and control are important

Specifications

• Brand: Absima
• Model: Thrust Crawler 35T
• Product Type: Brushed RC crawler motor
• Motor Size: 540
• Motor Type: Brushed
• Turns: 35T
• RPM: 12800rpm
• Power: 85W
• Voltage: 7.2V to 7.4V
• Shaft Length: 12.3mm
• Shaft Diameter: 3.18mm
• Motor Length: 53.2mm
• Motor Diameter: 35.7mm
• Bearing Type: Dual ball bearings
• Scale: Commonly used with 1/10 scale RC crawlers
• Manufacturer Part Number: AB2310082

Includes

• 1 x Absima Thrust Crawler 35T 540 Brushed Motor

FAQ

What is the Absima Thrust Crawler 35T motor designed for? The Absima Thrust Crawler 35T motor is designed for RC crawling applications where smooth throttle control and low-speed torque are important.

Does this motor fit all 1/10 scale crawlers? No. This motor uses a common 540 size format, but OZRC recommends checking your crawler manual for motor size, gearing and ESC compatibility before installation.

Important Notes

• Check your ESC specifications to confirm compatibility with a 35T brushed motor before fitting.
• This motor requires a compatible brushed electronic speed controller.
• Monitor motor and ESC temperatures after installation, especially when changing gearing, tyre size or vehicle weight.
