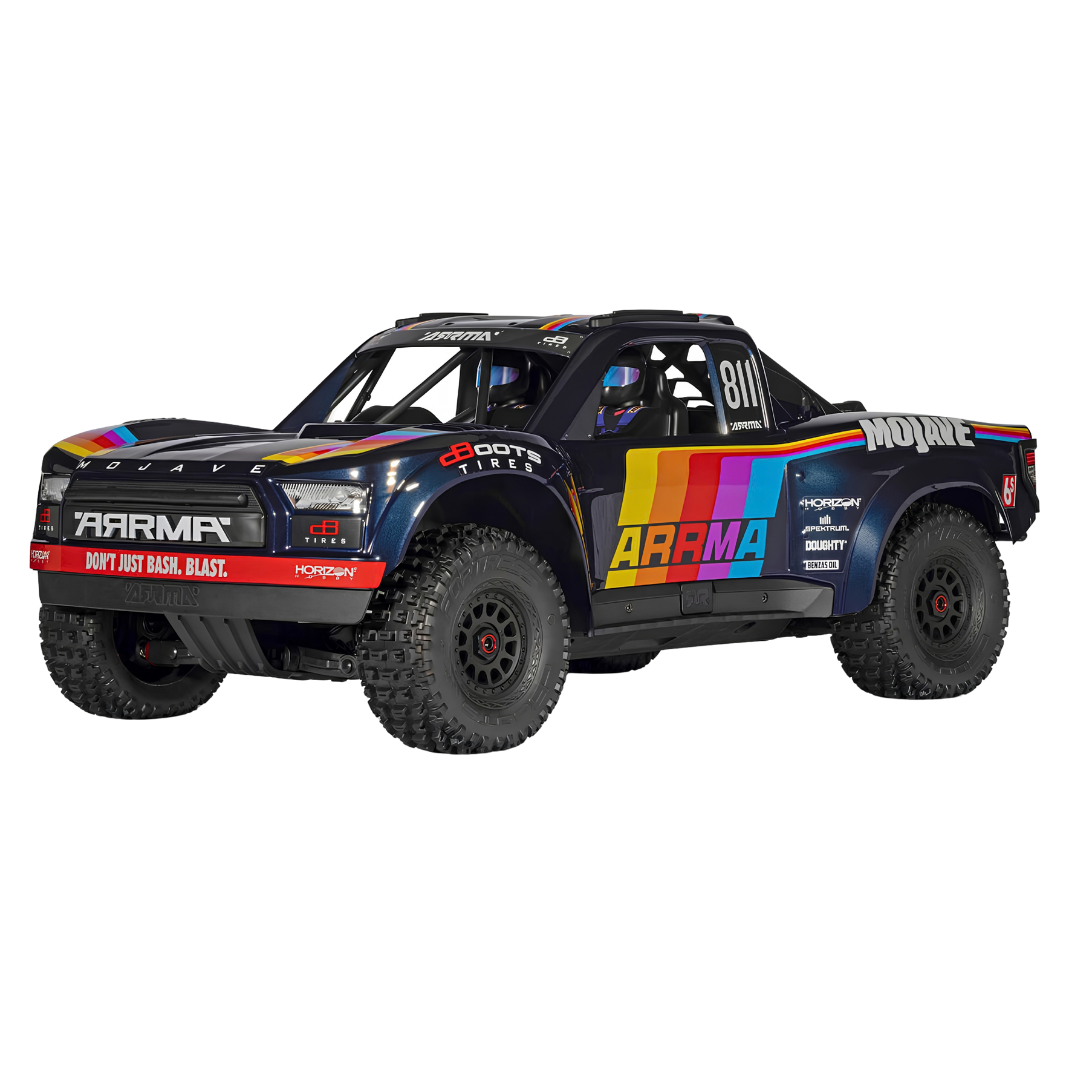

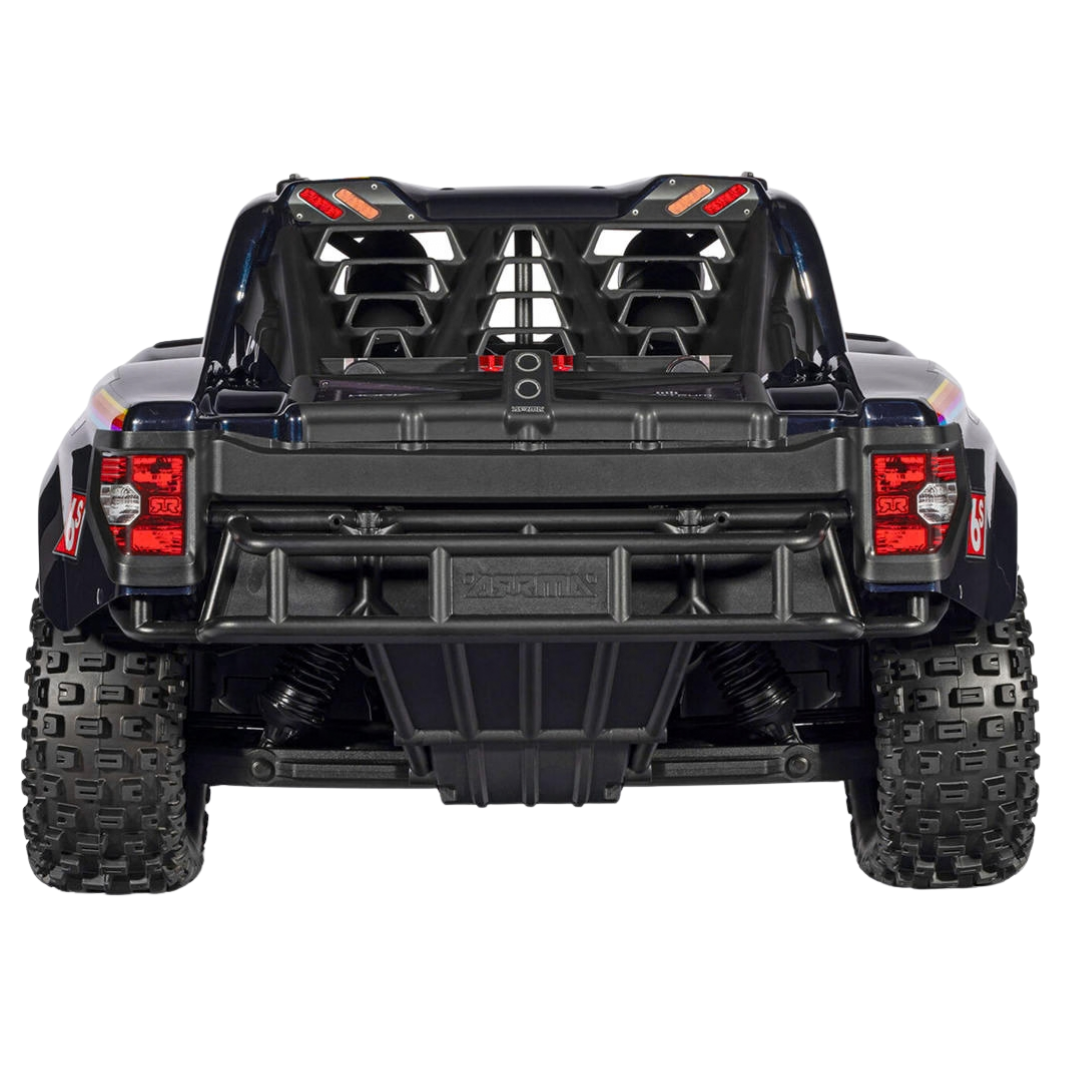

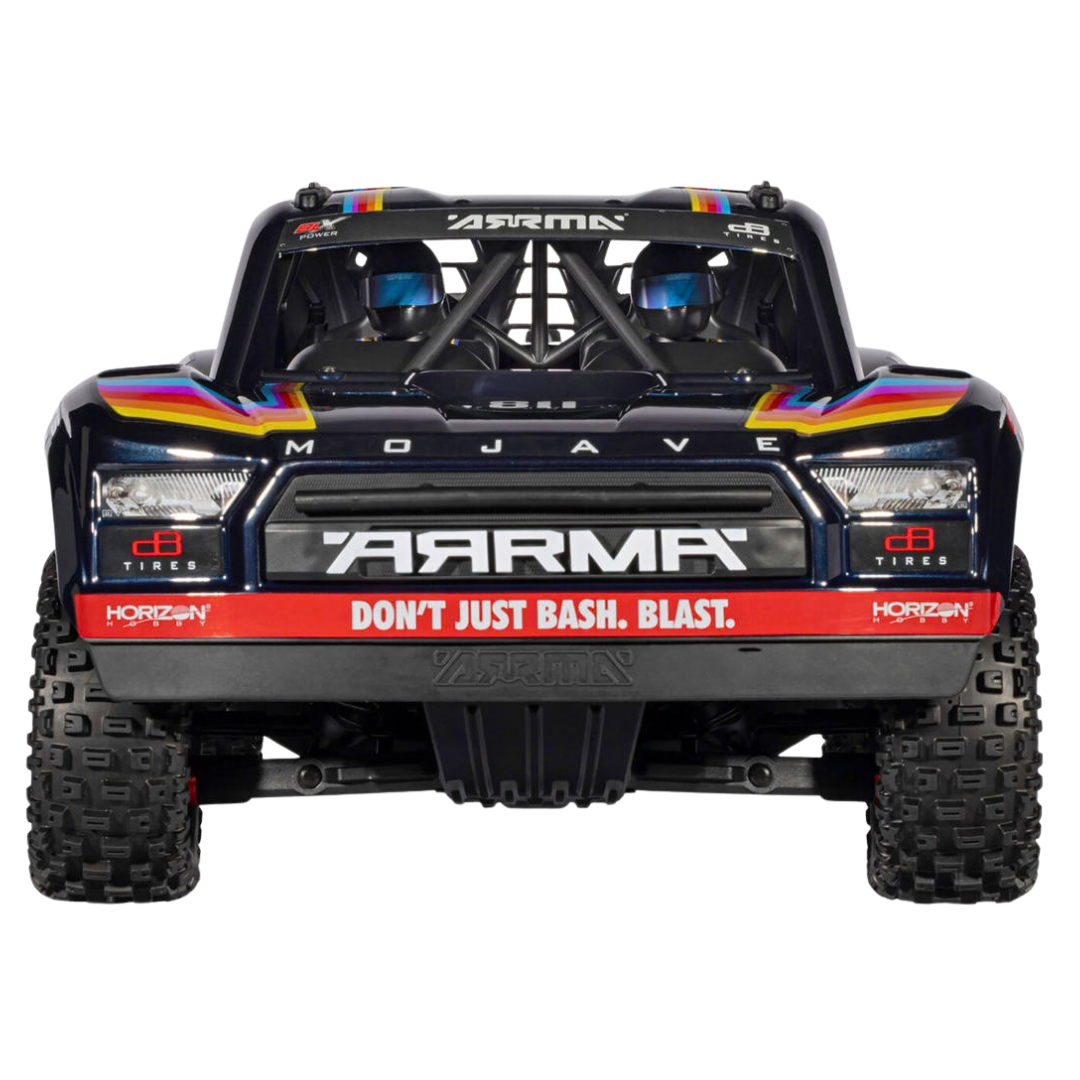

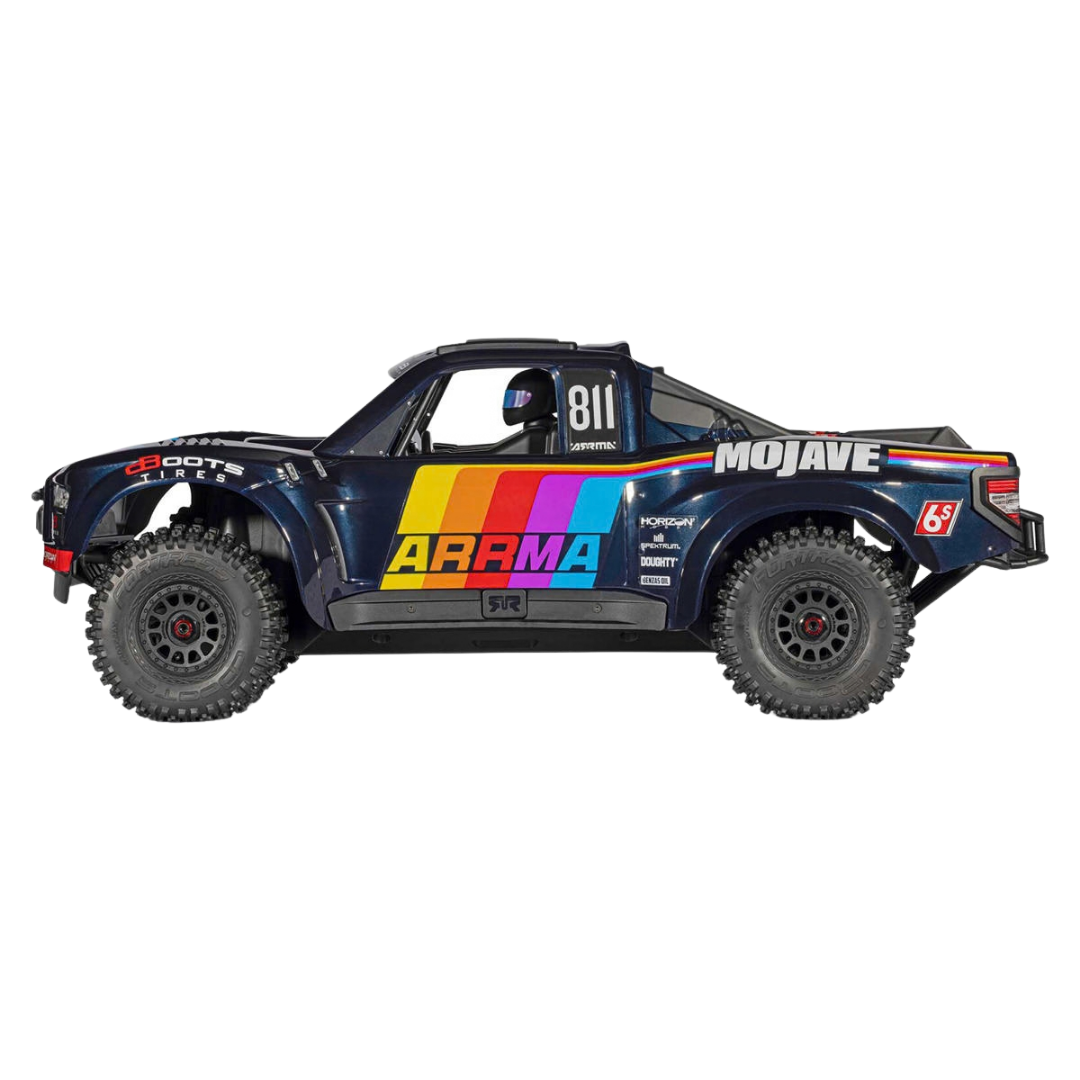

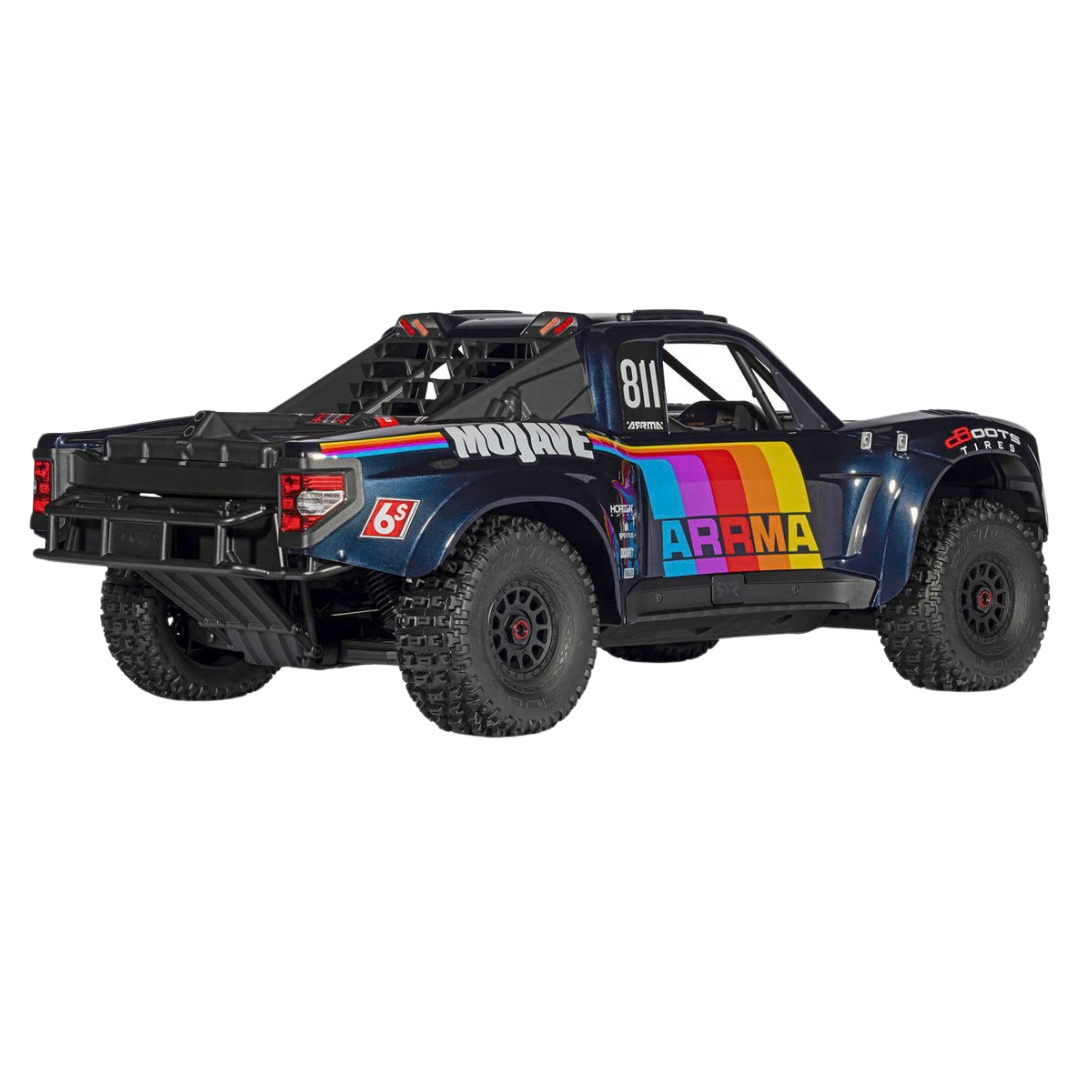

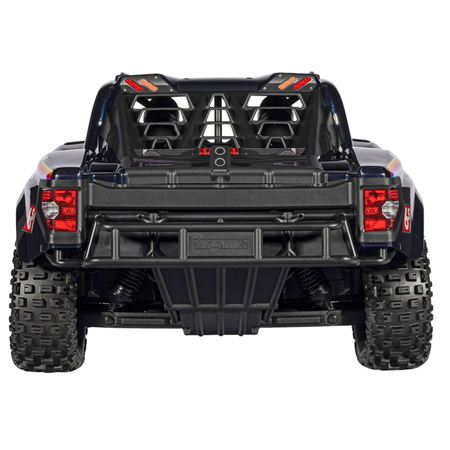

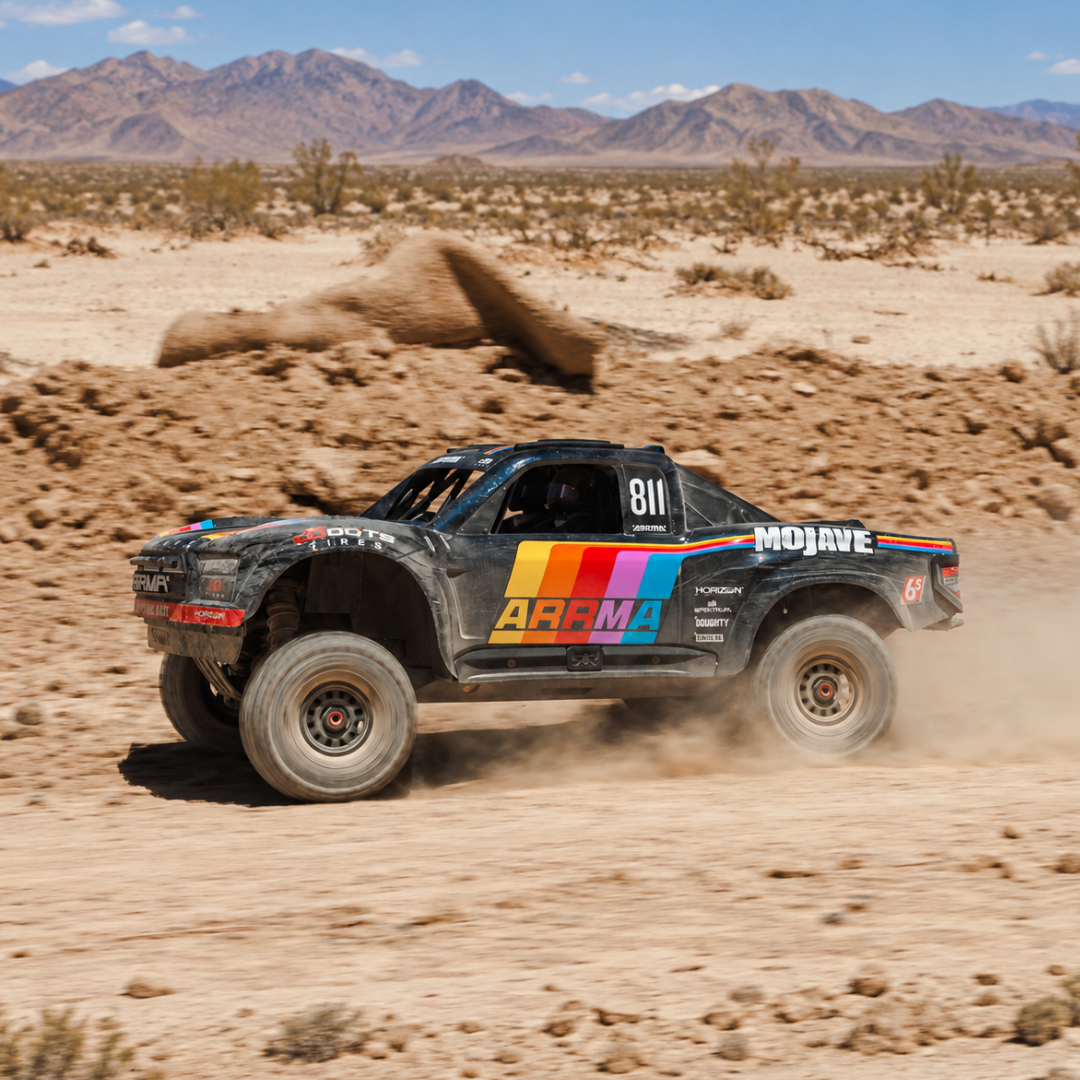

Arrma Mojave 6S BLX RC Desert Truck 1/7 4WD RTR Blue ARA7604V3T1

The Arrma Mojave 6S BLX is a 1/7 scale 4WD RTR brushless RC desert truck designed for high-speed off-road bashing, combining 4S or 6S LiPo power with a long-wheelbase aluminium chassis, heavy-duty drivetrain and 60+ mph capability on a suitable 6S setup.

A Spektrum Firma 4074 2050Kv brushless motor and Firma 150A Smart V2 waterproof ESC provide the power system, with updated ESC firmware designed to deliver smoother throttle response. The shaft-driven 4WD drivetrain uses metal gearing and steel drivetrain components to transfer power across dirt, sand, gravel, grass and sealed surfaces.

The 420 mm wheelbase and wide 355 mm stance provide stable handling at speed, while oil-filled adjustable shocks and aluminium shock towers help control the truck over rough terrain and jumps. A centre chassis brace, heavy-duty wheel hubs, reinforced wheel hexes and front and rear bumpers add durability for regular off-road bashing.

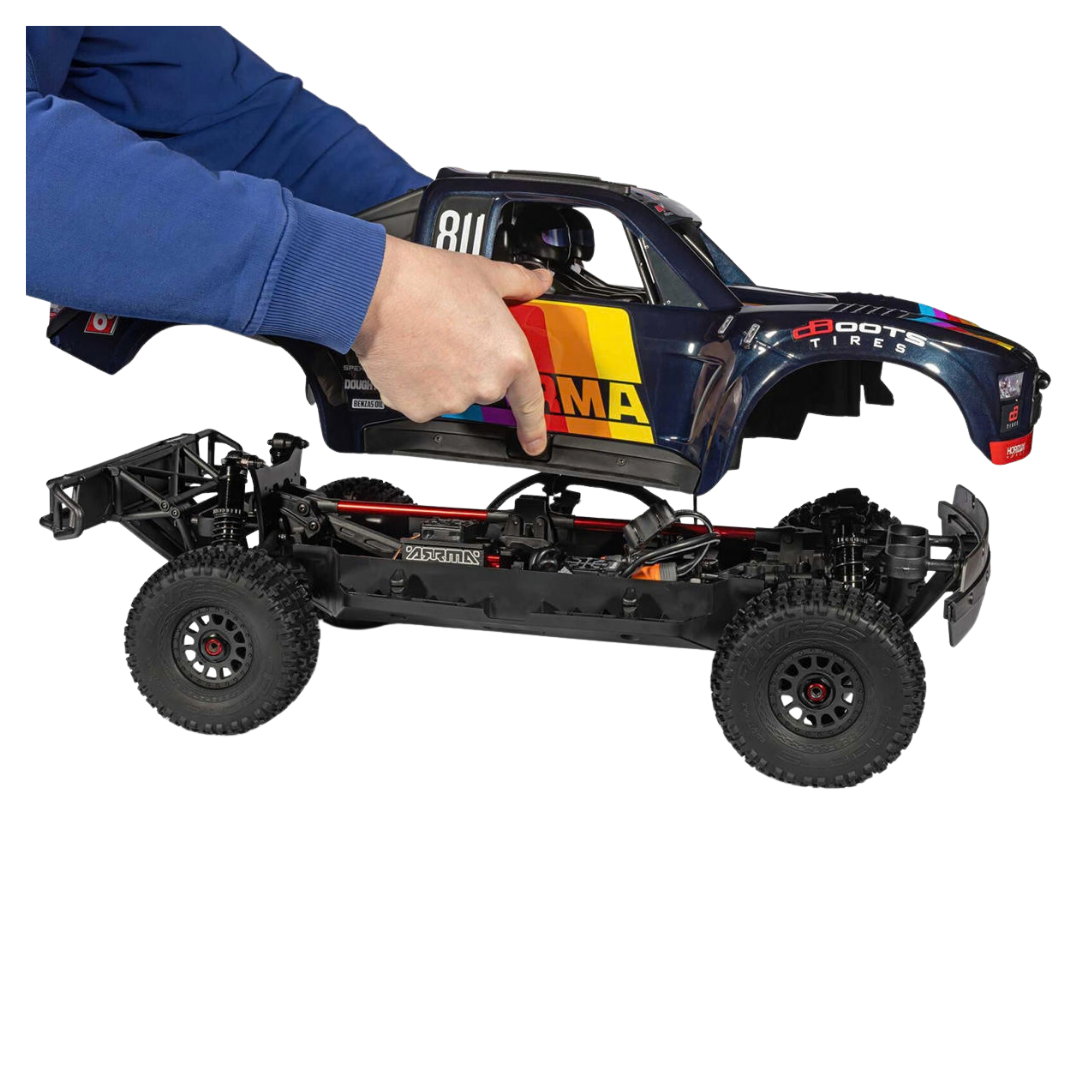

The V3 clipless body system provides quick chassis and battery access without conventional body clips. Integrated inner arches help reduce dirt and debris entering beneath the body, while dBoots Fortress tyres provide multi-terrain traction for loose and hard-packed surfaces.

Features

• 60+ mph capability with a suitable 6S LiPo setup
• Spektrum Firma 4074 2050Kv brushless motor
• Spektrum Firma 150A Smart V2 waterproof ESC
• 4S and 6S LiPo power compatibility
• Heavy-duty 4WD drivetrain
• Long-wheelbase 1/7 scale chassis for stable high-speed handling
• Aluminium chassis construction
• Black-anodised aluminium front and rear shock towers
• Oil-filled adjustable shocks
• Centre chassis brace for additional support
• Sliding motor mount for easier drivetrain servicing
• Clipless body mounting with quick-release access
• Inner body arches help reduce dirt and debris entering the chassis
• Heavy-duty wheel hubs and reinforced wheel hexes
• Front and rear bumpers for impact protection
• Nerf bars for additional side protection
• dBoots Fortress multi-terrain tyres
• 17 mm wheel hexes
• Spektrum S665 waterproof digital steering servo
• Spektrum SR315 3-channel dual-protocol receiver
• Spektrum SLT3 2.4GHz 3-channel transmitter

Specifications

• Brand: Arrma
• Model: Mojave 6S BLX V3
• Manufacturer Part Number: ARA7604V3T1
• EAN / GTIN-13: 5052127050265
• Scale: 1/7
• Vehicle Type: RC Desert Truck
• Completion Level: Ready-To-Run
• Drivetrain: 4WD
• Power Type: Brushless electric
• Power System: 6S
• Battery Connector: IC5
• Motor: Spektrum Firma 4074 2050Kv brushless
• ESC: Spektrum Firma 150A Smart V2 waterproof
• Steering Servo: Spektrum S665 waterproof digital
• Receiver: Spektrum SR315 3-channel dual-protocol
• Transmitter: Spektrum SLT3 2.4GHz 3-channel
• Top Speed: 60+ mph on a suitable 6S setup
• Length: 715 mm
• Width: 355 mm
• Height: 270 mm
• Wheelbase: 420 mm
• Weight: 6.49 kg with electronics
• Maximum Battery Dimensions: 158 x 48 x 70 mm
• Gear Pitch: Mod 1
• Pinion Gear: 18T
• Spur Gear: 50T
• Internal Gear Ratio: 4.30:1
• Final Drive Ratio: 11.94:1
• Differential Type: Gear
• Differential Oil: 80K front, 100K centre, 80K rear
• Shock Type: Oil-filled adjustable
• Shock Oil: 550 cSt
• Wheel Hex: 17 mm
• Tyres: dBoots Fortress
• Drive Functions: Forward, brake and reverse
• Body: Painted, trimmed and decorated clipless desert truck body
• Colour: Blue

Includes

• 1 x Arrma Mojave 6S BLX V3 1/7 4WD RTR Brushless RC Desert Truck
• 1 x Spektrum Firma 4074 2050Kv brushless motor
• 1 x Spektrum Firma 150A Smart V2 waterproof ESC
• 1 x Spektrum S665 waterproof digital steering servo
• 1 x Spektrum SR315 3-channel dual-protocol receiver
• 1 x Spektrum SLT3 2.4GHz 3-channel transmitter
• 1 x Pinion gear
• 4 x AA transmitter batteries
• 1 x Instruction manual

FAQ

Does the Arrma Mojave 6S BLX include a battery and charger? No. A compatible hardcase LiPo battery setup and suitable LiPo charger are required separately.

Can the Arrma Mojave 6S BLX run on both 4S and 6S? Yes. Compatible battery configurations include two 2S hardcase LiPo batteries for 4S operation or two 3S hardcase LiPo batteries for 6S operation. A suitable single 4S or 6S hardcase LiPo battery can also be used.

What size battery fits the Mojave 6S BLX? ARRMA specifies maximum battery dimensions of 158 x 48 x 70 mm. OZRC recommends checking both the battery dimensions and IC5-compatible connection before purchase.

Is ARA7604V3T1 the blue Mojave 6S BLX? Yes. ARA7604V3T1 is the blue colour version of the Arrma Mojave 6S BLX V3 1/7 4WD RTR desert truck.

Important Notes

• Drive battery is not included.
• LiPo battery charger is not included.
• A LiPo-safe charging and storage bag is recommended.
• 60+ mph capability requires an appropriate 6S LiPo setup and suitable operating conditions.
• Confirm battery dimensions, voltage and connector compatibility before installation.
