EcoPower WP827X24 Micro Servo Direct Fit For Axial SCX24 Waterproof ECP827X24

ETA unavailable
SKU: ECP827X24
$39.95

Need some help? call us! ph: 07 3265 4547

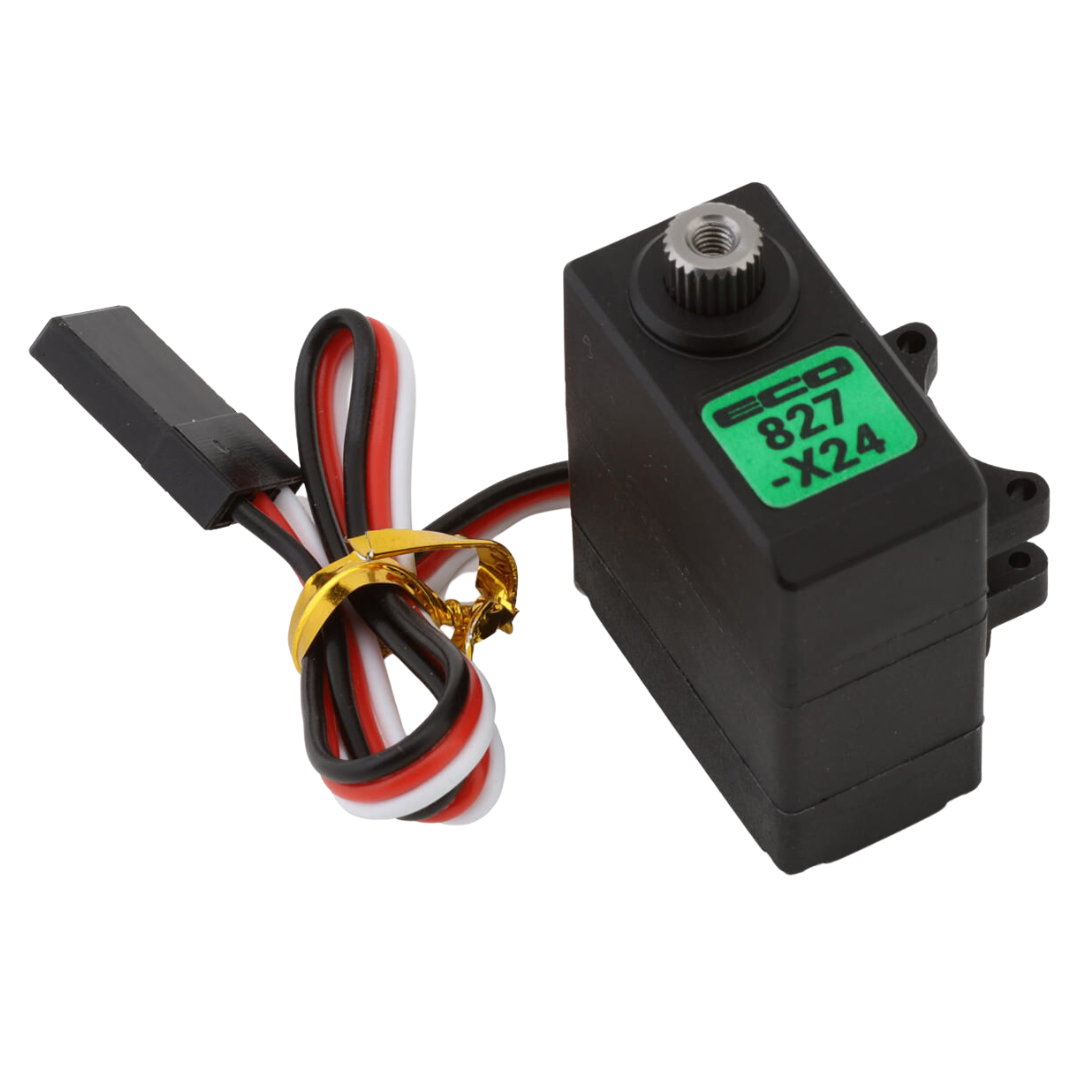

The EcoPower WP827-X24 is a high-performance waterproof micro servo built specifically for the Axial SCX24. Featuring a direct axle mount design, it eliminates the need for a separate servo mount while delivering powerful torque and quick response in a compact, rugged package.

Features

  • Direct fit for Axial SCX24 with integrated axle and link mounts
  • High torque output up to 62.5oz.in at 8.4V for improved steering power
  • Fast response speed of 0.08 sec/60° at 8.4V
  • Heavy-duty all-metal geartrain and output shaft for durability
  • Fully waterproof for reliable performance in wet or muddy conditions
  • Includes CNC-machined aluminium servo horn with multiple mounting options

Specifications

  • Application: 1/24 and 1/18 scale vehicles
  • Input Voltage: 6V–8.4V
  • Speed: 0.10 sec/60° @6.0V | 0.08 sec/60° @8.4V
  • Torque: 48.6oz.in (3.5Kg-CM) @6.0V | 62.5oz.in (4.5Kg-CM) @8.4V
  • Motor Type: Digital coreless
  • Output Shaft: Mini 25T
  • Gear Material: Metal
  • Dimensions: 23 x 12 x 31.75mm
  • Weight: 16g

Includes

  • (1) WP827-X24 Digital Micro Servo

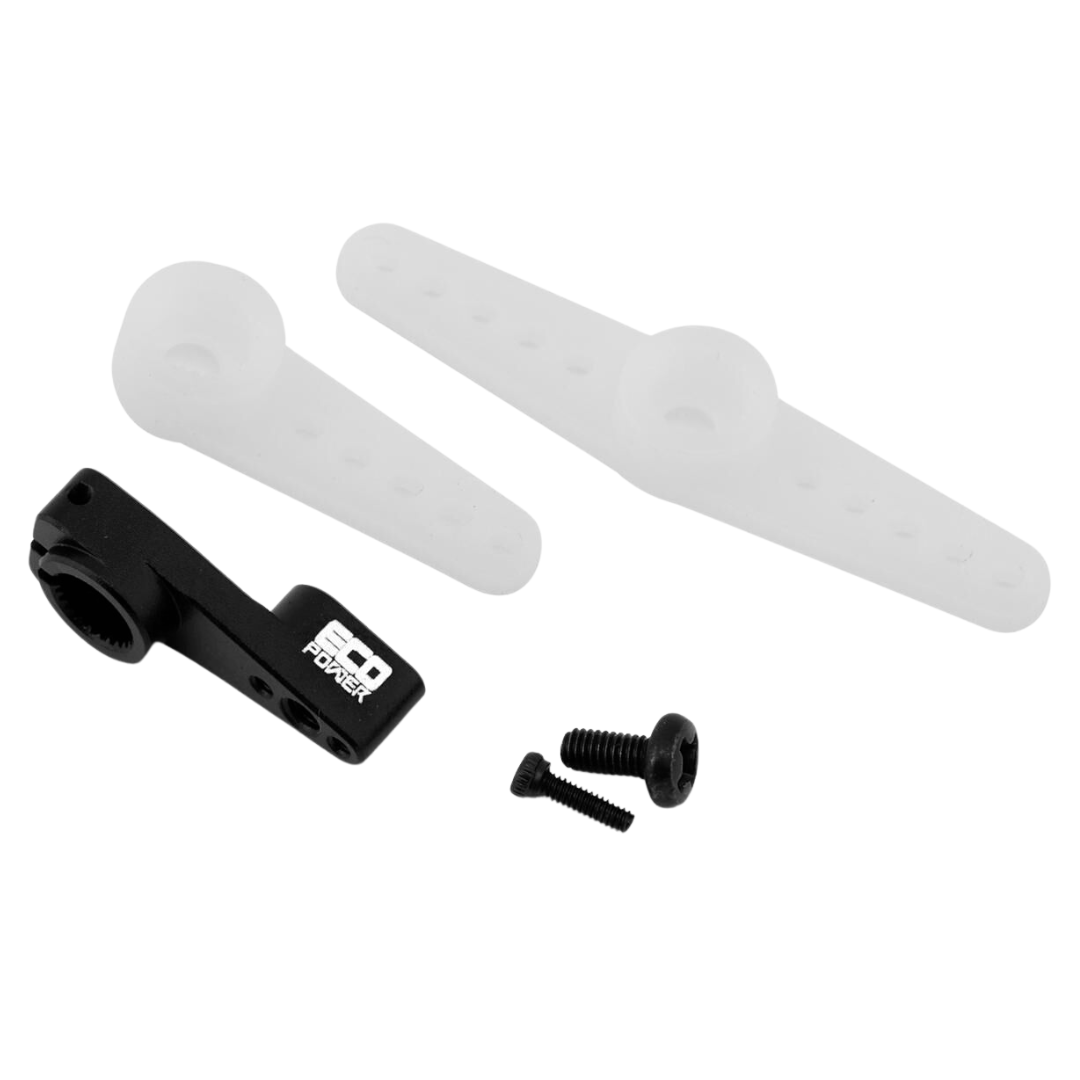

  • (1) Aluminium servo horn
  • (2) Composite servo horns
