FlyWing MH-60R Seahawk ACE 470 RC Helicopter 810mm Grey RTF FW470MH60R

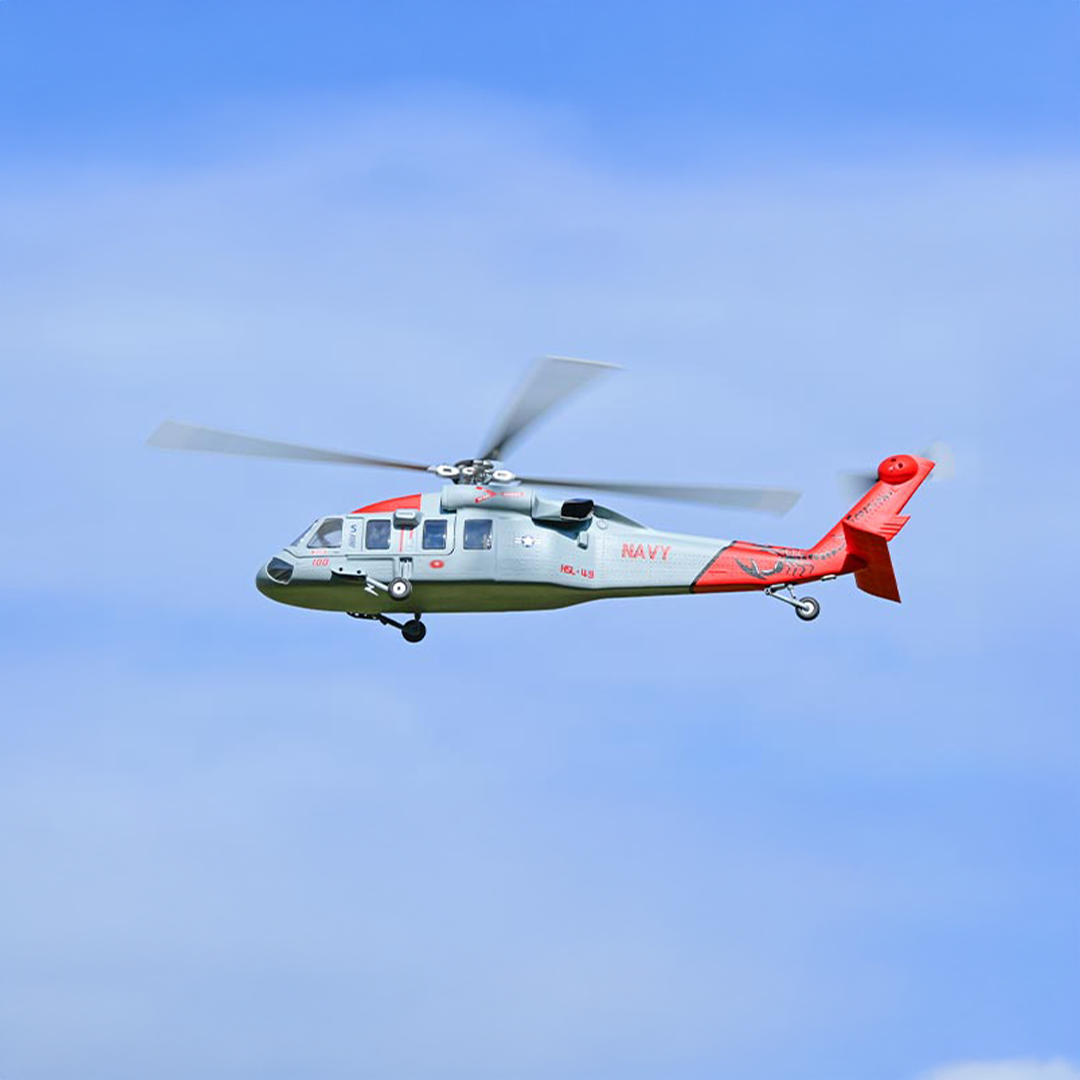

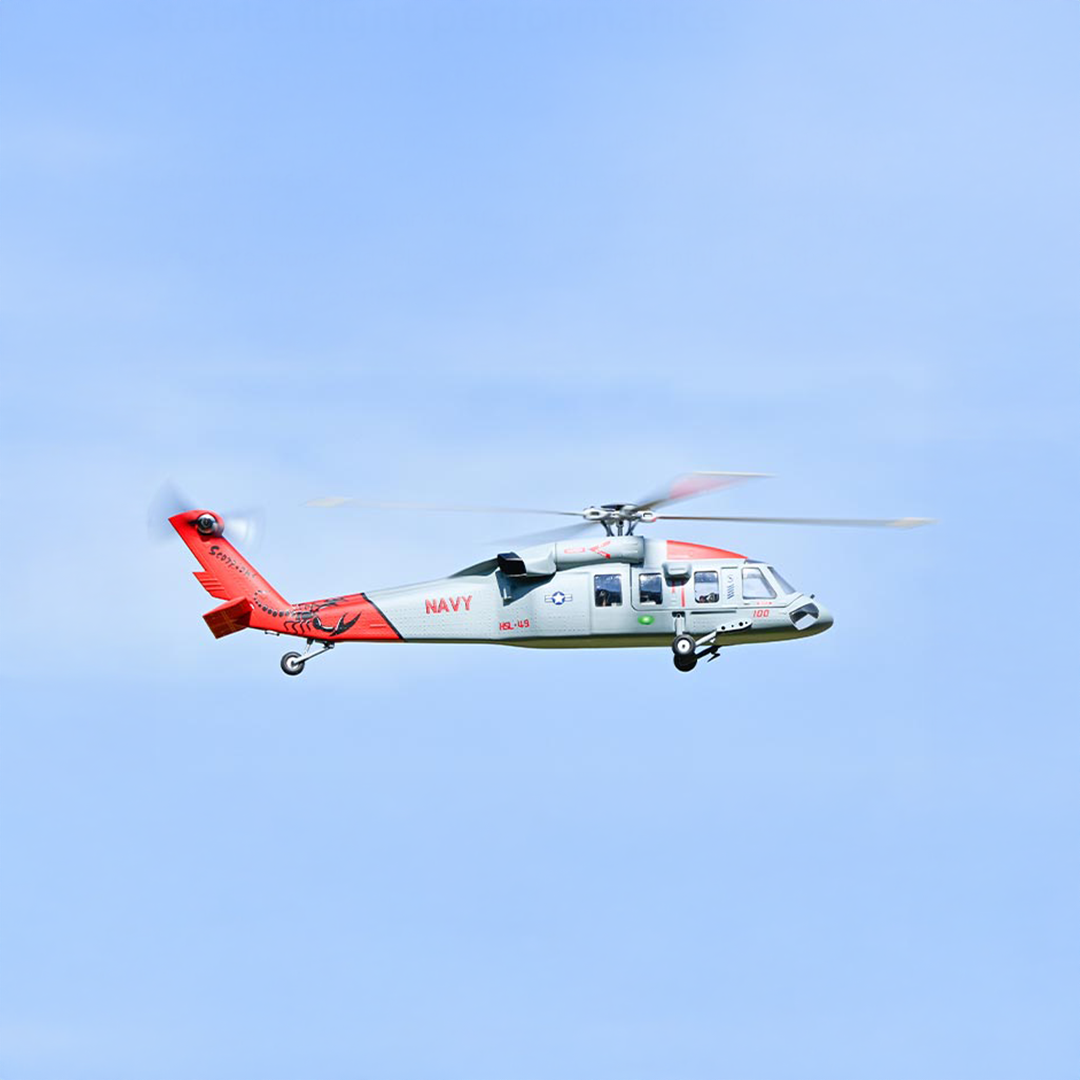

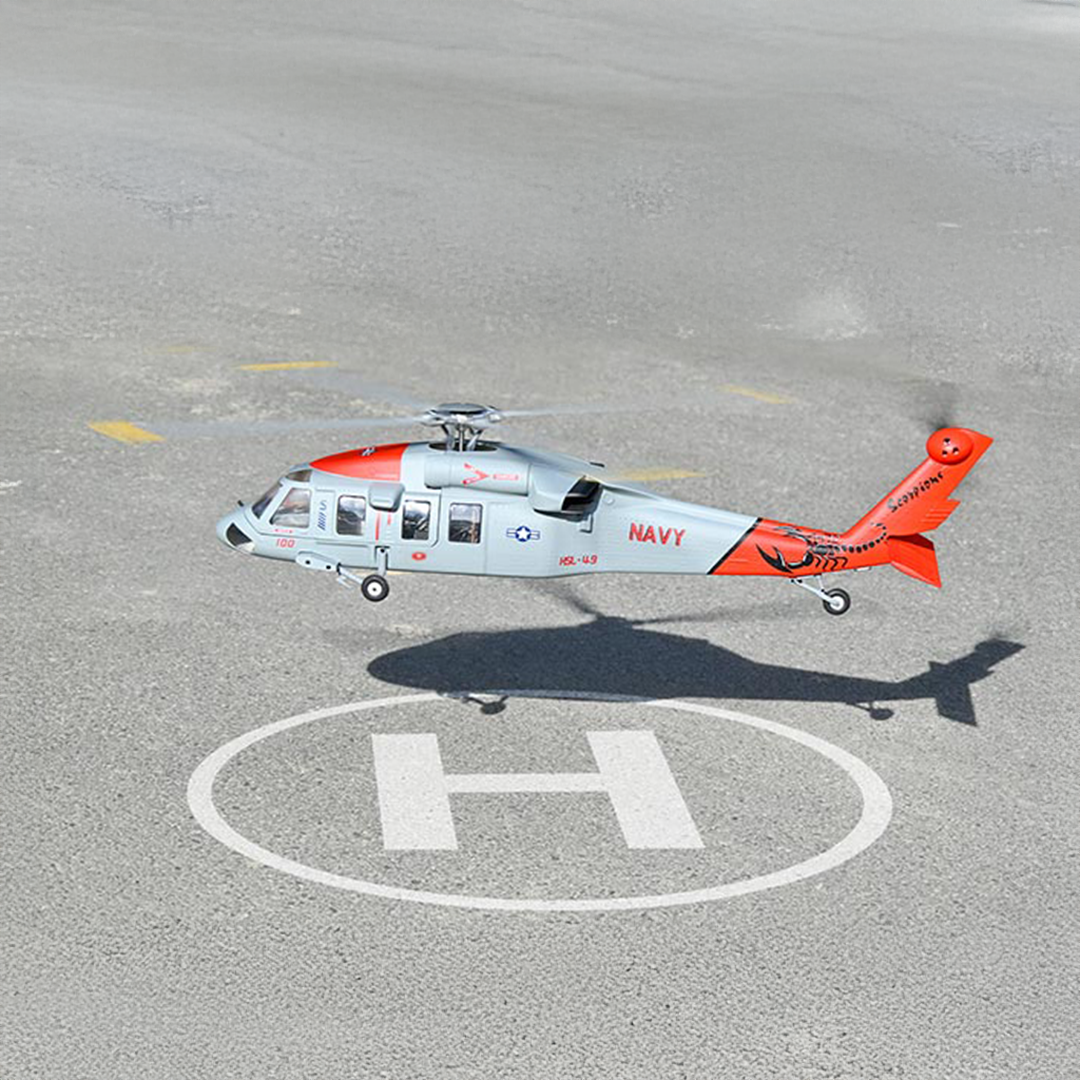

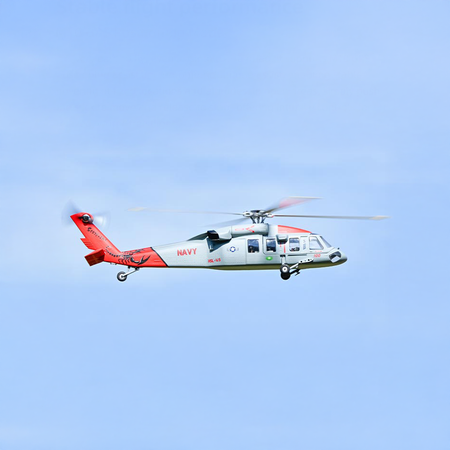

The Flywing MH-60R Seahawk is a 470-class scale RC helicopter supplied ready-to-fly in a red and grey US Navy-inspired scheme, combining a four-blade rotor system, ACE flight controller, M10 satellite positioning and a 4S brushless power system for GPS-assisted scale flying.

Features

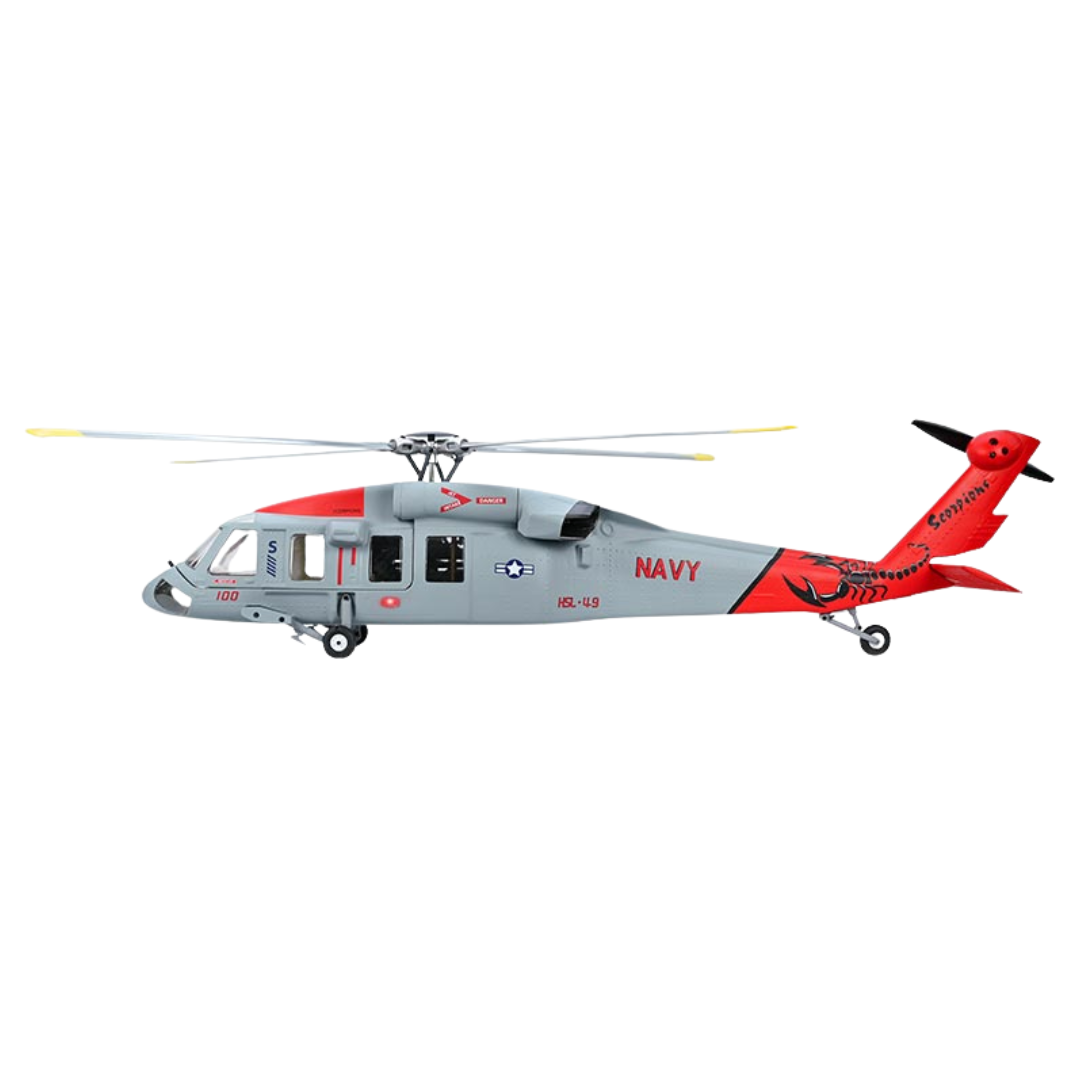

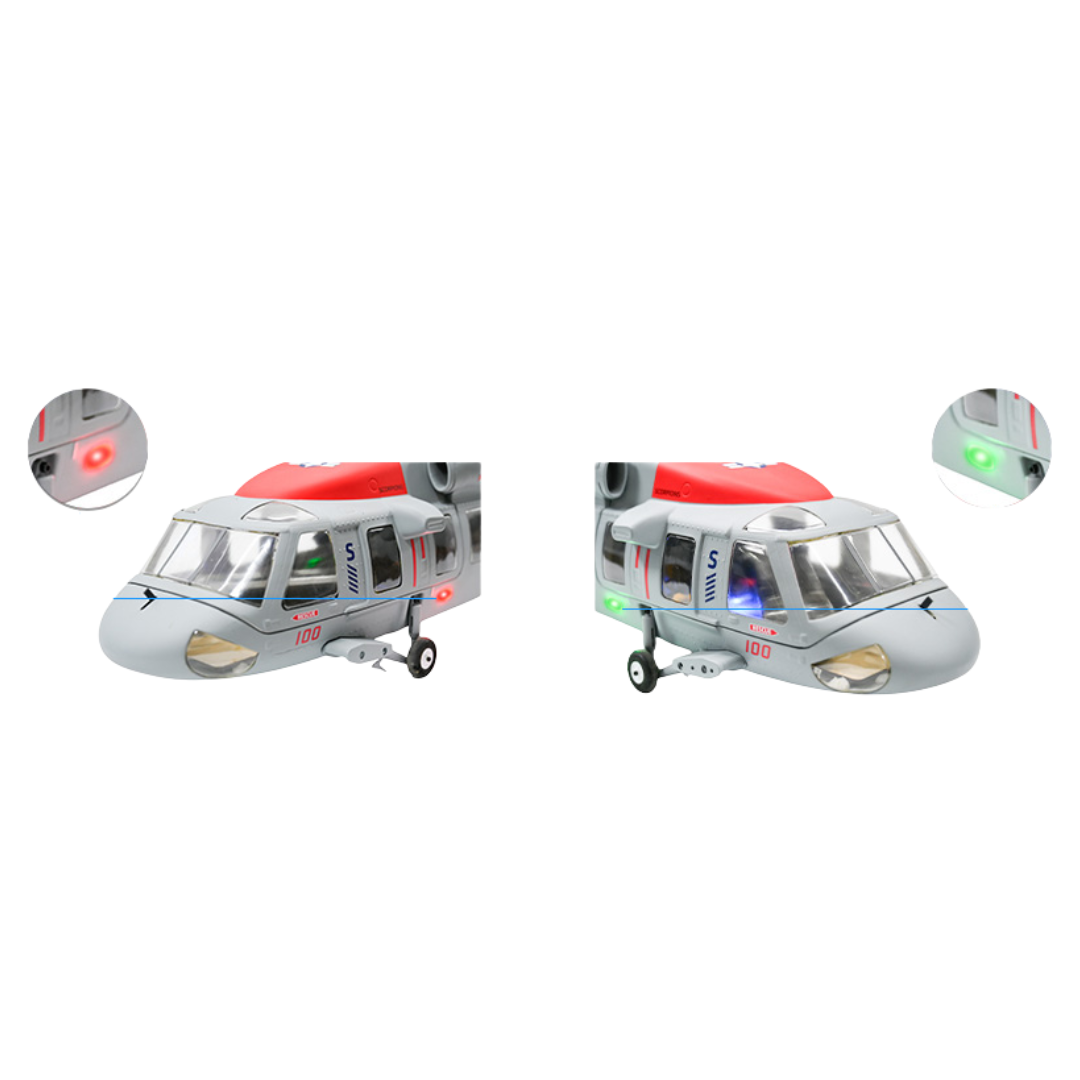

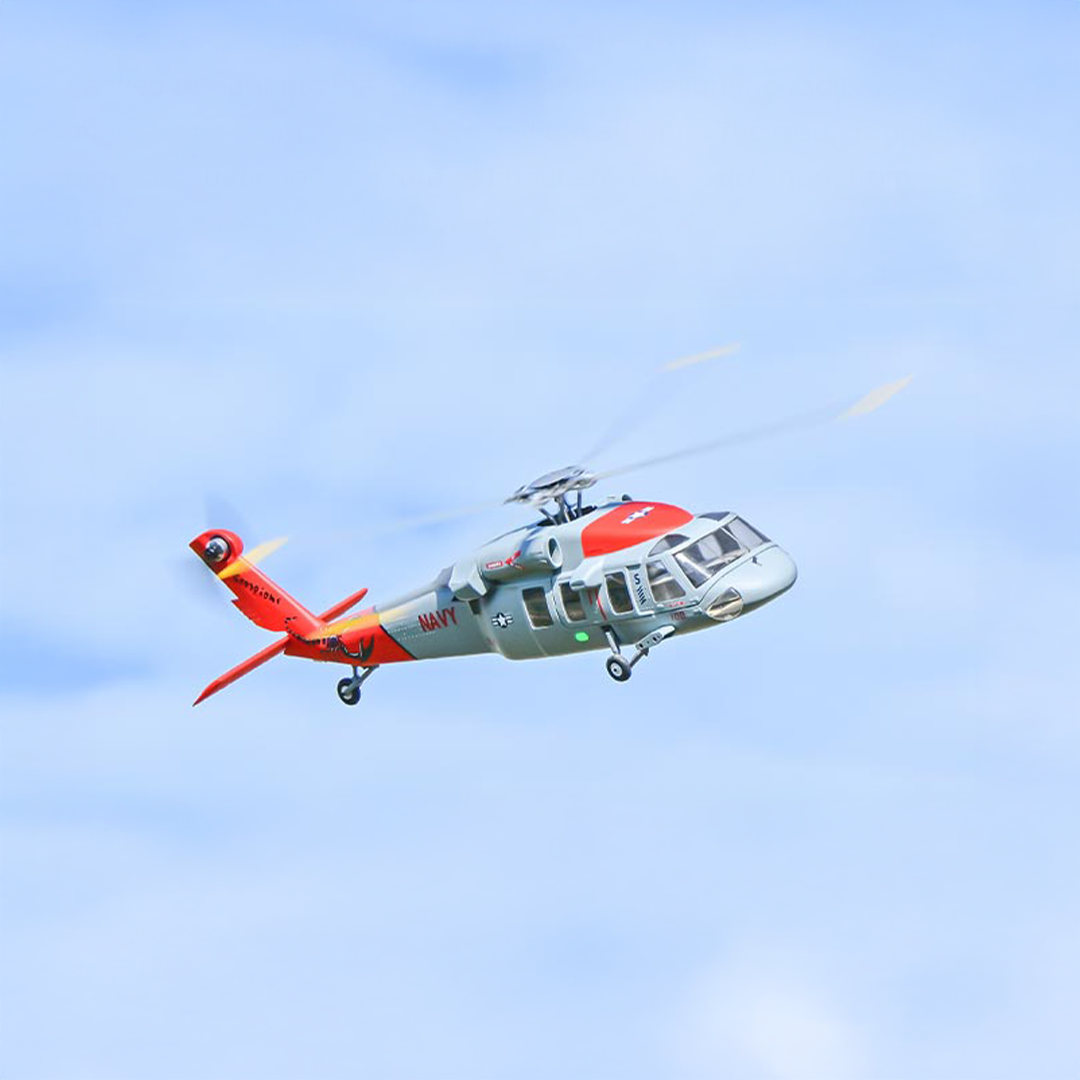

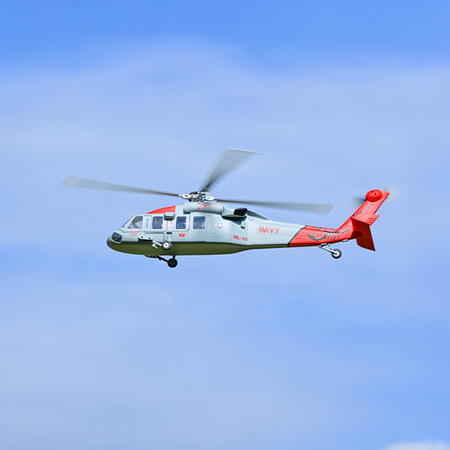

• MH-60R Seahawk Scale Design: Detailed fuselage recreates the distinctive appearance of the naval MH-60R helicopter
• ACE Flight Controller: Integrated stabilisation system provides GPS-assisted flight, self-levelling ATT operation and manual flight modes
• M10 Satellite Positioning: Uses multi-mode GPS and BeiDou positioning to support outdoor position hold and assisted flight functions
• GPS Position Hold: Helps maintain the helicopter's position when adequate satellite reception is available
• ATT Self-Levelling: Stabilised attitude mode assists with smooth hovering and scale flight
• Return-to-Home: One-key return function can command the helicopter back towards its recorded take-off position
• Automatic Safety Return: Supports automatic return functions following low battery or loss of radio signal

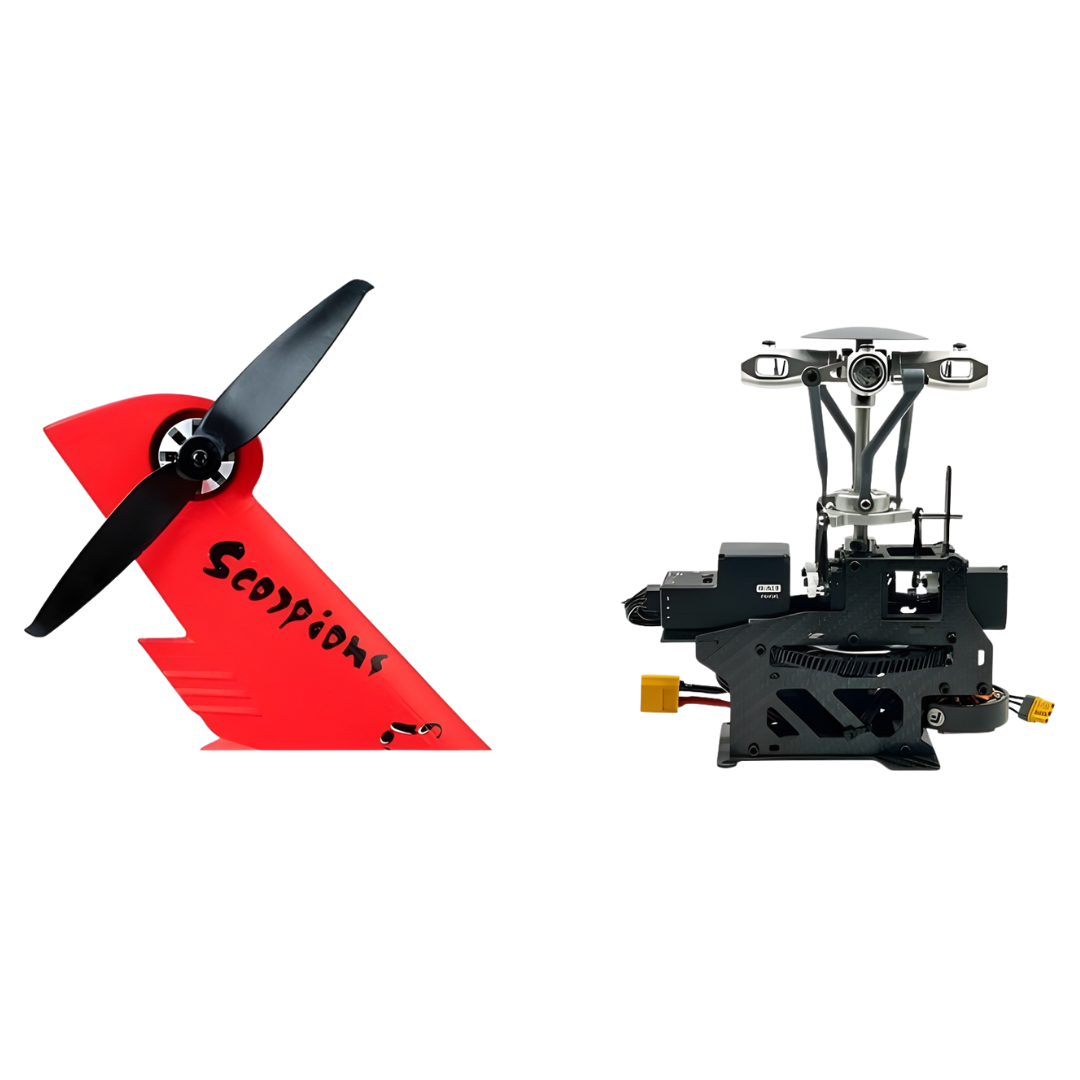

• Four-Blade Rotor System: Quick-detachable four-blade rotor head provides a scale appearance while simplifying transport and maintenance
• Brushless Power System: 3508 brushless main motor is paired with a 2008 brushless tail motor and 60A dual brushless speed controller
• Selectable Flight Response: Soft, Standard and Sport sensitivity settings allow the control response to be adjusted to pilot preference
• 4S 5000mAh Battery Included: RTF package includes the recommended flight battery for approximately 18 minutes of typical flight time
• 10-Channel Radio Included: Australian RTF configuration includes a 2.4GHz 10-channel transmitter with approximately 1km quoted control range
• SBUS Support: ACE system supports compatible SBUS radio equipment when correctly configured

Specifications

• Brand: Flywing
• Model: MH-60R Seahawk
• Product Type: GPS RC Helicopter
• Size Class: 470 Class
• Completion Level: Ready-To-Fly / RTF
• Colour / Livery: Red and Grey US Navy-Inspired
• Included Radio: 10-Channel 2.4GHz Transmitter
• Flight Controller: Flywing ACE
• Positioning System: M10 Multi-Mode GPS / BeiDou
• Flight Functions: GPS Position Hold / ATT Self-Levelling / Manual Flight / Return-to-Home
• Main Motor: 3508 Brushless 16V
• Tail Motor: 2008 Brushless
• ESC: 60A 32-Bit Dual Brushless Speed Controller
• Main Rotor: 4-Blade Quick-Detach
• Main Rotor Diameter: Approximately 810mm
• Tail Rotor Diameter: Approximately 125mm
• Length: Approximately 850mm Without Main Blades
• Width: Approximately 250mm
• Height: Approximately 270mm
• Weight Without Battery: Approximately 1328g
• Published Weight With Battery: Approximately 1555g
• Battery: 4S 5000mAh LiPo
• Typical Flight Time: Approximately 18 Minutes
• Quoted Control Range: Approximately 1km
• Manufacturer / Supplier SKU: FW-MH-60R

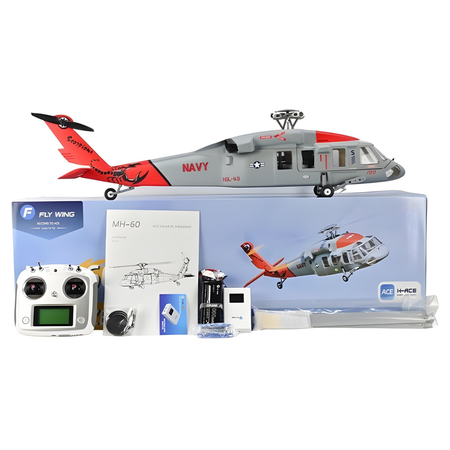

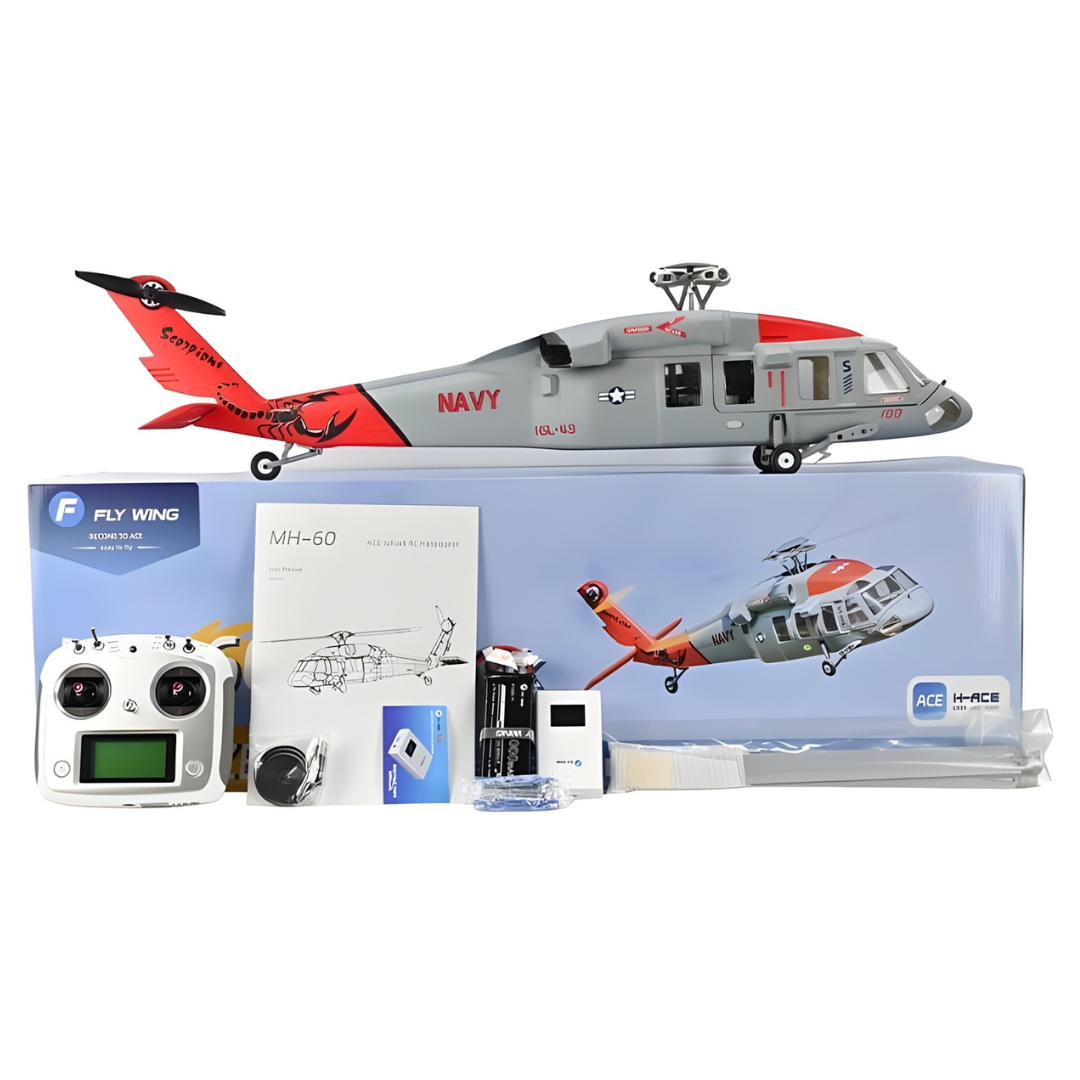

Includes

• 1 x Flywing MH-60R Seahawk 470-Class RC Helicopter
• 1 x Flywing 10-Channel 2.4GHz Transmitter
• 1 x ACE Flight Controller with M10 Positioning System Installed
• 1 x 4S 5000mAh LiPo Flight Battery
• 1 x Compatible Battery Charger
• 1 x USB Data Cable
• 1 x Screwdriver
• 1 x User Manual

FAQ

Is the Flywing MH-60R FW-MH-60R ready to fly? Yes. The RTF configuration is supplied with the assembled helicopter, radio system and 4S 5000mAh flight battery. Normal pre-flight inspections, battery charging and GPS acquisition are still required before flying.

Is the Flywing MH-60R a 6-channel or 10-channel helicopter? Flywing describes the underlying scale helicopter platform as a 6-channel flight system in some manufacturer material, while the Australian FW-MH-60R RTF package is marketed with a 10-channel transmitter. The additional transmitter channels are used to access flight-controller functions and auxiliary controls.

How long does the Flywing MH-60R fly on one battery? The Australian FW-MH-60R specification quotes approximately 18 minutes using the included 4S 5000mAh LiPo. Other listings quote up to around 20 minutes, so actual duration will depend on flying style, weather, battery condition and flight mode.

What does the GPS system do? The ACE flight controller uses satellite positioning to provide functions such as outdoor position hold and return-to-home. These functions require suitable satellite reception and should be confirmed before take-off.

Does return-to-home avoid trees or other obstacles? No. Return-to-home should not be treated as an obstacle-avoidance system. Always operate in an open area with a clear flight and return path.

Can another transmitter be used with the Flywing MH-60R? The RTF package includes its own 10-channel transmitter. The ACE system also supports suitable SBUS radio equipment when correctly installed and configured.

Important Notes

• This is a large hobby-grade RC helicopter intended for operation in a suitable open flying area
• Perform a complete pre-flight inspection of rotor hardware, linkages and fasteners before each flight
• GPS-assisted functions require suitable satellite reception and should not replace normal pilot control and situational awareness
• Return-to-home does not provide obstacle avoidance
• Flight time and radio range are approximate and will vary with conditions, battery state and the local radio environment
• Published weight figures vary between suppliers and may reflect different measurement configurations
• Always balance-charge the supplied LiPo battery with a compatible charger and follow appropriate LiPo charging, storage and handling procedures
