FlyWing MH-60T Jayhawk ACE 470 RC Helicopter 810mm White RTF FW470MH60T

The Flywing MH-60T Jayhawk is a 470-class scale RC helicopter supplied ready-to-fly in a red and white US Coast Guard-inspired scheme, combining a four-blade rotor system, ACE flight controller, M10 multi-constellation positioning and a 4S brushless power system for stable GPS-assisted scale flight.

Features

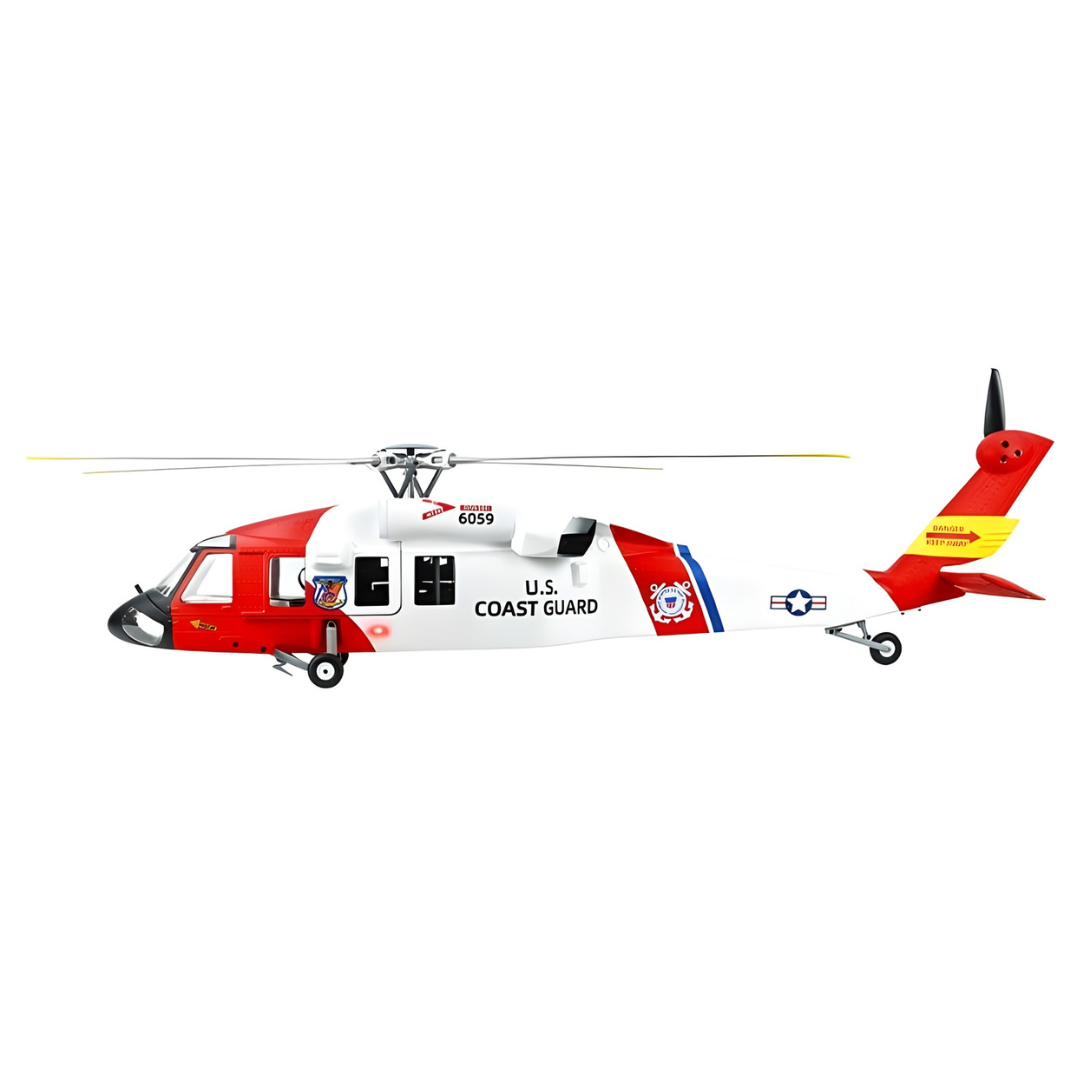

• MH-60T Jayhawk Scale Design: Detailed fuselage recreates the distinctive search-and-rescue appearance of the MH-60T Jayhawk
• ACE Flight Controller: Integrated flight control system provides GPS-assisted stabilisation, ATT self-levelling and manual flight modes
• M10 Multi-Constellation Positioning: Supports multiple satellite systems including GPS, BeiDou, GLONASS and Galileo for outdoor positioning
• GPS Position Hold: Helps maintain the helicopter's position and altitude when suitable satellite reception is available
• ATT Self-Levelling Mode: Gyroscope, accelerometer and barometer work together to assist with stable, controlled flight
• Return-to-Home: One-key return function can command the helicopter back towards its recorded take-off position
• Automatic Safety Return: Supports low-battery return and automatic return following loss of transmitter signal

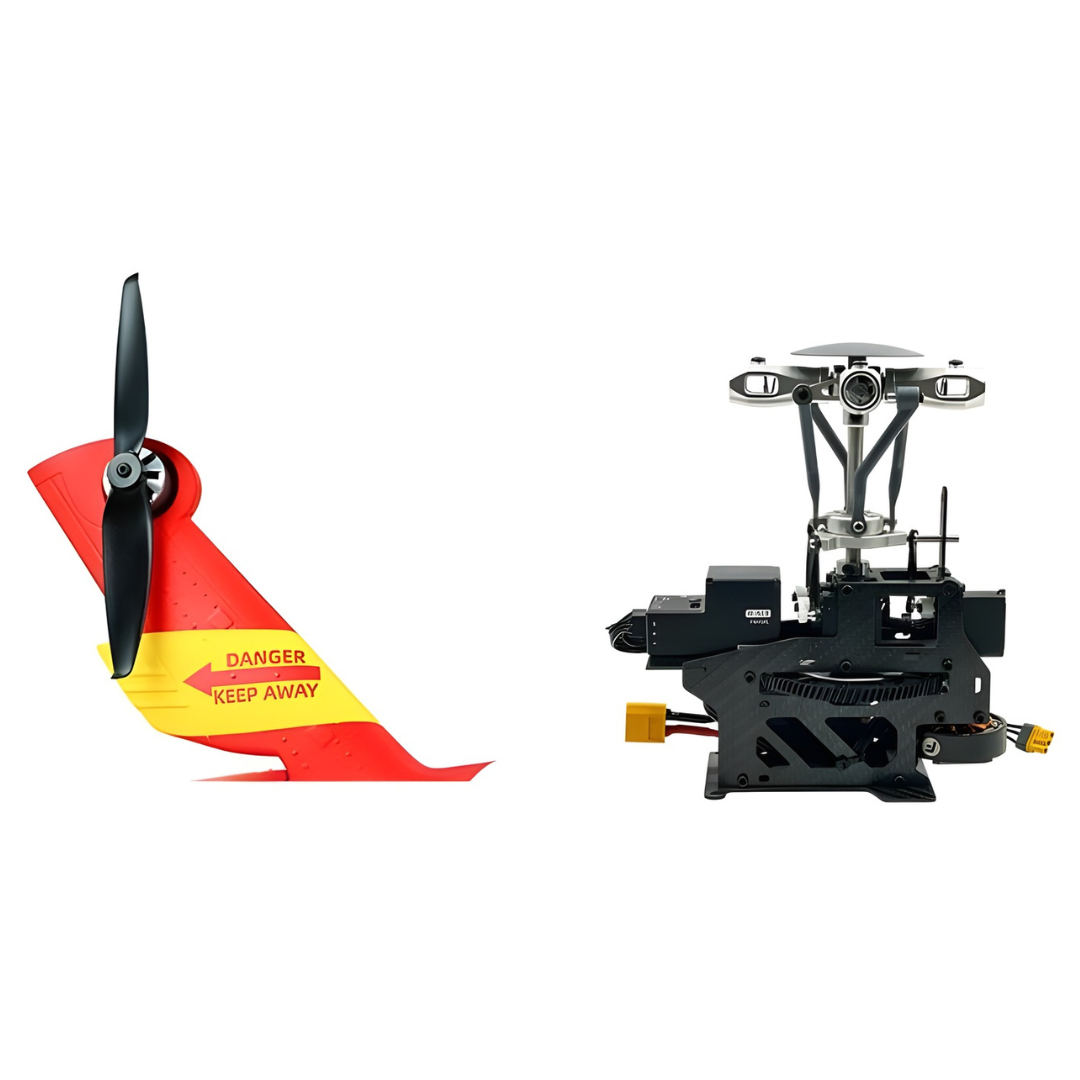

• Four-Blade Rotor System: Quick-detachable four-blade rotor head provides an authentic scale appearance and simplifies transport and maintenance
• Brushless Power System: 3508 brushless main motor is paired with a 2008 brushless tail motor and 60A dual brushless speed controller
• Selectable Flight Response: Soft, Standard and Sport sensitivity settings allow control response to be adjusted from the transmitter
• Manual and 3D Capability: Supports more direct manual flight and aerobatic functions for suitably experienced pilots

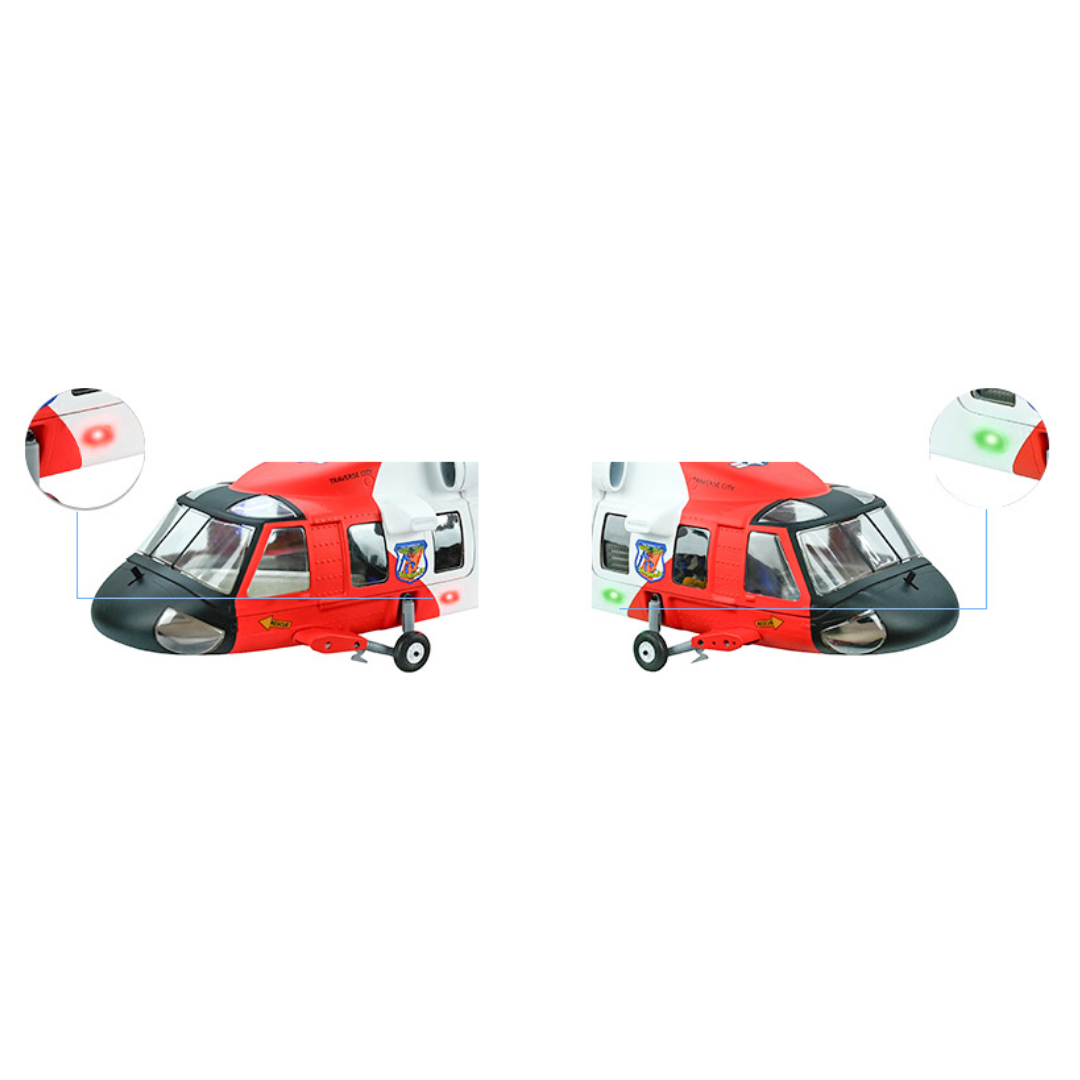

• Scale Lighting: Integrated aviation-style LED lighting adds visibility and scale detail
• 4S 5000mAh Battery Included: RTF package includes the recommended LiPo flight battery
• 10-Channel Transmitter Included: Australian FW-MH-60T package includes a 2.4GHz 10-channel transmitter with SBUS support

Specifications

• Brand: Flywing
• Model: MH-60T Jayhawk
• Product Type: GPS RC Helicopter
• Size Class: 470 Class
• Completion Level: Ready-To-Fly / RTF
• Colour / Livery: Red and White US Coast Guard-Inspired
• Helicopter Control System: 6-Channel Flight Architecture
• Included Transmitter: 10-Channel 2.4GHz
• Flight Controller: Flywing ACE
• Positioning Module: M10 Multi-Mode GNSS
• Supported Positioning: GPS / BeiDou / GLONASS / Galileo
• Flight Modes: GPS Assisted / ATT Self-Levelling / Manual
• Main Motor: 3508 Brushless 16V System
• Tail Motor: 2008 Brushless
• ESC: 60A 32-Bit Dual Brushless Speed Controller
• Main Rotor: 4-Blade Quick-Detach
• Main Rotor Diameter: Approximately 810mm
• Tail Rotor Diameter: Approximately 125mm
• Body Length: Approximately 850mm Without Main Rotor Blades
• Body Width: Approximately 250mm
• Body Height: Approximately 270mm
• Weight Without Battery: Approximately 1328g
• Published Weight With Battery: Approximately 1555g
• Battery: 4S 5000mAh LiPo
• Published Flight Time: Approximately 18–20 Minutes Depending on Conditions
• Quoted Control Range: Up to Approximately 1km Under Suitable Unobstructed Conditions
• Manufacturer / Supplier SKU: FW-MH-60T

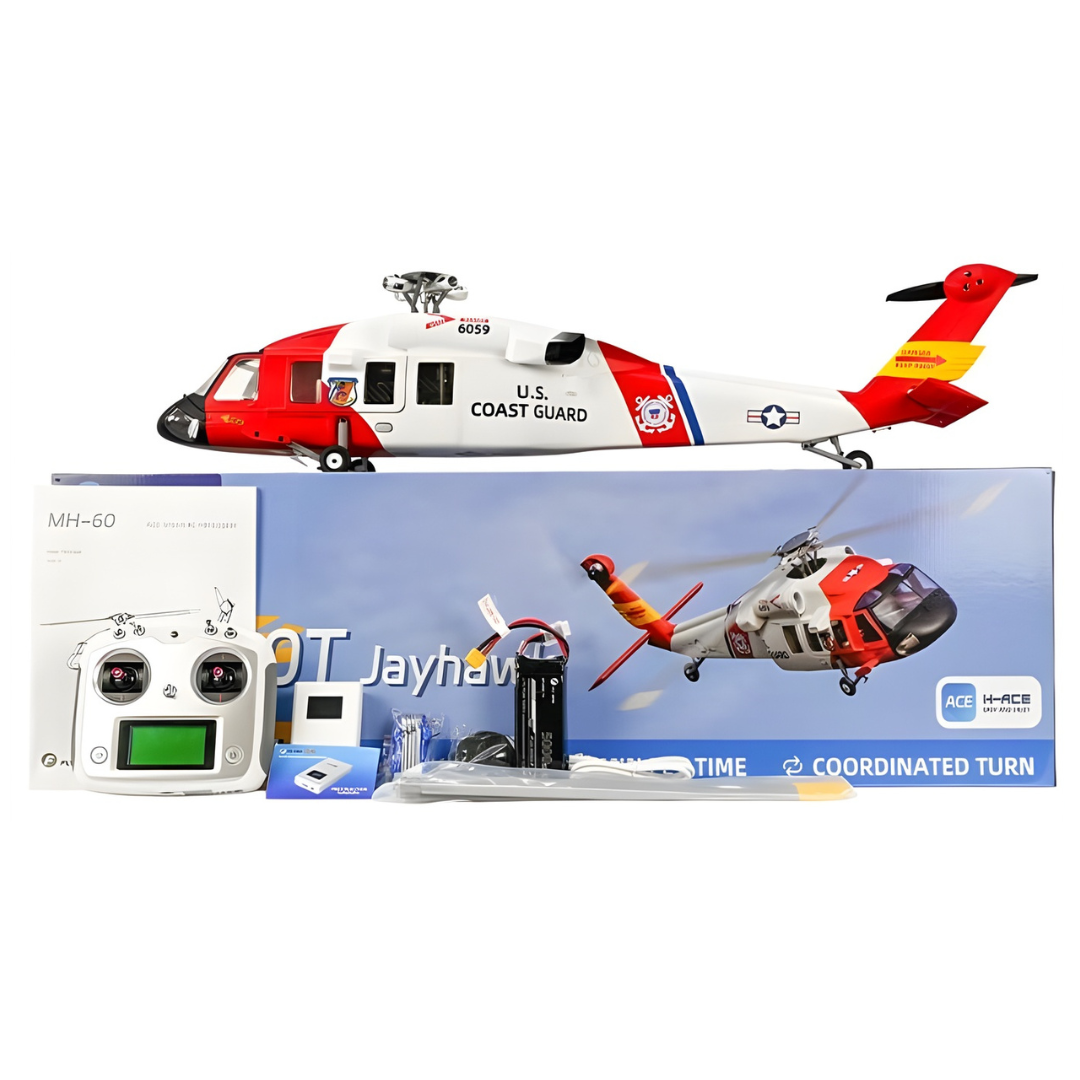

Includes

• 1 x Flywing MH-60T Jayhawk 470-Class RC Helicopter
• 1 x Flywing 10-Channel 2.4GHz Transmitter
• 1 x ACE Flight Controller with M10 Positioning System Installed
• 1 x 4S 5000mAh LiPo Flight Battery
• 1 x Compatible 4S Battery Charger
• 1 x Screwdriver
• 1 x Data Cable
• 1 x User Manual

FAQ

Is the Flywing MH-60T FW-MH-60T ready to fly? Yes. The RTF package includes the assembled helicopter, 10-channel transmitter, 4S 5000mAh LiPo battery and compatible charger. The transmitter requires four AA batteries, and normal charging, pre-flight inspection and positioning checks are required before flight.

Why is the Flywing MH-60T described as both 6-channel and 10-channel? Flywing describes the helicopter and ACE flight system as a 6-channel control platform, while the Australian FW-MH-60T RTF package includes a 10-channel transmitter. The additional transmitter channels provide access to flight-controller and auxiliary functions.

How long does the Flywing MH-60T fly on one battery? Australian retailer specifications quote approximately 18–20 minutes with the included 4S 5000mAh LiPo. Flywing's MH-60 ACE operating guidance gives approximately 18 minutes as a maximum windless-hover reference, so actual flight time will vary with flying style, weather, battery condition and manoeuvres.

What does the GPS system do on the Flywing MH-60T? The ACE flight controller uses multi-constellation satellite positioning to support outdoor position hold, stable hovering, one-key return and automatic return functions. Adequate satellite reception is required for these features.

What happens if the transmitter signal is lost? Flywing's MH-60 ACE system supports automatic return following loss of transmitter signal. The pilot can take back control by cancelling the return function once a reliable control link is available.

Does return-to-home avoid trees, buildings or other obstacles? No. Return-to-home is not an obstacle-avoidance system. The helicopter should be flown in a clear open area with an unobstructed route between the aircraft and its recorded home position.

Important Notes

• This is a large and powerful hobby-grade RC helicopter and should be operated in a suitable open flying area away from people, animals, vehicles and property
• Four AA batteries are required separately for the supplied transmitter
• Perform a complete pre-flight inspection of rotor blades, rotor hardware, linkages and fasteners before every flight
• GPS-assisted functions require suitable satellite reception and should not replace normal pilot awareness and control
• Return-to-home does not provide obstacle avoidance
• The quoted 1km radio range represents favourable unobstructed, low-interference conditions and should not be treated as a guaranteed operating distance
• Published flight time varies between approximately 18 and 20 minutes depending on test conditions and flying style
• Always balance-charge the supplied LiPo battery with a compatible charger and follow appropriate LiPo charging, storage and handling procedures
• Operate the helicopter in accordance with applicable local RC aircraft regulations and flying-area requirements
