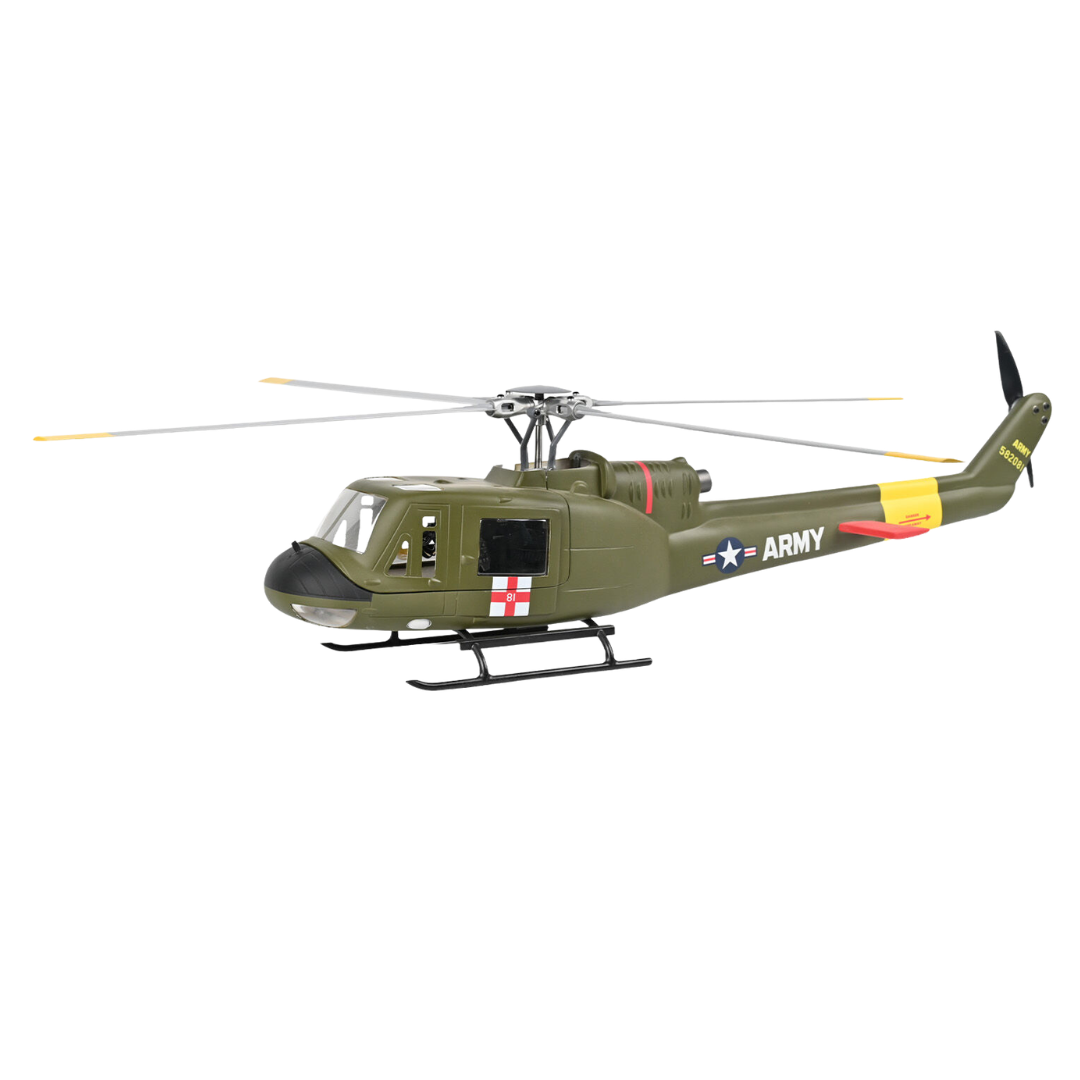

Flywing UH-1 V4 4-Blade GPS RTF Helicopter Green FW-UH1-GREEN-4BLADES

The Flywing UH-1 V4 is a green 4-blade ready-to-fly GPS RC scale helicopter for outdoor pilots wanting a Huey-style helicopter with assisted hovering, 10-channel control and return protection features.

This Flywing UH-1 V4 combines a detailed military-style scale fuselage with M10 GPS positioning, a 16V brushless power system and multiple flight modes. GPS mode, 3D manual mode, semi-auto flight, one-key return and low-power return make the model more manageable than a fully manual helicopter, while still requiring safe setup, open flying space and responsible pilot input.

Features

• Ready-To-Fly Package: Supplied as an RTF helicopter package with transmitter and core flight equipment
• UH-1 Huey Scale Styling: Military-style UH-1 body with engraved panel lines, transparent cockpit cover and scale detailing
• 4-Blade Rotor System: Green four-blade version for a more scale-inspired rotor appearance
• M10 GPS Positioning: GPS-assisted flight control supports fixed-position hovering and more accurate return functions
• 10-Channel Transmitter: Supplied transmitter is listed with approximately 1 km control range in suitable conditions
• 16V Brushless Power System: High-power brushless main motor system supports efficient flight performance
• Brushless Tail Motor: High-speed brushless tail motor provides responsive tail control
• Multiple Flight Modes: Supports GPS mode, 3D manual mode and semi-auto flight patterns
• One-Key Return: Return-to-home function can bring the helicopter back to the take-off point when set up correctly
• Low-Power Return: Low-voltage return function helps protect the model when battery voltage reaches the set level
• Sensor Damping Design: EPDM damping and IMU filtering help reduce vibration reaching the flight controller
• Easy Battery Access: Plug-in cabin door design improves access for battery changes and maintenance

Specifications

• Brand: Flywing
• Model: UH-1 V4
• SKU: FW-UH1-GREEN-4BLADES
• Product Type: GPS-assisted RC scale helicopter
• Completion Level: RTF
• Colour: Green
• Rotor Configuration: 4-blade main rotor
• Control System: 10-channel transmitter, supplier listed
• Flight Controller: M10 GPS positioning flight system
• Flight Modes: GPS mode, 3D manual mode, one-key return, low-power return and semi-auto flight
• Semi-Auto Flight Patterns: O figure and 8 figure, supplier listed
• Listed Control Range: Approximately 1 km in suitable conditions
• Main Motor: 3508 brushless motor
• Tail Motor: Brushless motor
• ESC: 60A double brushless ESC
• Servo Torque: 4kg.cm, supplier listed
• Servo Response: 0.12 sec/60 degrees, supplier listed
• Length: 750 mm
• Height: 220 mm
• Width: 170 mm
• Weight Without Battery: 869 g, supplier listed
• Main Rotor Diameter: 810 mm
• Main Rotor Blade Length: 370 mm
• Tail Rotor Diameter: 125 mm
• Pinion Gear: 13T
• Main Gear: 81T
• Recommended Flight Battery: 14.8V 3000mAh LiPo with XT60 connector, supplier listed

Includes

• 1 x Flywing UH-1 V4 green 4-blade GPS RC helicopter
• 1 x 10-channel transmitter
• 1 x Receiver, installed
• 1 x Balance charger
• 1 x Quick start guide
• 1 x Screwdriver
• 1 x Type-C USB cable

FAQ

Is the Flywing UH-1 V4 Green 4-Blade ready to fly? Yes. The Flywing FW-UH1-GREEN-4BLADES is listed as an RTF package, but OZRC recommends checking the supplied battery, charger and transmitter battery requirements before first use.

Does the Flywing UH-1 V4 have GPS? Yes. The Flywing UH-1 V4 uses M10 GPS positioning assistance for hovering, return-to-home and assisted flight functions.

What flight modes does it have? The Flywing UH-1 V4 is listed with GPS mode, 3D manual mode, one-key return, low-power return and semi-auto O figure or 8 figure flight modes.

Is this helicopter suitable for beginners? The GPS assistance makes the model easier to manage than a fully manual helicopter, but OZRC recommends it for careful outdoor pilots who can follow setup, calibration and RC aircraft safety procedures.

Important Notes

• The supplied distributor data lists the brand as Futaba, but the helicopter is a Flywing UH-1 product.
• Fly only in a large open outdoor area away from people, animals, roads, vehicles, buildings, trees and power lines.
• GPS-assisted flight depends on satellite lock, compass calibration, environment and correct setup.
• Do not take off until calibration, control checks and pre-flight inspections are complete.
• Avoid flying in strong wind, rain, poor visibility or areas with magnetic interference.
• Check rotor blades, tail rotor, linkages, screws, skids, battery mounting and flight control response before every flight.
• LiPo batteries must be charged, stored and handled using correct LiPo safety procedures.
• GPS return and low-power return are assistance features and do not replace safe piloting.
