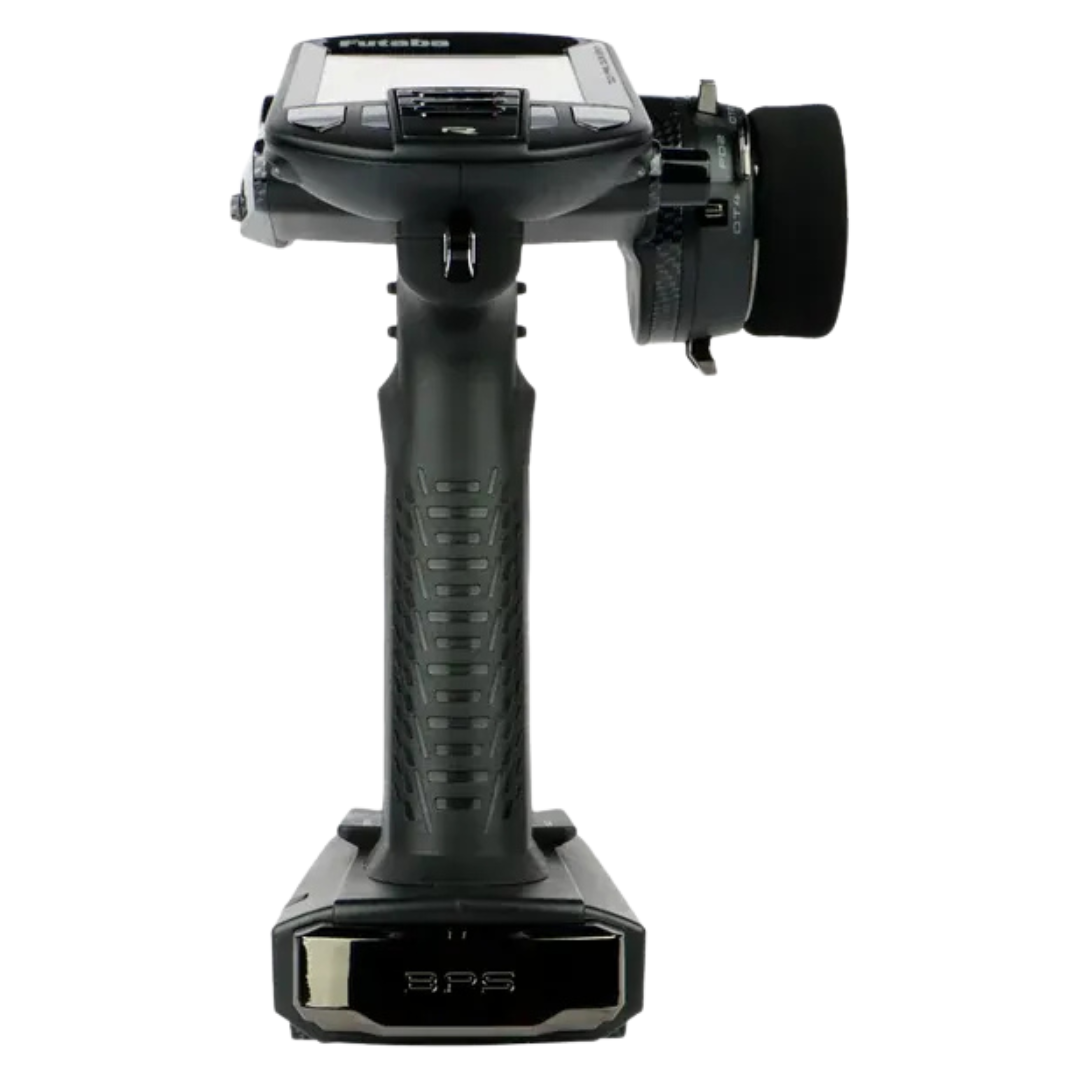

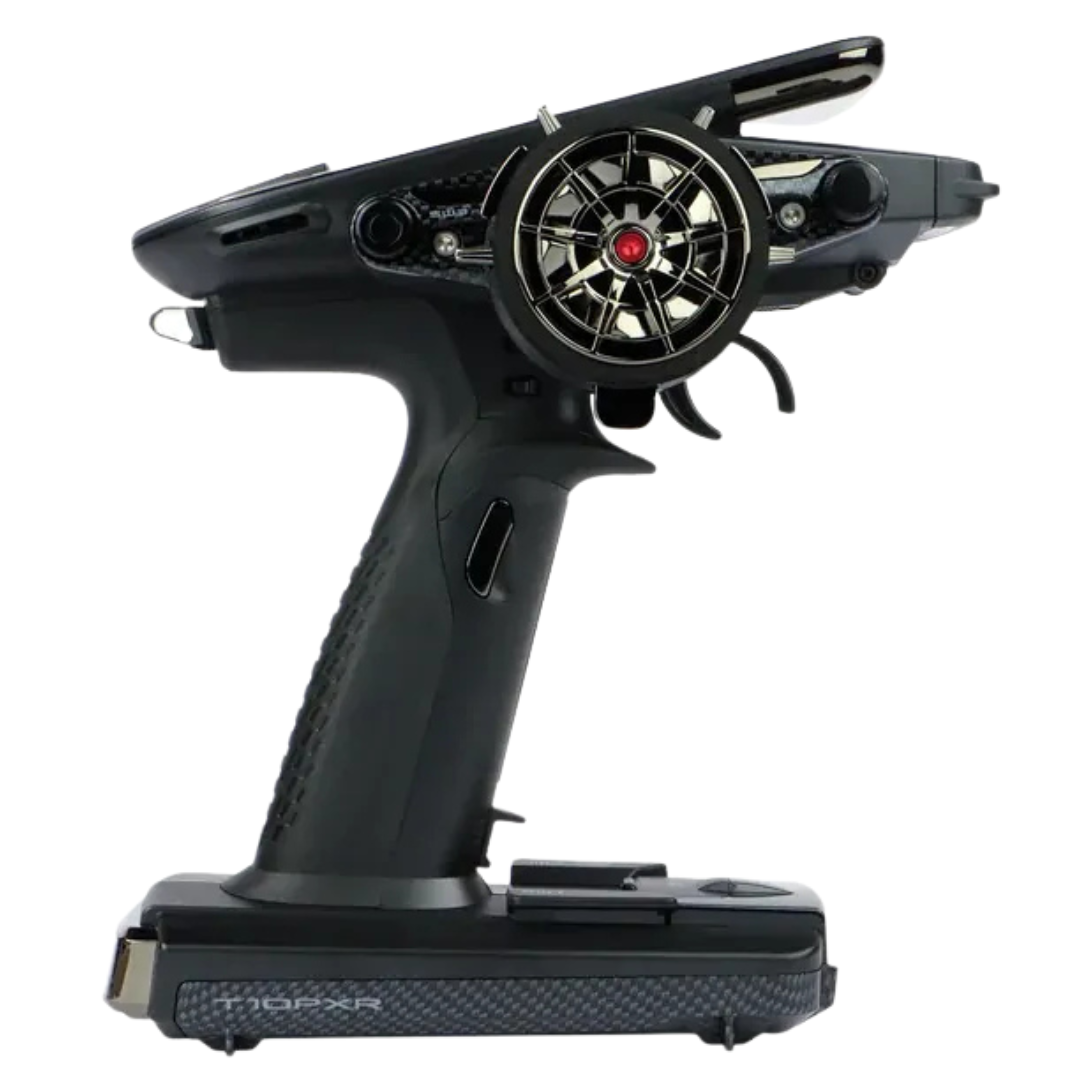

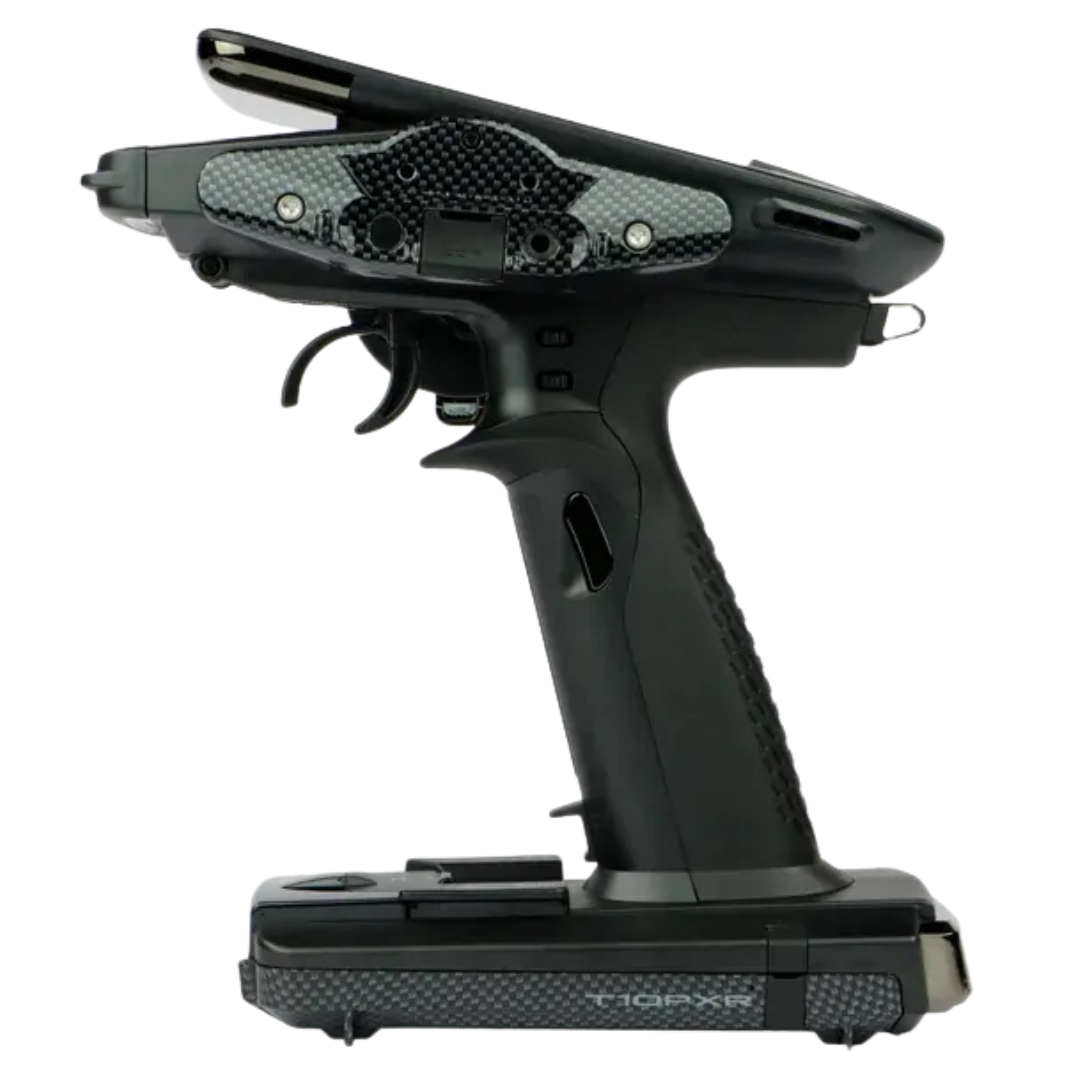

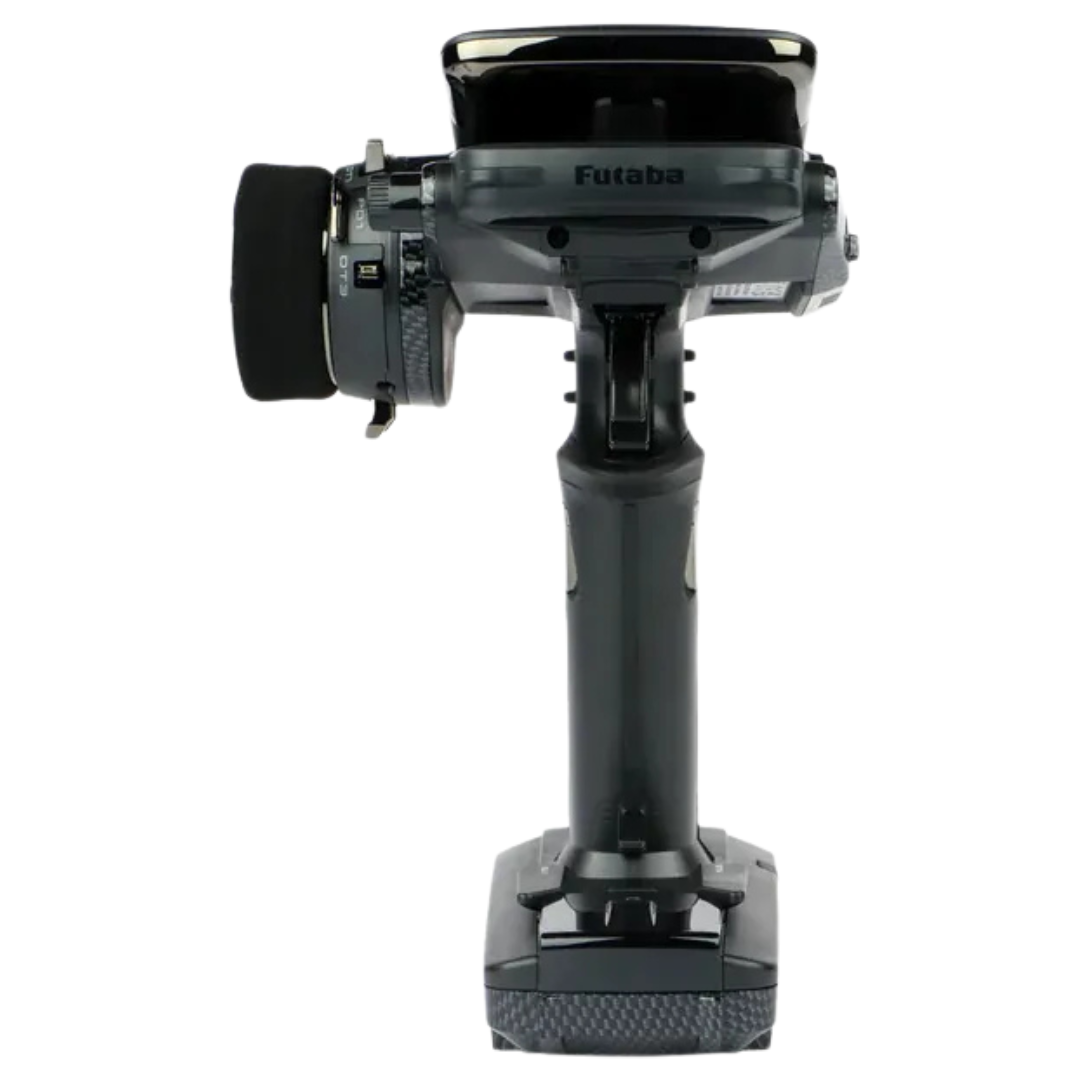

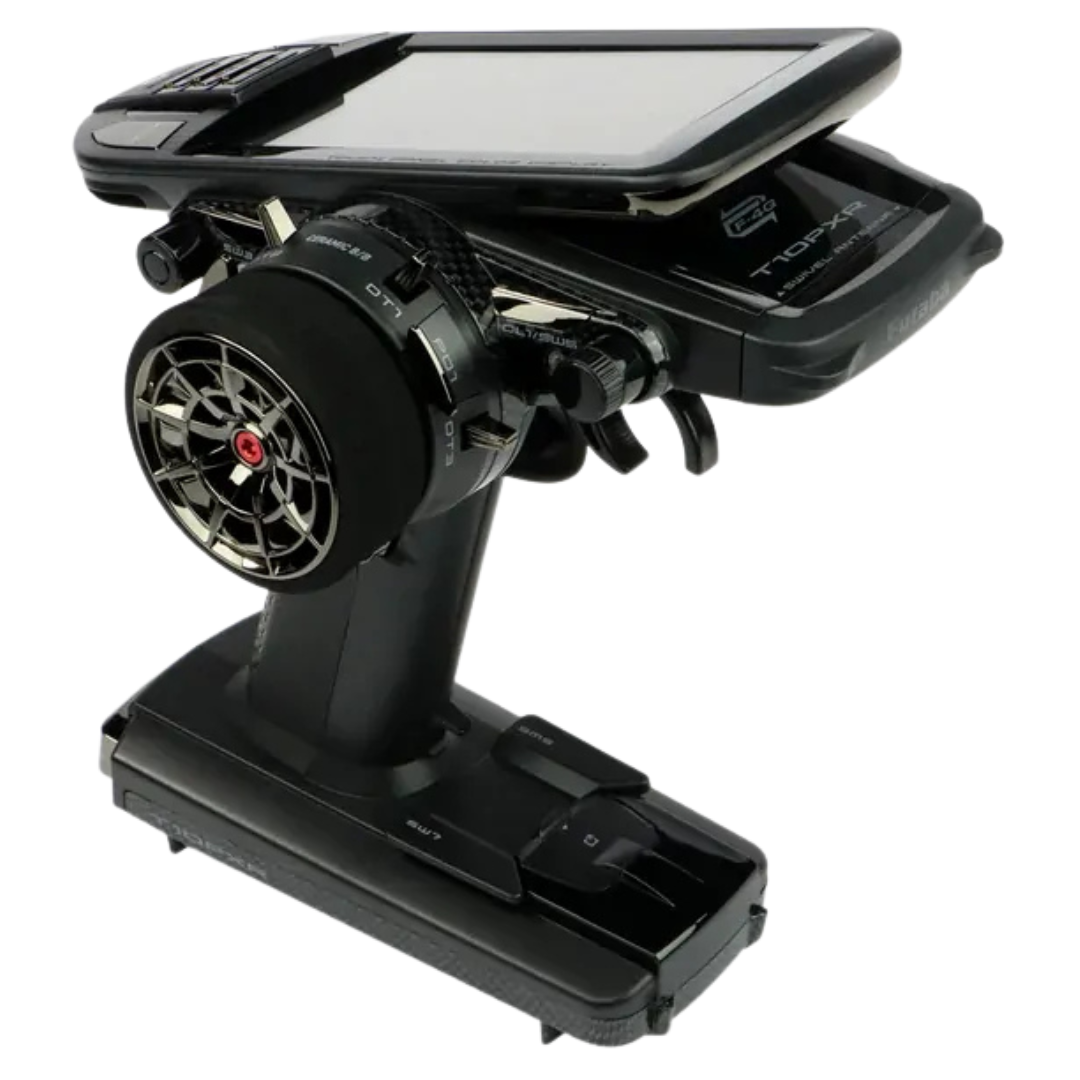

Futaba 10PXR 10-Channel Surface Radio R404SBSE Receiver FUT07007234-3

The Futaba 10PXR is a 10-channel 2.4GHz surface radio system with R404SBSE receiver for serious RC car racers and advanced surface users needing fast response, telemetry support and extensive model setup control.

This premium Futaba wheel radio is designed for racing, drifting, crawling, large-scale surface models and advanced multi-function RC builds. The 10PXR combines F-4G telemetry, multiple radio protocols, a 4.3 inch colour touch screen, 40-model memory, programmable mixing and adjustable ergonomics for precise control across a wide range of surface applications.

Features

• 10-Channel Surface Radio: Supports up to 10 channels when using the F-4G system with S.BUS2
• F-4G Telemetry System: Provides high-speed telemetry communication with compatible Futaba equipment
• Multiple Protocol Support: Supports F-4G, T-FHSS SR, T-FHSS and S-FHSS protocols
• R404SBSE Receiver Included: Supplied with the compact R404SBS-E F-4G telemetry receiver for EP surface models

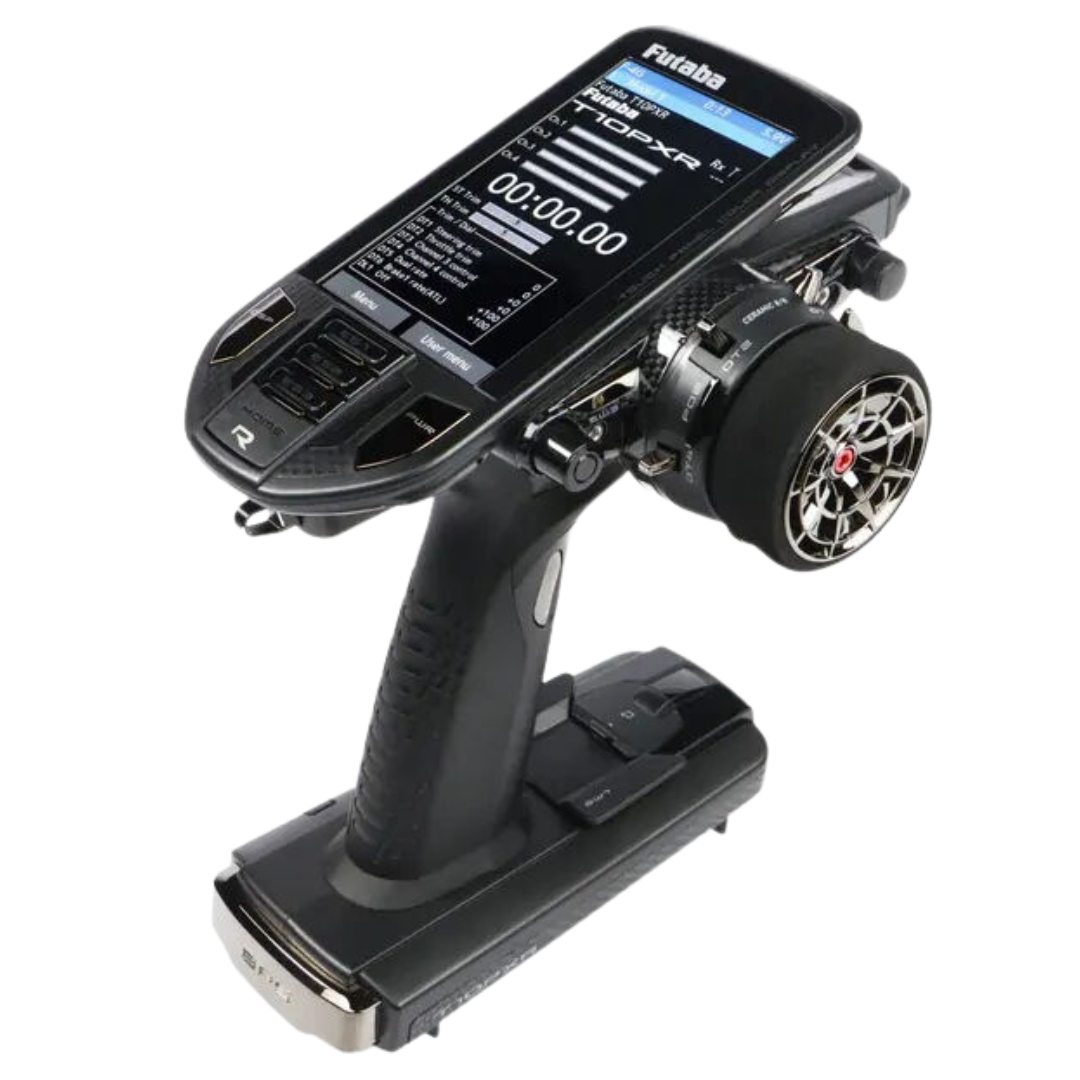

• 4.3 Inch Colour Touch Screen: HVGA backlit colour TFT touch panel provides clear indoor and outdoor visibility
• 40-Model Memory: Stores multiple vehicle setups for racers and hobbyists running several models
• MicroSD Update Support: Software, model data and telemetry log data can be managed using a microSD card
• Advanced Mixing Functions: Includes brake mixing, steering mixing, 4WS crawler mixing, dual ESC mixing, gyro mixing, tank mixing and CPS mixing
• Programmable Switches And Dials: Assign functions to trims, dials, paddle switch, bottom switch and 3-position grip switch
• Adjustable Ergonomics: Wheel offset, wheel angle, throttle trigger position and grip configuration can be adjusted
• Left-Handed Support: Wheel section can be reversed for left-hand operation
• Vibration Alerts: Grip vibration can be linked to timer, low battery and telemetry alarms
• USB Connectivity: Transmitter can be connected to a computer by USB for supported use cases
• Mini-Z Function Support: Compatible Kyosho Mini-Z Evo use is supported when using the required RA-42 receiver, sold separately

Specifications

• Brand: Futaba
• Model: 10PXR
• SKU: FUT07007234-3
• Product Type: RC surface transmitter and receiver system
• Transmitter Type: Wheel radio transmitter
• Channels: 10 channels with F-4G system
• Radio Frequency: 2.4GHz band
• Protocols: F-4G, T-FHSS SR, T-FHSS and S-FHSS
• Display: 4.3 inch HVGA backlit colour TFT touch panel
• Model Memory: 40 models
• Telemetry: Supported with compatible Futaba telemetry equipment
• Transmitter Antenna: 1/2 lambda dipole, manufacturer listed
• Transmitter Current Drain: 350mA or less, manufacturer listed
• Transmitter Battery Compatibility: Futaba LiPo or LiFe transmitter battery options, sold separately where required

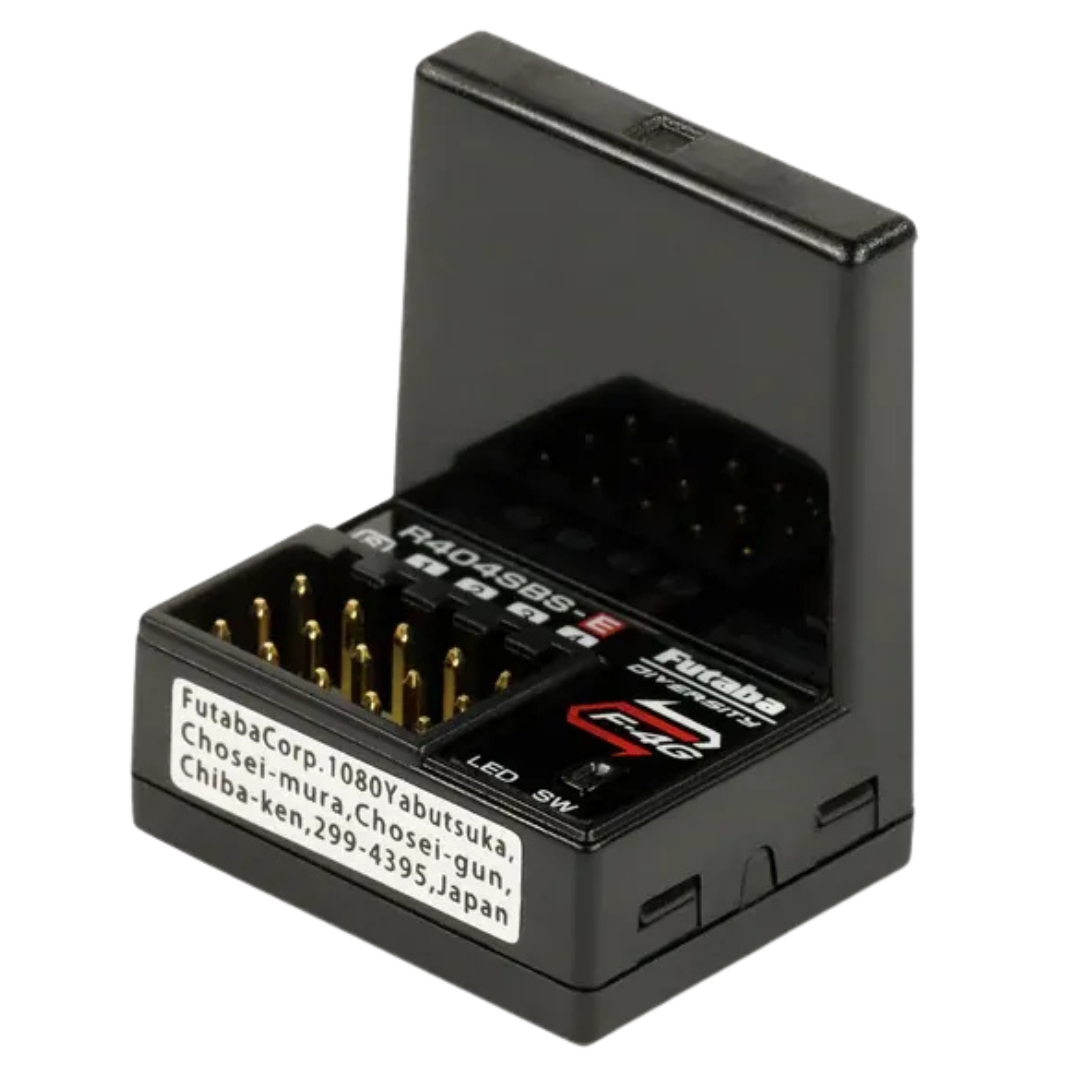

• Included Receiver: Futaba R404SBS-E
• Receiver Type: F-4G telemetry receiver for EP car models
• Receiver Channels: 4 channels
• Receiver Size: 25.5 x 20.7 x 10.6 mm
• Receiver Weight: 5.7 g
• Receiver Operating Voltage: DC 3.7V to 7.4V
• Receiver Features: S.Bus2, SR Mode and T-FHSS support, manufacturer listed
• Application: RC surface vehicles including racing cars, drift cars, crawlers, trucks and other compatible surface models

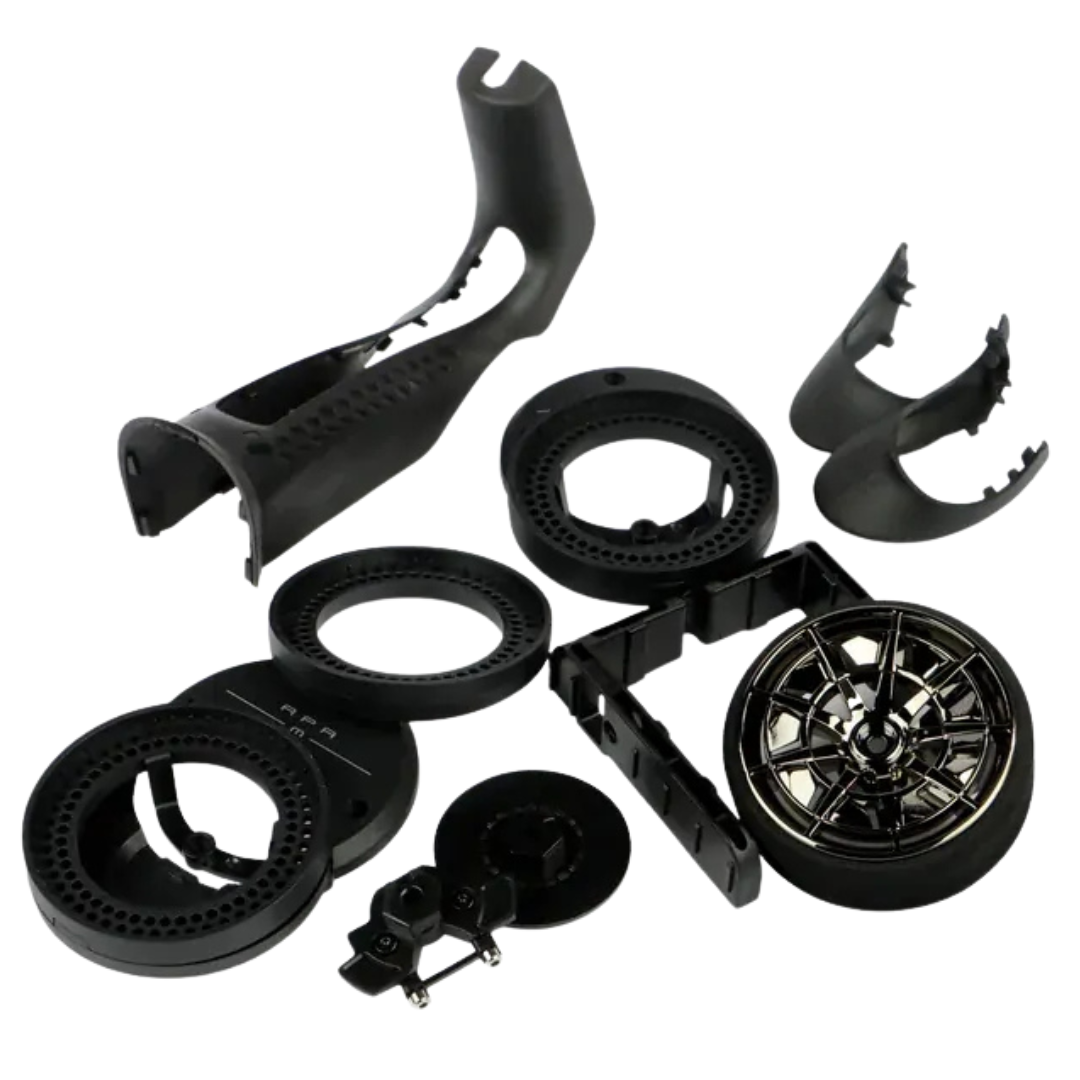

Includes

• 1 x Futaba T10PXR transmitter
• 1 x Futaba R404SBS-E receiver
• 1 x Dry battery holder
• 1 x Wheel offset adapter set with APA mounting screws
• 1 x 32 degree wheel adapter
• 1 x 5 degree wheel angle spacer
• 1 x Large diameter steering wheel
• 1 x Left trigger guard
• 1 x Right trigger guard
• 1 x Grip rubber
• 2 x Blind paddles
• 1 x Hex wrench
• 1 x Short manual

FAQ

Is the Futaba 10PXR for cars or aircraft? The Futaba 10PXR is a surface radio system designed for RC cars, trucks, crawlers and other compatible surface models.

What receiver is included with FUT07007234-3? The Futaba FUT07007234-3 package is listed with the R404SBS-E receiver.

Can the 10PXR be used for crawlers? Yes. The Futaba 10PXR includes crawler-use functions such as 4WS mixing and dual ESC mixing, making it suitable for advanced crawler setups when matched with compatible electronics.

Can normal servos be used in SR Mode? No. Futaba states that SR Mode requires SR Mode compatible servos, as using normal servos in SR Mode may cause servo trouble.

Can the R404SBS-E receiver be used in petrol or nitro cars? No. Futaba states that the R404SBS-E receiver must not be used in GP cars.

Important Notes

• Designed for surface RC models only.
• R404SBS-E is listed for EP car models and must not be used in GP cars.
• Use SR Mode only with compatible SR Mode servos.
• Telemetry and advanced functions require compatible Futaba receivers, servos, sensors, ESCs or accessories.
• Some functions require additional channels, receivers or accessories to operate.
• Kyosho Mini-Z Evo use requires the dedicated RA-42 receiver, sold separately.
• MicroSD card, transmitter battery upgrades, charger, servos, sensors, ESC, vehicle and other accessories are not included unless shown separately.
• Always perform range check, failsafe setup and control direction checks before operating any RC vehicle.
