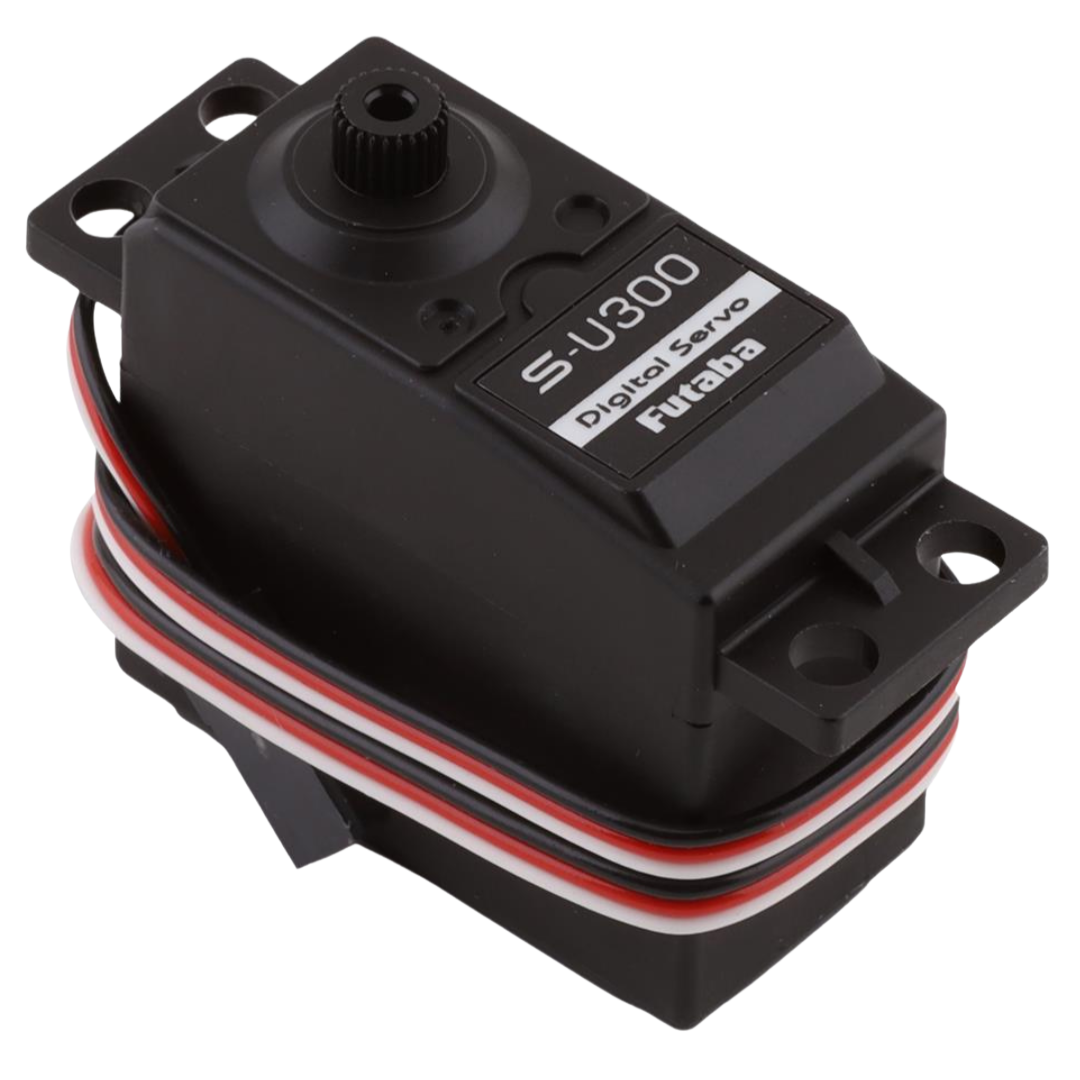

FUTABA S-U300 S.Bus Digital Standard Airplane Servo FUTSU300

The Futaba S-U300 is a standard-size digital servo for compatible RC aircraft and surface applications, offering conventional PWM plus S.BUS and S.BUS2 control with plastic gearing a 25T output spline and a 3-pole cored motor

Features

• Standard-size digital servo
• Supports PWM S.BUS and S.BUS2 control
• Suitable for compatible aircraft and surface RC applications
• Plastic gear train for lightweight general-purpose use
• 6mm 25T output spline
• 3-pole cored motor
• Operates from 4.8V to 6.0V
• Supplied with servo horns and mounting hardware

Specifications

• Brand: Futaba
• Model: S-U300
• Product Type: Digital Standard Servo
• Control Protocol: PWM S.BUS S.BUS2
• Operating Voltage: 4.8V to 6.0V
• Speed at 4.8V: 0.23 sec/60°
• Speed at 6.0V: 0.19 sec/60°
• Torque at 4.8V: 44.4oz-in / 3.2kg-cm
• Torque at 6.0V: 56.9oz-in / 4.1kg-cm
• Gear Type: Plastic
• Spline: 6mm 25T
• Motor Type: 3-Pole Cored
• Dimensions: Approximately 40.4 x 20 x 36mm
• Weight: Approximately 36g
• Barcode: 4513886032059
• SKU: FUT05102671-1
• Manufacturer Part Number: FUT05102671-1

Includes

• 1 x Futaba S-U300 Digital Servo
• Servo Horns
• Mounting Hardware

FAQ

Does the Futaba S-U300 support S.BUS2? Yes, Futaba officially specifies the S-U300 as an S.BUS2-capable digital servo and it also supports conventional PWM and S.BUS operation

What torque does the S-U300 produce? Futaba specifies 3.2kg-cm at 4.8V and 4.1kg-cm at 6.0V

What servo horn spline does the S-U300 use? The output spline is 6mm diameter with 25 teeth

Can the Futaba S-U300 run directly on 7.4V? No, Futaba specifies an operating voltage range of 4.8V to 6.0V for the S-U300

Important Notes

• Do not exceed the specified 6.0V maximum operating voltage
• Confirm servo dimensions spline type voltage and torque requirements before installation
• Use only S.BUS2-compatible equipment on an S.BUS2 connection where required by the radio system
