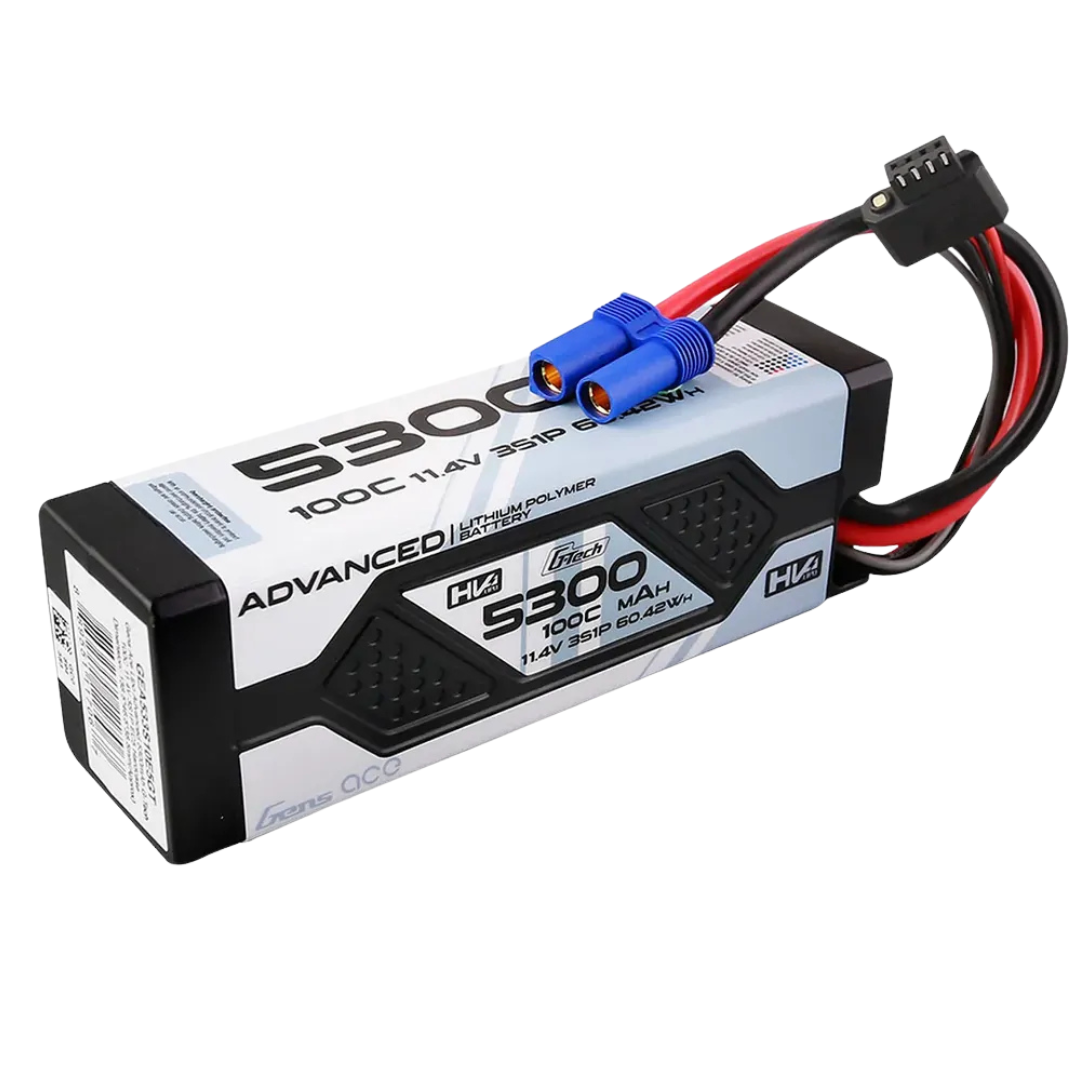

Gens ace G-Tech Advanced 5300mAh 3S 100C LiHV Battery EC5 GEA533S10E5GT

The Gens ace G-Tech Advanced 5300mAh 3S 100C LiHV Battery is an 11.4V hard-case RC battery with an EC5 connector, designed for compatible high-performance ARRMA and other RC vehicles requiring a high-voltage 3S pack with strong current delivery and G-Tech smart charging support.

Features

• 5300mAh Capacity: Provides substantial runtime for compatible 1/10, 1/8 and 1/7 scale RC vehicles
• 3S LiHV Power: Three-cell high-voltage configuration provides an 11.4V nominal voltage
• 100C Discharge Rating: Designed for high-current RC power systems requiring strong acceleration and sustained power delivery
• G-Tech Smart Technology: G-Tech functionality allows compatible G-Tech chargers to automatically recognise battery information and simplify charging setup
• Hard Case Construction: Protective outer case helps shield the battery cells during demanding RC use
• EC5 Power Connector: Factory-fitted EC5 discharge plug suits compatible high-current RC electronics
• G-Tech 4P Balance Connector: Provides cell balancing and smart communication with compatible G-Tech charging equipment
• 12AWG Power Leads: Heavy-gauge discharge wiring supports the battery's high-current application
• Compact Stick-Style Format: Approximately 138mm long pack suits compatible battery trays designed around this battery size

Specifications

• Brand: Gens ace
• Range: G-Tech Advanced
• Product Type: RC LiHV Battery
• Battery Chemistry: Lithium Polymer High Voltage / LiHV
• Capacity: 5300mAh
• Nominal Voltage: 11.4V
• Cell Count: 3S / 3 Cell
• Cell Configuration: 3S1P
• Nominal Cell Voltage: 3.8V
• Discharge Rating: 100C
• Energy: 60.42Wh
• Case Type: Hard Case
• Discharge Connector: EC5
• Balance Connector: G-Tech 4P
• Main Wire Gauge: 12AWG
• Dimensions: Approximately 137.95 x 46 x 37.72mm
• Weight: Approximately 374g
• ROAR Approved: No
• Suitable Scale Range: Selected 1/10, 1/8 and 1/7 RC vehicles
• Manufacturer Part Number: GA-B-100C-5300-3S1P-EC5-HC-HV-GT
• SKU: GEA533S10E5GT
• Barcode / UPC: 889551117067

Includes

• 1 x Gens ace G-Tech Advanced 5300mAh 11.4V 3S 100C LiHV Hard Case Battery with EC5 Connector

FAQ

What is the difference between this 11.4V LiHV battery and a standard 11.1V 3S LiPo? This Gens ace pack uses a high-voltage 3S configuration with a nominal voltage of 11.4V, or 3.8V per cell, rather than the 11.1V nominal voltage of a conventional 3S LiPo. A charger with the correct LiHV charging mode is required to charge the pack to its full high-voltage specification.

What connector does GEA533S10E5GT use? GEA533S10E5GT uses an EC5 main discharge connector and a separate G-Tech 4P balance and communication connector.

Will this battery fit an ARRMA RC vehicle? The pack is marketed for selected 1/10, 1/8 and 1/7 scale ARRMA applications, but fitment depends on the vehicle's supported cell count, battery tray dimensions and connector. OZRC recommends checking the 137.95 x 46 x 37.72mm pack size and EC5 connection against the exact vehicle before ordering.

Does this battery require a G-Tech charger? A compatible G-Tech charger provides automatic recognition and simplified charging setup, while the broader G-Tech system is designed around smart battery identification and charging. A charger used with this pack must support the correct 3S LiHV chemistry and balance charging requirements.

Important Notes

• This is an 11.4V nominal LiHV battery; confirm that the RC vehicle and electronics support the battery before use
• Use a charger with the correct LiHV and balance-charging capability when charging to the battery's full high-voltage specification
• Check the approximately 137.95 x 46 x 37.72mm dimensions and EC5 connector against the vehicle before ordering
• Charger is not included
• Do not charge or use a battery that is swollen, punctured or otherwise damaged
• Always follow the battery and charger manufacturer's charging, storage and handling instructions
