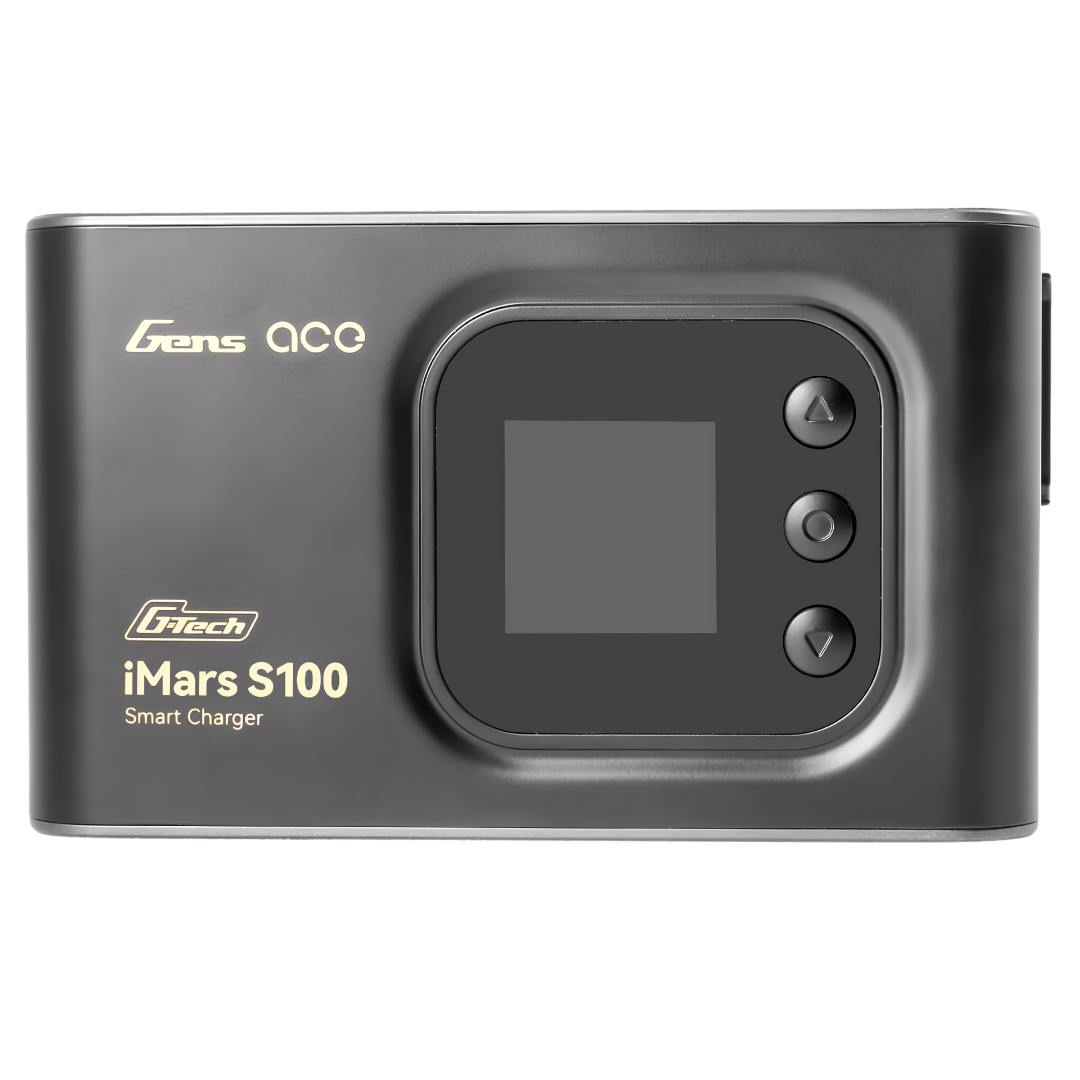

Gens ace iMars S100 G-Tech Smart AC Balance Charger 100W 10A GEAS100-UB
Couldn't load pickup availability
The Gens ace iMars S100 is a compact single-channel AC smart balance charger with up to 100W charging power and 10A charge current, supporting G-Tech smart batteries as well as compatible conventional RC battery packs
Features
- Up to 100W charging power
- Maximum 10A charge current

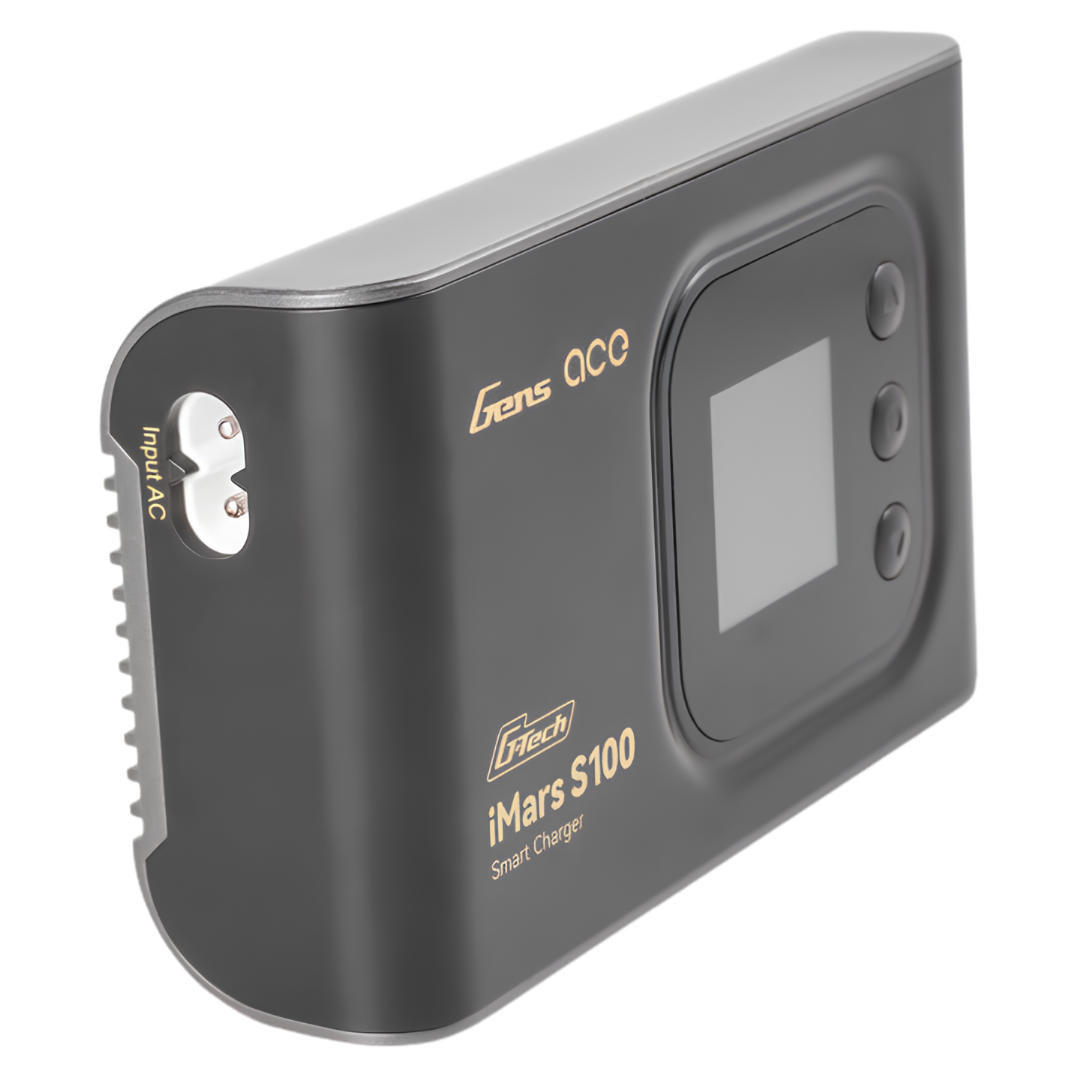

- Single-channel AC charger with worldwide 100 to 240V input
- Supports G-Tech smart batteries and compatible non-smart batteries
- Physical control buttons for tactile menu navigation
- Colour display with unified G-Tech user interface
- Charge discharge storage and balance functions
- Supports 2S to 6S LiPo Li-ion LiHV and LiFe batteries
- Supports 4S to 18S NiMH batteries

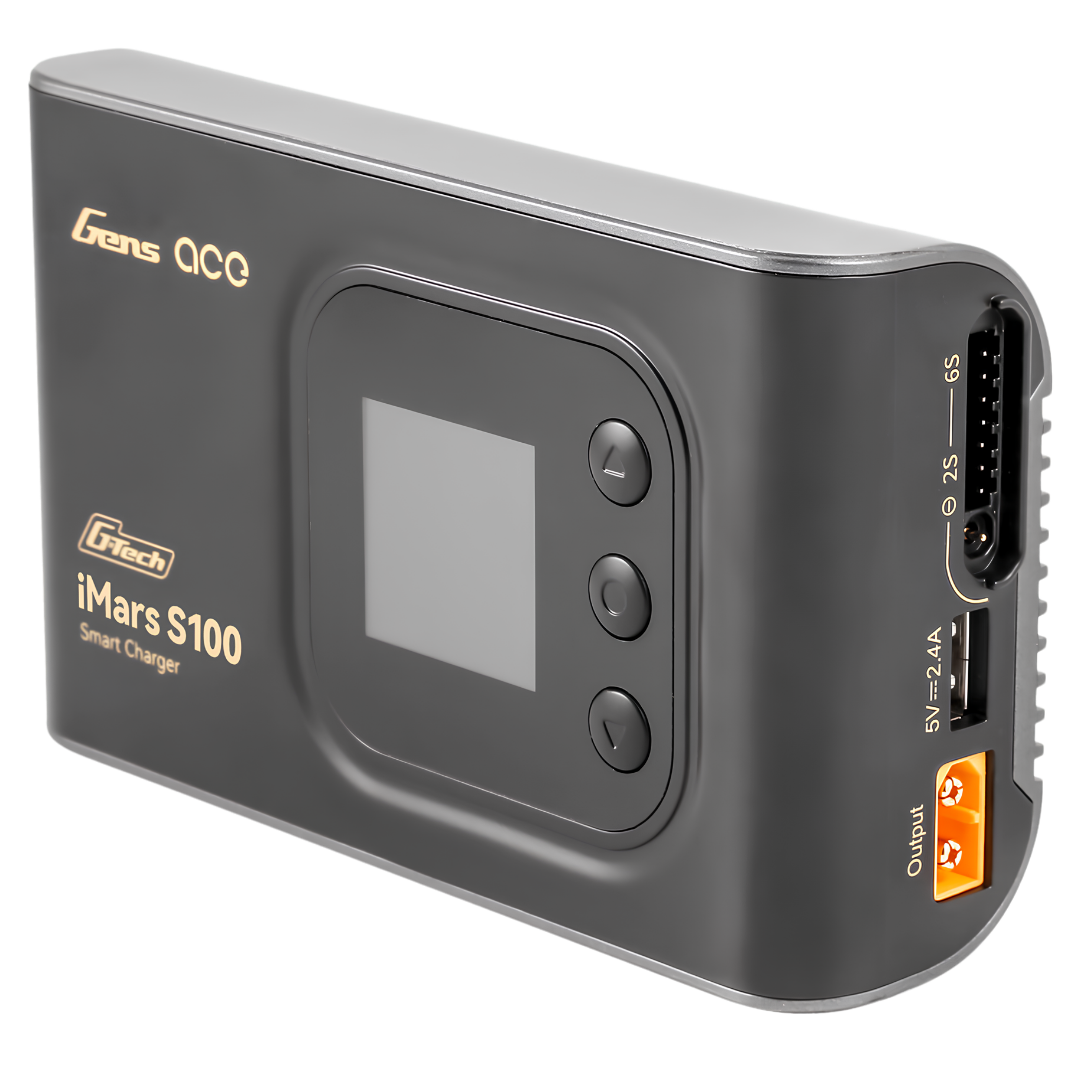

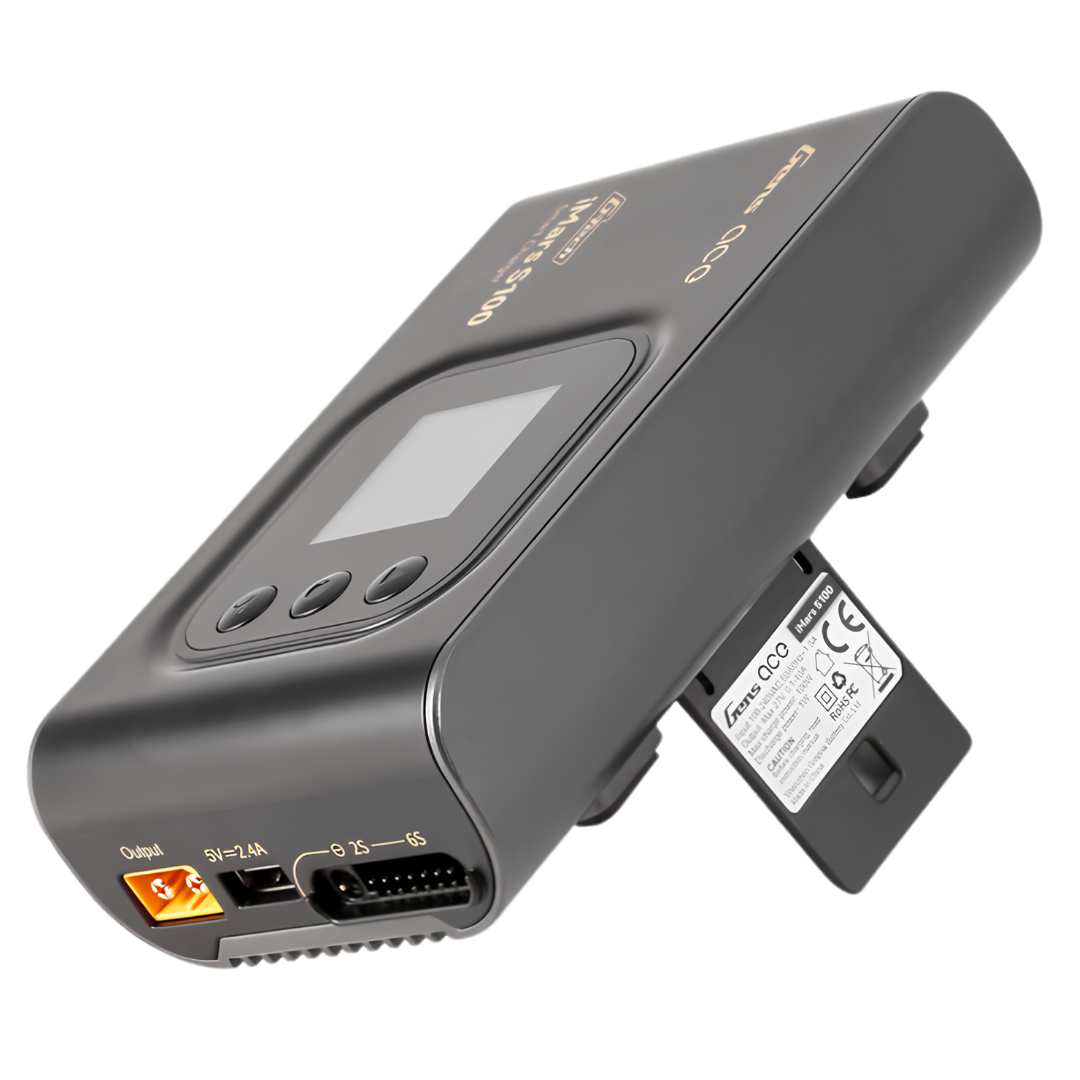

- XT60 main output connector
- Compact portable design for pit bench workshop and field use
- Integrated cooling system helps manage operating temperature
Specifications
- Brand: Gens ace
- Series: iMars
- Model: S100
- Product Type: AC Balance Battery Charger
- Channels: 1
- AC Input Voltage: 100 to 240V
- Input Frequency: 50 to 60Hz
- Maximum Input Current: 1.5A
- Maximum Output Voltage: 27V
- Maximum Charging Power: 100W
- Maximum Charge Current: 10A
- Maximum Discharge Power: 5W
- Maximum Discharge Current: 0.4A
- Lithium Battery Support: 2S to 6S LiPo Li-ion LiHV and LiFe
- NiMH Battery Support: 4S to 18S
- Functions: Charge Discharge Storage and Balance
- Main Output Connector: XT60
- Dimensions: 139.8 x 83 x 40mm
- Weight: Approximately 310g
- SKU: GEAS100-UB
- Barcode: 889551120043
- Manufacturer Part Number: GEAS100-UB
Includes
- 1 x Gens ace iMars S100 G-Tech Smart AC Balance Charger
- 1 x AC Input Cable
- 1 x XT60 to T-Plug Adapter
- 1 x XT60 to EC5 Adapter
- 1 x XT60 to EC3 Adapter
- 1 x USB Cable
FAQ
Can the Gens ace iMars S100 charge non-G-Tech batteries? Yes, the S100 supports compatible conventional batteries as well as G-Tech smart batteries although non-smart packs require the appropriate manual battery settings and connections
What is the maximum charging output of the iMars S100? The charger provides up to 100W charging power with a maximum charge current of 10A subject to battery voltage and charging conditions
What lithium battery types can the iMars S100 charge? It supports compatible 2S to 6S LiPo Li-ion LiHV and LiFe battery packs
What is the maximum discharge current? Gens ace currently specifies a maximum discharge current of 0.4A with up to 5W discharge power
Does the iMars S100 require an external power supply? No, it is an AC charger with a built-in power supply and accepts 100 to 240V AC input
Important Notes
- Always select the correct battery chemistry cell count capacity and charge current before starting a charge cycle
- Use balance charging for compatible lithium battery packs
- Never charge damaged swollen punctured or otherwise compromised batteries
- Confirm connector polarity before connecting a battery or adapter
- Maximum charge current may be limited by the charger's 100W output depending on battery voltage
