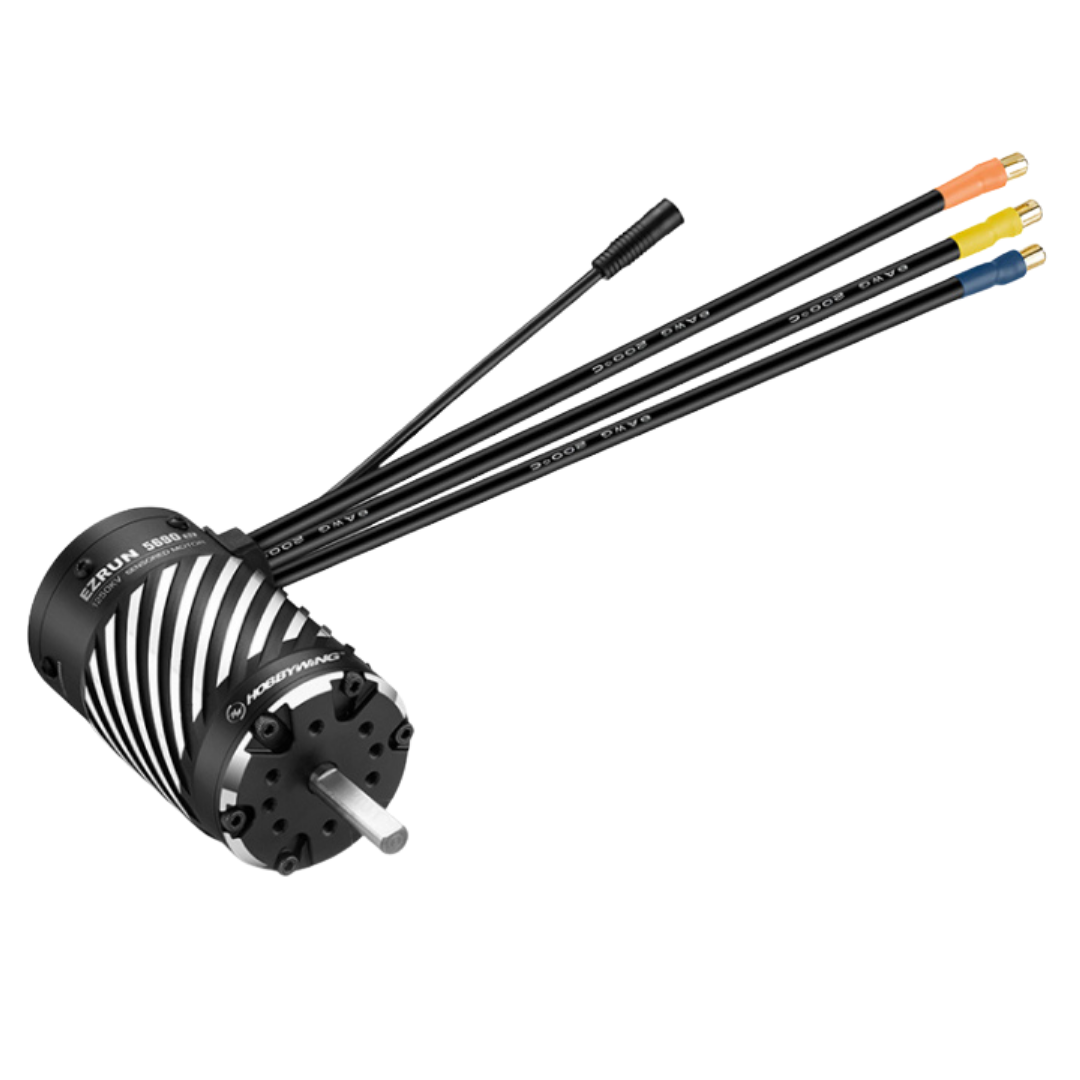

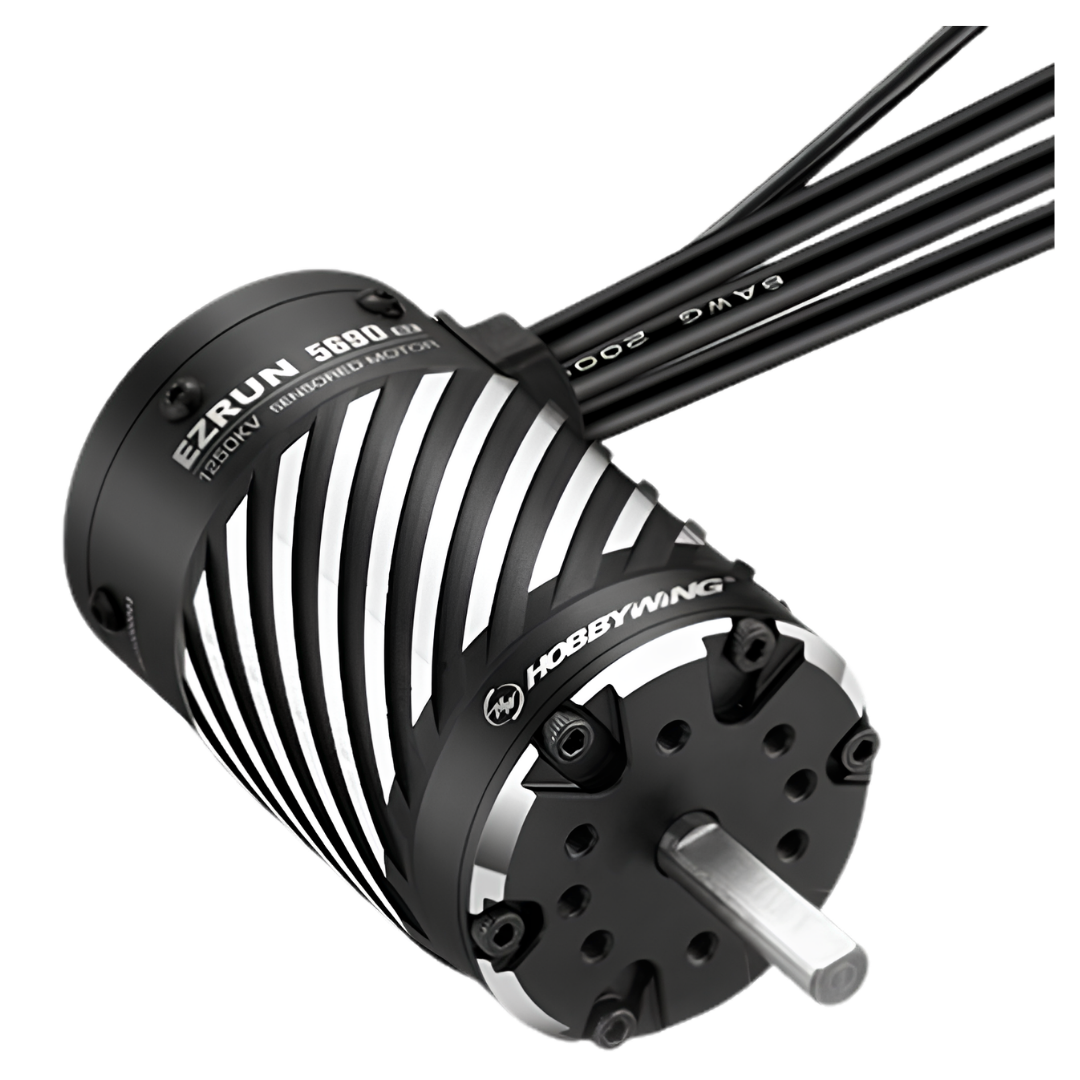

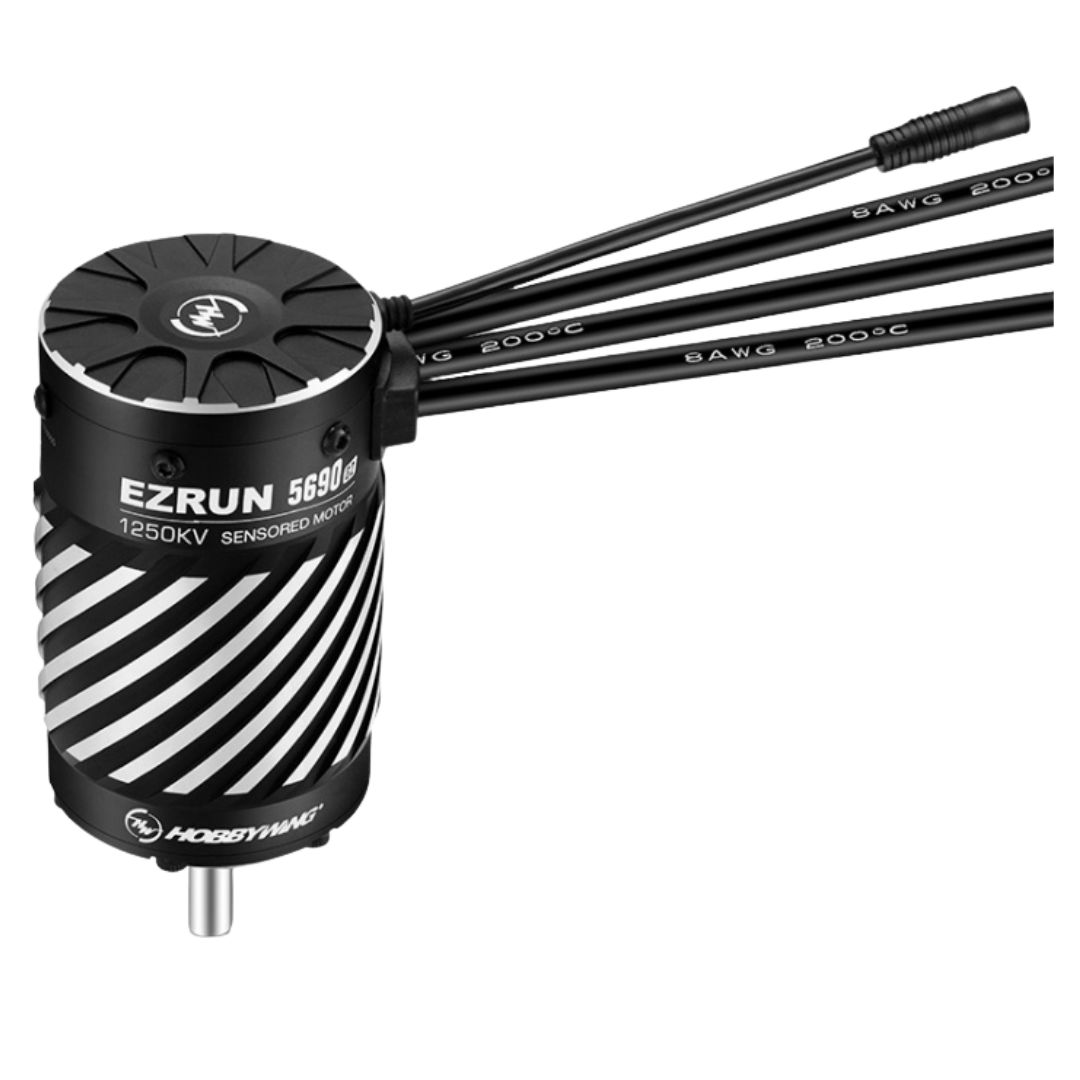

Hobbywing EzRun 5690SD G2 1250KV RC Brushless Motor 1/5 1/6 HW30402350

The Hobbywing EzRun 5690SD G2 is a 1250KV sensored brushless RC motor designed for high-power 1/5 and 1/6 scale electric trucks. Supporting 3S–8S LiPo power, it features a 56mm diameter aluminium housing, 8mm output shaft and waterproof sensor connection for responsive acceleration and smoother low-speed control when paired with a compatible ESC.

Features

• 1250KV Sensored Brushless Power: Four-pole motor delivers high torque and smooth throttle response for demanding large-scale RC applications.
• 3S–8S LiPo Compatibility: Supports a wide range of power configurations when connected to a suitable electronic speed controller.
• Hobbywing EzRun G2 Sensored Technology: Provides accurate rotor position information for smoother acceleration, improved low-speed control and responsive throttle delivery.
• Waterproof Sensor Connection: Sealed sensor interface is designed to resist water and dust intrusion during suitable off-road operation.
• MAX6 G2 and MAX5 HV G2 ESC Support: Compatible with the Hobbywing EzRun MAX6 G2 and MAX5 HV G2 electronic speed controllers, with appropriate motor connector arrangements.
• Factory-Fitted 6.5mm Connectors: Three 6.5mm male bullet connectors are pre-installed on the motor leads.
• 8mm Connectors Included: Additional 8mm bullet connectors are supplied for compatible higher-current ESC connections, including the MAX5 HV G2.
• 8AWG Silicone Motor Leads: Three flexible 250mm motor wires simplify installation in large-scale RC chassis.
• Efficient Cooling Design: CNC-machined aluminium motor housing features spiral cooling grooves to assist heat dissipation.
• Asymmetrical Ball Bearings: Larger front and smaller rear bearings are designed to balance load support with low rotational resistance.
• Precision-Balanced Rotor: Helps reduce vibration and energy loss while providing a smooth power delivery.
• Durable Internal Components: High-purity copper windings, thin silicon steel laminations and a reinforced rotor are engineered for sustained brushless performance.
• 8mm Output Shaft: Designed for compatible heavy-duty pinion gears with an 8mm bore.
• Serviceable Modular Construction: Motor assembly can be disassembled for inspection, cleaning and maintenance according to Hobbywing instructions.
• Large-Scale Vehicle Applications: Hobbywing lists the Losi Super Baja Rey, ARRMA Kraton 8S and ARRMA Outcast 8S as example vehicle platforms, subject to mounting and gearing compatibility.

Specifications

• Brand: Hobbywing
• Product Range: EzRun
• Model: 5690SD G2
• Motor KV Rating: 1250KV
• Manufacturer Part Number: 30402350
• SKU: HW30402350
• Product Type: Sensored Brushless RC Motor
• Colour: Black
• Recommended Vehicle Scale: 1/5 and 1/6
• Motor Type: Brushless
• Sensor Type: Sensored
• Motor Poles: 4
• Supported Battery Voltage: 3S–8S LiPo with Compatible ESC
• No-Load Current: 6.6A
• Motor Diameter: 56mm
• Motor Length: 90.2mm
• Output Shaft Diameter: 8mm
• Output Shaft Extension: 30mm
• Factory-Fitted Motor Connectors: 6.5mm Male Bullet
• Alternative Motor Connectors: 8mm Bullet Connectors Included
• Motor Wiring: 3 x 8AWG Silicone Leads
• Motor Lead Length: 250mm
• Weight: Approximately 867g Including Leads
• Front Bearing: 22 x 8 x 7mm
• Rear Bearing: 19 x 8 x 6mm
• Maximum Rated Motor Speed: 43,000 RPM
• Motor Protection Rating: IP67 Under Manufacturer-Specified Conditions
• Compatible ESC Examples: Hobbywing EzRun MAX6 G2 and MAX5 HV G2
• Vehicle Application: Compatible 1/6 Scale Trucks and Short Course Trucks and Light-Load 1/5 Scale Trucks

Includes

• 1 x Hobbywing EzRun 5690SD G2 1250KV Sensored Brushless Motor in Black
• 3 x 6.5mm Male Bullet Connectors (Factory-Installed)
• 3 x Additional 8mm Motor Bullet Connectors
• 1 x User Manual

FAQ

Which ESCs are compatible with the Hobbywing EzRun 5690SD G2? Hobbywing lists the EzRun MAX6 G2 and MAX5 HV G2 as compatible ESC options. The motor has factory-installed 6.5mm bullet connectors, while the MAX5 HV G2 requires the included 8mm connectors to be fitted. Confirm sensor cable and ESC compatibility before installation.

Can this motor run on an 8S LiPo battery? Yes. Hobbywing rates the 5690SD G2 1250KV motor for 3S–8S LiPo operation with a compatible ESC. The motor's maximum supported rotational speed is 43,000 RPM, so appropriate battery voltage and gearing are essential.

Will the Hobbywing 5690SD G2 fit an ARRMA Kraton 8S or Outcast 8S? Hobbywing lists both models as example applications. However, installation depends on the exact vehicle version, motor mount clearance, 8mm pinion compatibility, motor wiring and selected gearing. OZRC recommends checking these details before purchasing.

What is the difference between the 5690SD G2 and the 4990SD G2? The 5690SD G2 is a larger 56mm diameter, 1250KV motor with an 8mm shaft, intended for 1/5 and 1/6 scale applications. The 4990SD G2 is a 49mm diameter, 1650KV motor with a 5mm shaft, intended for selected 1/7 and 1/8 scale vehicles.

Important Notes

• This product is a brushless motor only. An ESC, battery, charger and RC vehicle are not included.
• The motor uses an 8mm output shaft. A compatible 8mm-bore pinion gear is required.
• Factory-fitted motor power connectors are 6.5mm male bullet connectors. The MAX5 HV G2 requires fitting the supplied alternative 8mm connectors.
• Verify ESC current capability, sensor cable connection, motor mount dimensions and gearing before installation.
• Hobbywing specifies a maximum rotational speed of 43,000 RPM for the 5690SD G2. Do not exceed this limit.
• Hobbywing recommends keeping motor operating temperature below 100°C. Check temperatures after changing gearing or battery voltage.
• The IP67 rating applies to the motor under manufacturer-specified conditions. It does not make the entire RC vehicle waterproof.
• Vehicle examples are not a guarantee of direct bolt-in fitment. Motor mounting, space, shaft size and driveline setup may require changes.
• Use suitable soldering equipment and electrical insulation when replacing motor bullet connectors.
