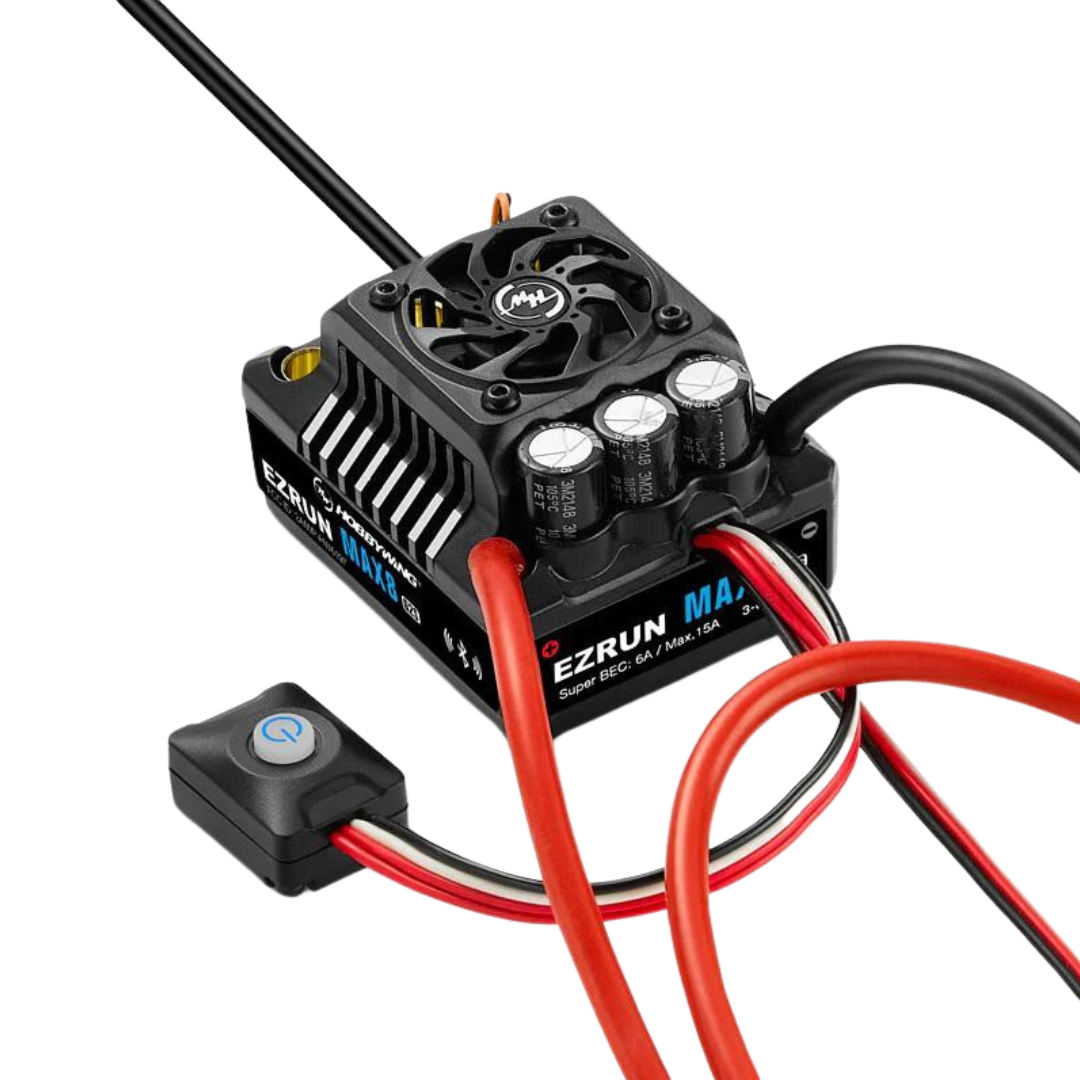

Hobbywing EZRun Max8 G2S Waterproof Brushless ESC XT90 1/8 HW30103205

The Hobbywing EZRun Max8 G2S is a waterproof sensored brushless ESC designed for 1/8 scale RC vehicles using 4S to 6S LiPo batteries. Featuring upgraded power delivery, improved cooling and a high-output selectable BEC, it delivers reliable performance for demanding on-road and off-road applications.

Features

• Waterproof and Dustproof Design: Built for reliable operation in a wide range of driving conditions
• Upgraded Capacitor Bank: Improves power stability and overall ESC performance
• Frameless Cooling Fan: Patented fan design increases airflow for improved thermal management
• Copper Thermal Conduction Plate: Enhances internal heat transfer for greater efficiency
• High Output Switch Mode BEC: Selectable 6.0V, 7.4V or 8.4V output for high-voltage servos
• Advanced Electronic Switch: Resistant to dust, moisture and impact for improved durability
• Turbo Timing Support: Up to 32 degrees of timing adjustment with compatible motors
• Smart Connectivity: Supports real-time data logging and firmware updates via the HW LINK app with an optional Bluetooth module

Specifications

• Brand: Hobbywing
• Model: EZRun Max8 G2S
• Part Number: HW30103205
• Manufacturer Part Number: 30103205
• Product Type: Waterproof sensored brushless ESC
• Scale: 1/8
• Input Voltage: 4S to 6S LiPo
• BEC Output: Selectable 6.0V, 7.4V or 8.4V
• Motor Limit (4S): Up to 3000kV
• Motor Limit (6S): Up to 2400kV
• Programmable: Yes
• Connector: XT90
• Dimensions: 60 x 48 x 40.5mm
• Weight: 194g

Includes

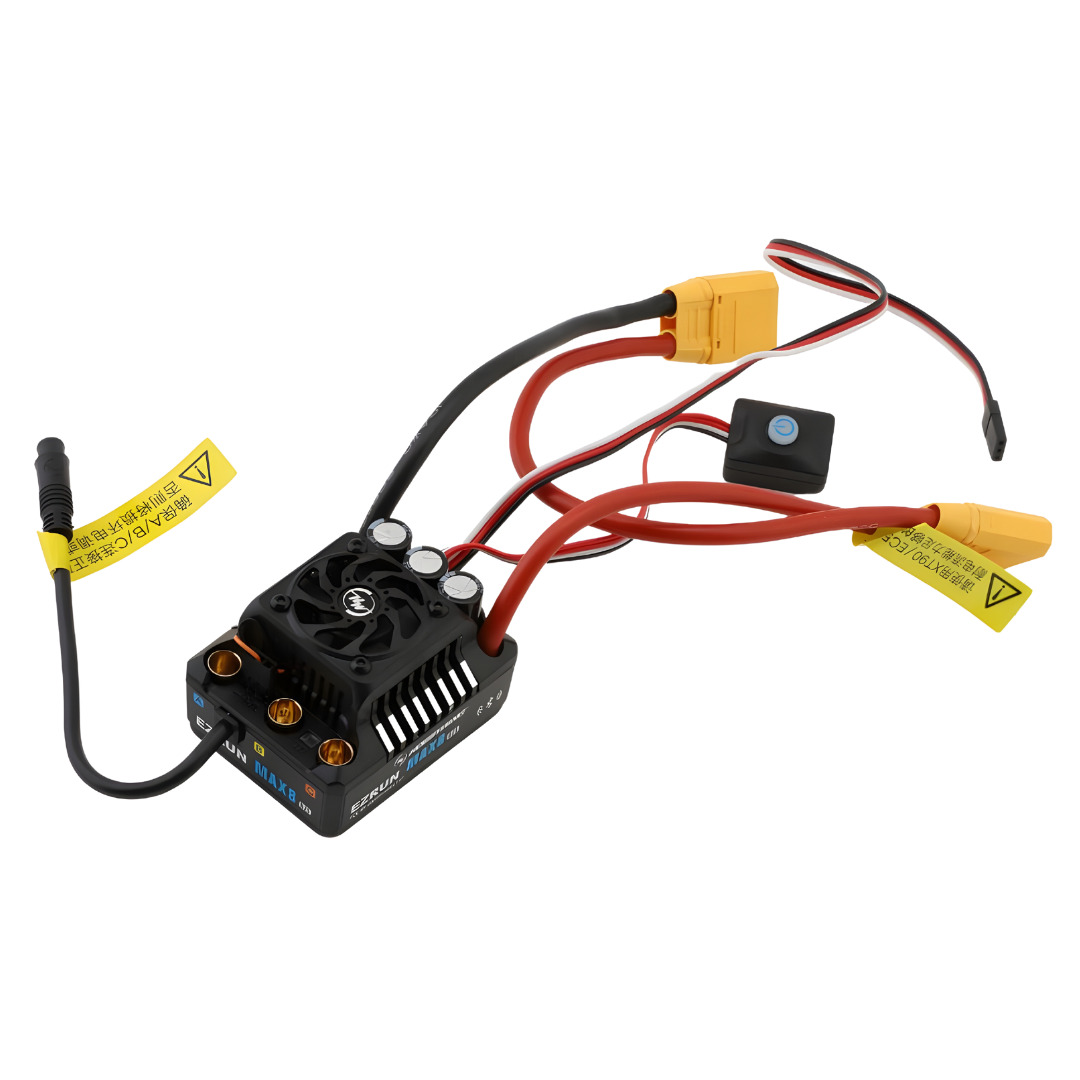

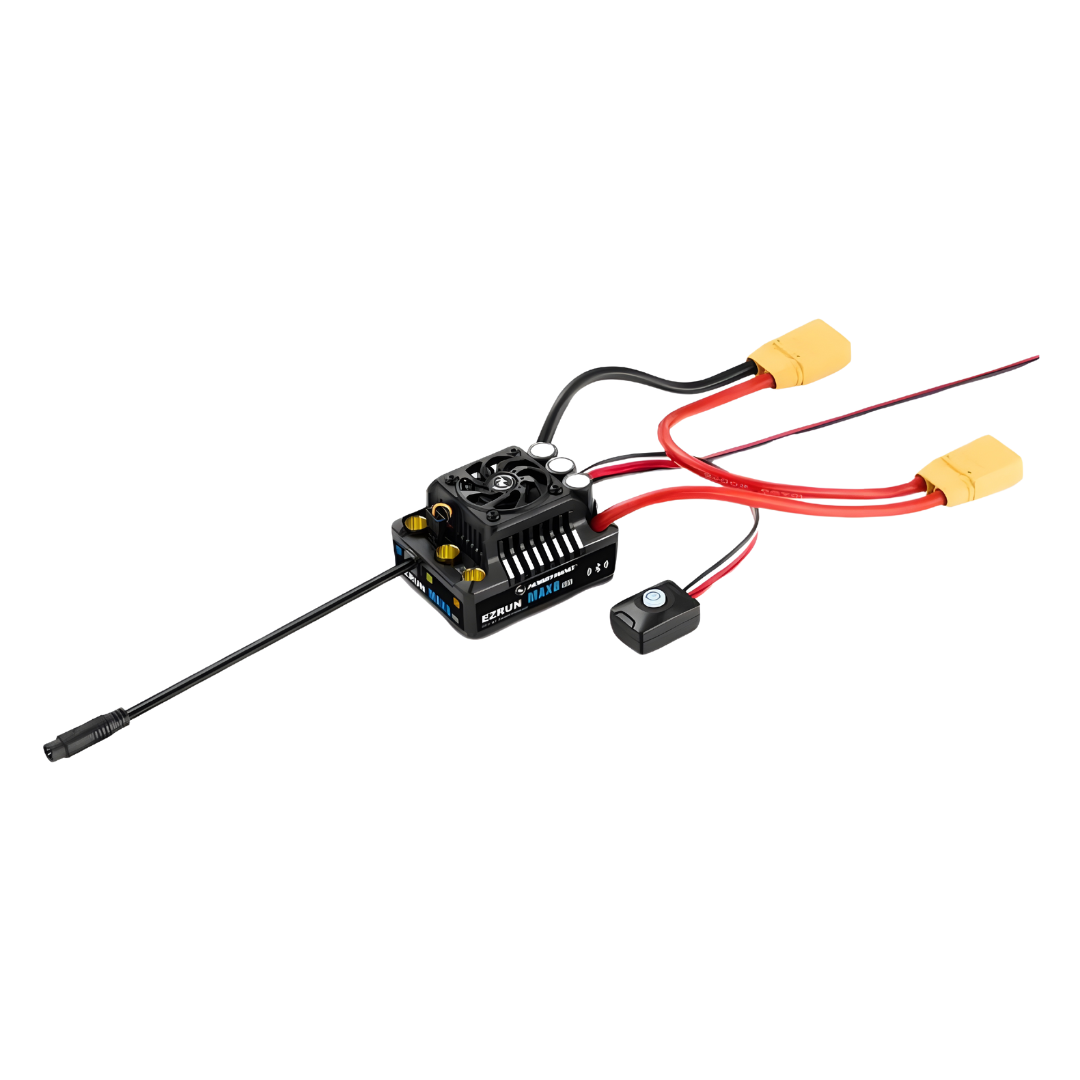

• 1 x Hobbywing EZRun Max8 G2S Waterproof Brushless ESC with XT90 Plug

FAQ

What battery voltage does the Hobbywing EZRun Max8 G2S support? The EZRun Max8 G2S is designed for 4S to 6S LiPo battery packs.

Can the BEC voltage be adjusted? Yes. The integrated switch mode BEC can be set to 6.0V, 7.4V or 8.4V to suit compatible servos.

Does the ESC support firmware updates? Yes. Firmware updates and real-time data logging are available through the Hobbywing HW LINK app when used with a compatible Bluetooth module, sold separately.

Important Notes

• Ensure motor kV and battery voltage remain within Hobbywing's recommended specifications.
• A compatible programming device or Bluetooth module is required for firmware updates and advanced programming functions.
• Suitable for compatible 1/8 scale brushless RC vehicles.
