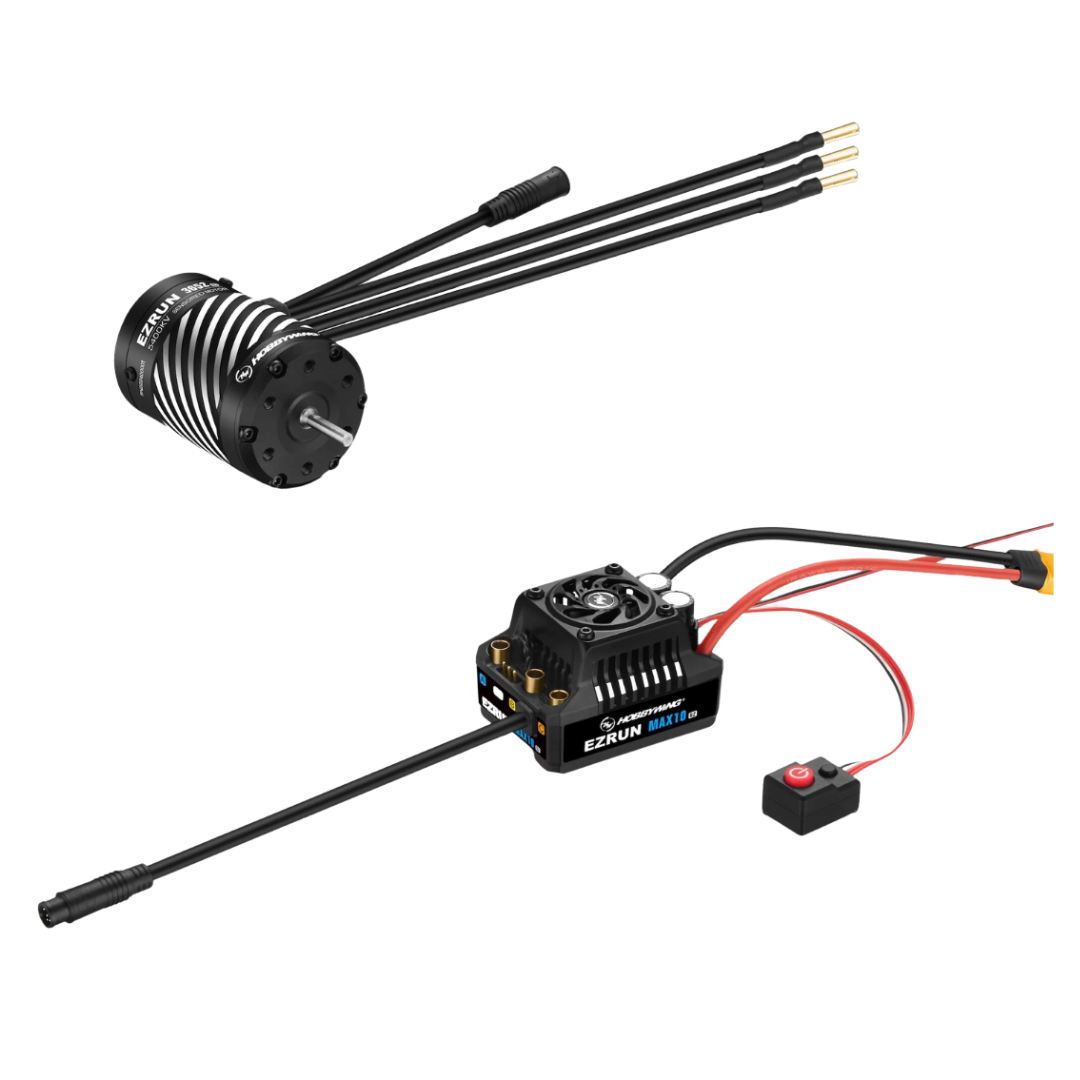

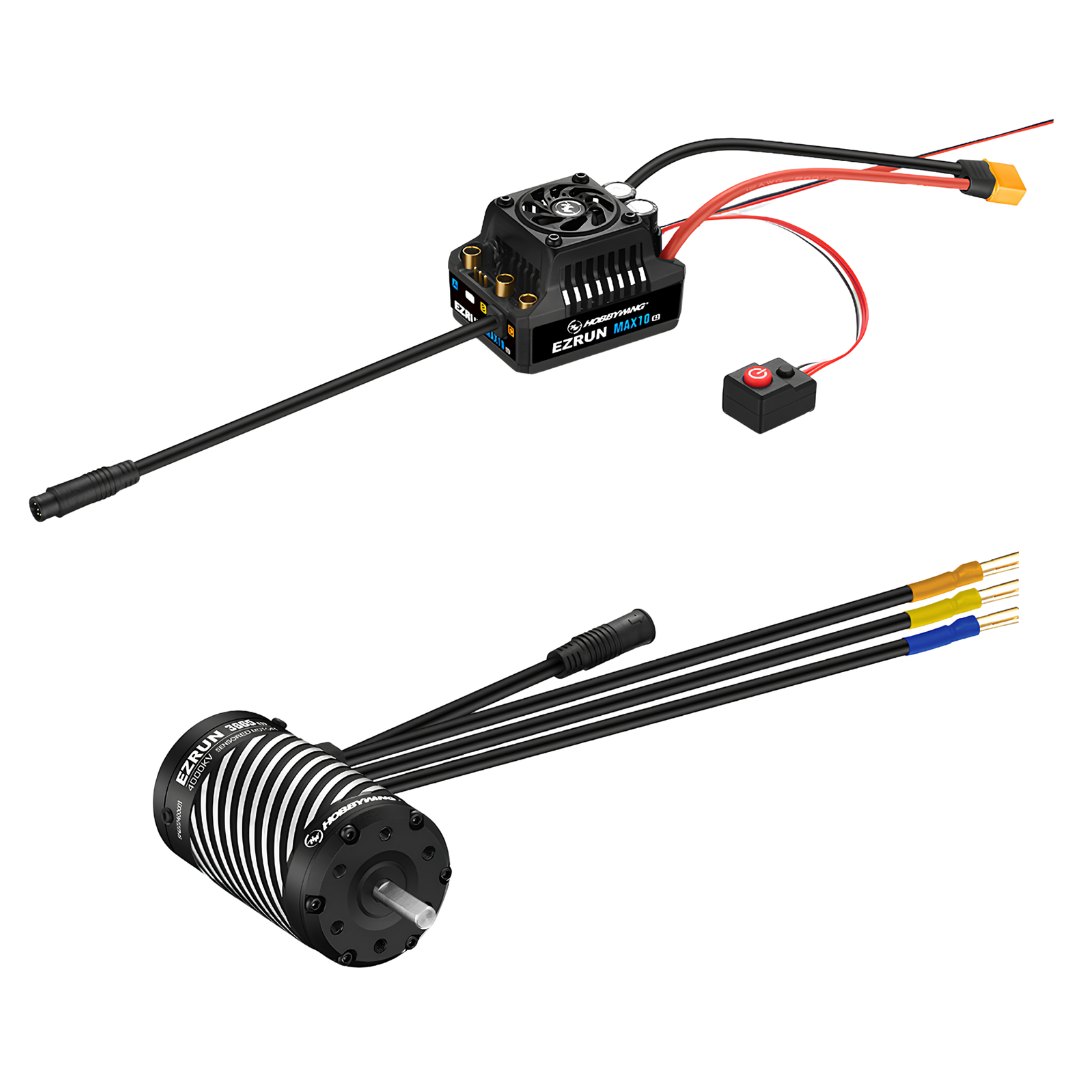

Hobbywing EZRUN MAX10 G2 80A 3652SD 3300KV G3 Combo 38020346
Couldn't load pickup availability
The Hobbywing EZRUN MAX10 G2 Combo pairs the advanced MAX10 G2 ESC with a high-performance 3652SD 3300KV G3 brushless motor for powerful 1/10 scale RC performance. Featuring strong acceleration, smooth low-speed control, turbo timing support and IP67 waterproof protection, this combo is built for serious on-road and off-road driving.
Features
- High-Performance Brushless Combo: Combines the MAX10 G2 ESC with a 3652SD 3300KV G3 brushless motor
- Explosive Power Delivery: Strong acceleration and stable power output improve high-speed performance
- Smooth Low-Speed Control: Excellent throttle linearity supports controlled crawling and low-speed driving
- Turbo Timing Support: Adjustable turbo timing up to 32 degrees can significantly increase top speed performance
- Patented Frameless Cooling Fan: High airflow fan design improves heat dissipation efficiency
- Smart Fan Technology: Automatic fan start-stop operation reduces noise and power consumption at low temperatures
- Real-Time Data Monitoring: Compatible with OTA Bluetooth module for live telemetry through the mobile app
- IP67 Waterproof Protection: Suitable for use in wet and demanding driving environments
- Supports Sensored and Sensorless Motors: Compatible with multiple motor configurations with optional adapter cable
- Firmware Upgrade Support: ESC firmware can be updated for performance and feature improvements
Specifications
- Brand: Hobbywing
- Model: EZRUN MAX10 G2 Combo
- Part Number: HW38020346
- Scale: 1/10
- ESC Type: Brushless sensorless
- Motor Type: 3652SD G3 brushless motor
- Motor KV Rating: 3300KV
- Waterproof Rating: IP67
- Continuous Current: 140A
- Peak Current: 880A
- Input Voltage: 2S to 4S LiPo
- BEC Output: 6V or 7.4V at 5A
- Input Wire Size: 12AWG
- Connector Type: XT60
- Cooling Fan Size: 30 x 30 x 10mm
- ESC Size: 53 x 39.5 x 37.2mm
- ESC Weight: 120g including wires and plug
- Programming Support: LED program box and LCD program box supported
- Firmware Upgrade: Supported
- Recommended Vehicles: 1/10 short course trucks, trucks and monster trucks
- 3S Motor Limit: Up to 4000KV with 3665 size motor
- 4S Motor Limit: Up to 2600KV with 4268 size motor
Includes
- 1 x Hobbywing EZRUN MAX10 G2 ESC
- 1 x Hobbywing 3652SD 3300KV G3 brushless motor
- 1 x Integrated cooling fan
- Wiring and connectors
Important Notes
- OTA Bluetooth module is sold separately for mobile app telemetry and tuning functions
- Adapter cable may be required for some sensored motor configurations
- Check vehicle compatibility and gearing before installation
