Hobbywing EzRun MAX10 G2 80A 3652SD G3 4100kV Combo 38020347

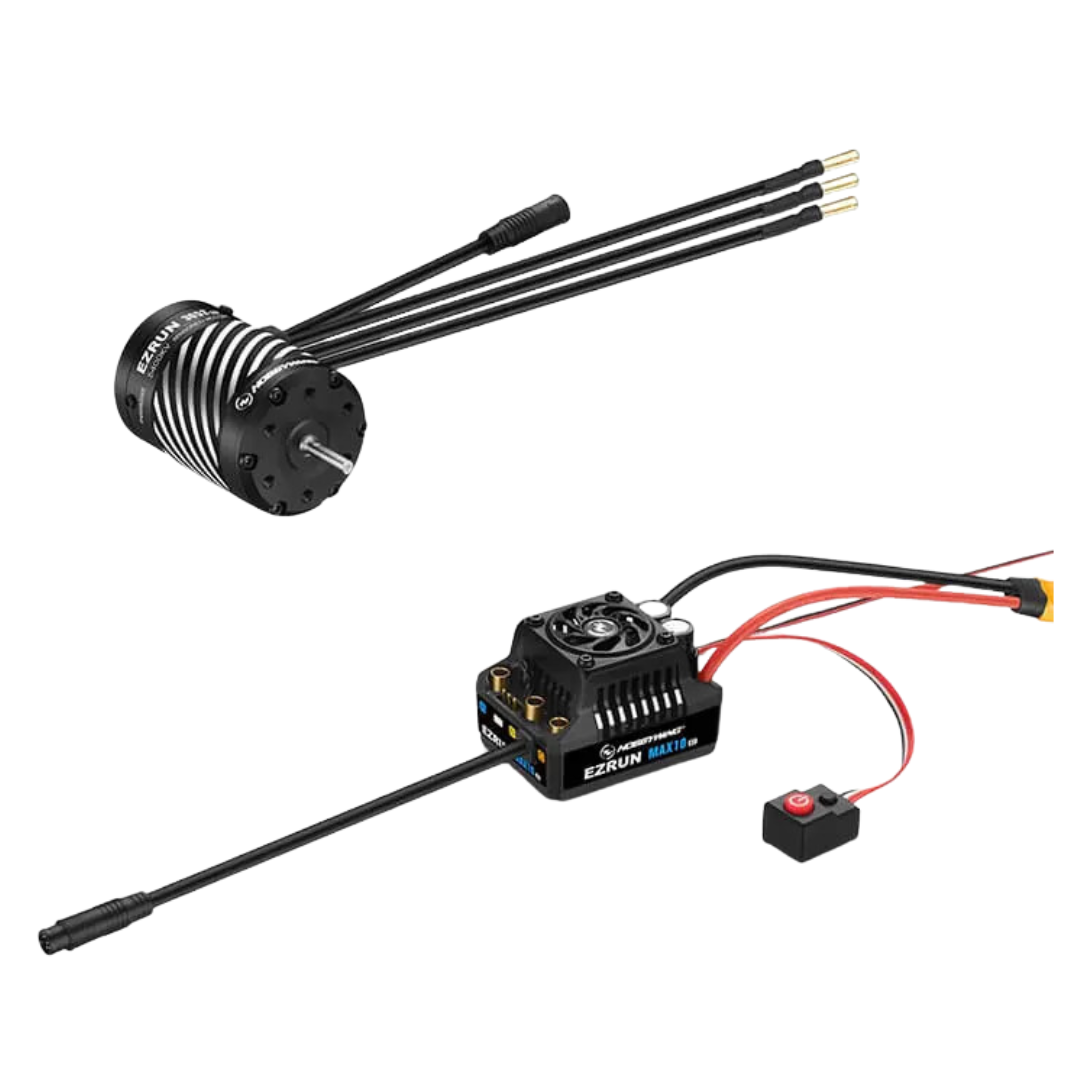

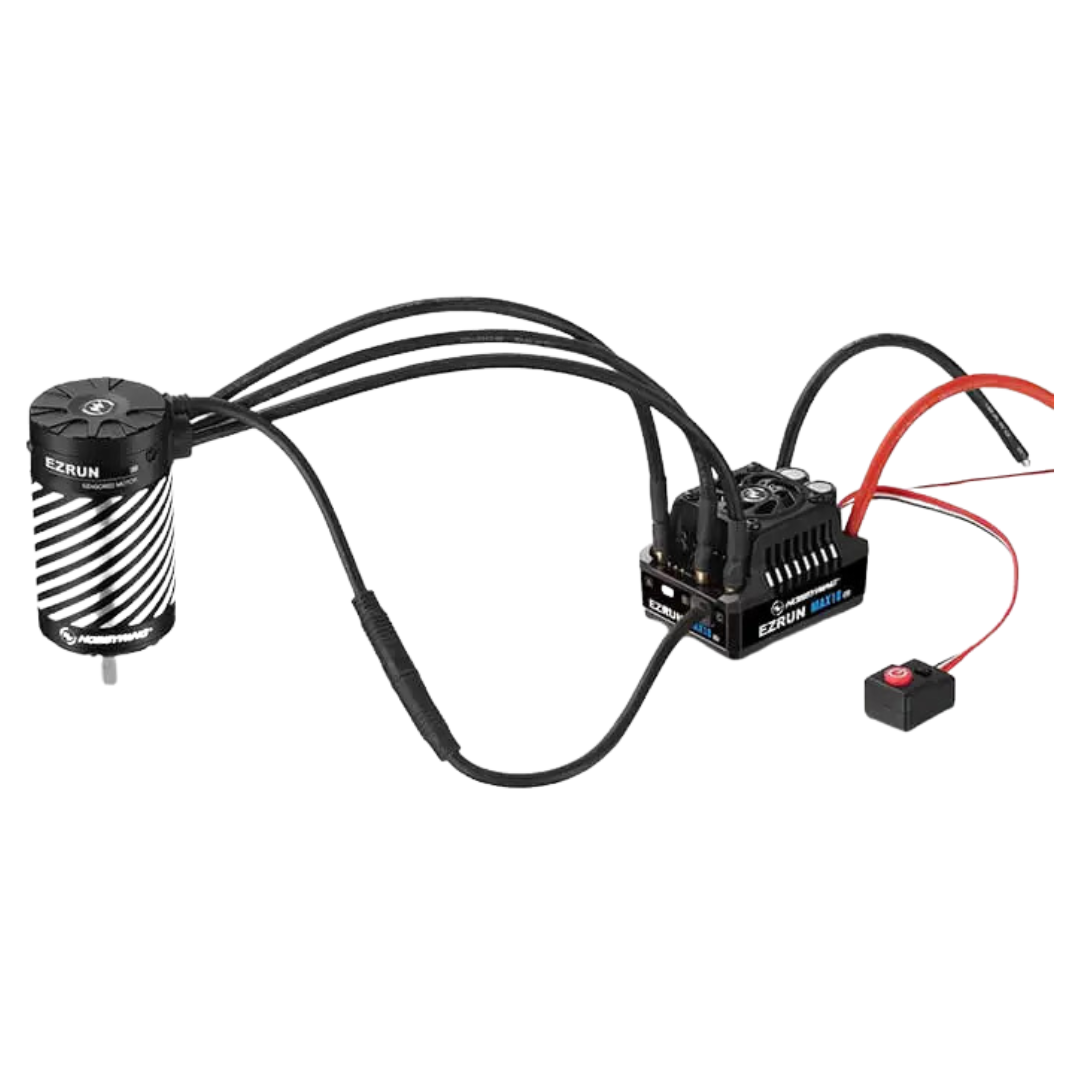

Hobbywing HW38020347 combines the EzRun MAX10 G2 80A sensored brushless ESC with an EzRun 3652SD G3 4100kV sensored motor for compatible 1/10 RC cars. The matched 2S–3S power system combines smooth sensored throttle response, adjustable turbo timing, Smart Freewheeling and IP67-rated protection for versatile on-road and off-road use.

Features

• Sensored Brushless System: Matched ESC and motor provide smooth low-speed response and progressive power delivery
• 80A MAX10 G2 ESC: Rated at 80A continuous and 520A peak current
• 3652SD G3 4100kV Motor: Four-pole sensored motor developed for compatible 1/10 on-road and off-road vehicles
• 2S–3S LiPo Compatible: 4100kV combo is rated by Hobbywing for operation with 2S or 3S LiPo power
• IP67 Protection: ESC and matched motor system feature waterproof and dustproof construction for demanding RC environments
• Turbo Timing: Supports up to 32 degrees of adjustable turbo timing when paired with a compatible Hobbywing G3 motor
• Smart Freewheeling: Improves drive efficiency and helps reduce operating temperature
• Smart Cooling Fan: Fan operates according to temperature to reduce unnecessary noise and power consumption
• Enhanced Capacitor System: Increased capacitance and capacitor over-temperature protection support reliable power delivery
• Adjustable BEC: Switch-mode BEC provides selectable 6.0V or 7.4V output at 5A for compatible servos
• Optional App Connectivity: Compatible with the Hobbywing OTA Programmer for real-time operating data, data logging and parameter adjustment
• XT60 Battery Connector: ESC is supplied with an XT60 power connector for convenient installation

Specifications

• Brand: Hobbywing
• Range: EzRun
• Product Type: Brushless ESC and Motor Combo
• Scale Application: 1/10
• Battery Compatibility: 2S–3S LiPo
• Manufacturer Part Number: 38020347
• Supplier SKU: HW38020347

ESC Specifications

• ESC: EzRun MAX10 G2 80A
• Motor Type: Sensored / Sensorless Brushless
• Continuous Current: 80A
• Peak Current: 520A
• Battery Compatibility: 2S–3S LiPo
• BEC Type: Switch-Mode
• BEC Output: 6.0V / 7.4V Adjustable
• BEC Current: 5A
• Battery Connector: XT60
• Cooling: Temperature-Controlled Fan
• Water / Dust Protection: IP67
• Dimensions: 53 x 39.5 x 37.2mm
• Weight: Approx. 120g Including Wires

Motor Specifications

• Motor: EzRun 3652SD G3
• Motor Part Number: 30402605
• Motor Type: Sensored Brushless
• KV Rating: 4100kV
• Poles: 4
• Battery Compatibility: 2S–3S LiPo
• Motor Resistance: 0.00696 Ohm
• No-Load Current: ≤5.0A
• Motor Timing: 0 Degrees
• Motor Diameter: 37mm
• Motor Length: 53mm
• Shaft Diameter: 3.175mm
• Shaft Length: 15mm
• Motor Connectors: 4.0mm Male
• Motor Weight: Approx. 227.9g

Includes

• 1 x Hobbywing EzRun MAX10 G2 80A Sensored Brushless ESC
• 1 x Hobbywing EzRun 3652SD G3 4100kV Sensored Brushless Motor
• 1 x Sensor Cable
• 1 x Installation Accessories Set

FAQ

What vehicles is Hobbywing HW38020347 designed for? Hobbywing specifies the 3652SD G3 motor for compatible 1/10 on-road and off-road vehicles, including buggy and light-duty short course truck applications. Vehicle weight, gearing, tyre size and available installation space should be checked before fitting.

Can the 4100kV motor run on 3S LiPo? Yes. Hobbywing's current product data rates the 3652SD G3 4100kV motor and HW38020347 combo for 2S–3S LiPo operation. Appropriate gearing and temperature monitoring remain important, particularly when running 3S.

Is the Hobbywing MAX10 G2 system sensored? Yes. Both the MAX10 G2 ESC and 3652SD G3 motor support sensored operation, providing improved low-speed response and smoother throttle control when connected with the sensor cable.

Does the MAX10 G2 support turbo timing? Yes. The MAX10 G2 supports up to 32 degrees of turbo timing. Hobbywing's matched G3 sensored motor allows the ESC to use the system's compatible advanced timing functions.

Is Hobbywing HW38020347 waterproof? Hobbywing specifies IP67 water and dust protection for the MAX10 G2 system. Waterproof construction does not eliminate the need for normal maintenance after use in wet, muddy or contaminated conditions.

Can the MAX10 G2 connect to a smartphone? The original MAX10 G2 can connect through the separately available Hobbywing OTA Programmer, allowing compatible HW LINK app functions such as parameter adjustment, real-time operating data and data logging. The later MAX10 G2S incorporates Bluetooth into its switch, so buyers should distinguish between G2 and G2S stock.

Is 227.9g the weight of the complete combo? No. The approximately 227.9g specification applies to the 3652SD G3 4100kV motor itself. The MAX10 G2 80A ESC weighs approximately 120g including its wires.

Important Notes

• HW38020347 has been sold in MAX10 G2 and newer MAX10 G2S configurations; confirm the version shown on the product packaging when managing mixed or newer inventory
• The original MAX10 G2 requires the optional Hobbywing OTA Programmer for smartphone connectivity; the newer G2S incorporates Bluetooth connectivity into its switch
• Correct gearing must be selected for the vehicle, battery voltage, tyre size and operating conditions
• Monitor motor and ESC temperatures after gearing changes and when operating on 3S LiPo
• Battery, charger, radio equipment, servo and vehicle are not included
