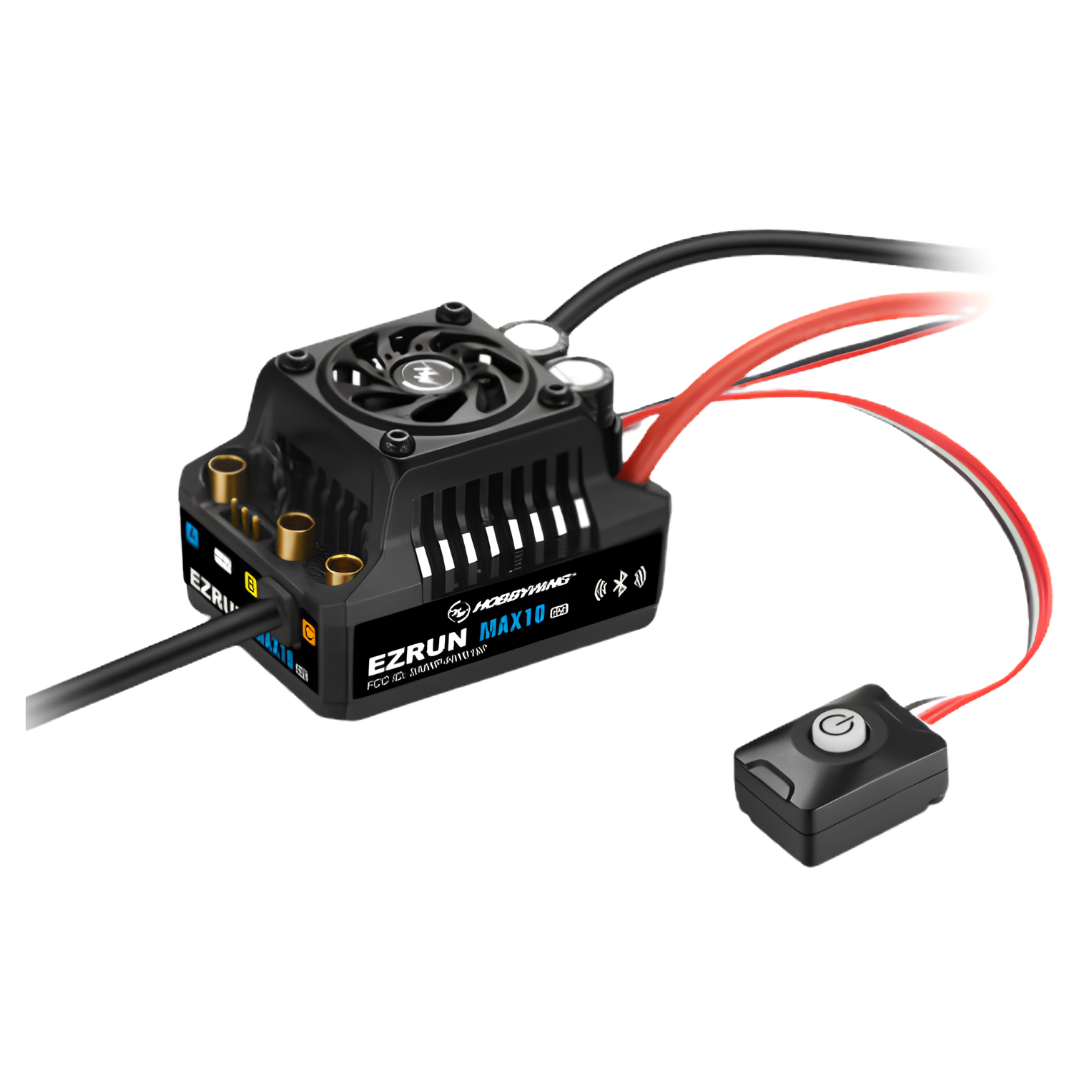

Hobbywing EZRUN MAX10 G2S 80A Sensored Brushless ESC 2-3S HW30102700

The Hobbywing EZRUN MAX10 G2S 80A is a compact 1/10 sensored brushless ESC for on-road cars buggies rally cars and short course trucks, combining 2S to 3S LiPo support, integrated Bluetooth programming, onboard data logging and an adjustable high-output BEC in an IP67-rated package

Features

• 80A continuous and 520A peak current rating
• Supports 2S to 3S LiPo batteries
• Sensored brushless operation for smooth linear throttle response
• Compatible with supported sensorless brushless operation
• Bluetooth module integrated into the power switch
• Direct programming through the Hobbywing HW LINK smartphone app
• Built-in historical data logging for up to the latest 10 minutes of runtime data
• Adjustable 6.0V 7.4V or 8.4V switch-mode BEC
• 5A rated BEC with up to 10A maximum output
• Frameless cooling fan with intelligent temperature-controlled operation
• Integrated heatsink housing for efficient thermal management
• Turbo timing support for increased top-end motor speed with compatible Hobbywing sensored motors
• IP67-rated water and dust protection
• Built-in capacitor overheat protection
• Low-voltage thermal and signal-loss protection functions
• Firmware upgrade support through compatible Hobbywing programming methods
• Separate programming port

Specifications

• Brand: Hobbywing
• Model: EZRUN MAX10 G2S 80A
• Product Type: Sensored Brushless ESC
• Scale: 1/10
• Continuous Current: 80A
• Peak Current: 520A
• Input Voltage: 2S to 3S LiPo
• BEC Voltage: 6.0V 7.4V or 8.4V Adjustable
• BEC Rated Current: 5A
• BEC Maximum Current: Up to 10A
• Motor Type: Brushless
• Sensor Support: Sensored
• Battery Connector: XT60
• Motor Connectors: 4.0mm Female Gold Bullet Sockets
• Input Wire: 12AWG
• Programming: HW LINK Bluetooth App LCD G2 Program Box LCD Program Box Pro or OTA Programmer
• Built-In Bluetooth: Yes
• Built-In Historical Data Logging: Yes
• Firmware Upgrade: Supported
• Protection Rating: IP67
• Dimensions: 53 x 39.5 x 37.2mm
• Weight: 125g Including Wires
• Barcode: 6938994405621
• Manufacturer Part Number: HW30102700

Motor Limits

• 2S LiPo: Up to 6000KV with a Suitable 3652 Size Motor
• 3S LiPo: Up to 4200KV with a Suitable 3652 Size Motor

Compatibility

• 1/10 On-Road RC Cars
• 1/10 Off-Road Buggies
• 1/10 Rally Cars
• 1/10 Short Course Trucks
• Compatible Hobbywing sensored brushless motors within the published voltage size and KV limits

Includes

• 1 x Hobbywing EZRUN MAX10 G2S 80A Sensored Brushless ESC

FAQ

Does the MAX10 G2S 80A need a separate Bluetooth module? No, Bluetooth is integrated into the power switch so programming data review and compatible firmware functions can be accessed directly through the HW LINK app

How much runtime data can the ESC store? Hobbywing states that the built-in historical logging function records up to the latest 10 minutes of runtime data for graphical review through the HW LINK app

Can the BEC be set to 8.4V for a high-voltage servo? Yes, the BEC can be set to 6.0V 7.4V or 8.4V but Hobbywing states that stable 7.4V and 8.4V output requires a 3S drive battery

Can I program this ESC using the SET button or basic LED program box? No, Hobbywing lists SET-button and LED program-box programming as unsupported while the LCD G2 LCD Pro OTA and integrated Bluetooth methods are supported

Is the MAX10 G2S waterproof? Hobbywing rates the ESC to IP67 for water and dust protection but connectors motors and other vehicle electronics may have different protection ratings

What is the maximum motor KV on 3S? Hobbywing specifies up to 4200KV with a 3652-size motor on 3S LiPo for the 80A version

Important Notes

• Stable 7.4V and 8.4V BEC output requires a 3S drive battery
• Observe Hobbywing's published motor size and KV limits for the battery voltage being used
• Do not use the basic LED program box or rely on the ESC SET button for programming this model
• Turbo performance and supported motor protection functions depend on the motor and sensor system being used
