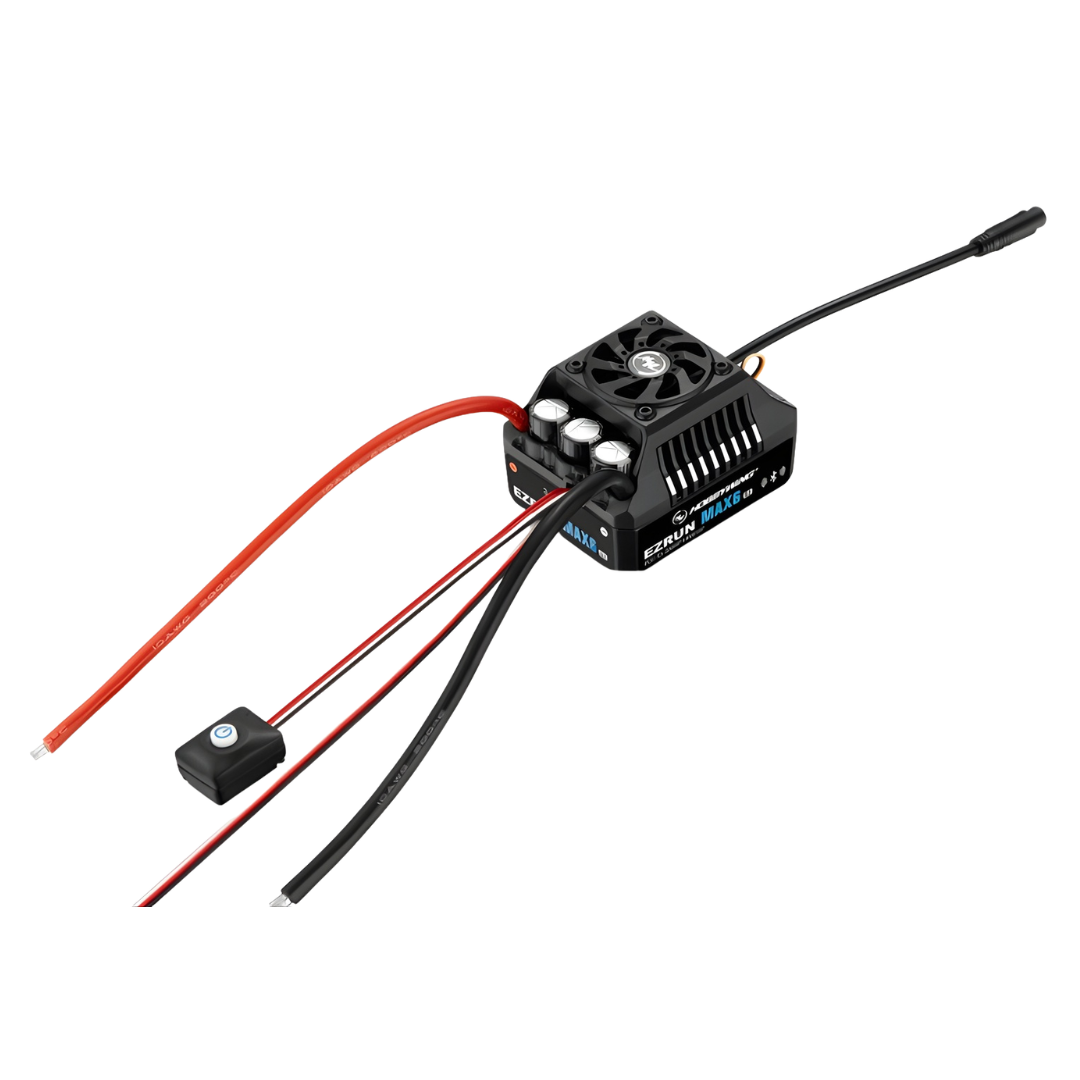

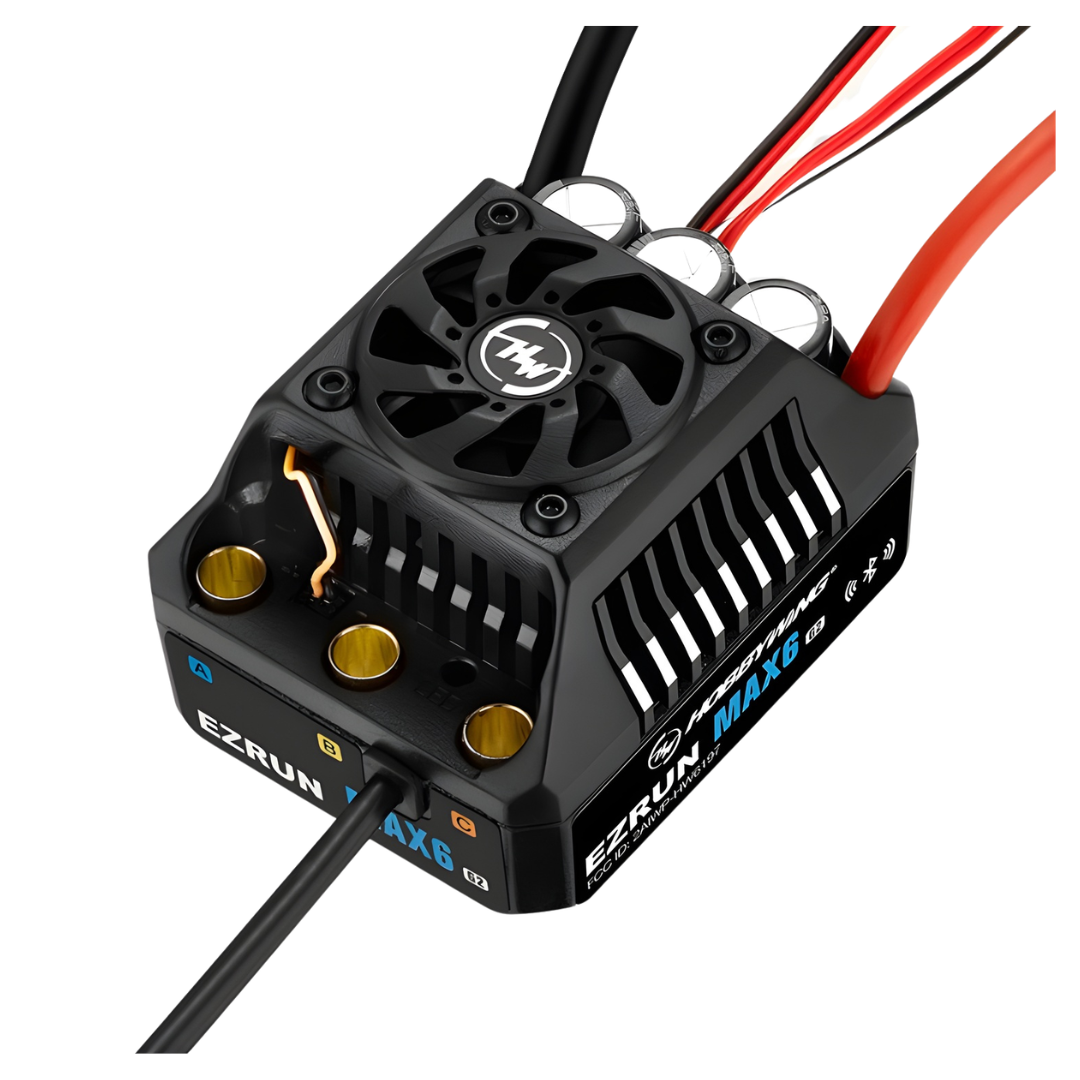

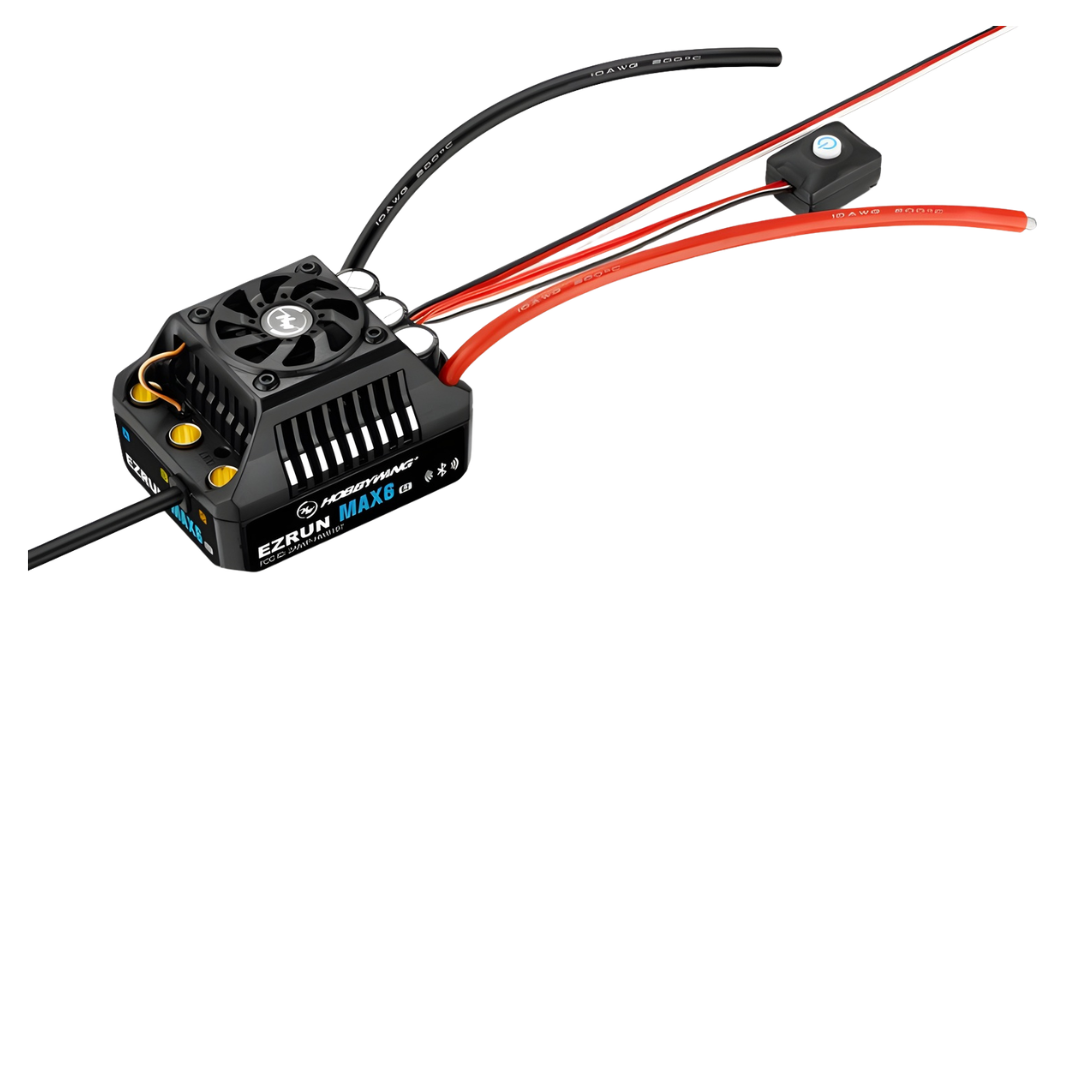

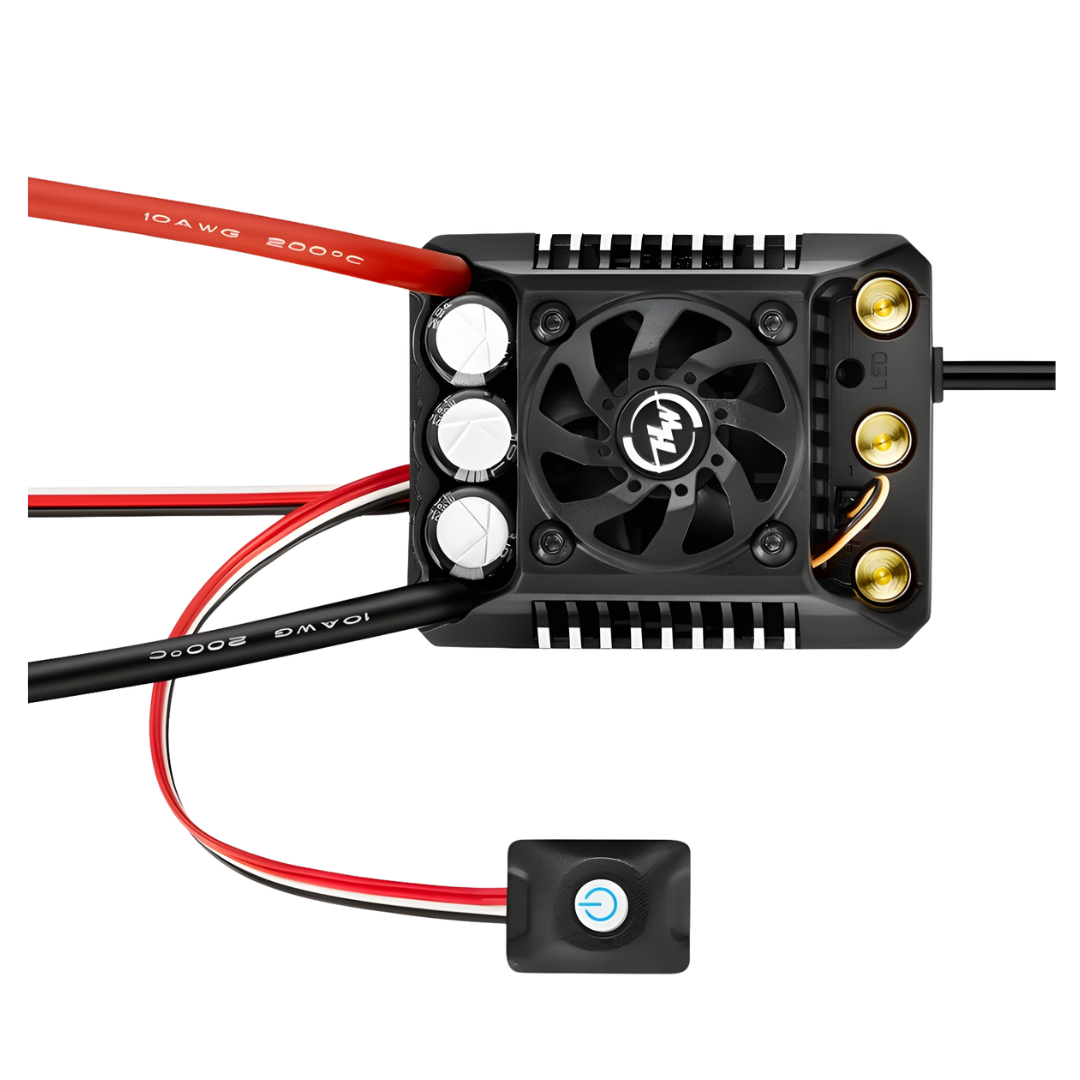

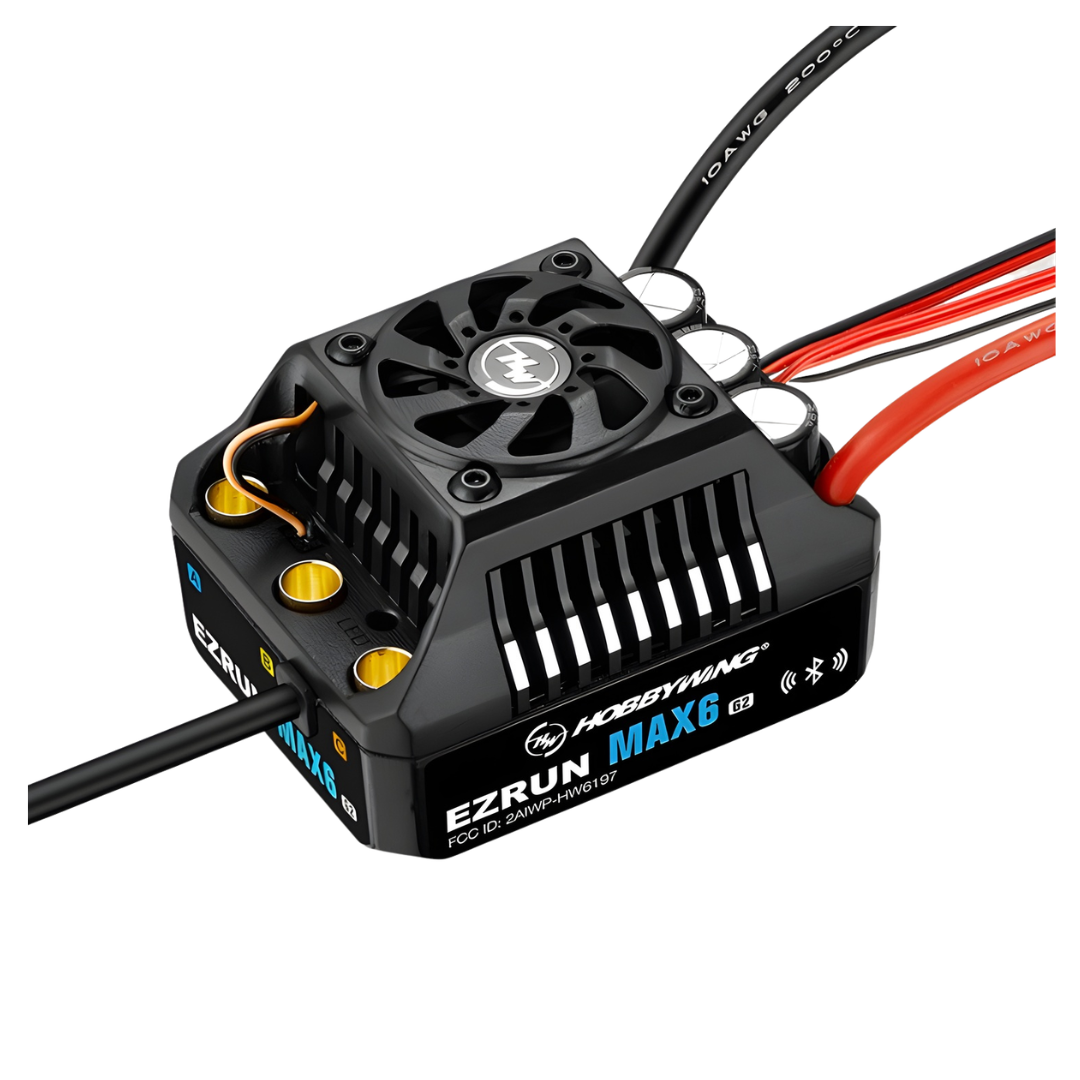

Hobbywing EZRun MAX6 G2 ESC 1/6 1/7 200A 8S Sensored 30105100

The Hobbywing EZRun MAX6 G2 is a 200A sensored brushless ESC for 1/6 and 1/7 scale RC cars and trucks, suited to high-power 3S to 8S builds needing smooth throttle control, app tuning and strong BEC output.

This ESC supports sensored and sensorless brushless motor operation, making it suitable for large-scale bashers, monster trucks and speed-focused builds. Built-in Bluetooth allows tuning and firmware updates through the HW Link V2 app without an extra programming module, while the IP67-rated case, smart cooling fan and anti-spark design help support demanding RC use.

Features

• 200A High Output: Designed for demanding 1/6 and 1/7 scale RC vehicles using 3S to 8S LiPo power
• Sensored And Sensorless Operation: Supports compatible brushless motors with or without sensor cable connection
• Built-In Bluetooth: Connects directly to the HW Link V2 mobile app for tuning, data review and firmware updates
• Data Logging: Records useful run data such as throttle, voltage, current, temperature and RPM for app-based review
• IP67 Protection: Designed for splash, dust, mud, snow and wet surface use under normal RC conditions
• Powerful Switch-Mode BEC: Adjustable 6V, 7.4V or 8.4V output with 8A continuous and up to 25A peak current
• Turbo Timing Support: Supports up to 24 degrees of turbo timing when paired with compatible Hobbywing EzRun 4990 or 5690 G2 motors
• Intelligent Freewheeling: Helps improve efficiency and reduce ESC operating temperature under load
• Smart Cooling Fan: Fan activates only when needed based on ESC temperature
• Anti-Spark Design: Helps reduce connector spark during high-voltage battery connection
• Multiple Protection Functions: Includes low-voltage, overheat, throttle signal loss and current protection features

Specifications

• Brand: Hobbywing
• Model: EzRun MAX6 G2
• SKU: HW30105100
• Manufacturer Part Number: 30105100
• Product Type: Brushless electronic speed controller
• Scale Suitability: 1/6 and 1/7 scale RC cars and trucks
• Motor Type: Sensored and sensorless brushless motors
• Continuous Current: 200A
• Peak Current: 1200A
• Input Voltage: 3S to 8S LiPo
• BEC Output: 6V, 7.4V or 8.4V at 8A continuous, up to 25A peak
• Waterproof Rating: IP67, normal RC splash and dust protection
• Programming: HW Link V2 app through built-in Bluetooth
• Motor Connectors: 6.5mm bullet connectors
• Battery Input Connectors: Not included
• Cooling Fan: Installed, intelligent start-stop operation
• Size: 70 x 56 x 45.5 mm
• Weight: 245 g
• Recommended Motor Pairing: Hobbywing EzRun 4990 G2 or 5690 G2 motors for full sensored and turbo timing features

Includes

• 1 x Hobbywing EzRun MAX6 G2 200A sensored brushless ESC
• 1 x Pre-installed cooling fan
• 1 x Pre-wired motor lead set with 6.5mm bullet connectors

FAQ

What scale vehicles does the Hobbywing MAX6 G2 suit? The Hobbywing MAX6 G2 is designed for 1/6 and 1/7 scale RC cars and trucks, including large monster truck, truck and on-road builds using suitable electronics and gearing.

Does this ESC include battery connectors? No. The Hobbywing MAX6 G2 includes motor leads with 6.5mm bullet connectors, but battery input connectors are not included.

Can this ESC run sensored motors? Yes. The Hobbywing MAX6 G2 supports sensored brushless operation and can also run compatible sensorless brushless motors.

Do I need a programming card? Not usually. The Hobbywing MAX6 G2 has built-in Bluetooth for setup through the HW Link V2 mobile app, although compatible Hobbywing programming accessories may still be useful depending on your setup.

Important Notes

• Battery input connectors are not included and must be fitted by a competent user using suitable high-current connectors.
• Use only with compatible 3S to 8S LiPo battery setups and suitable brushless motors.
• Turbo timing is intended for compatible Hobbywing EzRun 4990 G2 and 5690 G2 motors and should not be enabled with unsupported motors.
• IP67 protection is for normal splash, dust and wet RC use; do not soak or fully submerge the ESC for extended periods.
• Check gearing, motor Kv, vehicle weight and temperature regularly to avoid overheating.
• High-current ESC installation requires correct soldering, polarity, insulation and secure mounting.
• Motor, battery, charger, connectors, receiver, servo, tools and vehicle are not included unless shown separately.
