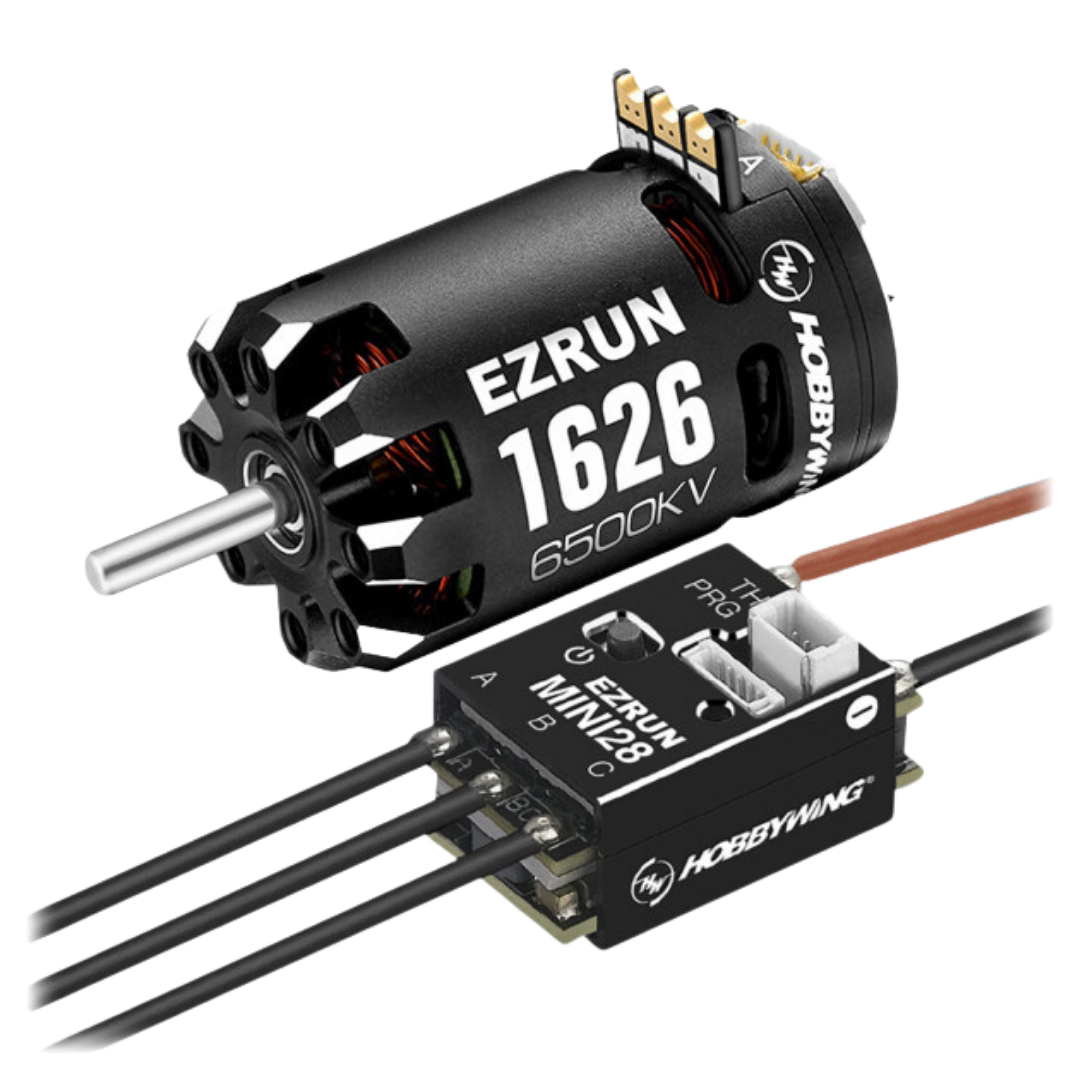

Hobbywing EZRUN Mini28 1626SD 6500KV Brushless Combo HW38020368

The Hobbywing HW38020368 EZRUN Mini28 Combo pairs a compact 30A sensored brushless ESC with a 1626SD 6500KV motor for high-performance 1/28 and compatible 1/27 scale RC cars, providing precise throttle response, extensive tuning options and a matched 2S LiPo power system.

Features

• Designed for Mini RC Racing: Developed specifically for high-performance 1/28 and compatible 1/27 scale RC car applications
• Sensored Brushless System: Matched ESC and 1626SD motor provide smooth low-speed response and precise throttle control
• 6500KV Motor: High-RPM motor specification suited to performance-focused mini RC car setups
• 30A ESC: Compact Mini28 speed controller provides 30A continuous and 80A peak current capability
• Extensive Programming: More than 25 adjustable ESC parameters allow throttle, braking and power delivery to be tailored to the vehicle and driving style
• Timing Advance Support: The Mini28 ESC can use timing advance with the sensored 1626 motor for additional performance tuning
• Adjustable High-Voltage BEC: Switch-mode BEC provides selectable 6V or 7.4V output with up to 3.5A maximum current
• Compact ESC Design: Measures only 22.7 x 14.2 x 11.8mm and weighs approximately 5g without wires
• Programmable by LCD or OTA: Compatible with the Hobbywing LCD G2 Program Box and OTA Programmer, sold separately
• Firmware Upgrade Support: ESC firmware can be updated using compatible Hobbywing programming equipment
• Serviceable Motor Construction: Modular motor design can be disassembled for cleaning and maintenance
• Built-In Protection Functions: Electronic safeguards help protect the power system during operation

Specifications

• Brand: Hobbywing
• Series: EZRUN Mini28
• Product Type: Sensored Brushless ESC and Motor Combo
• Application: 1/28 and Compatible 1/27 Scale RC Cars
• Battery Compatibility: 2S LiPo
• Manufacturer Part Number: 38020368
• SKU: HW38020368
• Barcode / EAN: 6938994407588

ESC Specifications

• ESC: Hobbywing EZRUN Mini28
• ESC Part Number: 30101300
• Technology: Sensored Brushless
• Continuous Current: 30A
• Peak Current: 80A
• Input Voltage: 2S LiPo
• BEC Output Voltage: 6V / 7.4V Adjustable
• BEC Maximum Current: 3.5A
• BEC Type: Switch-Mode
• Input Wires: 20AWG / 55mm
• Motor Output Wires: 22AWG / 80mm
• Dimensions: 22.7 x 14.2 x 11.8mm
• Weight: Approximately 5g Without Wires
• Programming: LCD G2 Program Box / OTA Programmer / Throttle Wire
• Firmware Upgrade: Supported
• Waterproof: No

Motor Specifications

• Motor: Hobbywing EZRUN 1626SD
• Motor Part Number: 30402655
• Motor Type: Sensored Brushless
• KV Rating: 6500KV
• Pole Count: 2
• Input Voltage: 2S LiPo
• No-Load Current: 0.6A
• Motor Diameter: 16mm
• Motor Length: 26mm
• Shaft Diameter: 2mm
• Weight: Approximately 18g
• Application: 1/28 Mini RC Cars

Includes

• 1 x Hobbywing EZRUN Mini28 30A Sensored Brushless ESC
• 1 x Hobbywing EZRUN 1626SD 6500KV Sensored Brushless Motor
• Mounting / Support Accessories
• 1 x Instruction Manual

FAQ

Can Hobbywing HW38020368 run on 3S LiPo? No. The Mini28 ESC and the supplied 1626SD 6500KV motor are specified for 2S LiPo operation. Do not use a 3S battery with this combo.

Is the Hobbywing Mini28 combo sensored? Yes. The included 1626SD 6500KV motor is a sensored brushless motor and is matched to the Mini28 sensored ESC for smooth throttle response.

Will the Mini28 combo fit every 1/28 RC car? No. The 1/28 designation describes the intended application, not universal bolt-in compatibility. Check the available motor space, motor mount, gearing and 2mm motor shaft compatibility before ordering. The motor measures approximately 16mm in diameter and 26mm long.

How is the Mini28 ESC programmed? Hobbywing supports programming through the optional LCD G2 Program Box or OTA Programmer, along with supported adjustments through the throttle connection. The programming accessories are sold separately.

Is the BEC specification 3.5V? No. Some retailer descriptions contain a formatting error stating 3.5V. Hobbywing's official specification is an adjustable 6V or 7.4V switch-mode BEC with up to 3.5A maximum output.

Is the Mini28 ESC waterproof? No. Hobbywing specifies the Mini28 ESC as non-waterproof, so it should be protected from water and excessive moisture.

Important Notes

• Use a 2S LiPo battery only
• Programming box and OTA Programmer are sold separately
• Check the 16 x 26mm motor dimensions, 2mm shaft and available chassis clearance before installation
• Mini-scale vehicles vary significantly in motor mounts and internal space, so 1/28 scale does not guarantee direct fitment
• The ESC is not waterproof
• Set suitable gearing and monitor motor and ESC temperatures after installation or major timing changes
