Hobbywing EZRUN Mini28 ESC 1626SD 4000KV Combo 1/28 Drift HW38010605
Couldn't load pickup availability

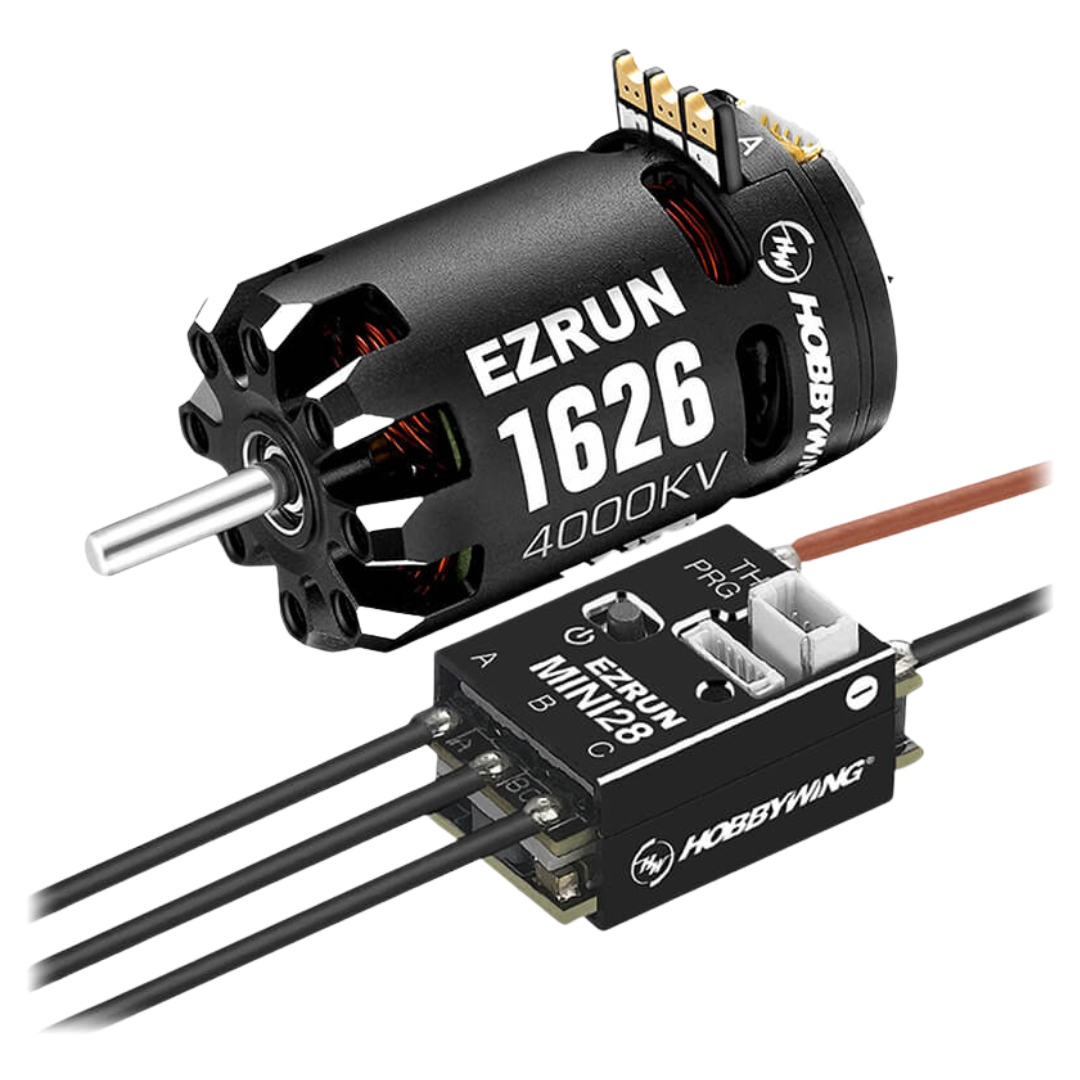

The Hobbywing EZRUN Mini28 4000KV Drift Combo is a sensored brushless ESC and motor system designed for compatible 1/28 mini drift and racing RC cars needing compact, adjustable 2S power control.
Features
- Compact 1/28 Power System: Designed for small-scale RC cars where low weight and limited chassis space matter.
- Sensored Brushless Control: The Mini28 ESC and 1626SD motor combination supports smooth throttle response for mini drift and racing applications.
- 4000KV Drift Motor: Suits drivers wanting a matched Hobbywing 1626 sensored motor for 1/28 drift-style builds.
- Adjustable ESC Parameters: Supports detailed tuning of items such as throttle feel, braking, boost and turbo settings through compatible Hobbywing programming accessories.
- Adjustable BEC Output: Built-in BEC supports 6V or 7.4V output for compatible steering servo setups.
- Maintenance-Friendly Motor Design: The motor can be dismantled for cleaning and maintenance when required.
Specifications
- Brand: Hobbywing
- Series: EZRUN Mini28
- SKU / Part Number: HW38010605
- Product Type: Sensored brushless ESC and motor combo
- Scale / Application: 1/28 mini RC cars
- Battery Input: 2S LiPo
- ESC Continuous / Peak Current: 30A / 80A
- ESC BEC Output: 6V or 7.4V adjustable, up to 3.5A
- ESC Dimensions: 22.7 x 14.2 x 11.8mm
- ESC Weight: 5g without wires
- Motor Type: Sensored brushless
- Motor Model: EZRUN 1626SD
- Motor KV Rating: 4000KV
- Motor Poles: 2-pole
- Motor Diameter: 16mm
- Motor Length: 26mm
- Motor Shaft Diameter: 2mm
- Motor Weight: 18g
- Waterproof Rating: Not waterproof
Includes
- Hobbywing EZRUN Mini28 30A 2S ESC
- Hobbywing EZRUN 1626SD 4000KV sensored brushless motor
- Manual
- Manufacturer support accessories where supplied in the pack
FAQ
What scale RC car does this combo suit? The Hobbywing EZRUN Mini28 4000KV Drift Combo is designed for compatible 1/28 mini RC cars and is commonly used in compact mini drift and racing builds.
Is this a sensored brushless combo? Yes. This combo includes the EZRUN Mini28 sensored brushless ESC and the EZRUN 1626SD 4000KV sensored brushless motor.
What battery does the Mini28 ESC use? The Hobbywing Mini28 ESC is designed for 2S LiPo input only.
Do I need a programmer to adjust the ESC settings? A compatible Hobbywing LCD programmer or OTA programmer is required for parameter adjustment, and OZRC recommends checking compatibility before ordering programming accessories.
Important Notes
- Programming accessories are not listed as included unless shown separately in the pack.
- Battery, charger, receiver, servo, radio system, pinion gear and vehicle-specific mounting hardware are not included unless supplied with your vehicle.
- Check motor shaft diameter, motor mount fitment and available chassis space before installation.
- This ESC is not waterproof and should be protected from water, moisture and conductive debris.
- Incorrect ESC settings may damage the power system, so refer to the Hobbywing manual before changing boost, turbo or timing values.
