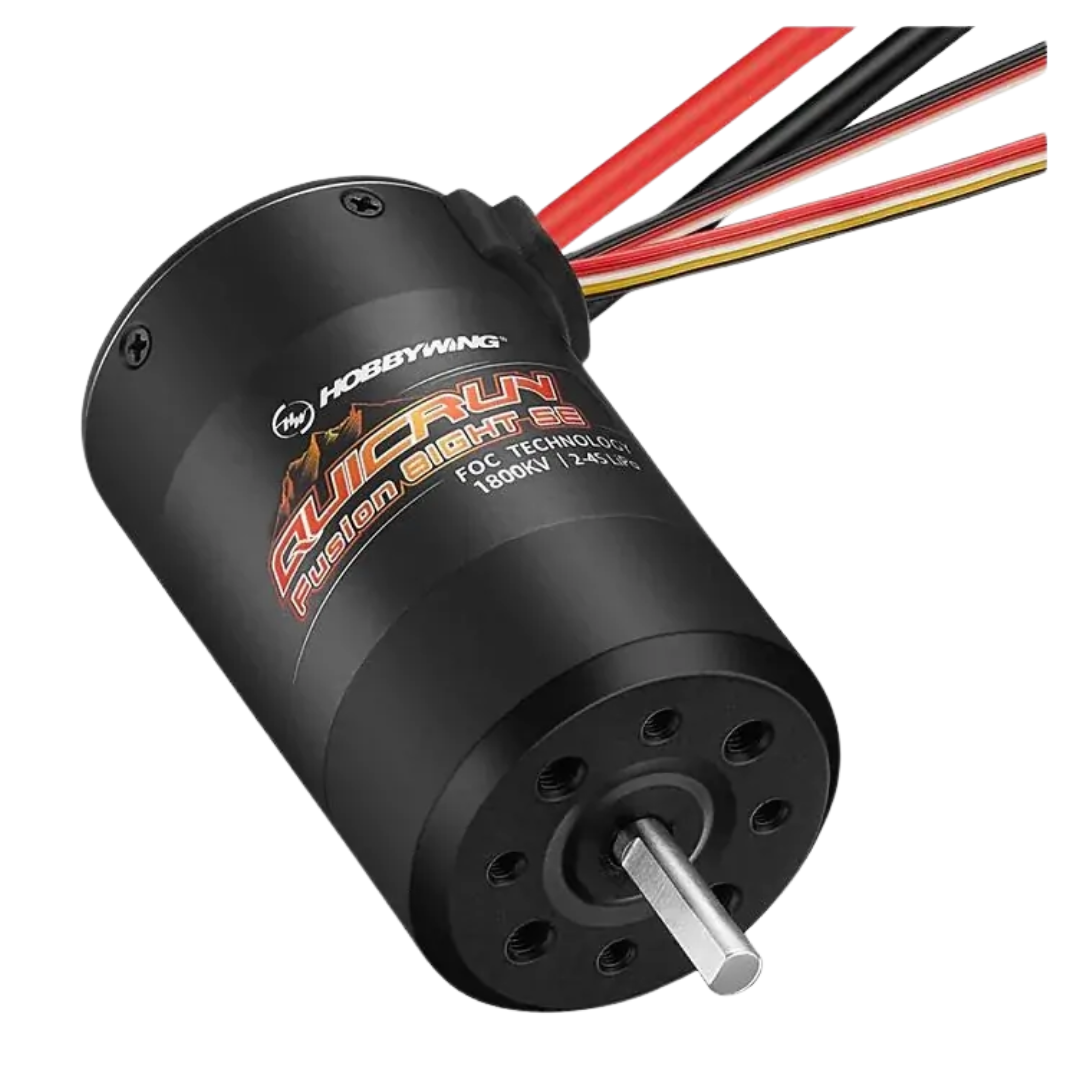

Hobbywing QuicRun Fusion 8IGHT SE 1800Kv 1/8 Crawler System 30109100

The Hobbywing QuicRun Fusion 8IGHT SE is a 1800Kv brushless motor and ESC system designed for 1/8 scale RC crawlers needing clean wiring, smooth low-speed control and strong hill-hold performance.

Features

• Integrated ESC and motor design reduces wiring and keeps crawler builds cleaner
• FOC brushless control provides smooth low-speed throttle response for technical crawling
• Intelligent torque output helps maintain controlled speed when climbing or descending
• Active drag brake adjustment provides holding power on steep crawler lines
• Waterproof and dustproof construction for normal wet, dusty and off-road RC use
• Switch-mode BEC supports 6V or 7.4V output for compatible standard and high-voltage servos
• Supports Hobbywing LED Program Box, LCD G2 Program Box and LCD Program Box Pro for ESC setup
• Multiple protection functions including low-voltage, overheat, throttle-loss and lock-up protection
• Factory-fitted XT60 battery connector for easy connection with matching battery leads

Specifications

• Brand: Hobbywing
• Model: QuicRun Fusion 8IGHT SE
• Product Type: 2-in-1 brushless crawler ESC and motor system
• Manufacturer Part Number: 30109100
• Barcode: 6938994412377
• Scale: 1/8
• Application: 1/8 scale RC crawlers
• Motor Type: Sensored brushless FOC
• KV Rating: 1800Kv
• Continuous Current: 60A
• Peak Current: 200A
• Input Voltage: 2-4S LiPo or 6-12 cell NiMH
• BEC Output: 6V or 7.4V adjustable, 4A continuous
• Motor Poles: 4
• Motor Diameter: 41mm
• Motor Length: 69mm
• Shaft Diameter: 5mm
• Exposed Shaft Length: 18.5mm
• Weight: 326.5g including wires and connectors
• Input Wires: 13AWG, 200mm red and black wires
• Battery Connector: XT60
• Programming Support: LED Program Box, LCD G2 Program Box and LCD Program Box Pro supported
• OTA Programmer: Not supported
• Firmware Upgrade: Not supported

Includes

• 1 x Hobbywing QuicRun Fusion 8IGHT SE 1800Kv ESC and motor system
• 1 x Factory-installed XT60 battery connector
• 1 x Decal sheet
• 1 x Manual
• 1 x Heatshrink kit
• 1 x Double-sided tape
• Zip ties

FAQ

Is the Hobbywing QuicRun Fusion 8IGHT SE suitable for 1/10 crawlers? The Hobbywing QuicRun Fusion 8IGHT SE is designed for 1/8 scale crawlers, so OZRC recommends checking available motor space, shaft size and gearing carefully before considering it for smaller custom builds.

Does this system include an ESC? Yes. The Hobbywing QuicRun Fusion 8IGHT SE combines the brushless motor and ESC into one 2-in-1 crawler power system.

Can the ESC settings be adjusted? Yes. The system supports compatible Hobbywing LED and LCD program boxes, but OTA programming and firmware upgrades are not supported.

Is the system waterproof? The system is rated waterproof and dustproof for normal RC use, but it should not be left submerged or used where water can remain trapped around the electronics.

Important Notes

• Check pinion bore, motor space and gearing before installation.
• Use only batteries and connectors that match the system voltage and XT60 input connector.
• Set the BEC voltage to suit your receiver and steering servo specifications.
• Waterproof protection can reduce over time with wear, damage or ageing, so avoid prolonged immersion.
• Compatible Hobbywing program box is not included.
