HOBBYWING XeRun 4268SD G3 RC Brushless Motor 2800kV 1/8 On-Road HW30401909
Couldn't load pickup availability

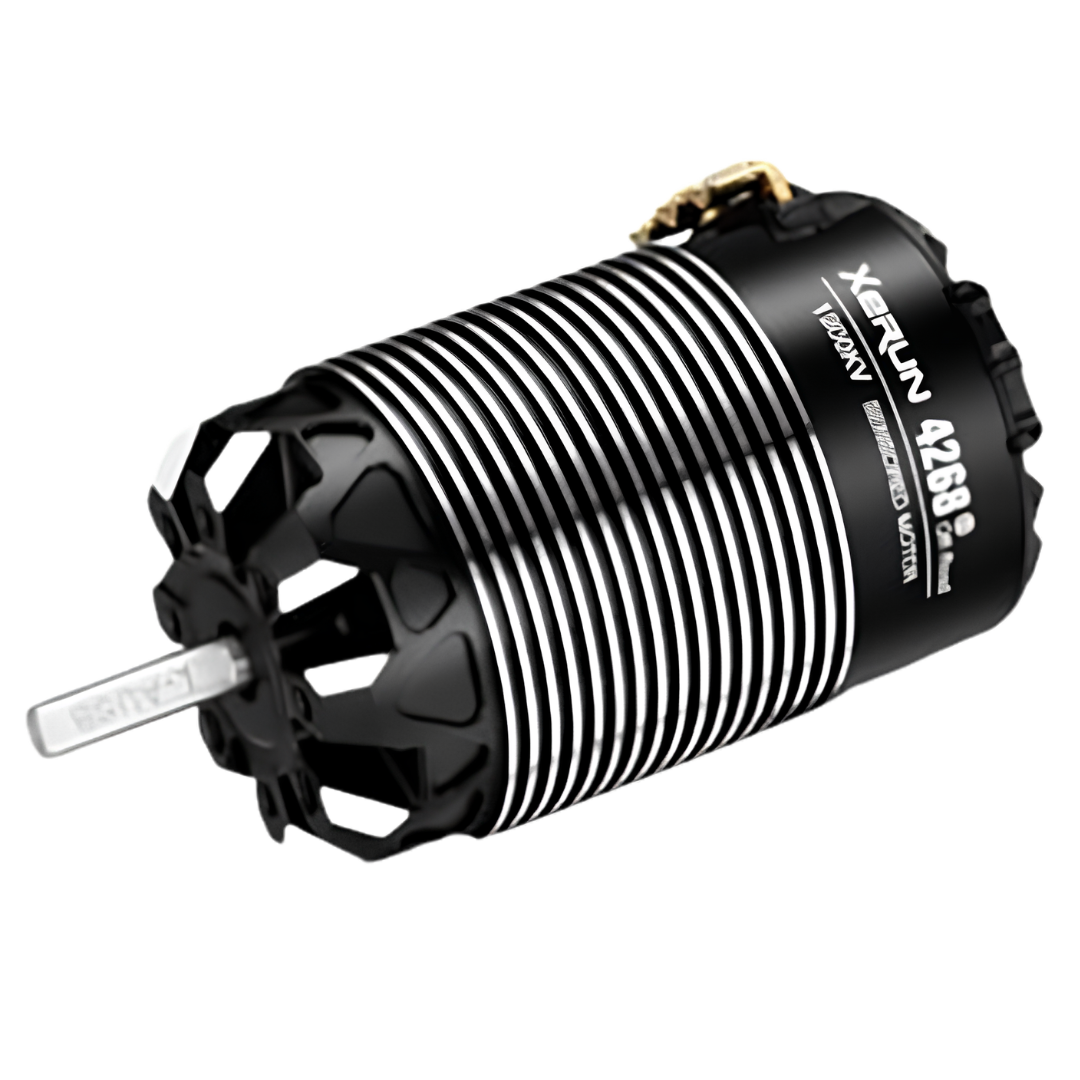

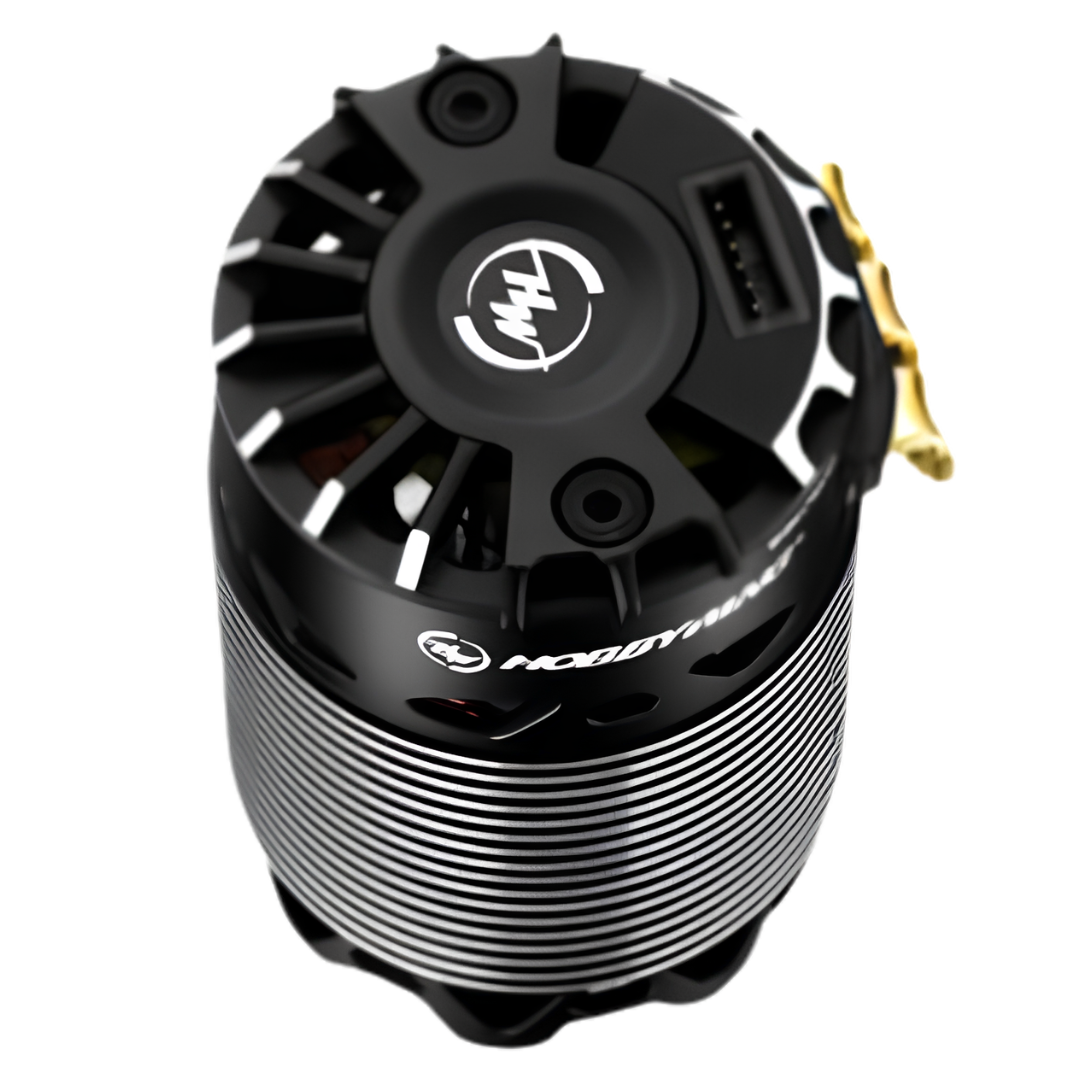

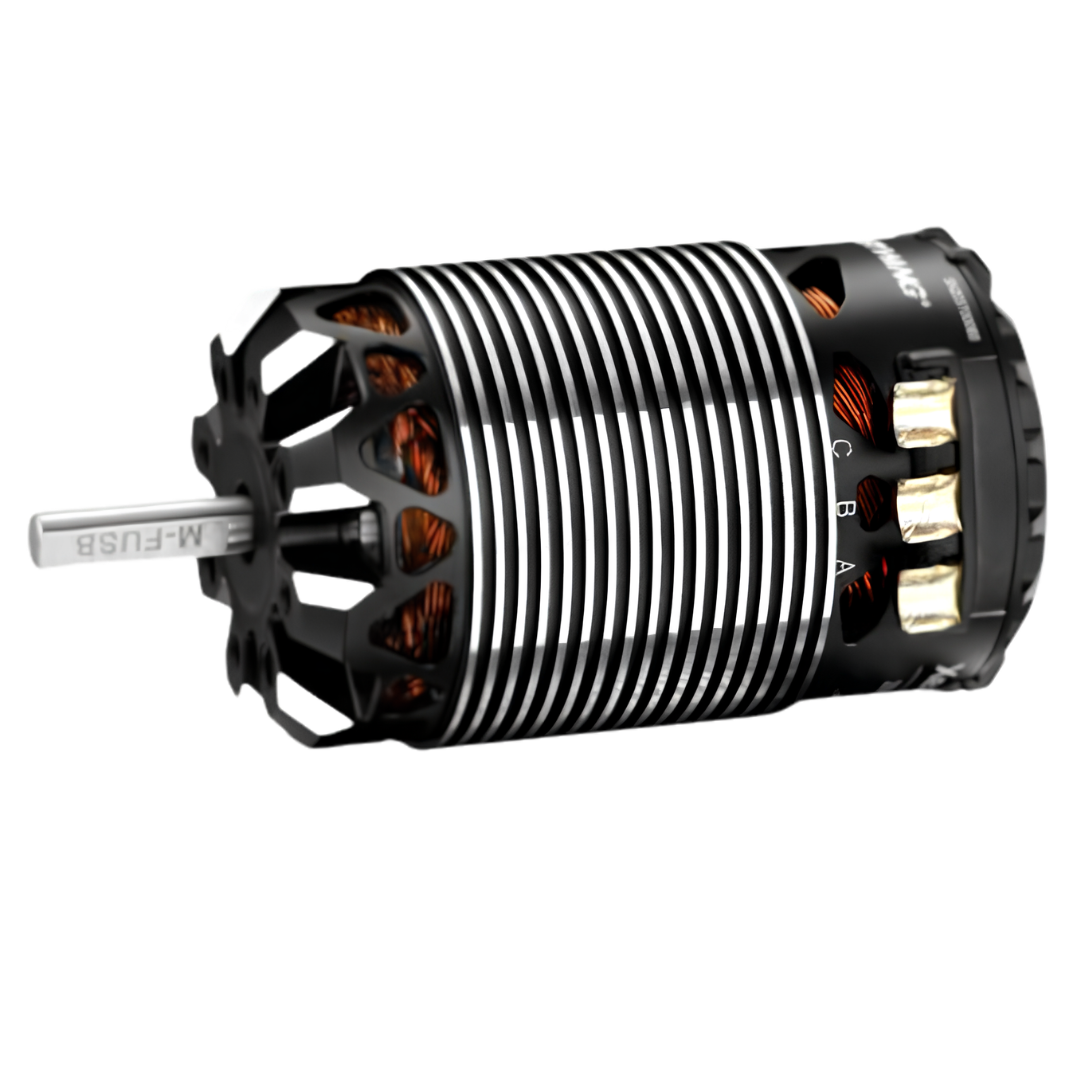

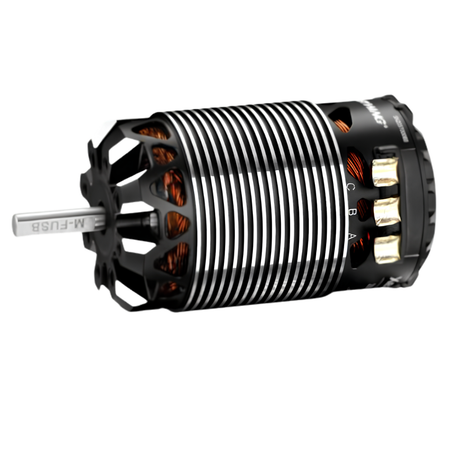

The HOBBYWING XeRun 4268SD G3 2800kV is a sensored brushless motor designed for 1/8 scale on-road RC racing. Engineered for use with Hobbywing XeRun XR8 series ESCs, it delivers smooth sensored operation, adjustable mechanical timing and high efficiency for competitive performance.
Features
- Designed for 1/8 scale on-road RC competition vehicles
- 2800kV four-pole sensored brushless motor
- Built-in electronic identification chip for seamless pairing with Hobbywing XeRun XR8 series ESCs
- Supports full-time sensored operation when used with compatible XeRun XR8 ESCs
- Compatible with Hobbywing Turbo Timing technology for increased top-end performance
- Adjustable mechanical timing from 20° to 40° for fine power tuning
- Low cogging torque for exceptionally smooth low-speed operation
- Precision CNC-machined aluminium housing for strength and efficient heat dissipation
- Gold-plated copper solder tabs for low resistance and easy wiring
- High-temperature winding materials and premium bearings for demanding racing conditions
- Multiple front mounting hole patterns for broad installation compatibility
Specifications
- Brand: HOBBYWING
- Manufacturer Part Number: HW30401909
- Barcode: 6938994419789
- Product Type: Sensored brushless motor
- Scale: 1/8
- Application: On-Road
- Motor Series: XeRun 4268SD G3
- Motor Type: Brushless
- Sensor Type: Sensored
- Pole Count: 4
- kV Rating: 2800kV
- Input Voltage: 2-4S LiPo
- No-Load Current: 6.1A
- Motor Diameter: 42mm
- Motor Length: 67.8mm
- Shaft Diameter: 5.0mm
- Weight: 300g
- Front Bearing: 16 × 5 × 5mm
- Rear Bearing: 11 × 5 × 5mm
- Mechanical Timing: Adjustable 20°-40°
Includes
- 1 × HOBBYWING XeRun 4268SD G3 2800kV Sensored Brushless Motor
FAQ
What vehicles is this motor designed for? This motor is designed for 1/8 scale on-road RC racing vehicles requiring a high-performance sensored brushless motor.
Can this motor operate in full sensored mode? Yes. When paired with a compatible Hobbywing XeRun XR8 series ESC, the motor operates in full sensored mode for smooth throttle response and precise control.
Is the motor timing adjustable? Yes. The mechanical timing can be adjusted from 20° to 40° to fine-tune power delivery for different track conditions.
What battery voltage does this motor support? The XeRun 4268SD G3 2800kV is designed for use with 2S to 4S LiPo battery packs when paired with a suitable ESC.
Important Notes
- This motor is intended for 1/8 scale on-road applications.
- A compatible brushless ESC is required and is sold separately.
- Turbo Timing functions are available only when used with compatible Hobbywing XeRun XR8 series ESCs.
- Select appropriate gearing and monitor motor temperatures during operation to maximise performance and reliability.
