Hobbywing Xerun V10 G5 17.5T Torque 1/10 Motor Black 30401764

The Hobbywing Xerun V10 G5 17.5T Torque is a sensored brushless stock racing motor for 1/10 and 1/12 RC racers needing smooth throttle response, torque-focused power delivery and efficient 1S to 3S LiPo performance.

This black G5 Torque motor uses Hobbywing’s JUS torque rotor, adjustable Hall sensor tuning, improved heat dissipation and a modular rebuildable design to suit medium to high-grip tracks and small to medium-sized racing layouts.

Features

• 17.5T Torque version suits stock-class RC racing where strong drive out of corners is required
• 3000KV rating provides controlled stock motor performance for compatible race setups
• Sensored brushless design supports smooth throttle control with a suitable sensored ESC
• JUS torque rotor is designed for medium to high-grip conditions and small to medium-sized tracks
• New endbell design exposes more winding area to improve heat dissipation
• Rotor cooling design helps reduce operating temperature and improve run-to-run consistency
• G5 design is 13g lighter than the previous G4R version for improved weight placement
• Weight is shifted closer to the vehicle centreline to help chassis balance

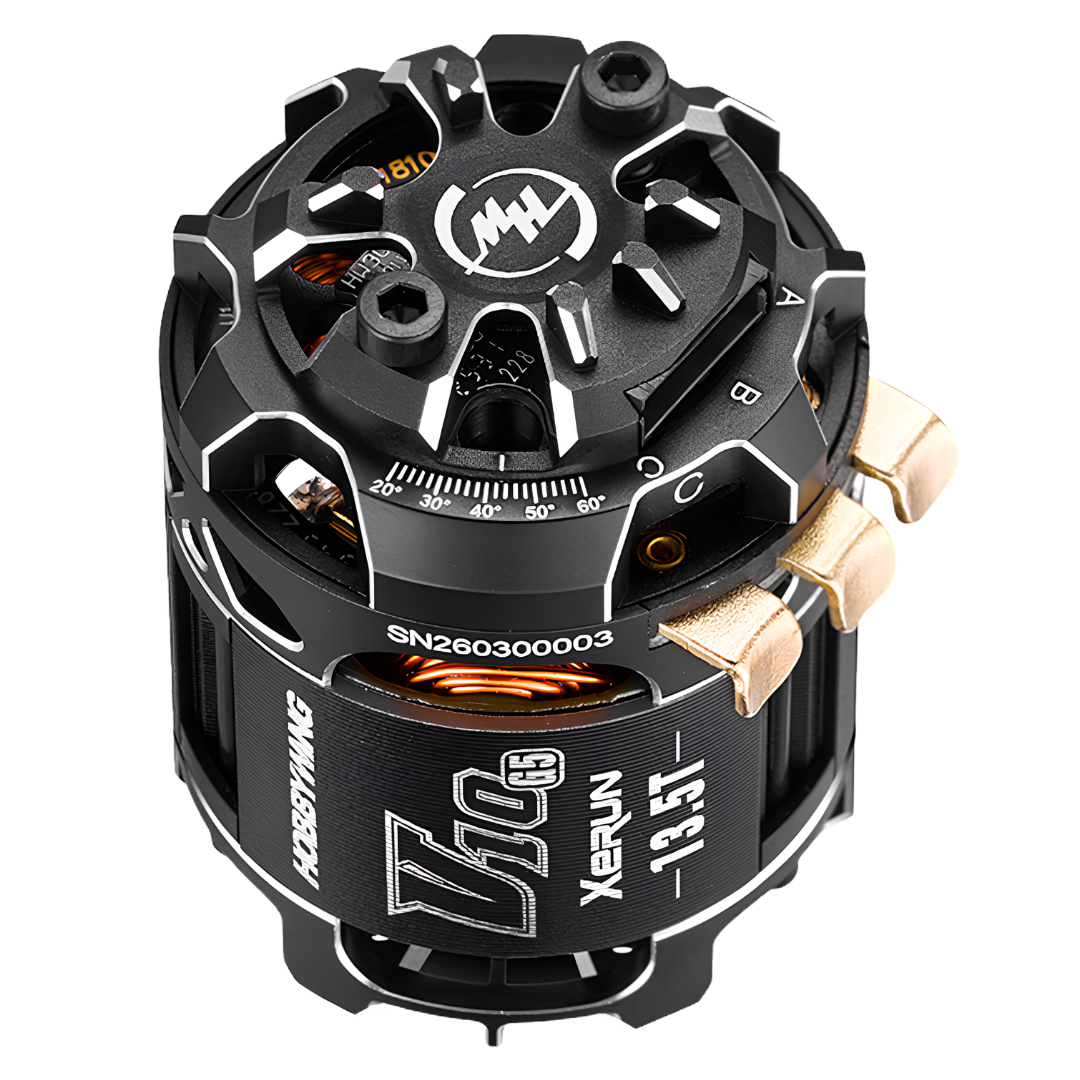

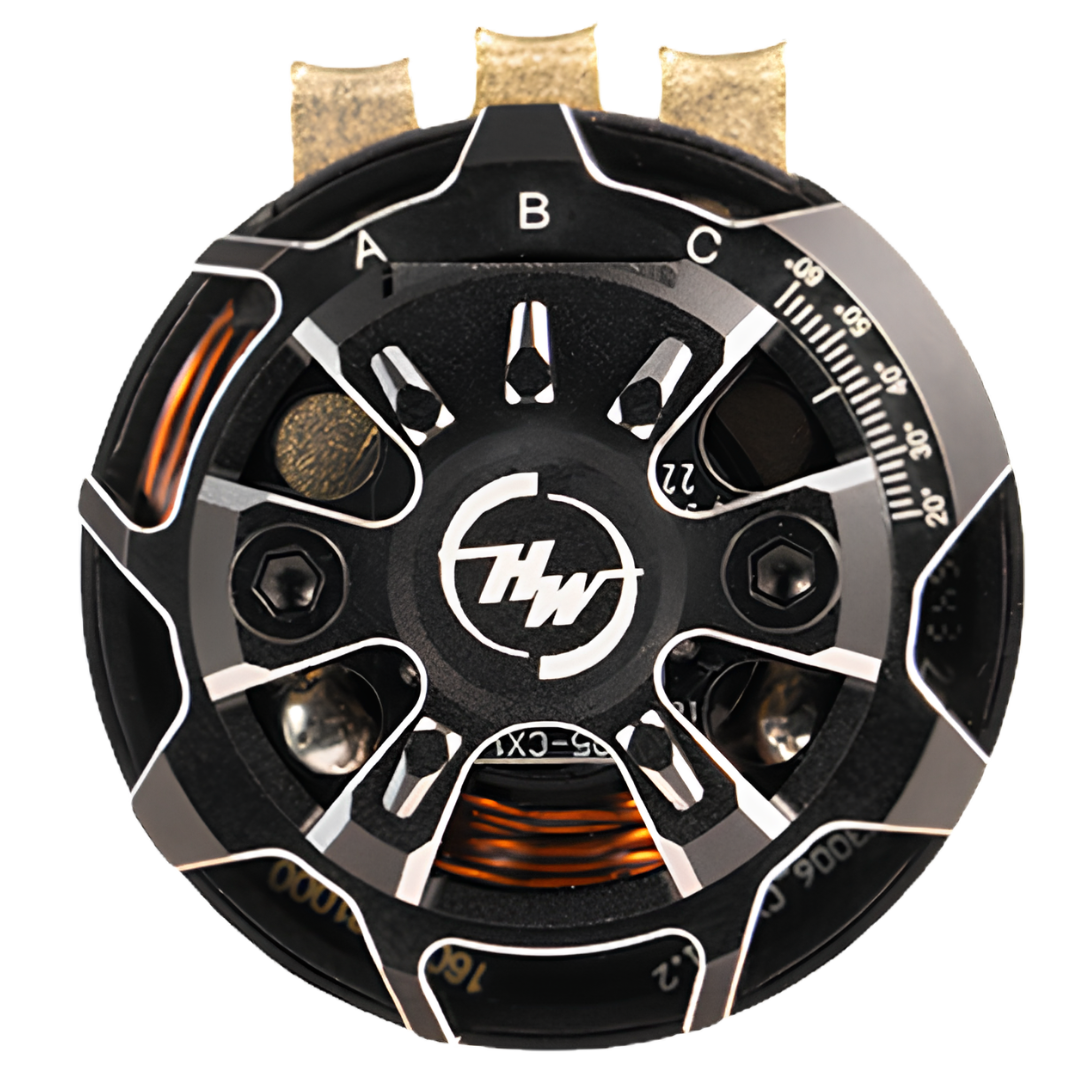

• Adjustable Hall timing accuracy allows fine tuning of sensor response
• Adjustable Hall sensing distance provides three settings to tune power delivery feel

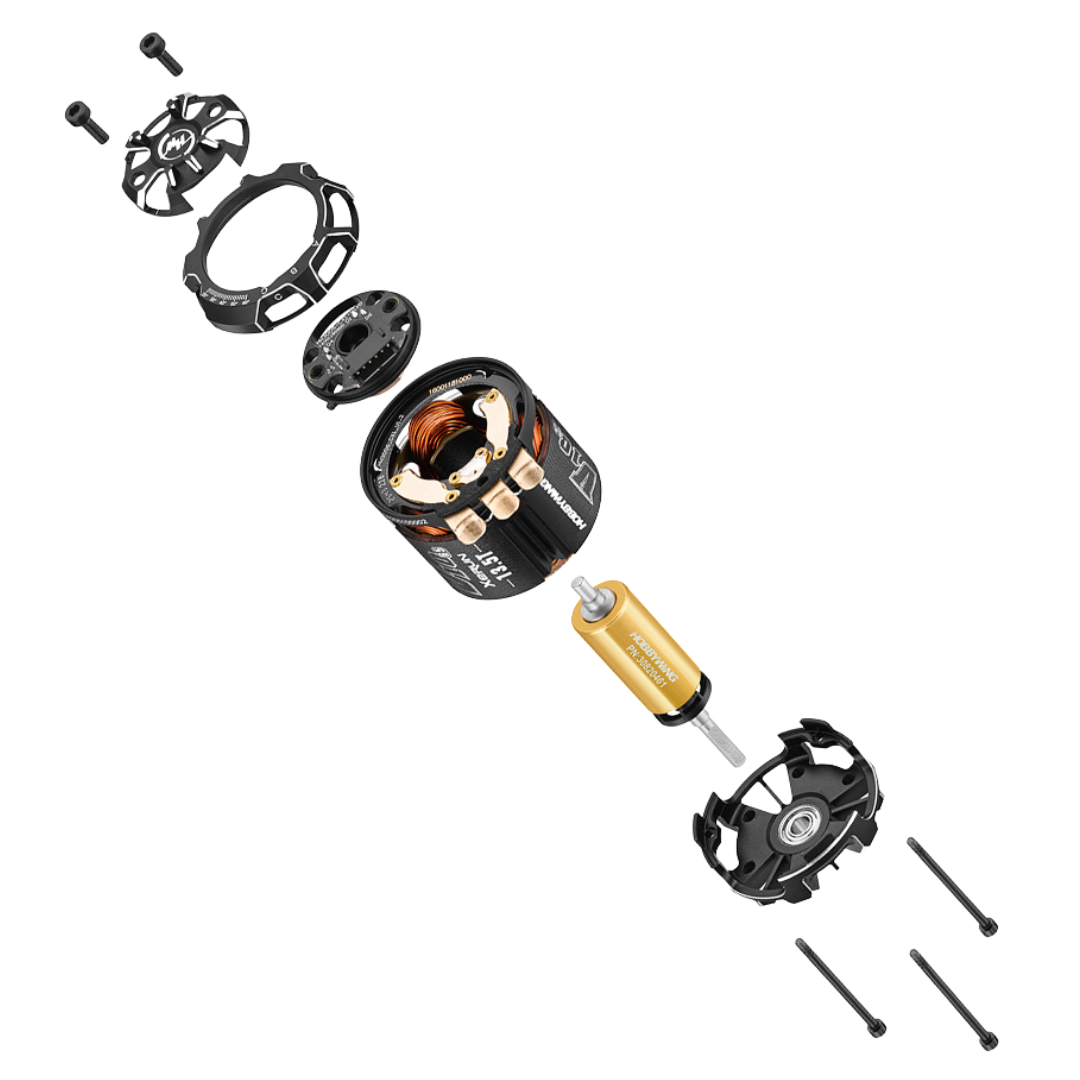

• Modular motor design allows easier cleaning and maintenance between race meetings
• High-performance stator core, reinforced rotor and quality bearings support demanding racing use
• Designed for 1/10 and 1/12 stock racing applications

Specifications

• Brand: Hobbywing
• Model: Xerun V10 G5 17.5T Torque
• SKU / Part Number: HW30401764 / 30401764
• Barcode Supplied: 5051294217433
• Alternate EAN Listed by Retailers: 6938994429412
• Product Type: Sensored brushless motor
• Scale: 1/10
• Motor Class: Stock
• Motor Type: Brushless
• Sensor Type: Sensored
• Pole Count: 2-pole
• Turns: 17.5T
• KV Rating: 3000KV
• LiPo Cells: 1S to 3S LiPo
• No-Load Current: 5.0A
• Motor Diameter: 35.8mm
• Motor Length: 51.5mm
• Shaft Diameter: 3.175mm
• Weight: 138g
• Front Bearing: D9 x D4 x T4
• Rear Bearing: D8 x D3 x T4
• Standard Rotor: Φ7-12.5 x 25.2-JUS
• Recommended ESC: Hobbywing XeRun XR10 Pro G3 / G3X
• Recommended Applications: 1/10 and 1/12 stock racing
• Colour: Black
• Country / Region of Origin: China

Includes

• 1 x Hobbywing Xerun V10 G5 17.5T Torque sensored brushless motor

FAQ

What does the Torque version suit? The Hobbywing Xerun V10 G5 17.5T Torque version is designed for medium to high-grip tracks and small to medium-sized racing layouts where stronger torque delivery is useful.

Is the Xerun V10 G5 17.5T Torque sensored? Yes. The Hobbywing Xerun V10 G5 17.5T Torque is a sensored brushless motor designed for use with a compatible sensored ESC.

What battery voltage can this motor use? Hobbywing lists the Xerun V10 G5 17.5T Torque motor for 1S to 3S LiPo use, but OZRC recommends checking your ESC limits and race class rules before installation.

What ESC is recommended for this motor? Hobbywing lists the XeRun XR10 Pro G3 / G3X as the recommended ESC range for the 17.5T Torque motor.

Important Notes

• Use only with a suitable sensored brushless ESC and vehicle setup.
• Confirm race class legality before use, as stock motor rules vary by club, event and governing body.
• Incorrect gearing, timing, boost or turbo settings may overheat or damage the motor or ESC.
• Check motor and ESC temperatures after changing gearing, timing or ESC settings.

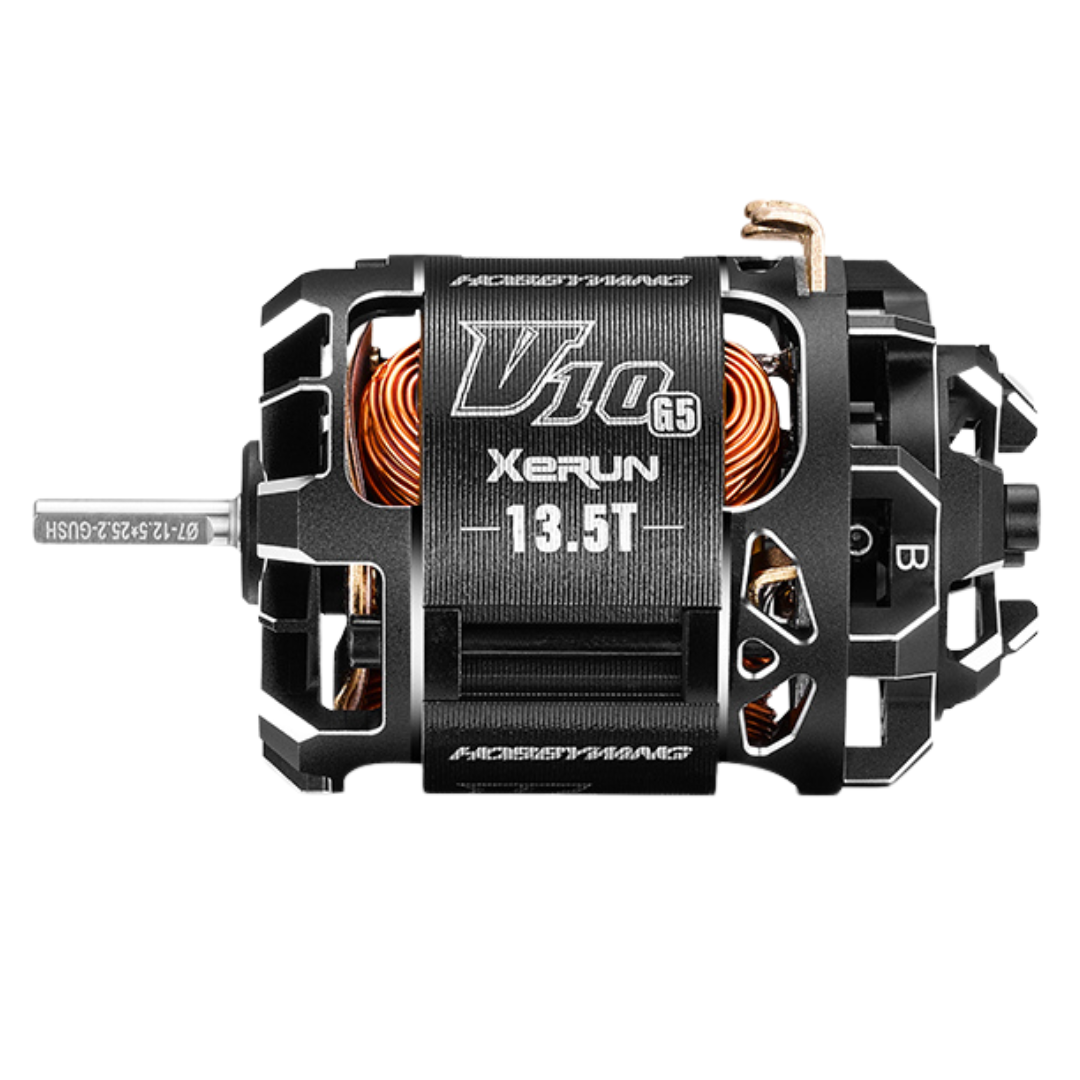

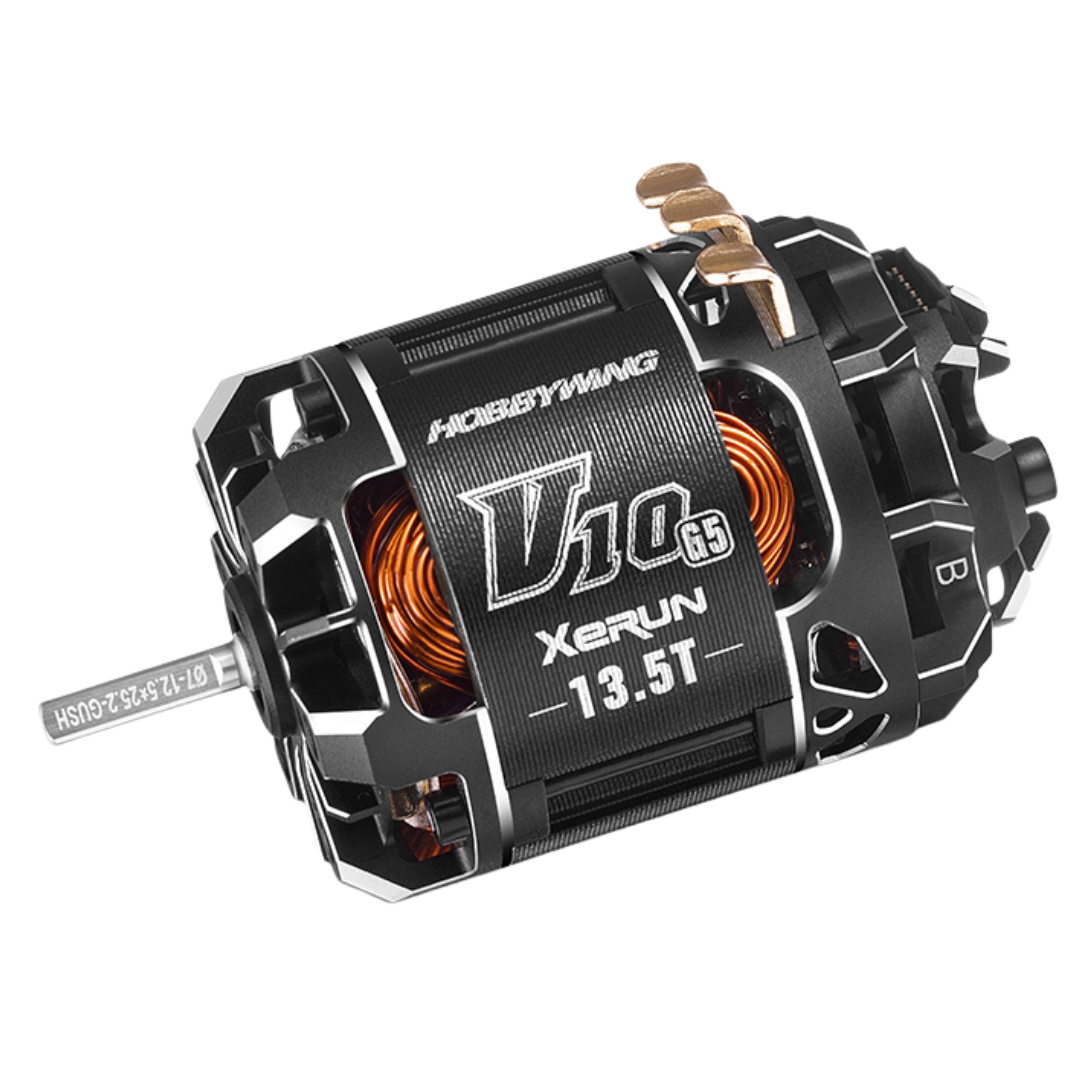

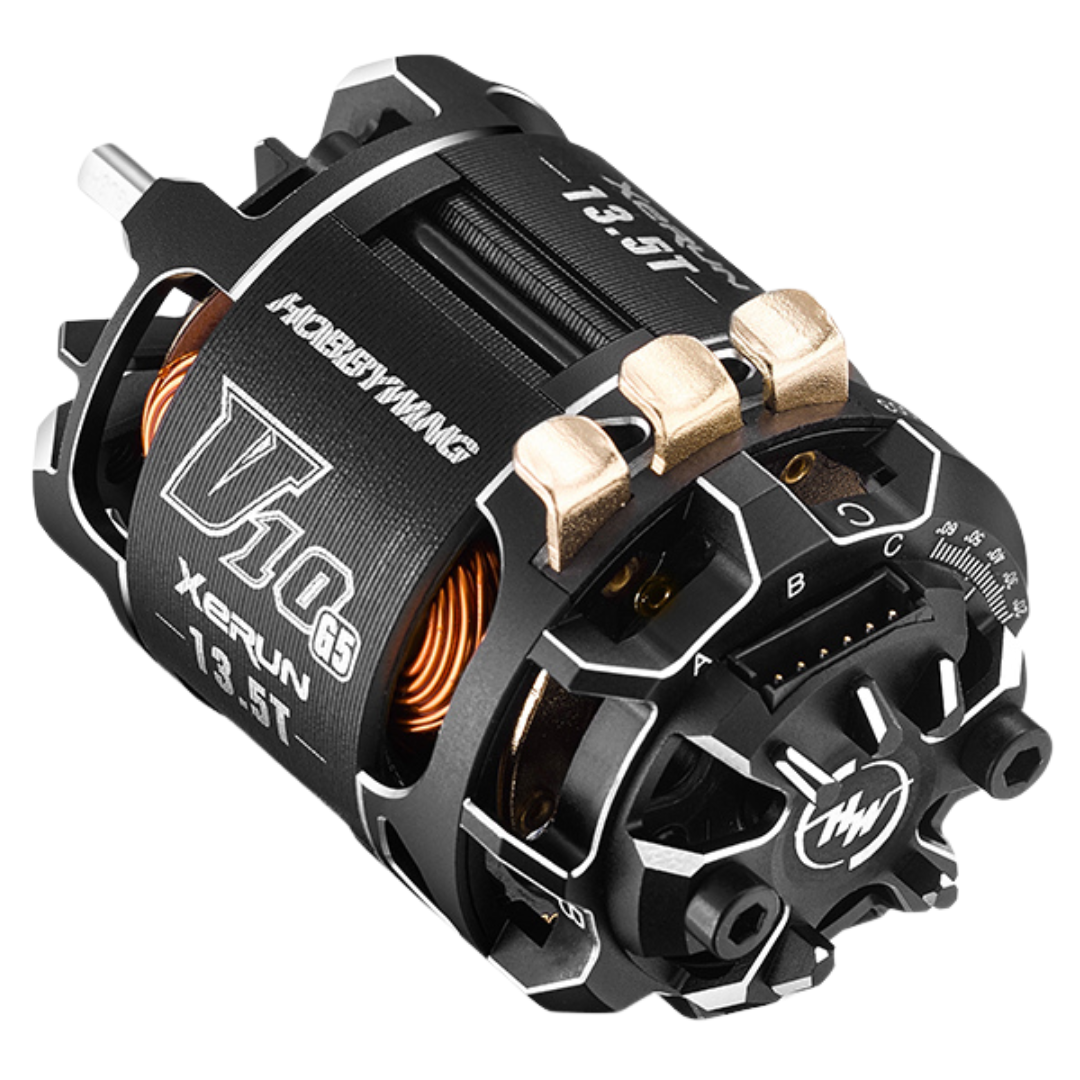

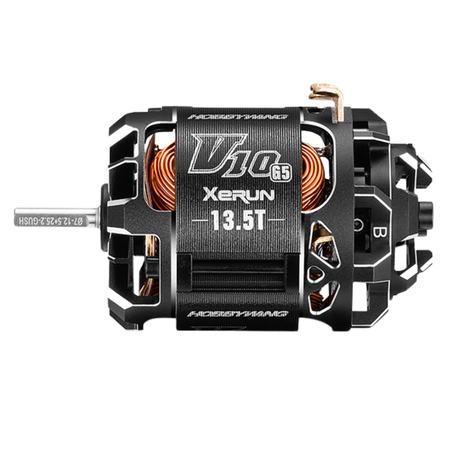

• Images from some suppliers may show the 13.5T version; this listing is for the 17.5T Torque motor.
• ESC, battery, charger, sensor cable, pinion gear, motor wires and connectors are not listed as included.
