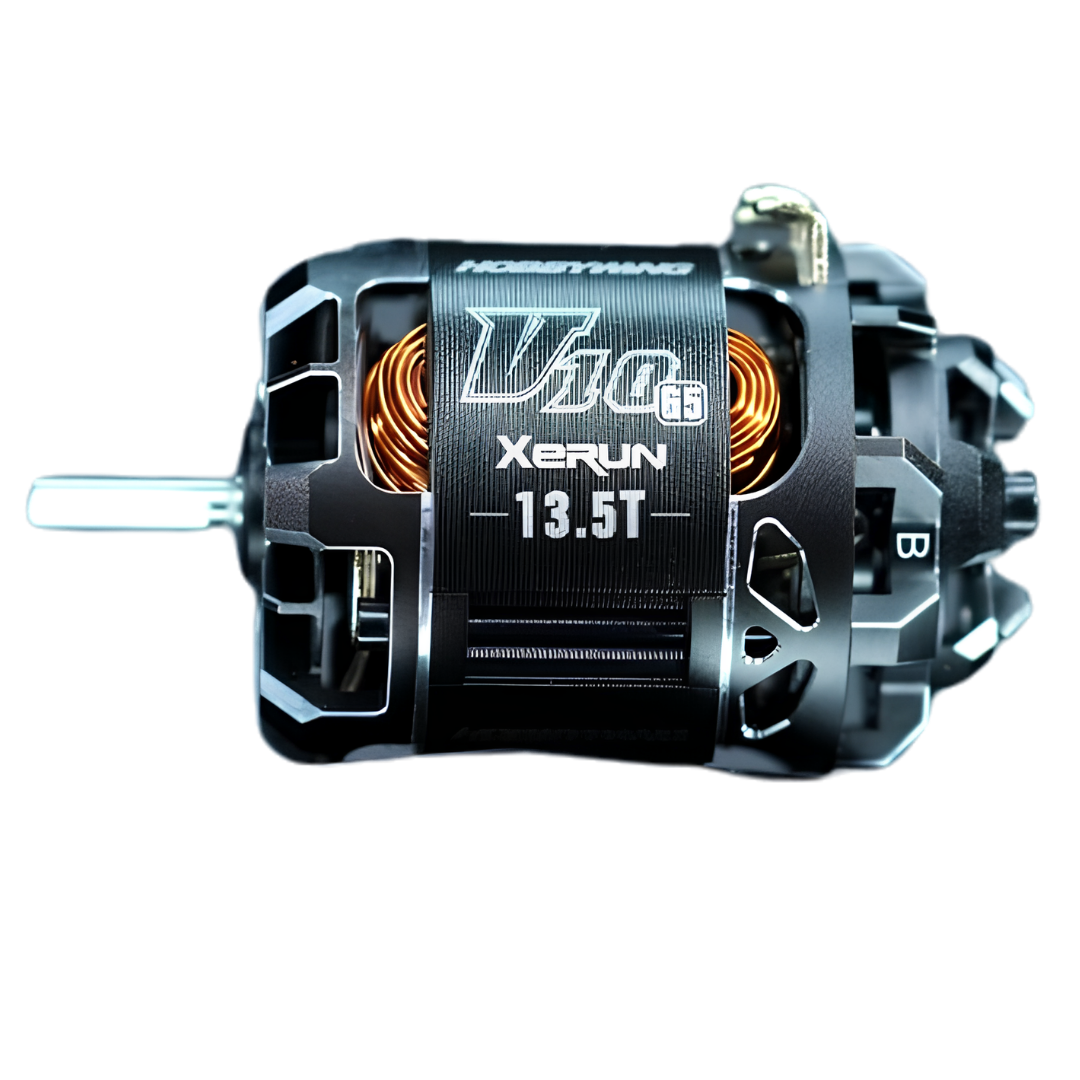

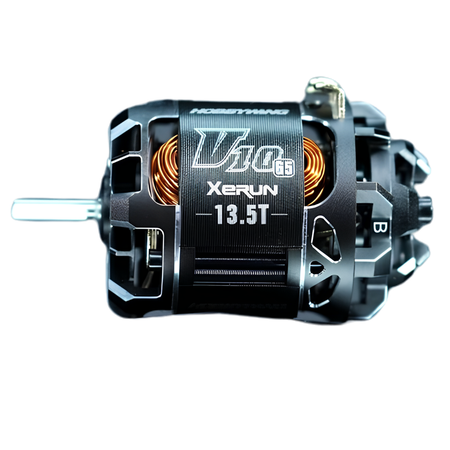

Hobbywing XeRun V10 G5 Torque 13.5T 3900KV Sensored Brushless Motor 1/10 Black HW30401763

The Hobbywing XeRun V10 G5 Torque 13.5T is a 3900KV sensored brushless racing motor designed for 1/10 and 1/12 scale RC stock racing, featuring a high-strength rotor for improved power delivery under load on medium to high-grip tracks.

Features

• Torque-Specific Configuration: Equipped with a higher-strength rotor designed for stronger power delivery under load, particularly on medium to high-grip tracks and smaller racing circuits.
• 3900KV 13.5T Motor: Developed for competitive stock-class RC racing where controlled acceleration, consistent performance and efficient power delivery are important.
• High-Strength Torque Rotor: Factory-equipped with Hobbywing rotor 30820462, distinguishing the Torque edition from the higher-RPM Standard version.
• Sensored Brushless Operation: Provides precise rotor position feedback for smooth throttle response when connected to a compatible sensored ESC.
• Improved Cooling Design: Exposed stator windings, enlarged ventilation openings and integrated rotor cooling help dissipate heat during demanding racing conditions.
• Adjustable Hall Sensor Position: Replaceable 0.1mm, 0.2mm and 0.3mm shims allow adjustment of the sensor-to-magnet gap for additional motor tuning.
• Lightweight Racing Construction: Approximately 138g motor weight supports chassis balance and weight distribution adjustments.
• High-Temperature Rotor Design: Features a reinforced rotor with a 180°C temperature-rated construction.
• Quality Internal Components: Incorporates premium stator materials, precision bearings and heavy-duty copper solder tabs.
• Modular Construction: Serviceable housing design provides access for inspection, cleaning and routine motor maintenance.
• Factory Black Finish: Black motor housing complements contemporary competition RC touring car and off-road chassis builds.

Specifications

• Brand: Hobbywing
• Product Range: XeRun V10 G5
• Model: XeRun V10 G5 13.5T Torque
• Manufacturer Part Number: 30401763
• SKU: HW30401763
• Product Type: Sensored Brushless Racing Motor
• Motor Version: Torque
• Colour: Black
• Compatible Scale: 1/10 and 1/12
• Motor Turns: 13.5T
• KV Rating: 3900KV
• Motor Type: Sensored Brushless
• Motor Poles: 2
• Supported Battery Configuration: 1–3S LiPo
• Internal Resistance: 0.0208 Ohm
• No-Load Current: 6.0A
• Motor Diameter: 35.8mm
• Motor Length: 51.5mm
• Shaft Diameter: 3.175mm
• Shaft Length: 15mm
• Weight: Approximately 138g
• Standard Rotor: 7-12.5 x 25.2mm JUS
• Rotor Part Number: 30820462
• Front Bearing: 9 x 4 x 4mm
• Rear Bearing: 8 x 3 x 4mm
• Hall Sensor Gap Adjustment: Replaceable Shims
• Application: 1/10 and 1/12 Scale Stock-Class RC Racing

Includes

• 1 x Hobbywing XeRun V10 G5 Torque 13.5T 3900KV Sensored Brushless Motor in Black

FAQ

What is the difference between the XeRun V10 G5 13.5T Standard and Torque versions? The Standard version is rated at 4050KV and uses rotor 30820461 for higher RPM applications. The Torque version is rated at 3900KV and uses a higher-strength rotor, part 30820462, designed for greater load conditions and medium to high-grip tracks.

Is the Hobbywing XeRun V10 G5 Torque suitable for off-road racing? Yes. The XeRun V10 G5 13.5T Torque is designed to suit higher-load racing applications, including compatible 1/10 scale off-road vehicles. OZRC recommends confirming the motor turn limits and approved equipment in the relevant racing class.

Can the Hall sensor position be adjusted? Yes. The XeRun V10 G5 allows adjustment of the Hall sensor-to-magnet gap using replaceable shims. Correct adjustment is important to prevent contact or damage to the sensor and rotor components.

What battery voltage does the XeRun V10 G5 13.5T Torque support? Hobbywing specifies 1–3S LiPo compatibility for the XeRun V10 G5 13.5T Torque motor. The battery configuration must also be supported by the ESC, gearing and vehicle installation.

Important Notes

• This listing is for the brushless motor only. A compatible ESC, battery, chassis and other required RC vehicle components are sold separately.
• The Torque edition uses a different factory rotor from the Standard 13.5T version. Confirm the version when selecting replacement rotors or tuning components.
• Check your racing organisation's motor approval lists and class regulations before using this motor in sanctioned stock-class competition.
• Confirm adequate motor clearance, mounting screw engagement, gearing and ESC compatibility before installation.
• Monitor motor temperatures during operation. Excessive heat can reduce motor performance and damage internal components.
