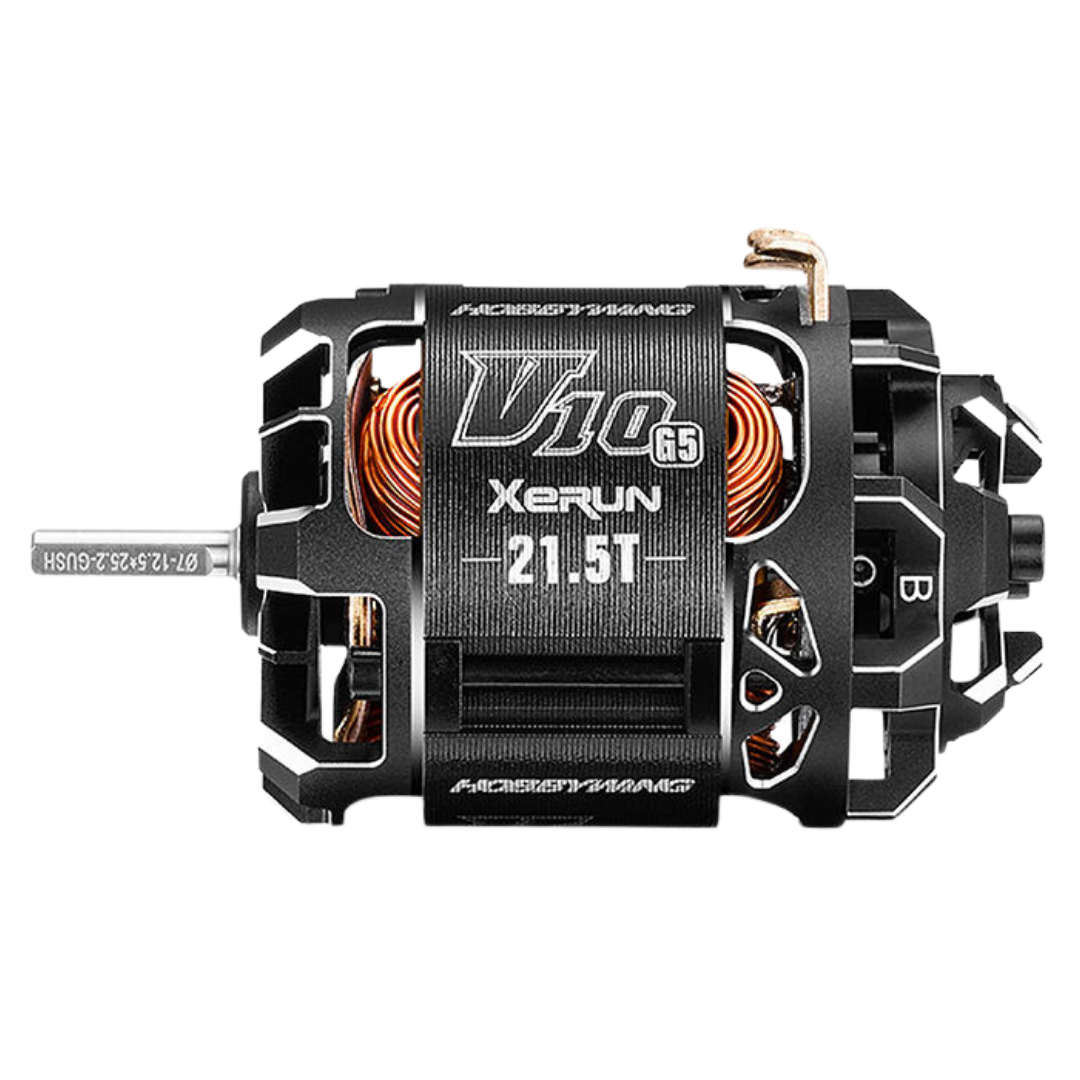

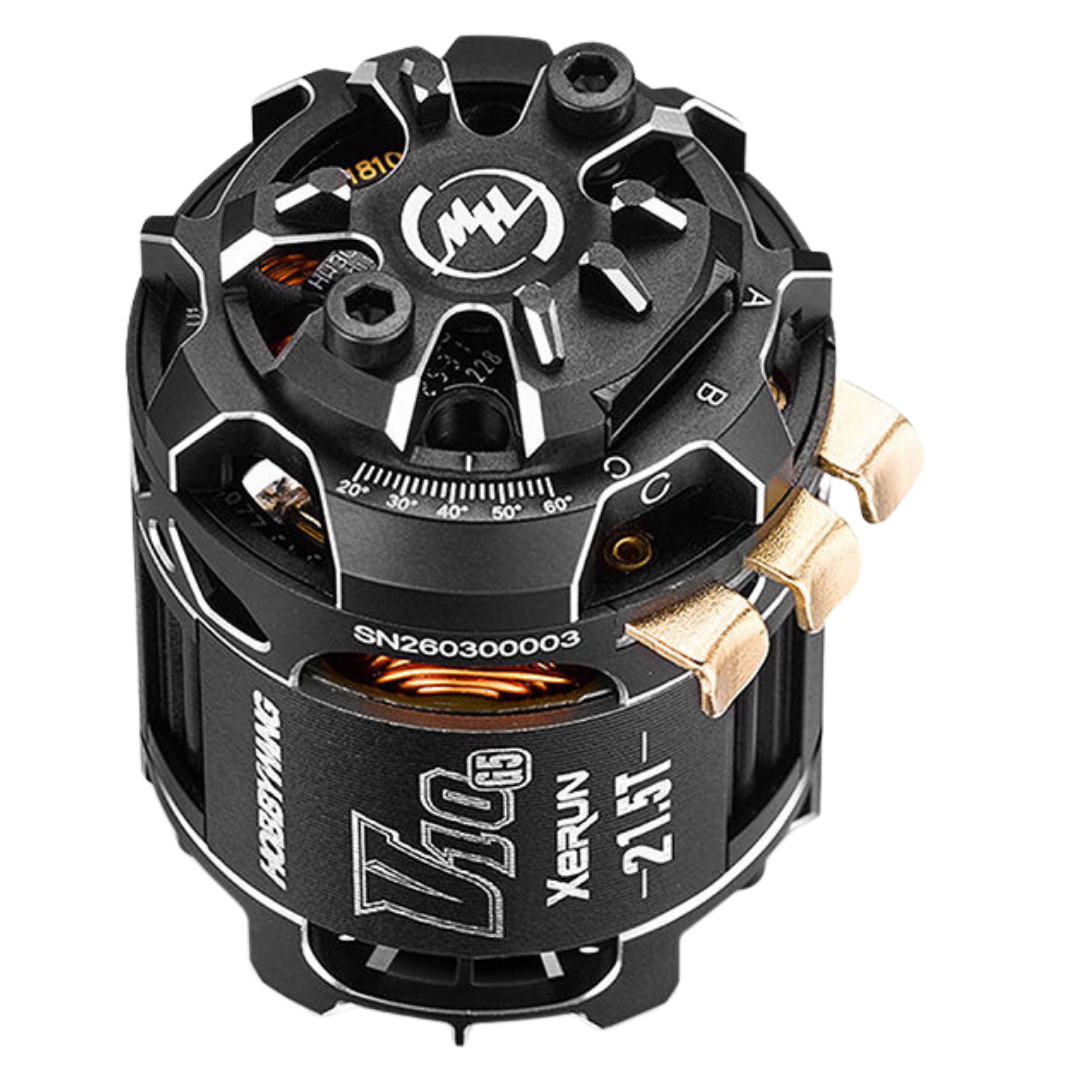

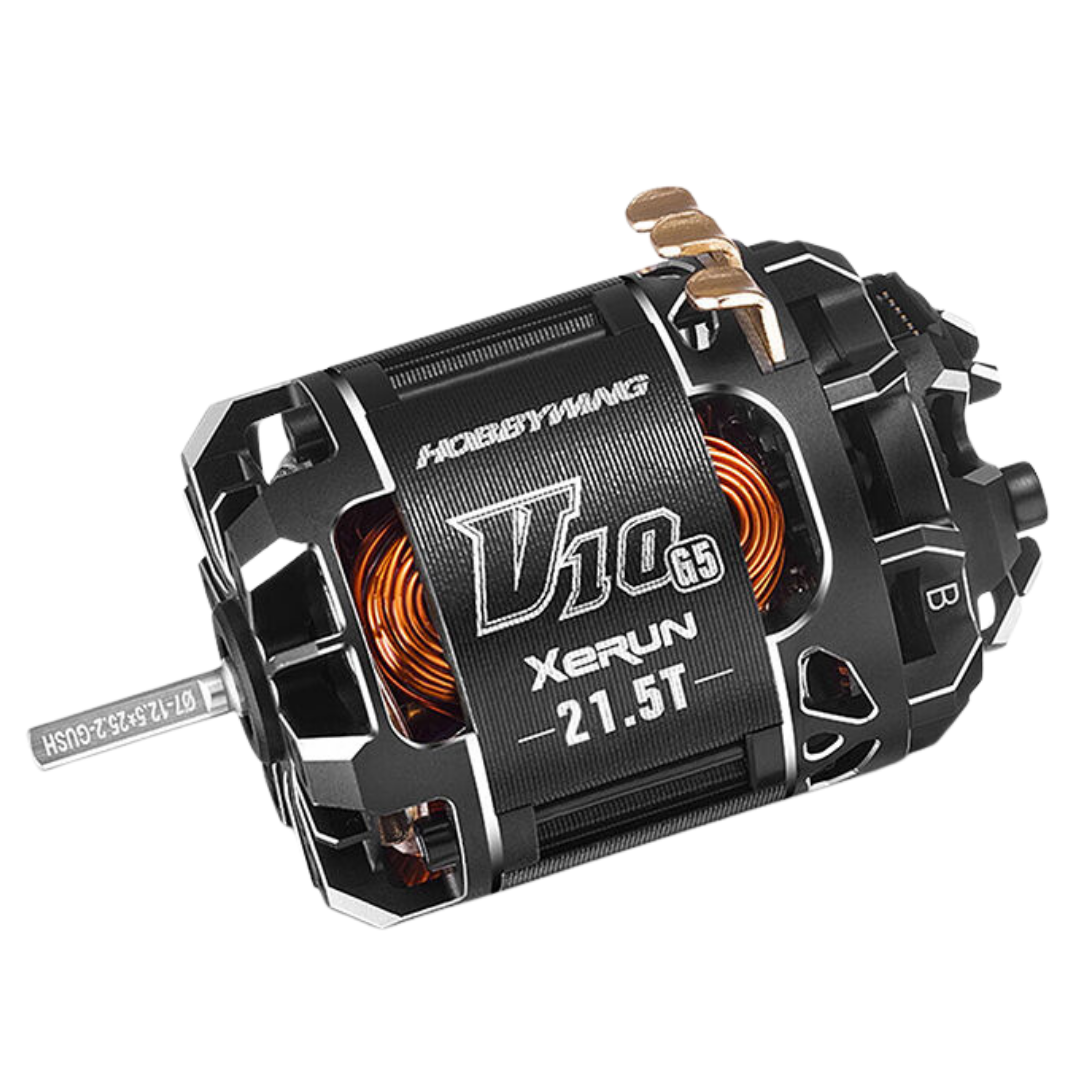

Hobbywing XeRun V10 G5 Torque 21.5T Sensored Brushless Motor Black HW30401767

The Hobbywing XeRun V10 G5 Torque 21.5T is a 2500KV sensored brushless racing motor for 1/10 and 1/12 stock classes, combining a high-torque rotor, adjustable sensor geometry, improved cooling and a lightweight 138g design for precise power delivery and consistent race performance

Features

• 21.5T Torque version of the XeRun V10 G5 sensored brushless motor
• 2500KV rating
• Designed for 1/10 and 1/12 stock racing
• High-strength Torque rotor for responsive power delivery
• 2-pole sensored brushless construction
• Improved thermal design exposes more winding area for better heat dissipation
• Patented rotor cooling design helps reduce operating temperature
• Adjustable Hall sensor timing for fine tuning motor response and efficiency
• Adjustable Hall sensor-to-rotor sensing distance using interchangeable shims
• Modular construction simplifies cleaning inspection and maintenance
• Optimised internal weight distribution helps centralise mass in the chassis
• High-temperature reinforced rotor construction
• Premium stator core and high-quality bearings

Specifications

• Brand: Hobbywing
• Series: XeRun V10 G5 Torque
• Product Type: Sensored Brushless Racing Motor
• Turns: 21.5T
• KV Rating: 2500KV
• Scale: 1/10
• Application: 1/10 and 1/12 Stock Racing
• Motor Type: Brushless
• Sensor Type: Sensored
• Pole Count: 2
• Supported Battery: 1S to 3S LiPo
• No-Load Current: 3.5A
• Motor Diameter: 35.8mm
• Motor Length: 51.5mm
• Shaft Diameter: 3.175mm
• Weight: 138g
• Front Bearing: 9 x 4 x 4mm
• Rear Bearing: 8 x 3 x 4mm
• Standard Rotor: Φ7-12.5 x 25.2 JUS
• Recommended ESC: Hobbywing XeRun XR10 PRO G3 or G3X
• Colour: Black
• Barcode: 5051294220051
• Manufacturer Part Number: HW30401767

Includes

• 1 x Hobbywing XeRun V10 G5 Torque 21.5T Sensored Brushless Motor Black

FAQ

What is the difference between the V10 G5 Torque and standard versions? Hobbywing developed the Torque variants around a higher-strength rotor intended to provide stronger torque characteristics for race setups where punch and drivability are prioritised

What classes is the 21.5T version designed for? Hobbywing specifically lists the 21.5T Torque motor for 1/10 and 1/12 stock racing applications

Can the sensor position be adjusted? Yes, the G5 design allows fine adjustment of Hall timing as well as the sensing distance between the Hall components and rotor using interchangeable shims

What ESC does Hobbywing recommend? Hobbywing recommends the XeRun XR10 PRO G3 or XR10 PRO G3X for the 21.5T Torque version

Does the motor support 3S LiPo? Hobbywing lists the motor itself as supporting 1S to 3S LiPo, although actual race-class rules and ESC limits should always be checked before use

Important Notes

• Confirm your racing class motor-turn battery and timing rules before competition use
• Motor gearing and ESC settings should be selected to keep operating temperatures within safe limits
• Hall sensor and rotor-spacing adjustments should be performed carefully to avoid contact or damage to the rotor and sensor components
