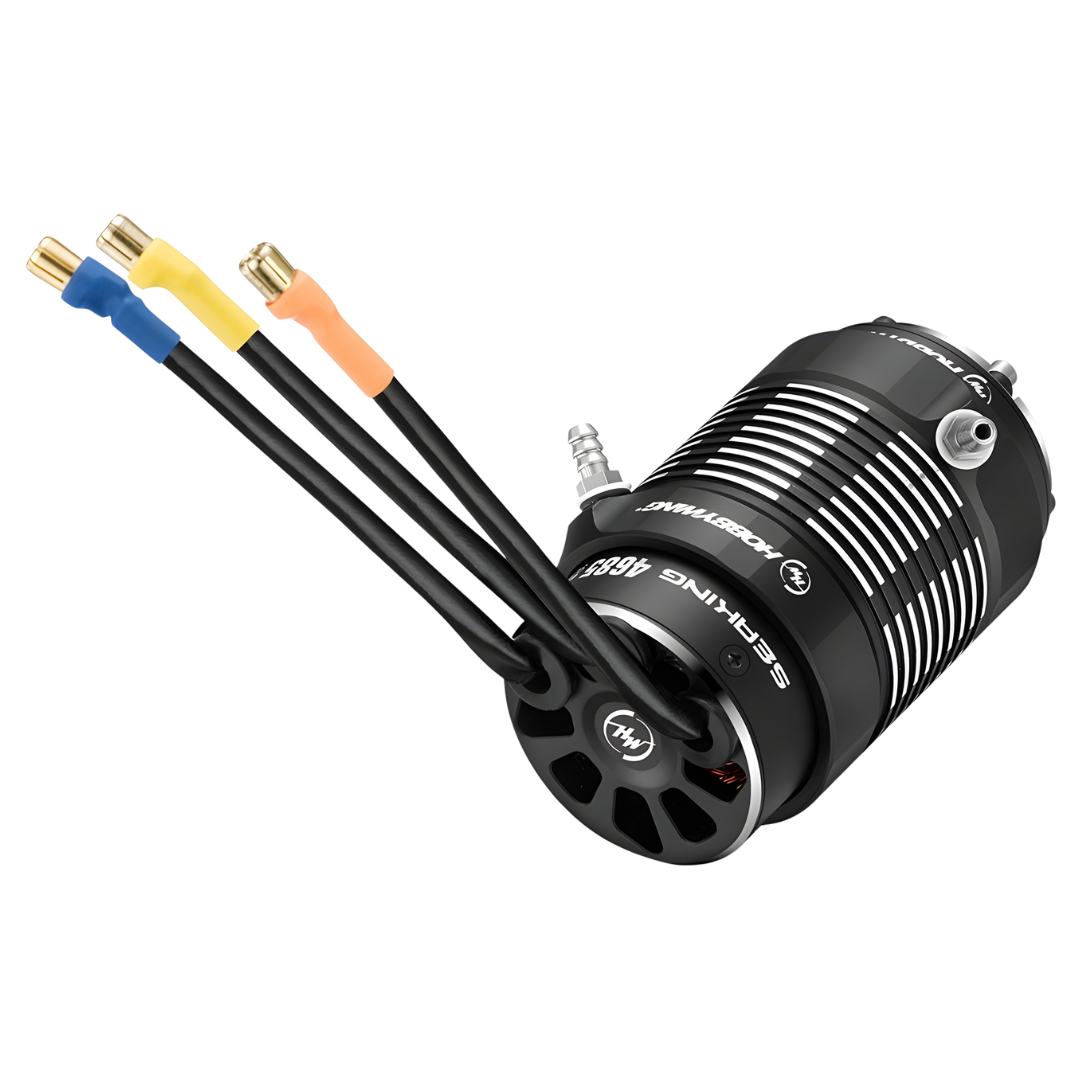

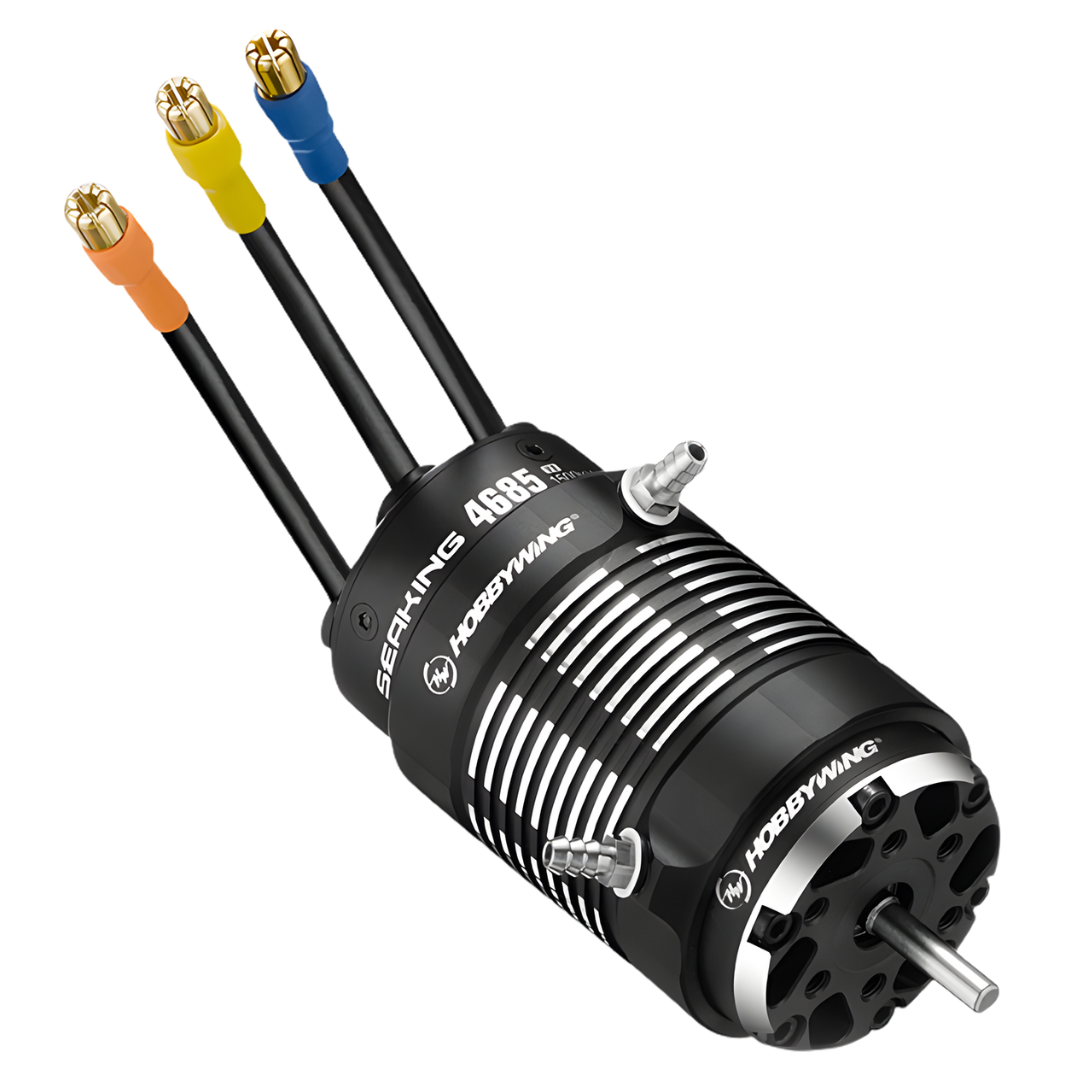

Hobbywingh 4685SL V2 1500KV Marine Motor Suits 6-8S Brushless 30419001

Engineered for high performance on the water, the Hobbywingh 4685SL V2 1500KV brushless marine motor offers powerful output, superior cooling, and robust durability—perfect for large RC boats up to 140cm. Pair it with the SeaKing 200A or 300A HV V4 ESC for optimal results.

Features

• High-output 1500KV brushless motor for large-scale marine applications
• Fan blade-shaped end caps and CNC-machined cooling fins for improved airflow
• Kevlar-wrapped rotor and explosion-proof construction for durability under stress
• Water-cooling jacket with internal circulation and external fins for efficient heat management
• Modular design enables quick and easy maintenance
• Visually striking design with golden-ratio inspired aesthetics

Specifications

• Type: Brushless Sensorless 4-Pole Marine Motor
• KV Rating: 1500
• Recommended LiPo: 6–8S
• No-load Current: 4.7A

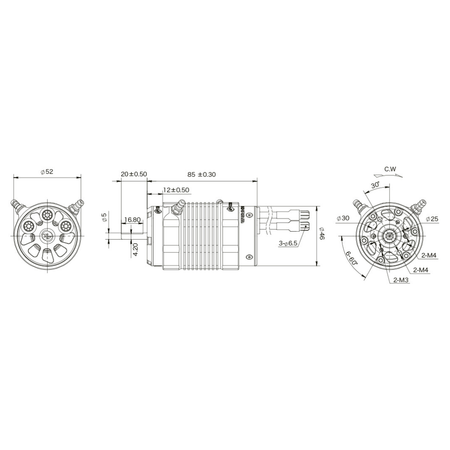

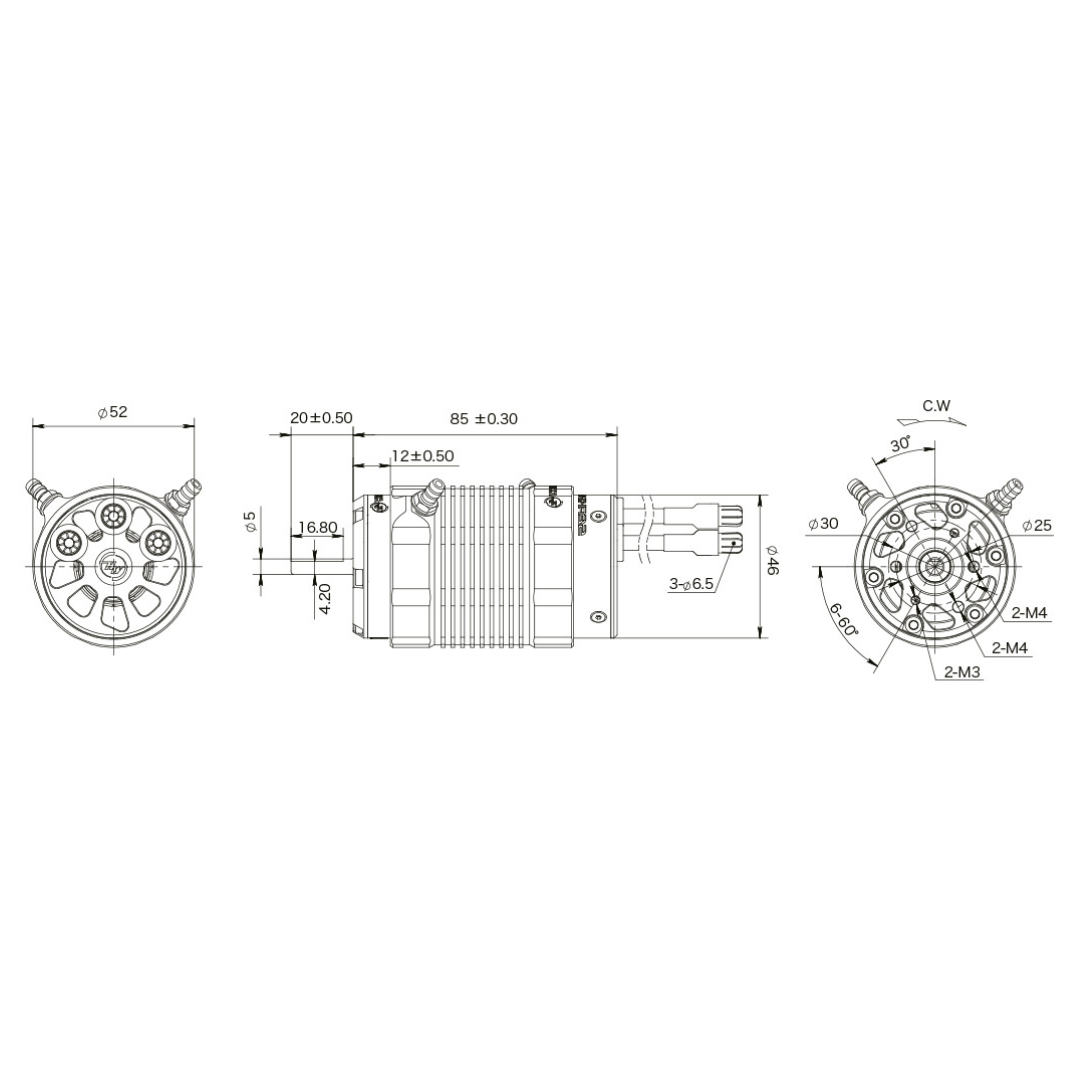

• Outer Diameter: 46mm
• Length: 85mm
• Shaft Diameter: 5mm
• Weight: 642g
• Front Bearing: OD19xID6xT6mm
• Rear Bearing: OD15xID6xT5mm
• Recommended ESC: Seaking 200A HV V4
• Recommended Boat Size: up to 140cm

Includes

• Hobbywingh 4685SL V2 1500KV Marine Motor
• Pre-installed Water Cooling Jacket
• User Manual

Important Notes

• Compatible only with 6–8S LiPo configurations
• For optimal performance and safety, use with recommended ESCs only
