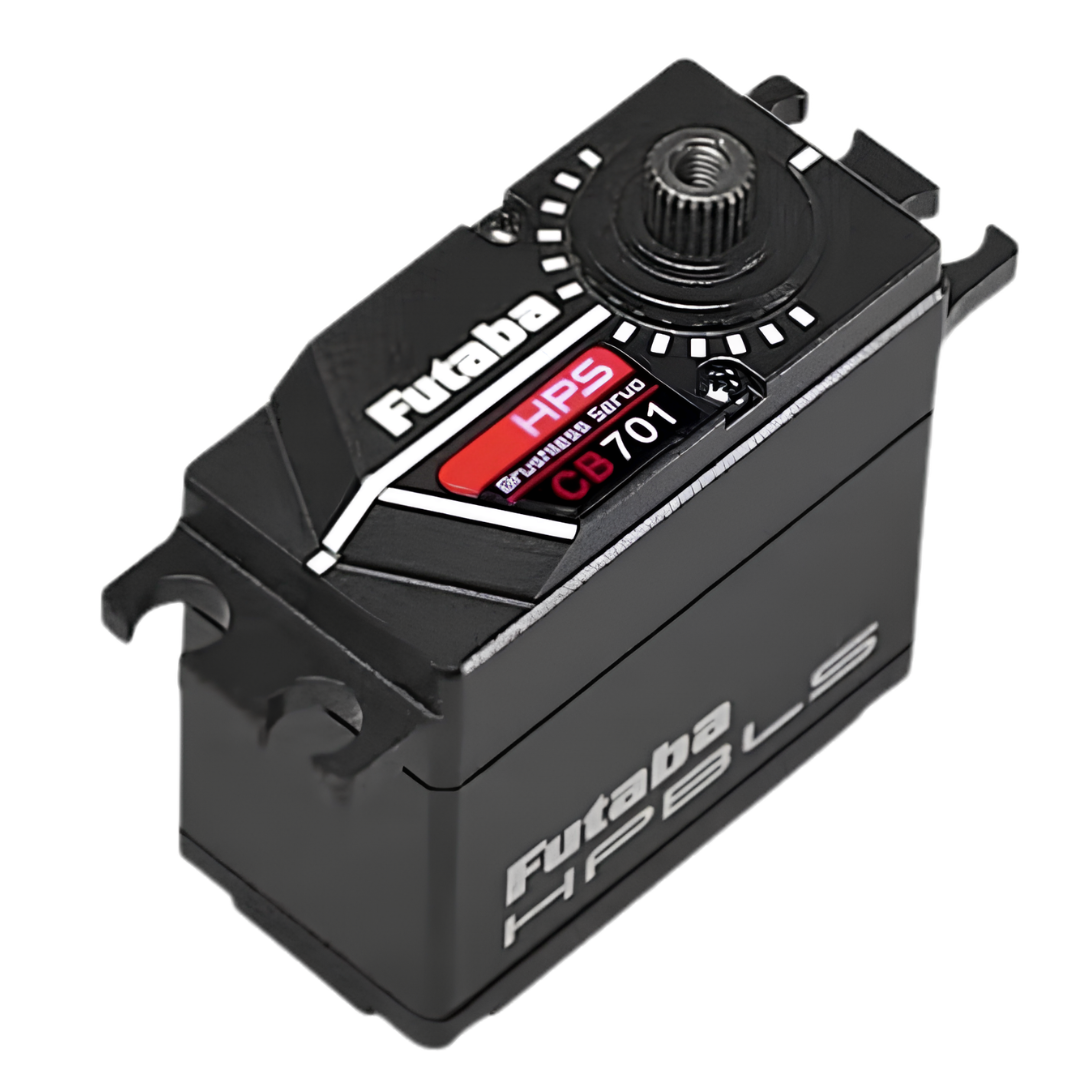

Futaba HPS-CB701 49kg S.BUS2 1/10 1/8 RC Servo FUTSHPSCB701

The Futaba HPS-CB701 is a high-voltage brushless surface servo for 1/10 and 1/8 RC cars, giving race and performance builds high torque, fast response and programmable S.BUS2 control.

This standard-size Futaba HPS servo is suitable for demanding on-road and off-road RC car applications where steering power, speed and precise signal control are important. The aluminium case, metal gears, brushless HPS motor and S.BUS2 compatibility make it a strong option for racers using compatible Futaba transmitters and high-performance receiver systems.

Features

• High-Voltage Brushless Servo: Designed for strong steering performance in compatible 1/10 and 1/8 RC cars
• 49.0kg/cm Torque At 7.4V: Provides high steering force for demanding surface applications
• 0.075sec/60° Speed At 7.4V: Delivers fast response for racing, bashing and precision steering setups
• PWM, S.BUS And S.BUS2 Support: Compatible with standard and programmable Futaba servo control systems
• SR Mode Support: Works with compatible Futaba transmitters for high-speed response setups
• UR Mode Support: Supports Futaba UR mode when used with compatible T10PX equipment
• Programmable Servo Design: Can be adjusted through compatible Futaba S.BUS/S.BUS2 equipment or CIU-2/CIU-3 USB adapters sold separately
• Aluminium Case: Upper, middle and lower aluminium case sections improve rigidity and heat dissipation
• Metal Gear Train: Uses metal 1st to 3rd gears and a metal final gear for durability under steering load
• Dual Ball Bearings: Supports smooth output shaft operation under load

Specifications

• Brand: Futaba
• Model: HPS-CB701
• SKU: FUTSHPSCB701
• Item Number: FUT05102698-3
• Barcode: 4513886035135
• Futaba Product Code: 01102359-1
• Product Type: High-voltage brushless surface servo
• Servo Size: Standard
• Application: RC cars smaller than 1/5 scale
• Suitable Scale Use: 1/10 on-road, 1/10 off-road, 1/8 on-road and 1/8 off-road RC cars
• Command Protocol: PWM, S.BUS and S.BUS2
• Motor Type: Brushless HPS motor
• Circuit Type: Digital
• Rated Voltage: DC 6.0V to 7.4V
• Operating Voltage: DC 4.8V to 8.4V
• Torque At 6.0V: 42.0kg/cm
• Torque At 7.4V: 49.0kg/cm
• Speed At 6.0V: 0.09sec/60°
• Speed At 7.4V: 0.075sec/60°
• Dimensions: 40.5 x 21 x 37.8mm
• Weight: 75g
• Case Material: Aluminium upper, middle and lower case
• Gear Material: Metal gears
• Spline: 25T, 6mm diameter
• Bearings: Dual ball bearing
• Intended Use: High-performance steering servo for compatible RC racing, off-road and surface model applications

Includes

• 1 x Futaba HPS-CB701 HV brushless S.BUS2 surface servo
• Servo horns
• Mounting hardware

FAQ

Is the Futaba HPS-CB701 suitable for 1/10 and 1/8 RC cars? Yes. The Futaba HPS-CB701 is listed for 1/10 scale on-road and off-road RC cars, as well as 1/8 scale on-road and off-road RC cars.

Does the HPS-CB701 support S.BUS2? Yes. The HPS-CB701 supports PWM, S.BUS and S.BUS2 command protocols for compatible Futaba radio systems.

Can this servo be used with a BEC? No. Futaba states no dry battery or BEC use for the HPS-CB701, so OZRC recommends following the Futaba manual carefully when selecting the servo power supply.

Does this servo support SR and UR modes? Yes. The HPS-CB701 supports SR mode with compatible Futaba transmitters and UR mode when used with compatible Futaba T10PX equipment.

Important Notes

• No dry battery use.
• No BEC use.
• For RC cars smaller than 1/5 scale only.
• Use a suitable high-discharge receiver or servo power supply as specified in the Futaba manual.
• Check transmitter, receiver and servo mode compatibility before enabling SR or UR mode.
• CIU-2 or CIU-3 USB adapter for PC programming is sold separately.
• Install with secure mounting hardware and check steering end points before driving to prevent servo overload.
