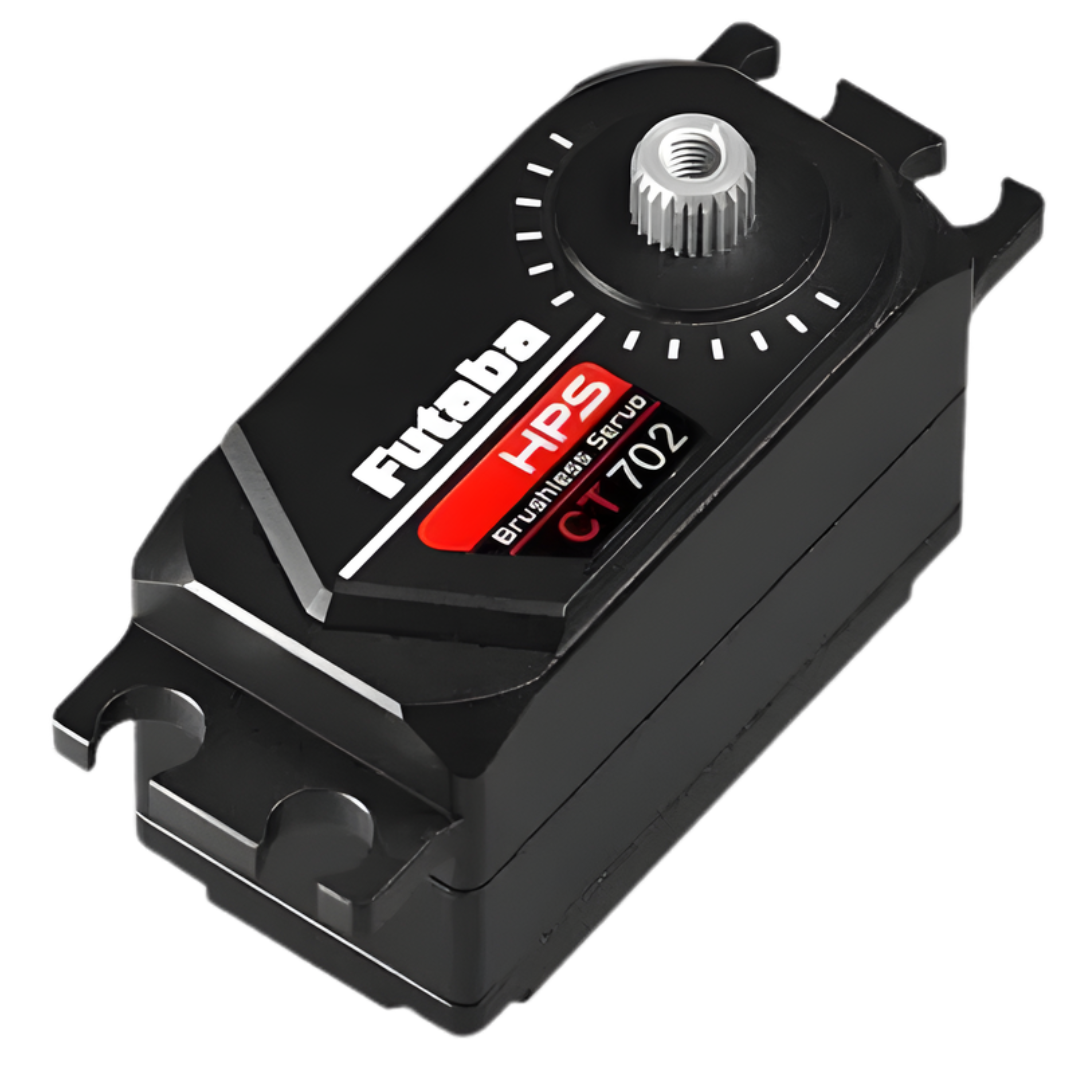

Futaba HPS-CT702 HV Low-Profile Brushless S.BUS2 Servo FUT05102726-3

The Futaba HPS-CT702 is a high-voltage low-profile brushless servo for high-performance RC car applications, delivering up to 30.0kg-cm torque with fast 0.07 sec/60° response at 7.4V plus S.BUS2 SR and UR mode support for compatible Futaba radio systems

Features

• High-performance low-profile surface servo
• Custom Futaba HPS brushless motor for strong torque and low power consumption
• Supports Futaba S.BUS and S.BUS2 systems
• Supports SR Super Response mode with compatible Futaba transmitters and receivers
• Supports UR Ultra Response mode with compatible updated T10PX and R404SBS or R404SBS-E systems
• Programmable servo parameters for compatible Futaba radio systems
• Aluminium upper middle and lower case sections
• Metal first second and third stage gears
• High-strength metal final gear
• Designed primarily for high-performance 1/10 touring car applications
• Suitable for compatible RC cars smaller than 1/5 scale

Specifications

• Brand: Futaba
• Model: HPS-CT702
• Product Type: High-Voltage Low-Profile Brushless Servo
• Application: Surface RC Vehicles
• Primary Application: 1/10 Touring Car
• Control System: S.BUS and S.BUS2
• Response Modes: Normal SR and UR Where Supported
• Rated Voltage: 6.0V to 7.4V
• Operating Voltage: 4.8V to 8.4V
• Speed at 6.0V: 0.08 sec/60°
• Speed at 7.4V: 0.07 sec/60°
• Torque at 6.0V: 23.0kg-cm
• Torque at 7.4V: 30.0kg-cm
• Motor Type: HPS Brushless
• Gear Type: Metal
• Case Material: Aluminium
• Dimensions: 40.5 x 21.0 x 26.2mm
• Weight: Approximately 53g
• Barcode: 4513886038044
• SKU: FUT05102726-3
• Manufacturer Part Number: FUT05102726-3

Includes

• 1 x Futaba HPS-CT702 High-Voltage Low-Profile Brushless Servo

FAQ

How much torque does the Futaba HPS-CT702 produce? Futaba specifies 23.0kg-cm at 6.0V and 30.0kg-cm at 7.4V

How fast is the HPS-CT702? Futaba specifies 0.08 sec/60° at 6.0V and 0.07 sec/60° at 7.4V

Does the HPS-CT702 support SR mode? Yes, the servo supports Futaba SR mode when used with compatible radio equipment such as updated T4PM T7PX and T10PX systems

Does the HPS-CT702 support UR mode? Yes, Futaba currently lists the HPS-CT702 as UR-compatible when used with an updated T10PX and compatible updated R404SBS or R404SBS-E receiver

Can the HPS-CT702 run from 8.4V? Futaba lists an operating voltage range of 4.8V to 8.4V while the published performance figures are specified at 6.0V and 7.4V

Important Notes

• UR mode requires compatible Futaba transmitter receiver and firmware combinations
• Confirm receiver BEC voltage servo dimensions and mounting compatibility before installation
• For RC car use only and not recommended for vehicles 1/5 scale or larger
