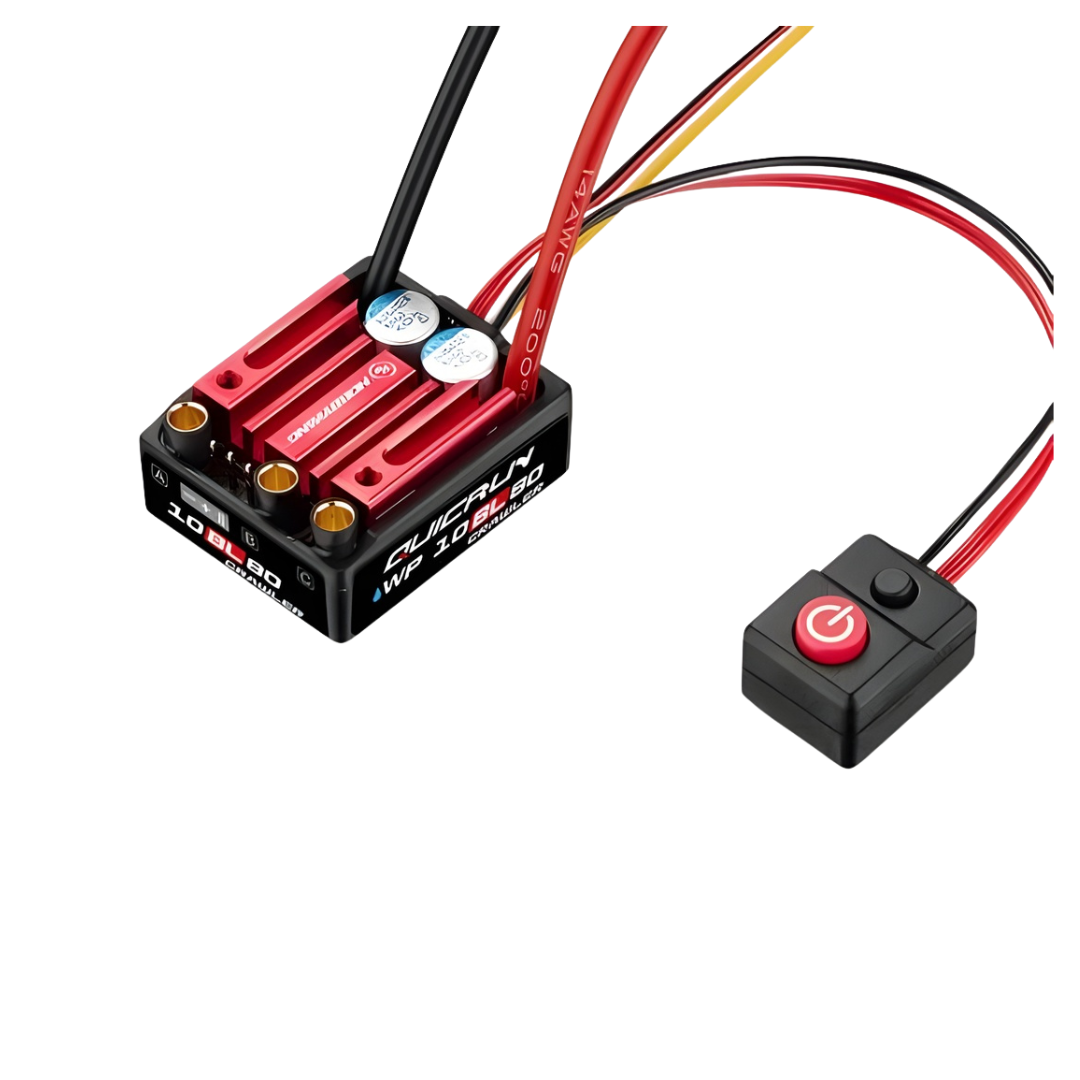

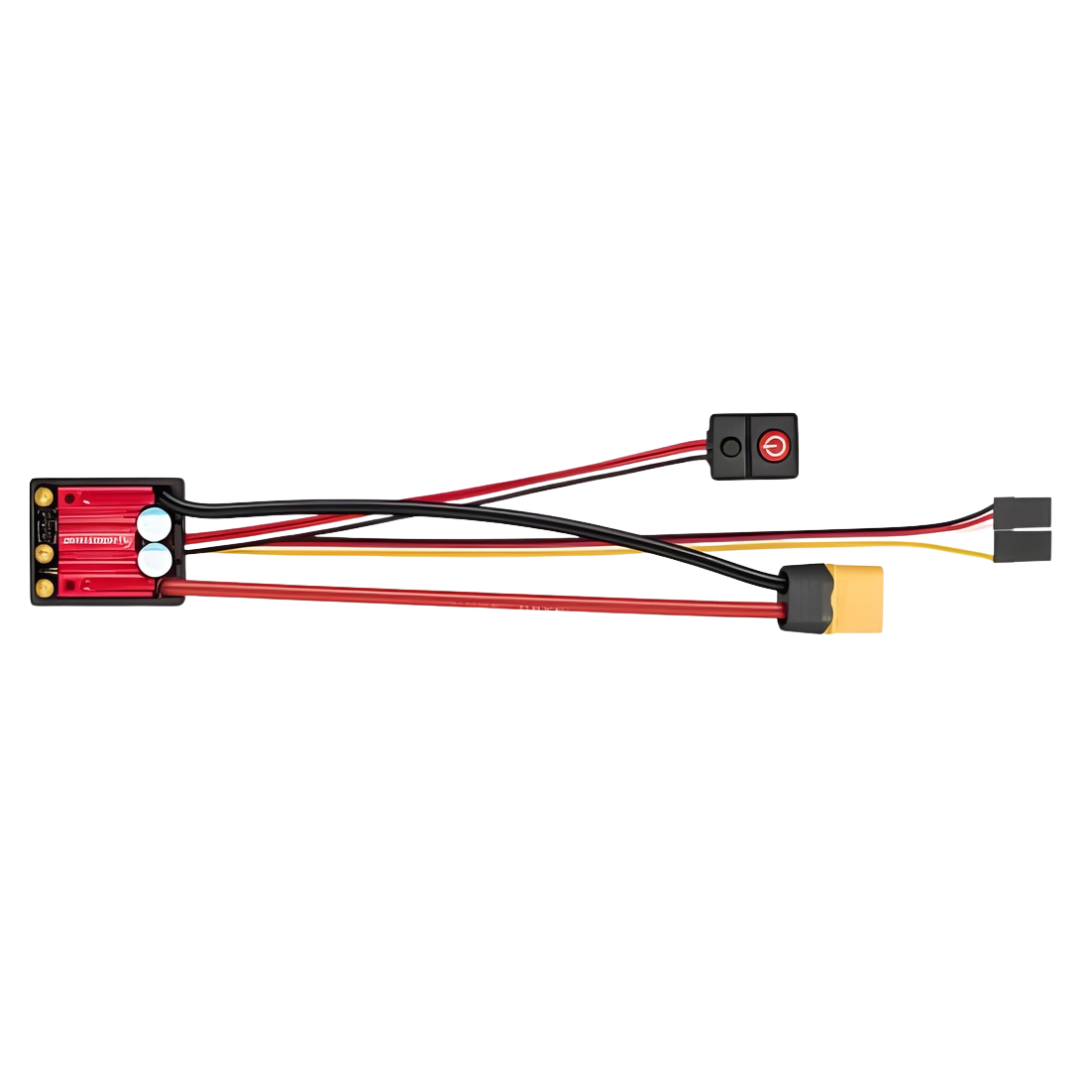

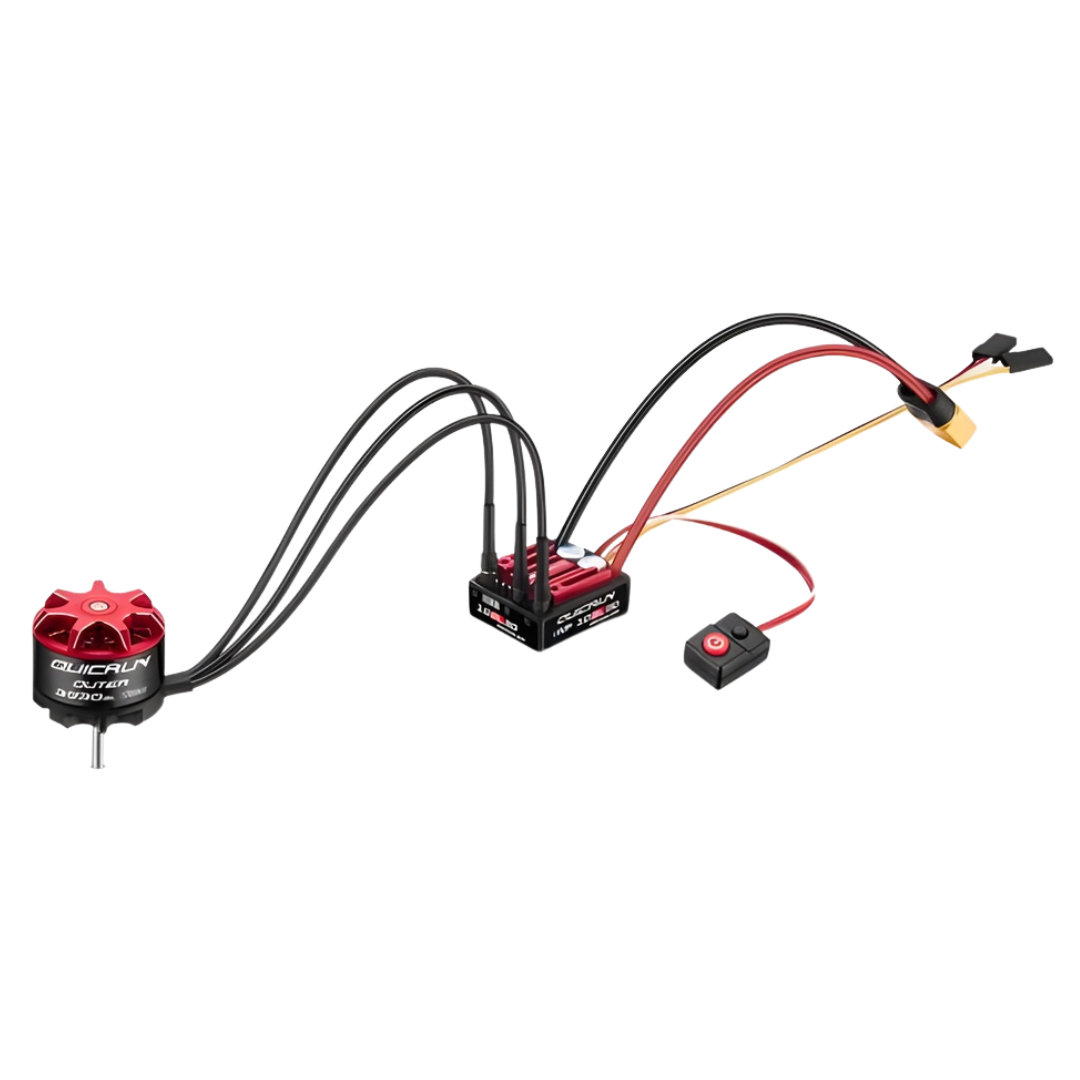

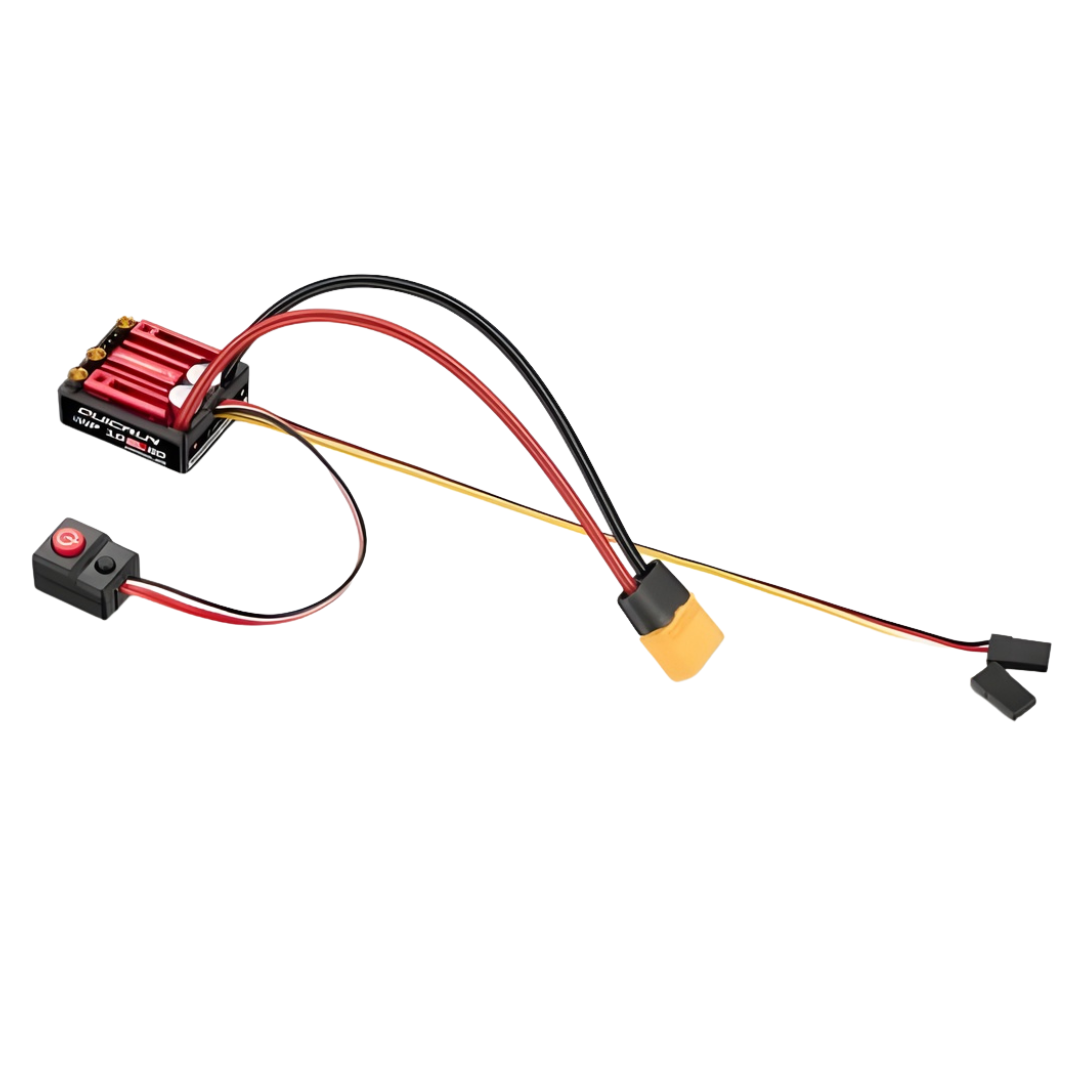

Hobbywing QuicRun WP 10BL80 Crawler Brushless ESC 2-4S Waterproof HW30108002

The Hobbywing QuicRun WP 10BL80 Crawler ESC is a waterproof 80A brushless electronic speed controller designed for 1/10 scale RC crawlers. Supporting both sensored and sensorless brushless motors, it delivers smooth low-speed control, adjustable BEC voltage and reliable performance for demanding crawling applications.

Features

• Waterproof Construction: Designed for reliable operation in wet and muddy crawling conditions
• Brushless Compatibility: Supports both sensored and sensorless brushless motors
• Strong Current Capacity: 80A continuous and 240A peak output for demanding crawler setups
• Excellent Low-Speed Control: Smooth throttle modulation for technical rock crawling
• Adjustable BEC Output: Selectable 6.0V, 7.4V or 8.4V at 5A for modern high-voltage servos
• Multiple Programming Methods: Compatible with the SET button, LED Program Box and LCD Program Box
• Dedicated Programming Port: Allows convenient ESC programming without disconnecting the motor
• Compact Design: Lightweight housing simplifies installation in space-limited crawler chassis

Specifications

• Brand: Hobbywing
• Model: QuicRun WP 10BL80 Outer Crawler ESC
• Part Number: HW30108002
• Product Number: 30108002
• Scale: 1/10
• Product Type: Waterproof brushless electronic speed controller
• Motor Compatibility: Sensored and sensorless brushless motors
• Continuous Current: 80A
• Peak Current: 240A
• Input Voltage: 2S-4S LiPo (3S recommended maximum)
• BEC Output: 6.0V, 7.4V or 8.4V at 5A
• Input Wires: 14AWG, 175mm
• Input Connector: XT60
• Motor Connectors: 3.5mm gold female bullets
• Dimensions: 36 x 30 x 15.5mm
• Weight: 47.8g including wires and connectors
• Waterproof: Yes

Includes

• 1 x Hobbywing QuicRun WP 10BL80 Crawler Brushless ESC

FAQ

What motors are compatible with the QuicRun WP 10BL80 Crawler ESC? The ESC supports both sensored and sensorless brushless motors designed for compatible 1/10 scale crawler applications.

Can the BEC voltage be adjusted? Yes. The integrated BEC can be set to 6.0V, 7.4V or 8.4V at up to 5A, allowing compatibility with a range of steering servos.

Does this ESC support over-the-air programming? No. The QuicRun WP 10BL80 does not support the Hobbywing OTA programmer or firmware upgrades.

Important Notes

• Designed for 1/10 scale crawler applications.
• Supports 2S to 4S LiPo batteries; Hobbywing recommends using no more than 3S.
• OTA programmer and firmware upgrades are not supported.
• Confirm motor and battery compatibility before installation.
