Hobbywing LCD Program Box Pro RC ESC Programmer Bluetooth HW30502002
Couldn't load pickup availability

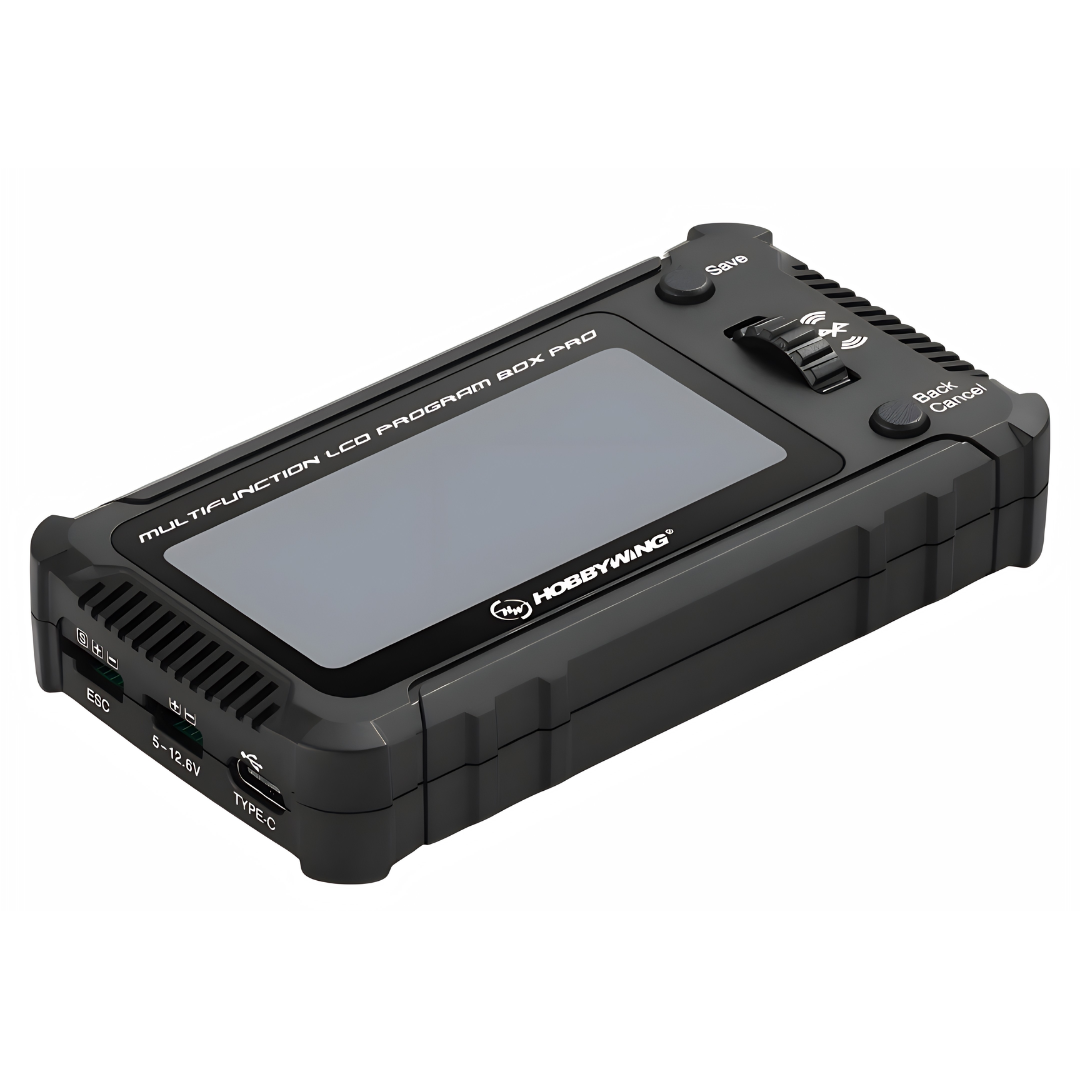

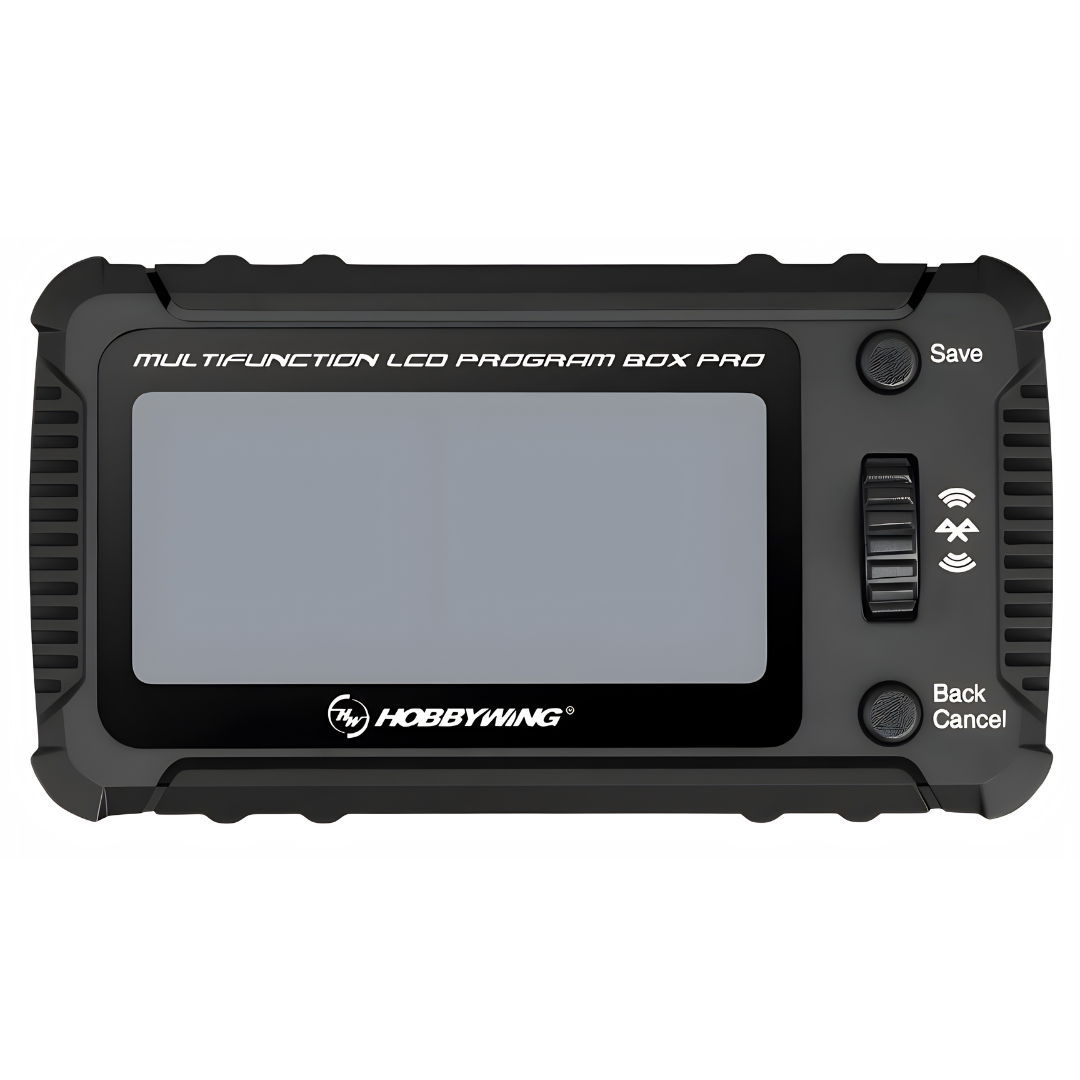

The Hobbywing Multifunction LCD Program Box Pro is a versatile electronic speed controller programming tool for compatible Hobbywing RC car, boat and aircraft ESCs. Featuring a large 2.8-inch LCD display, built-in Bluetooth connectivity, USB-C computer interface and lithium battery voltage testing, it allows users to adjust ESC settings, save and transfer programming profiles, and perform supported firmware updates at home or at the track.
Features
- Multifunction ESC Programmer: View and adjust supported Hobbywing ESC parameters directly through the integrated LCD screen.
- Large 2.8-Inch LCD Display: Clear menu interface provides convenient access to programming settings and system information.
- Integrated Bluetooth Connectivity: Built-in OTA functionality connects to compatible iOS and Android smartphones through the Hobbywing HW LINK V2 app.
- Wireless ESC Programming: Adjust supported ESC settings and perform compatible firmware updates through the smartphone app.
- USB-C Computer Connection: Connect to a compatible Windows PC using Hobbywing USB Link software for ESC configuration and supported firmware updates.
- Programming Profile Management: Import, export and share compatible ESC settings for repeatable vehicle setups.
- Built-In Battery Voltage Tester: Measures overall lithium battery voltage and individual cell voltages for compatible 1S–8S battery packs.
- Multiple ESC Series Supported: Compatible with selected XeRun, EzRun, Platinum, SeaKing Pro and QuicRun electronic speed controllers.
- Rotary Control Interface: Convenient dial-based navigation simplifies programming and menu selection.
- Audible Confirmation: Built-in sound provides feedback when settings are saved, with an option to disable audio.
- Adjustable Display Settings: Supports screen brightness adjustment and multiple interface languages.
- Separate ESC and Power Connections: Dedicated Futaba-style interfaces support ESC communication and external power when required.
- Portable Workshop Tool: Compact 85g design makes it convenient for racing preparation, maintenance and field adjustments.
- Program Box Firmware Updates: Supports updating the programming unit's own firmware using compatible Hobbywing software.
Specifications
- Brand: Hobbywing
- Model: Multifunction LCD Program Box Pro G3
- Manufacturer Part Number: 30502002
- SKU: HW30502002
- Barcode: 6938994400459
- Product Type: RC ESC Programmer and Battery Voltage Tester
- Display: 2.8-Inch LCD
- Control Interface: Rotary Dial
- Input Voltage: DC 5–12.6V
- Wireless Connectivity: Built-In Bluetooth
- Smartphone Application: Hobbywing HW LINK V2
- Mobile Platforms: Compatible iOS and Android Devices
- Computer Connection: USB Type-C
- Computer Software: Hobbywing USB Link
- ESC Connection: Futaba-Style Interface
- External Power Connection: Futaba-Style Interface
- Battery Testing Capability: 1S–8S Lithium Battery Voltage Detection
- Battery Measurements: Overall Pack and Individual Cell Voltage
- Programming Functions: ESC Parameter Adjustment and Compatible Profile Import and Export
- Firmware Functions: Supported ESC and Program Box Firmware Updates
- Compatible ESC Families: Selected Hobbywing XeRun, EzRun, Platinum, SeaKing Pro and QuicRun ESCs
- Dimensions: 105.6 x 59 x 24.4mm
- Weight: Approximately 85g
- Applications: Compatible RC Car, Boat and Aircraft ESC Programming
Includes
- 1 x Hobbywing Multifunction LCD Program Box Pro G3
FAQ
Which Hobbywing ESCs work with the LCD Program Box Pro? It supports selected XeRun and EzRun ESCs from V2.0 onwards, Platinum aircraft ESCs, SeaKing Pro marine ESCs and certain QuicRun models. Compatibility depends on the specific ESC model and firmware. Check the Hobbywing product information or ESC manual before purchasing.
Does the Hobbywing LCD Program Box Pro have Bluetooth? Yes. Bluetooth is built into the programming box, allowing compatible ESC settings, firmware updates and available data to be accessed through the Hobbywing HW LINK V2 smartphone app.
Can I program an ESC without a smartphone or computer? Yes. For supported ESCs, the LCD screen and rotary control allow direct parameter adjustment without needing a phone or computer. A compatible computer or smartphone is required for functions that depend on USB Link or HW LINK software.
Can the Program Box Pro check LiPo battery voltage? Yes. It has a built-in lithium battery voltage tester supporting compatible 1S–8S packs, displaying overall battery voltage and individual cell voltages. This is a voltage checking function, not a battery charging or balancing function.
Does the Program Box Pro need an external power supply? It operates from a 5–12.6V DC supply. When the connected ESC does not provide power through an internal or external BEC, a separate suitable power source is required.
Important Notes
- ESC compatibility must be confirmed by exact model and version. Not every Hobbywing ESC supports this programmer.
- Older or basic ESC models may require a different LED programmer or may not support external programming.
- Some integrated two-in-one ESC and motor systems are not supported.
- The USB-C computer programming function is intended for compatible Windows PC software. Smartphone programming uses the integrated Bluetooth connection.
- Firmware updates and data functions vary according to the connected ESC model.
- The unit requires 5–12.6V DC operating power. Use a separate suitable supply when the ESC cannot provide power.
- Observe correct connector orientation and polarity when connecting the ESC or external power supply.
- The lithium battery testing function does not charge, discharge or balance a battery.
- ESC, battery, RC vehicle, smartphone and computer are not included.
- Any supplied connection cables and additional accessories should be confirmed against the actual retail package.
