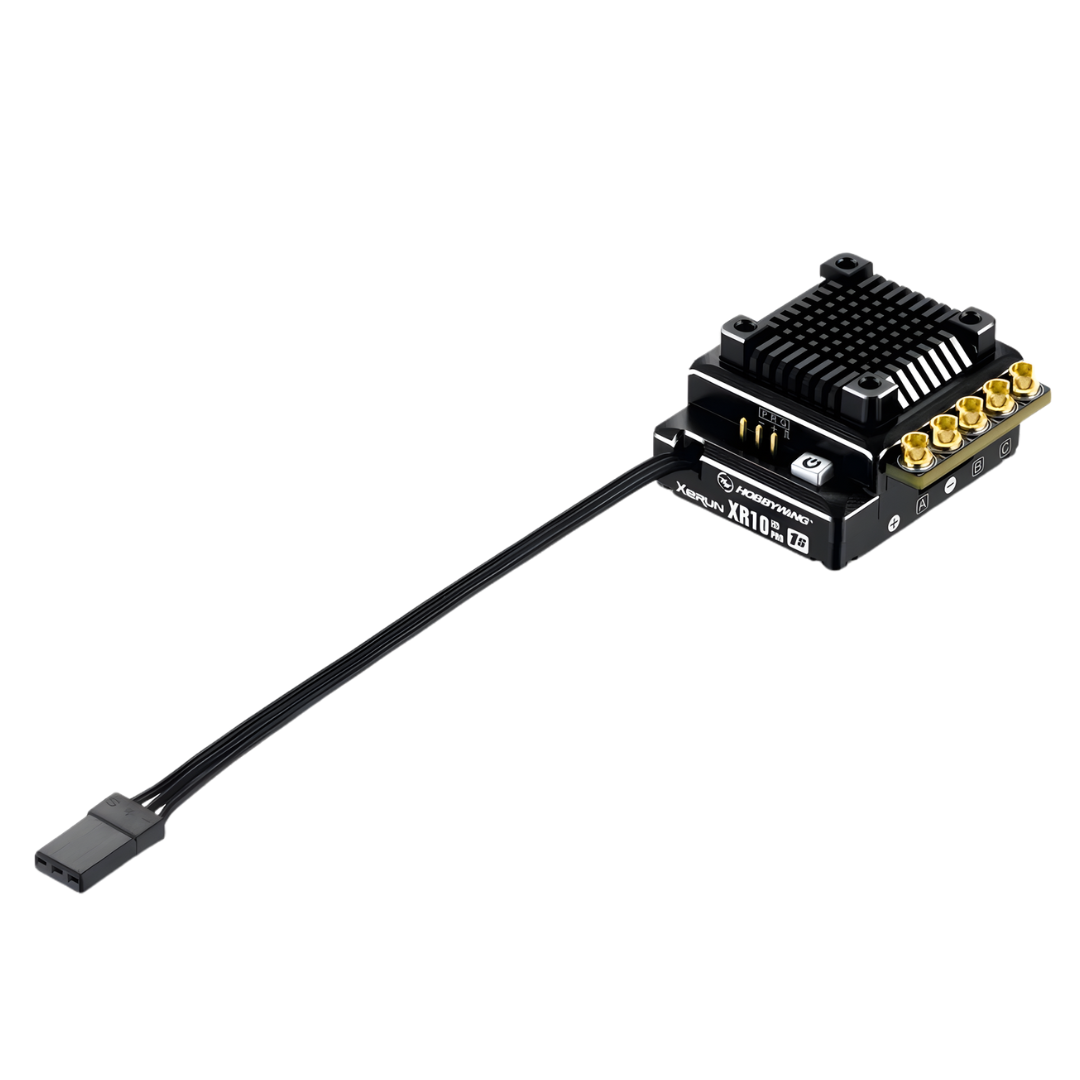

Hobbywing Xerun XR10 Pro 1S Heavy Duty ESC Black Suits 1/12 30112609

The Hobbywing Xerun XR10 Pro 1S Heavy Duty ESC is a high-performance electronic speed controller designed specifically for 1/12 scale competitive racing. Featuring advanced heat dissipation, wireless programmability, and precise throttle control, it delivers exceptional reliability and performance for top-level touring car applications.

Features

• Specialised design for 1/12 scale top-level racing
• Advanced heat dissipation system with patented copper strip and radiator housing
• Built-in BEC with booster circuitry outputs up to 6V/6A for high-power servos
• Integrated electronic switch rated for over 50,000 cycles
• Built-in capacitor module for simplified and neat wiring
• Adjustable throttle and brake PWM frequencies for precision control
• Supports wireless programming, firmware upgrades, and data monitoring via WiFi Express
• Data-logging records ESC and motor temps, RPM, and more
• Separate PRG/FAN port for programming or cooling fan

Specifications

• Scale: 1/12
• Type: Brushless (BL)
• Sensored: Yes (SD)
• Continuous/Peak Current: 120A / 830A
• Input Voltage: 1S LiPo or 3–4 Cell NiMH
• BEC Output: 6V @ 3A (Switch Mode)
• ESC Size: 37.5 x 31 x 31 mm
• Weight: 46.7 g
• Motor Compatibility: Sensored or sensorless brushless motors
• Motor Limit: ≥ 3.0T in Zero-Timing (Blinky) mode

Wires & Connectors

• Input Wires: 12AWG and 14AWG (200mm)
• Output Wires: 12AWG and 14AWG (200mm)
• Input/Output Connectors: Not included

Programming Options

• LCD Program Box: Supported
• WiFi Module: Supported
• Program Port: Separate PRG/FAN port
• Firmware Upgrade: Supported

Includes

• 1x Hobbywing Xerun XR10 Pro 1S Heavy Duty ESC (Black)

Important Notes

• Not waterproof – suitable for indoor/racing applications only
• Requires compatible programming devices for full configuration
