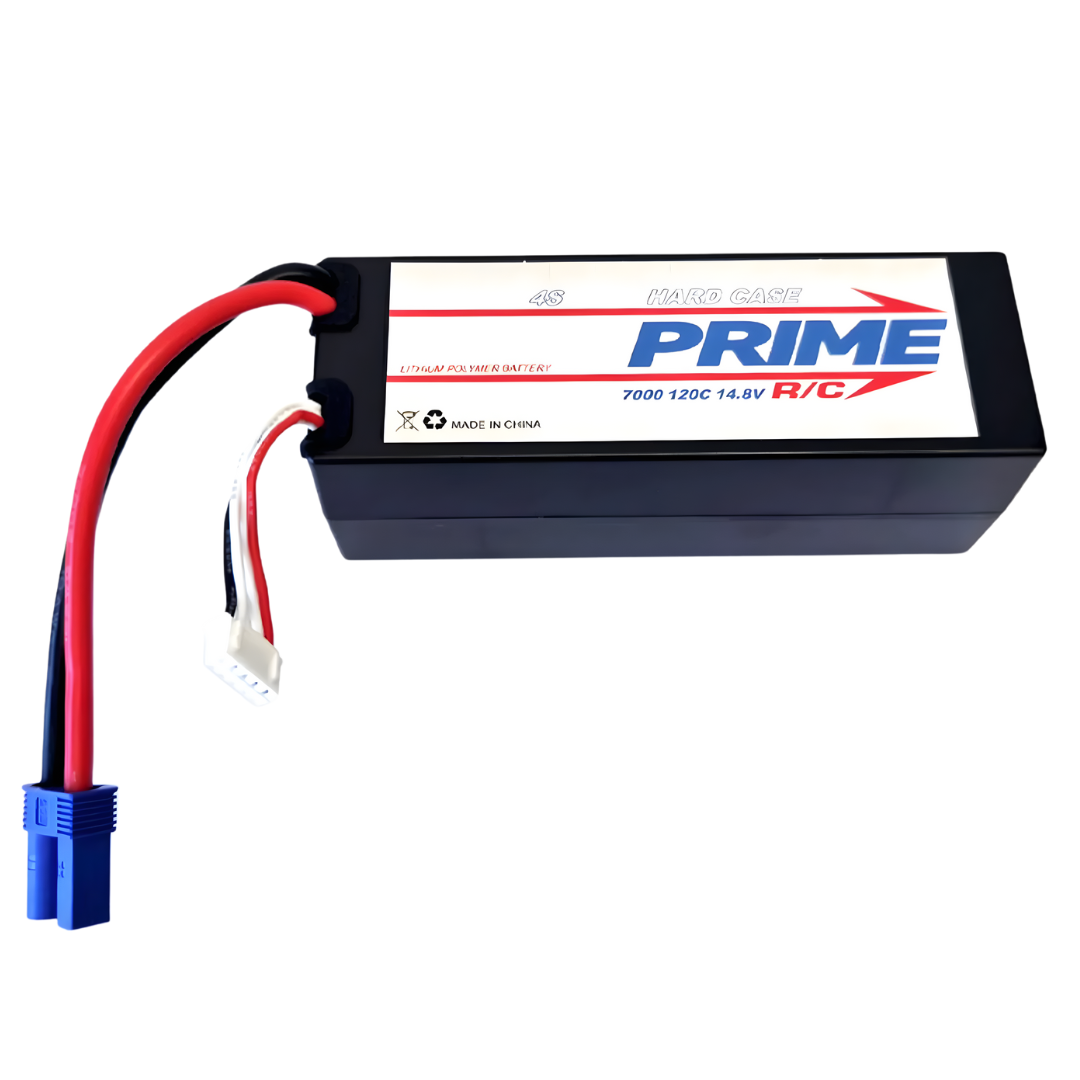

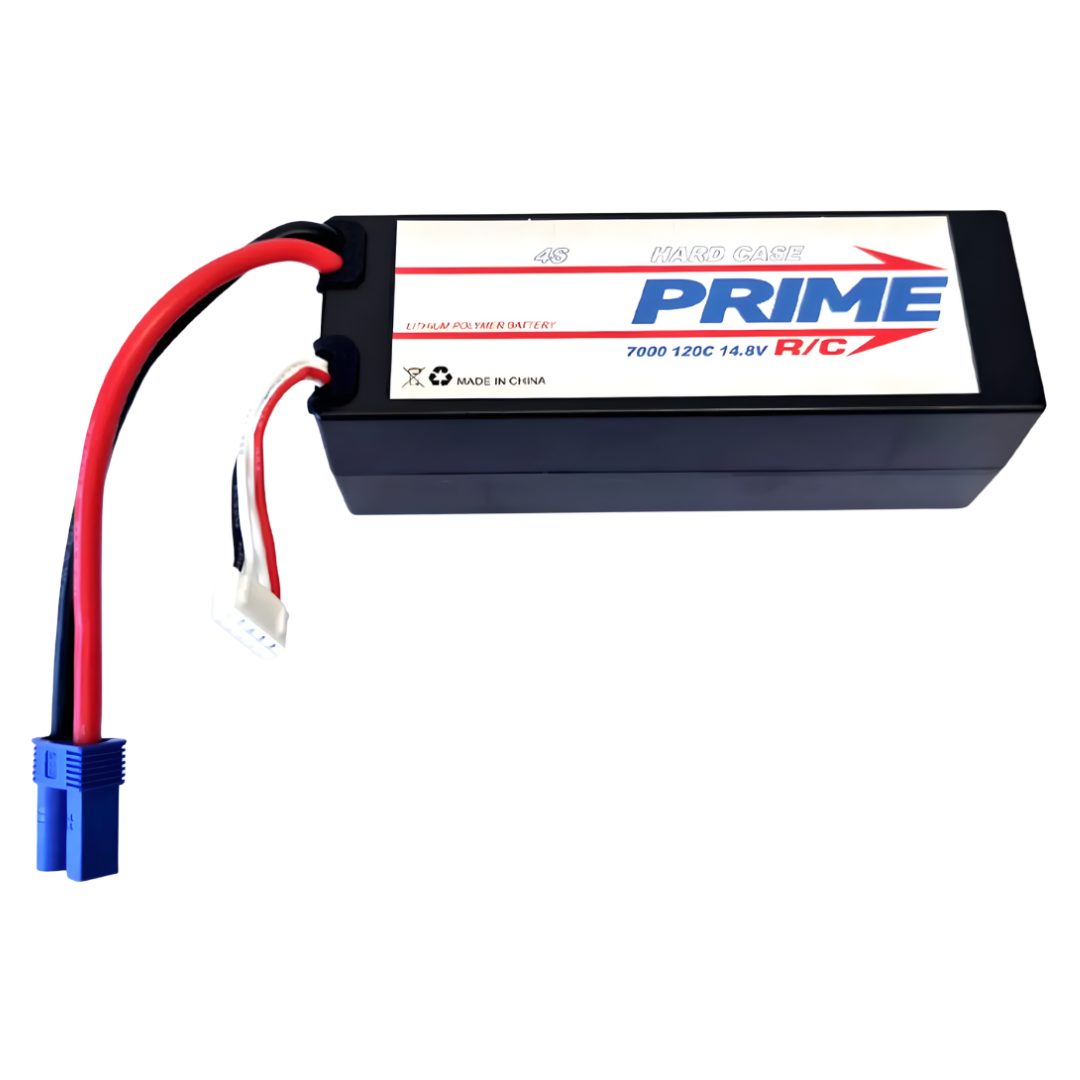

Prime RC 7000mAh 4S 14.8V 120C Hard Case LiPo Battery EC5 PMQB70004SHC

Power demanding RC surface models with the Prime RC 7000mAh 4S Hard Case LiPo Battery. Combining a large 7000mAh capacity, 14.8V four-cell configuration and high 120C discharge rating, this pack is designed to deliver strong acceleration, consistent power and extended runtime in compatible high-performance brushless vehicles.

The durable hard case provides additional physical protection during off-road use, while the factory-fitted EC5 connector supports secure, low-resistance power delivery. Its flat-pack layout makes it suitable for many 1/8-scale cars, trucks, buggies, truggies and selected RC boats, provided the battery dimensions, voltage and connector match the model.

Features

• Large 7000mAh capacity for extended run times
• 14.8V 4S configuration for compatible high-power brushless systems
• High 120C discharge rating
• Strong power delivery for acceleration, bashing and speed applications
• Durable hard-case construction protects the cells from impact and abrasion
• Factory-fitted EC5 high-current power connector
• JST-XH balance connector for compatible balance chargers
• Side-exit power and balance leads
• Flat hard-case pack configuration
• Suitable for compatible RC cars, trucks, buggies, truggies and boats

Specifications

• Brand: Prime RC
• Product Type: Hard-case lithium polymer battery
• Manufacturer Part Number: PMQB70004SHC
• Battery Chemistry: Lithium Polymer (LiPo)
• Capacity: 7000mAh
• Nominal Voltage: 14.8V
• Cell Count: 4S
• Nominal Energy: 103.6Wh
• Discharge Rating: 120C
• Case Type: Hard case
• Pack Configuration: Flat
• Power Connector: EC5
• Balance Connector: JST-XH
• Cable Position: Side exit
• Length: Approximately 138mm
• Width: Approximately 46mm
• Height: Approximately 48mm
• Weight: Approximately 550g
• ROAR Approved: No
• Application: Compatible high-power RC surface vehicles and boats

Compatibility

• Vehicles designed to operate on a 14.8V 4S LiPo battery
• Battery trays that accommodate approximately 138 × 46 × 48mm
• Electronic speed controllers fitted with a compatible EC5 connection
• LiPo chargers capable of balance charging a 4S pack through a JST-XH balance lead

Includes

• 1 × Prime RC 7000mAh 4S 14.8V 120C hard-case LiPo battery
• 1 × Factory-fitted EC5 power connector
• 1 × JST-XH balance lead

FAQ

Will this battery fit my RC vehicle? Check three factors before ordering: your vehicle must support a 4S 14.8V LiPo, its battery tray must accommodate approximately 138 × 46 × 48mm, and its ESC must use a compatible EC5 connection.

Can I use this battery in a 3S vehicle? Only when the vehicle manufacturer and ESC specifications explicitly permit 4S operation. Installing a 4S pack in a system rated only for 2S or 3S can damage the ESC, motor or drivetrain.

Does EC5 fit an IC5 connector? Standard EC5 and IC5 power connectors are generally physically compatible for the main positive and negative connection. This battery does not provide Spektrum Smart telemetry or data functionality.

What charger do I need? Use a LiPo-compatible balance charger that supports four-cell 4S batteries and has the appropriate EC5 charging lead and JST-XH balance-board connection.

What charge current should I use? Follow the charging instructions supplied with the battery. When no higher manufacturer-approved charge rate is stated, a conservative 1C charge for a 7000mAh battery is 7A. A lower charge current is also acceptable but will take longer.

How long will this battery run? Runtime depends on vehicle weight, gearing, motor and ESC efficiency, terrain, driving style and ambient temperature. The 7000mAh capacity generally provides longer runtime than a lower-capacity pack of the same voltage under similar conditions.

Does a 120C rating make the vehicle faster? The rating indicates the battery's claimed discharge capability. Vehicle speed is primarily determined by voltage, motor KV, gearing, tyre size and load. A capable battery can help reduce voltage sag in demanding setups but does not replace correct gearing and electronics selection.

Is the hard case waterproof? No. A hard case provides physical protection but should not be considered waterproof. Avoid submerging the battery and dry it immediately if it becomes wet.

Can this battery be used in an RC boat? It may be used in a boat that supports 4S voltage and has sufficient battery space and a compatible connector. Secure the pack against movement and protect it from water exposure.

How should the battery be stored? Use your charger's LiPo storage program and store the pack at approximately 3.8V per cell in a cool, dry and fire-resistant location. Do not leave it fully charged for extended periods.

When should the battery be retired? Stop using the battery if the case becomes swollen, cracked, punctured or unusually hot, if the wires or connectors are damaged, or if the cells become significantly unbalanced.

Important Notes

• Confirm battery voltage, dimensions, weight and connector compatibility before ordering.
• This battery has a nominal energy rating of approximately 103.6Wh and may be subject to lithium-battery freight restrictions.
• Always use a charger specifically designed for LiPo balance charging.
• Never charge the battery unattended.
• Charge on a non-flammable surface and use a suitable LiPo charging enclosure or bag.
• Do not exceed the charge rate specified by the battery manufacturer.
• Do not use a damaged, swollen, punctured or overheated battery.
• Never short-circuit, crush, modify, dismantle or expose the pack to fire.
• Ensure the vehicle's low-voltage cutoff is enabled and correctly set for LiPo operation.
• Allow the battery to cool before recharging after use.
• Do not leave the pack fully charged for long-term storage.
• Store away from children, pets, direct sunlight and combustible materials.
• Dispose of damaged or end-of-life batteries through an appropriate battery recycling service.
